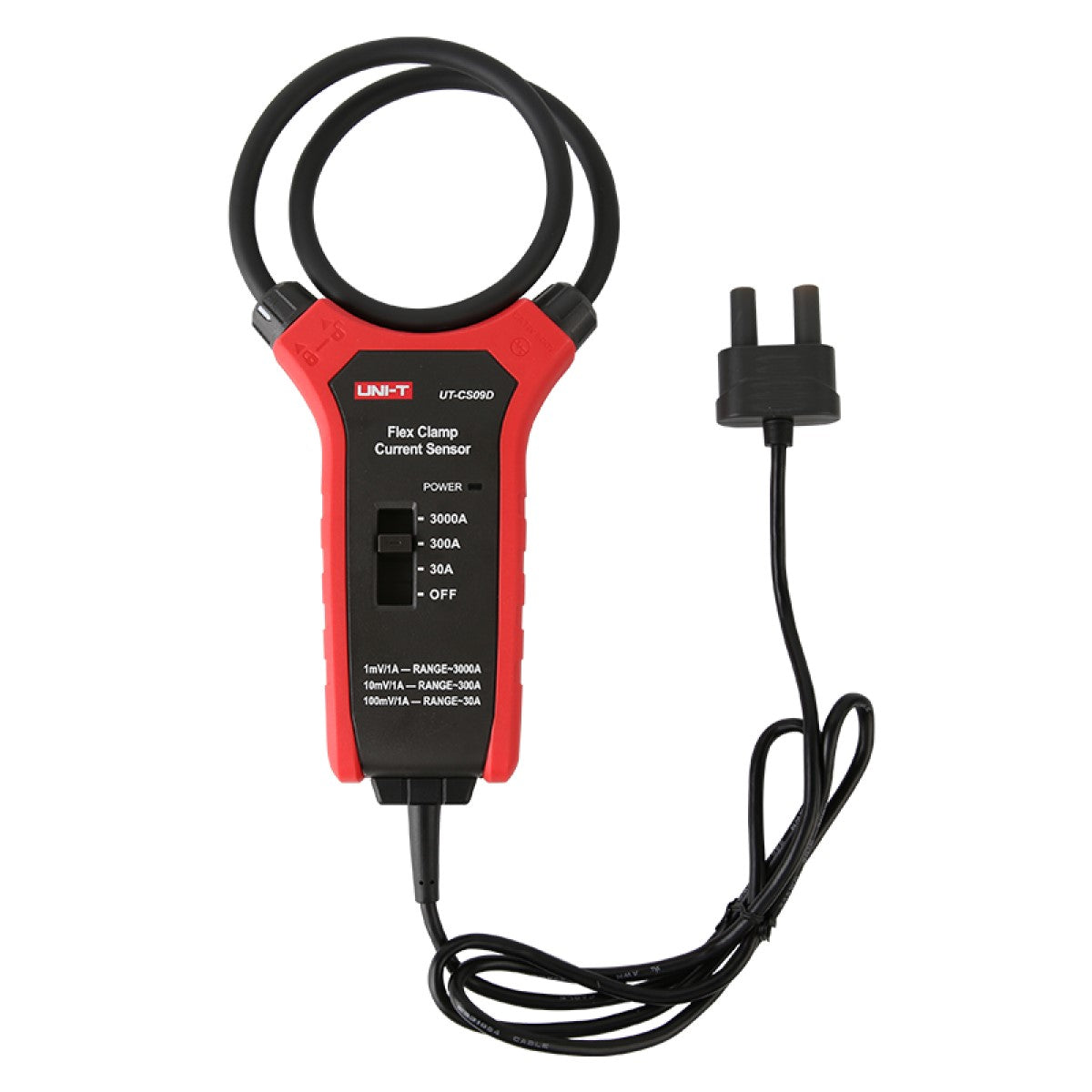

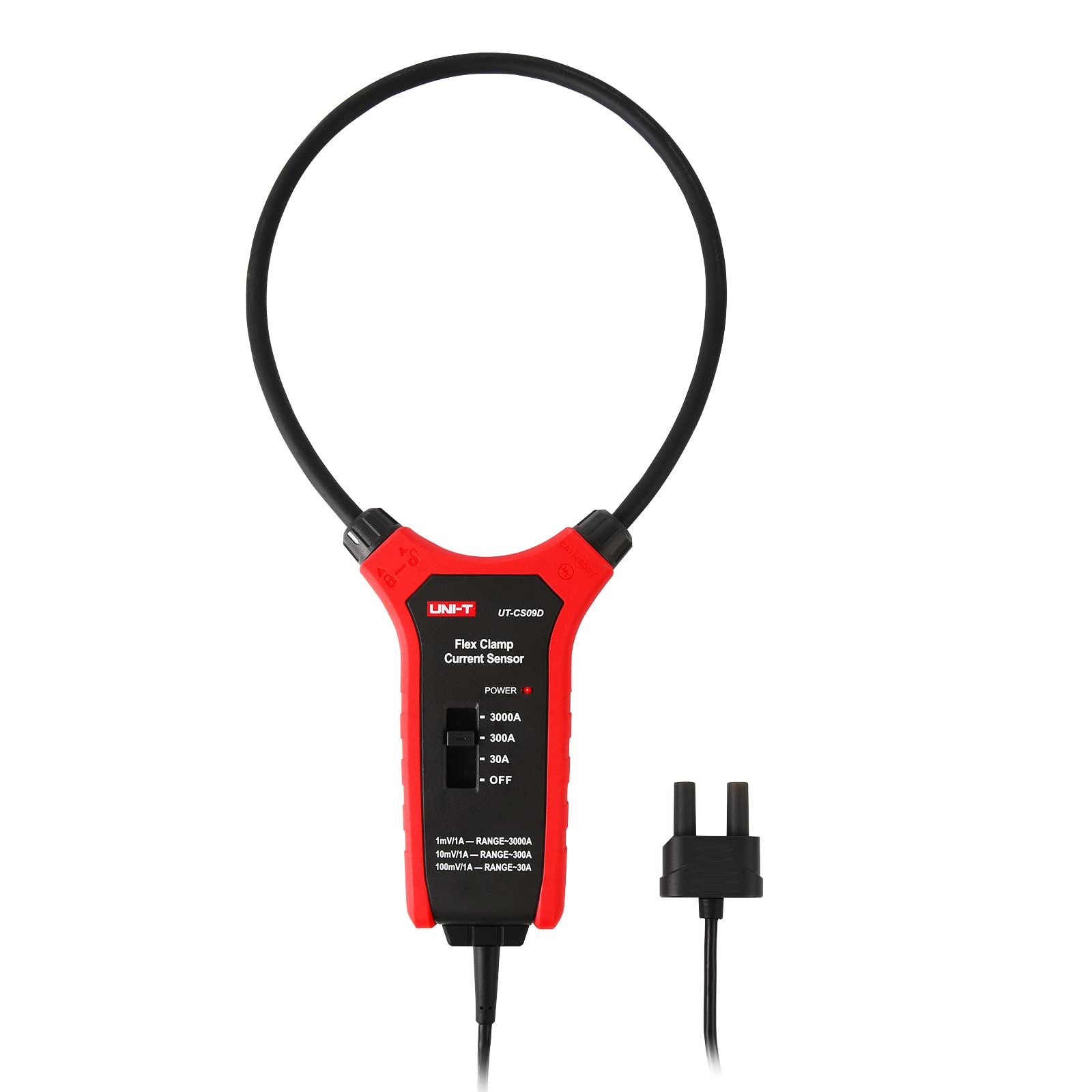

UNI-T UT-CS09D Flex Clamp Current Sensor 1.5A–3000A
Lead Time
Product Description
The UNI-T UT-CS09D is a flexible clamp current sensor designed for high-current AC measurement and electrical maintenance. Its flexible sensing loop makes it convenient for large conductors and installations where a conventional rigid clamp is difficult to use.
Main Features
- Measures AC current from approximately 1.5A up to 3000A
- Flexible clamp for large conductors and confined spaces
- Selectable 30A, 300A and 3000A measurement ranges
- Robust terminal connection
- 1m drop-resistant construction
- Compatible with UNI-T UT206B and UT208B for direct current display
Product Specifications
| Brand | UNI-T |
|---|---|
| Model | UT-CS09D |
| Sensor Type | Flexible AC current clamp / Rogowski-type probe |
| Measurement Range | Approx. 1.5A–3000A AC |
| Selectable Ranges | 30A / 300A / 3000A |
| Typical Output Ratio | 100mV/A, 10mV/A, 1mV/A by range |
| Frequency Response | 45–500Hz |
| Safety Category | CAT IV 600V |
| Drop Rating | 1m |
| Compatible Meters | UNI-T UT206B / UT208B |
Product Features
- Flexible sensing loop simplifies measurement around large conductors and in restricted installation spaces
- Selectable 30A, 300A and 3000A ranges cover electrical maintenance and high-current applications
- Range-dependent output scaling supports compatible meter measurement
- Designed for AC current testing and power-system maintenance
- 1m drop-resistant construction and CAT IV 600V safety rating support field use
Package Includes
1 × UNI-T UT-CS09D Flex Clamp Current Sensor
