VVM485 - Isolated USB to RS485 Convertor
VVM485 - Isolated USB to RS485 Convertor
Low Stock, 1 left
Product Description
VVM485 - Isolated USB to RS485 Convertor by Vajravegha Mobility Pvt. Ltd. is an industrial serial interface converter for galvanically isolated communication between host computers, control equipment and RS485/TTL-connected devices. It supports USB or 5 V TTL serial input and RS485 or TTL serial output, making it suitable for industrial automation, Modbus networks and machine-to-machine communication.
With 1.5 kV DC input-to-output isolation, TVS transient protection, a self-recovery fuse and an original FT232RL USB interface chip, the VVM485 is designed to help protect sensitive electronics from common-ground potential differences and electrical transients. The unit supports serial communication speeds of up to 115200 baud, with LEDs for power, transmit and receive activity.

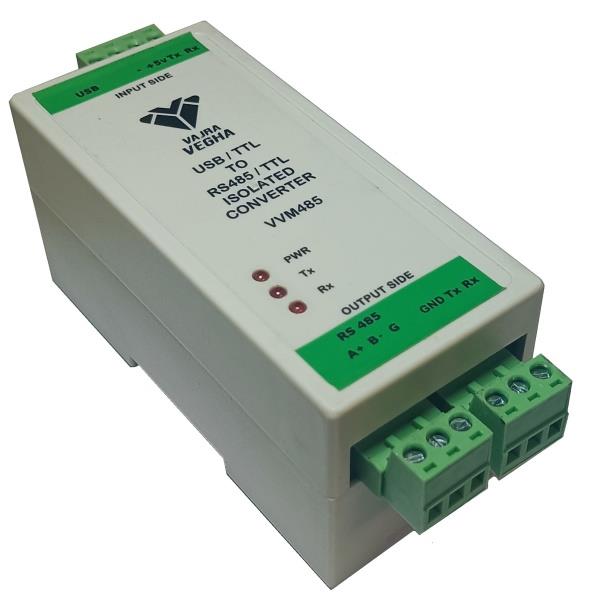

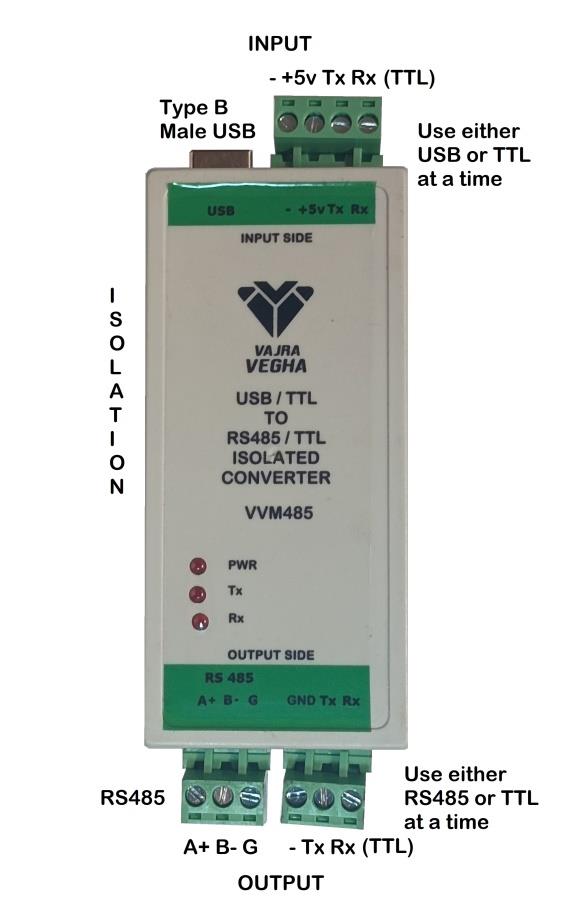

The converter is housed in a 110 × 50 × 50 mm ABS enclosure suitable for DIN-rail or wall mounting. Input is by USB Type-B data cable or 5 V TTL terminals, and output is through labelled RS485 (A+, B−, G) or TTL (GND, Tx, Rx) screw terminals. Only one input mode and one output mode should be used at a time. Made in India.
OEM: Vajravegha VVM485 product catalogue | Technical Datasheet: VVM485 v1.1 PDF
Applications
Product Specifications
| Manufacturer / OEM | Vajravegha Mobility Pvt. Ltd. |
| Product Model / OEM ID | VVM485 |
| TwoElectrons SKU | 2EEN20212 |
| Product Type | Industrial Isolated USB / TTL to RS485 / TTL Serial Converter |
| Datasheet Version | v1.1 |
| Host-Side Communication | USB or TTL serial (select one input mode at a time) |
| Host USB Connector | USB Type-B; connect from host using Type-B male data cable |
| TTL Input Terminals | +5 V, GND (−), Tx, Rx |
| Target-Side Communication | RS485 or TTL serial (select one output mode at a time) |
| RS485 Output Terminals | A+, B−, G |
| TTL Output Terminals | GND, Tx, Rx |
| Galvanic Isolation | 1.5 kV DC, input to output |
| Chipset | Original FT232RL USB serial interface chip |
| Maximum Serial Baud Rate | 115200 baud |
| Protection | TVS diodes for transient/lightning-related surges and self-recovery fuse |
| Power Requirement | Single supply; 5 V is indicated for TTL host input; USB host input supported |
| Status Indicators | PWR, Tx and Rx LEDs |
| Enclosure Material | ABS plastic |
| Mounting Options | DIN rail or wall mounting |
| Dimensions (L × W × H) | 110 × 50 × 50 mm |
| Typical Communication Systems | Serial TTL, RS485, Modbus; RS232 systems through appropriate interface equipment |
| Operating Environment | Industrial cabinet / indoor panel installation; IP rating not specified in brochure |
| Country of Origin | India (Made in India) |
| Official OEM Product Page | https://vv-mobility.com/products-2/ |
| Manufacturer Datasheet | https://vv-mobility.com/wp-content/uploads/2023/06/VVM485.pdf |
Product Features
- Galvanically isolated communication helps protect sensitive host and target devices from hazardous potential differences and common-ground issues.
- Host connection options are a USB Type-B interface or +5 V/GND/Tx/Rx TTL serial input; the two input modes must be used one at a time.
- Target-side connection options are RS485 (A+, B−, G) or TTL serial (GND, Tx, Rx); the two output modes must be used one at a time.
- Input-to-output isolation is rated at 1.5 kV DC.
- Integrated TVS surge-protection diodes and a self-recovery fuse provide electrical-transient protection.
- The OEM specifies an original FT232RL chip with plug-and-play USB drivers.
- Supports serial communication up to 115200 baud.
- Separate PWR, Tx and Rx LEDs provide power and serial-activity indication.
- ABS housing allows DIN-rail and wall mounting in industrial control cabinets.
- Nominal enclosure dimensions are 110 × 50 × 50 mm.
- Use cases include industrial automation, RS485 serial networks, Modbus-based communication and gateway data switching.
- Designed and manufactured in India by Vajravegha Mobility Pvt. Ltd.
Package Includes
- 1 × Vajravegha VVM485 isolated USB/TTL-to-RS485/TTL converter
- USB cable, external power supply and mounting accessories: not confirmed in the OEM packing list
Frequently Asked Questions
What is the VVM485 isolated USB-to-RS485 converter used for?
Which USB, TTL and RS485 connections does the VVM485 support?
What isolation and electrical protection does the VVM485 provide?
Does VVM485 support Modbus RTU, and what is its maximum baud rate?
How can the VVM485 be mounted, and what warranty is included?
Other Information
Country of Origin: India
Warranty Information
1 Year Seller Warranty
This item is covered with a standard warranty of 1 year from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What Voids Warranty
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Shipping & Returns Policy
Shipping Policy:
- In-stock items are delivered within 7-10 working days for orders within India. Delivery varies based on location and courier service.
- In-stock items are delivered within up to 20 working days for orders outside India. Delivery varies based on location and courier service.
- If the item is out of stock, you can still place an order. The estimated delivery time will be notified to you by email.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests from here: Return Request or contact us at 09831070550.
- Refunds are processed within 3-4 working days after inspection and approval.
Main Features
- USB or TTL serial input to RS485 or TTL serial output for isolated industrial communication
- 1.5 kV DC galvanic isolation between input and output sides
- TVS diodes for transient/lightning protection and self-recovery fuse
- Original FT232RL USB interface with plug-and-play driver support
- Serial baud rates up to 115200
- Power, Tx and Rx activity LEDs
- Single power-supply requirement; TTL input identified as 5 V
- Industrial ABS enclosure, DIN-rail or wall mount, 110 × 50 × 50 mm
- Designed for industrial automation, Modbus systems and host-to-machine connections
- Made in India
