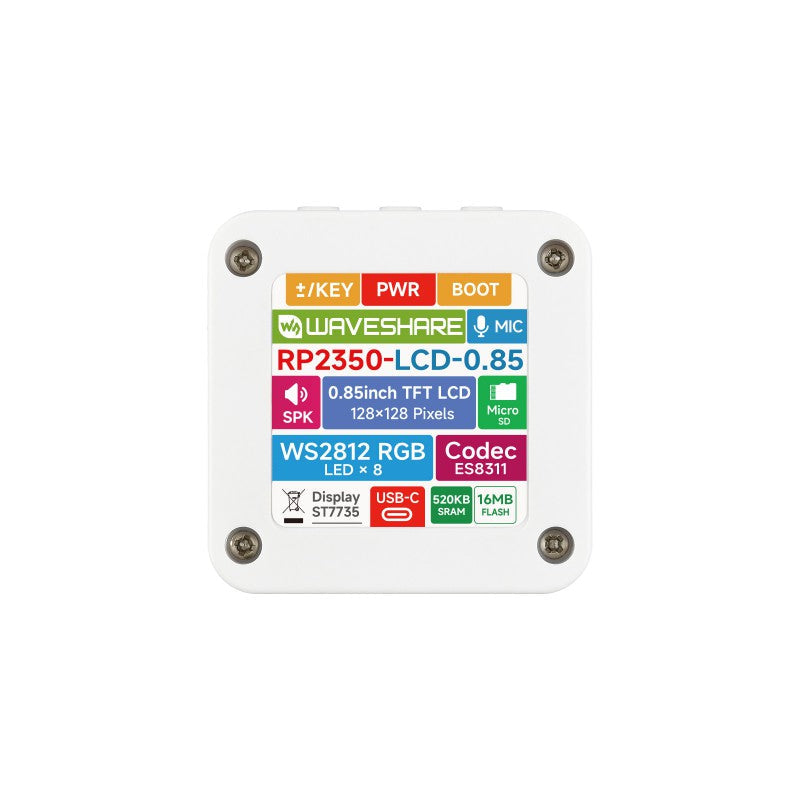

Waveshare RP2350-LCD-0.85-EN Pico 2 Display Board
  • Waveshare RP2350-LCD-0.85-EN Pico 2 Display Board

Product Description

Waveshare RP2350-LCD-0.85-EN Pico 2 Display Board is designed for adding a screen to the compatible host equipment. It suits projects that need information visible at the device, with screen and connection details guiding the choice. The hardware is built around RP2350. The Resolution specification is 128 × 128. The Board specification is RP2350-LCD-0.85-EN. When choosing this display module, start with the documented configuration. Check the screen’s physical fit as well as the host connection. Where touch input is specified, it offers an input option alongside the display; drivers and host requirements still need to match. The CPU Architecture specification is Arm Cortex-M33 / Hazard3 RISC-V. The Maximum Clock specification is Up to 150MHz. The SRAM specification is 520KB. The Flash specification is 16MB. The Display specification is 0.85 inch IPS.

Applications

Edge Data Acquisition Sensor Data Acquisition

Product Specifications

BoardRP2350-LCD-0.85-EN
MicrocontrollerRP2350
CPU ArchitectureArm Cortex-M33 / Hazard3 RISC-V
Maximum ClockUp to 150MHz
SRAM520KB
Flash16MB
Display0.85 inch IPS
Resolution128 × 128
Display ControllerST7735
RGB LEDs8 × WS2812
AudioOnboard microphone, ES8311 codec
StoragemicroSD
USBUSB-C

Product Features

  1. RP2350 Processing Platform
    Available functions include Arm Cortex-M33 and Hazard3 RISC-V architectures for flexible embedded development.
  2. Integrated Mini Display
    Provided by the 0.85 inch IPS panel: a compact local interface for status, menus and visualization.
  3. Audio and Visual Peripherals
    Onboard microphone, audio codec and eight addressable RGB LEDs support interactive applications.
  4. Storage and Portable Power
    Fitted to microSD, USB-C and battery-management: make the board suitable for portable prototypes.

Package Includes

1 × Waveshare RP2350-LCD-0.85-EN Pico 2 Display Board

Frequently Asked Questions

What is the Waveshare RP2350-LCD-0.85-EN Pico 2 Display Board used for?
The Waveshare RP2350-LCD-0.85-EN is a compact Pico 2-class display development board built around the RP2350 microcontroller. It combines a 0.85 inch 128×128 IPS display with 16MB Flash, onboard RGB LEDs, microphone, audio codec, microSD, USB-C and battery-management features for portable embedded, audio and user-interface projects.
What are its main features?
RP2350 dual-architecture microcontroller platform; 0.85 inch 128×128 IPS LCD; ST7735 display controller; Up to 150MHz processing.
What specifications should I check before choosing this product?
Board: RP2350-LCD-0.85-EN; Microcontroller: RP2350; CPU Architecture: Arm Cortex-M33 / Hazard3 RISC-V; Maximum Clock: Up to 150MHz.
What operating or installation limits should I consider?
Resolution: 128 × 128. Keep the installation within the stated limits and check the suitability of the complete setup.
What is included in the package?
1 × Waveshare RP2350-LCD-0.85-EN Pico 2 Display Board

Other Information

Suggested Uses
  • Portable embedded interfaces
  • Audio and voice prototypes
  • Wearable and compact IoT devices
  • MicroPython, Arduino and C/C++ learning projects
Usage Notes

Choose the correct firmware framework and verify peripheral pin assignments before connecting external hardware.
