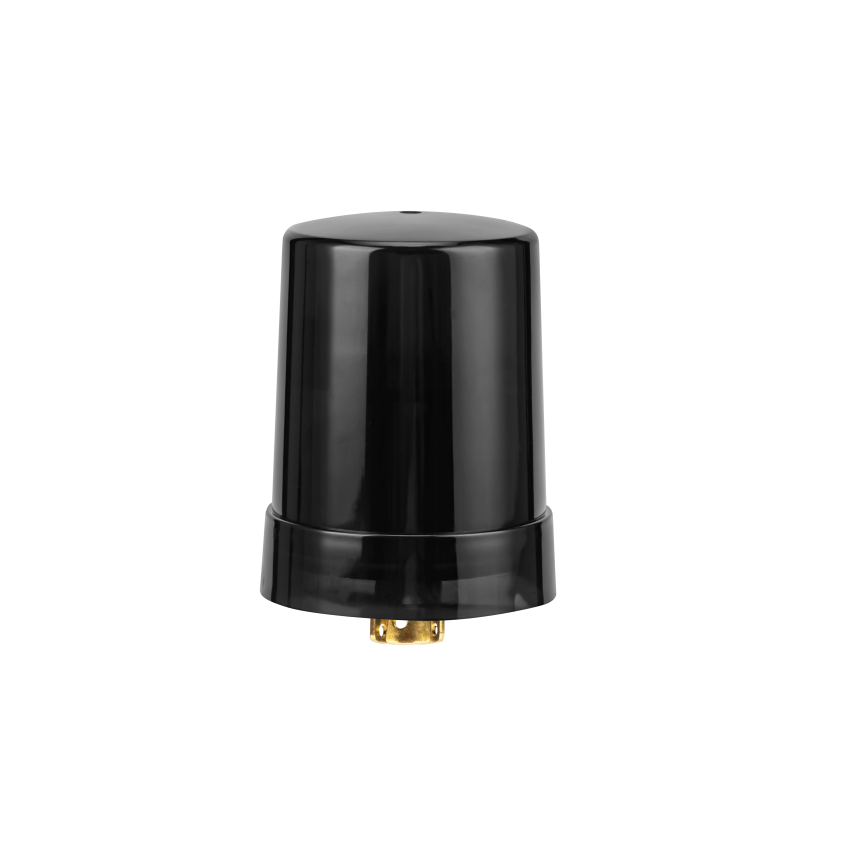

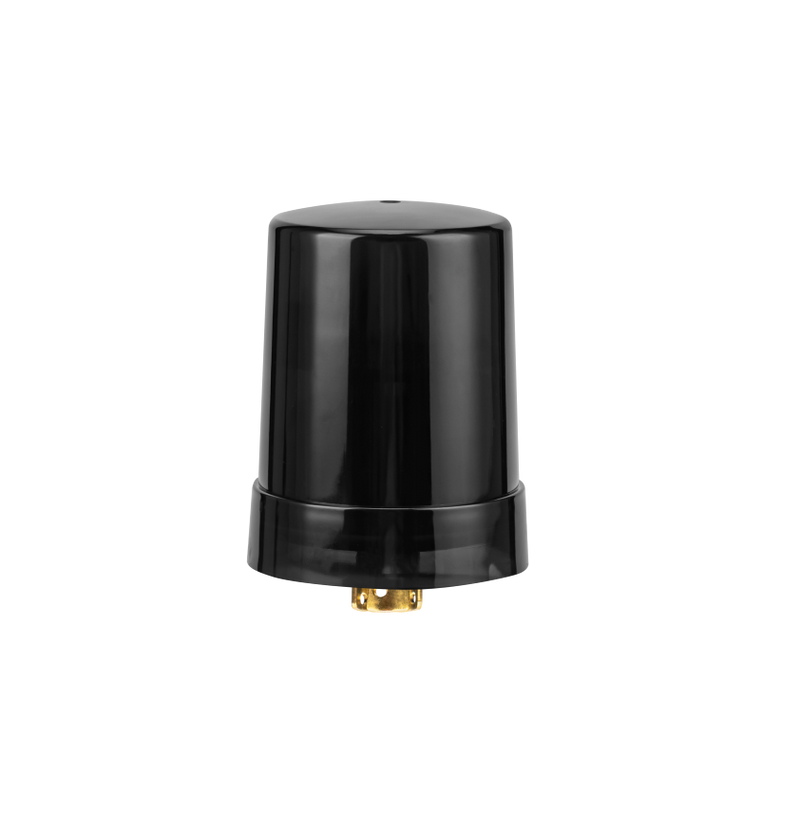

WLC-NEMA-03 LoRaWAN NEMA Lamp Controller
Low Stock, 5 left
Product Description
WLC-NEMA-03 is NEMA interface single lamp controller utilizes LoRaWAN IoT communication technology and is a high-performance energy-saving product developed for intelligent street lighting. The single lamp controller monitors and collects load working parameters such as voltage, current, power, and energy for individual street lamps, and also features functions like lamp on/off control and dimming. Adopting the standard LoRaWAN transmission protocol, the signal is stable and reliable, allowing for rapid integration with third-party platforms. With an IP65 protection rating, it is robust and durable. The single lamp controller is widely used in tunnel lighting, urban road lighting, and landscape lighting.
Applications
Product Specifications
| Brand | Winext |
| Model | WLC-NEMA-03 |
| Product Type | LoRaWAN NEMA Lamp Controller |
| Communication | LoRaWAN Class C |
| Frequency Bands | EU 863–870 MHz / US 902–928 MHz / AU 915–928 MHz / AS 923–925 MHz |
| Max Transmit Power | 19 dBm (adjustable) |
| Receive Sensitivity | -141 dBm @ SF12 |
| Measured Parameters | Voltage, current, active power, electricity consumption |
| Control Parameters | Switch status, brightness level |
| Input Voltage | AC 90–265 V, 50 Hz |
| Output Voltage | AC 90–265 V, 50 Hz |
| Power Consumption | <3 W |
| Relay Contact Capacity | 16 A @ AC 220 V (recommended <10 A) |
| Dimming Output | 0–10 V (default) or 5 Vpp PWM (optional) |
| Output Circuit | 1 relay channel (normally closed) |
| Operating Temperature | -40°C to +80°C |
| Operating Humidity | 10%–95% RH |

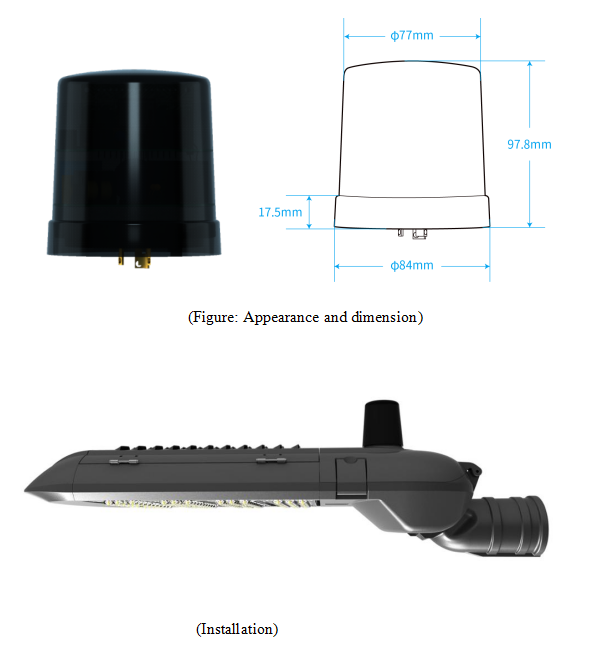

| Dimensions | Φ84 × 97.8 mm |
| Ingress Protection | IP65 |
Product Features
- Uses LoRaWAN Class C communication for responsive remote street-lighting control.
- Supports remote switching and dimming of individual lamps through the application platform.
- Collects voltage, current, active power and electricity-consumption data for each controlled lamp.
- Supports a standard 0-10V dimming interface and optional 5Vpp PWM dimming.
- Built-in photocell enables automatic lamp switching and brightness adjustment according to ambient light.
- Overload and short-circuit protection improve reliability in field deployments.
- IP65 construction and a -40°C to +80°C operating range suit outdoor lighting applications.

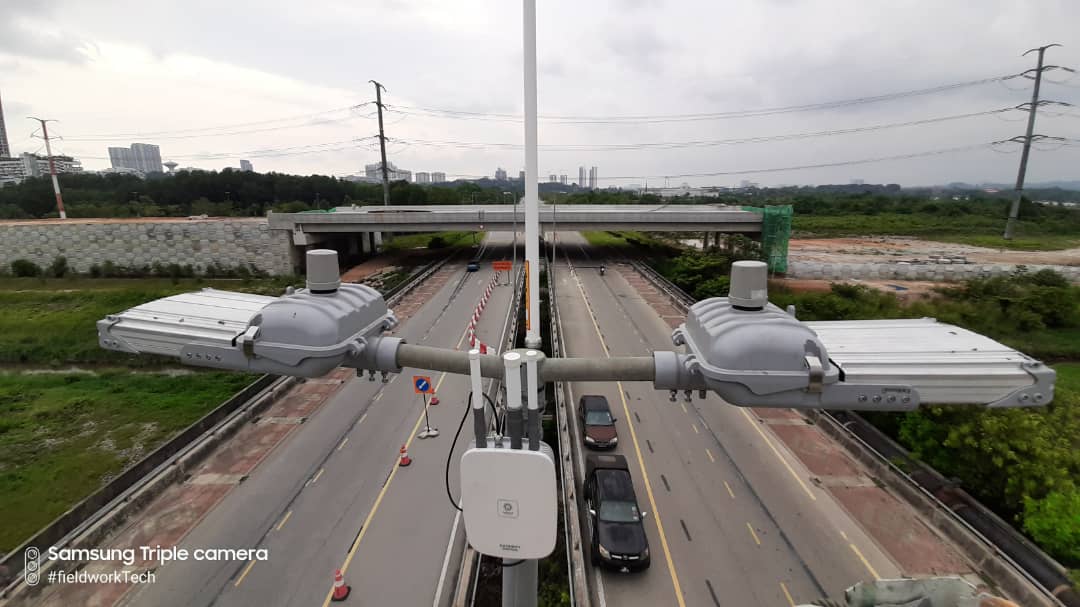

- Designed for urban roads, tunnels, landscape lighting and smart-city street-lighting systems.
Package Includes
- 1 × Winext WLC-NEMA-03 LoRaWAN NEMA Lamp Controller
Other Information
Warranty Information
15 Days Seller Warranty:
This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What Voids Warranty:
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Shipping & Returns Policy
Shipping Policy:
- Delivery time within metro cities in India is 1-3 days; for other locations, it is 3-7 days. Delivery varies based on location and courier service.
- If the item is out of stock, the estimated delivery time is 7-14 days from order confirmation. Delivery varies based on location and courier service.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests from here: Return Request or contact us at 09831070550.
- Refunds are processed within 3-4 working days after inspection and approval.
Main Features
- Supports NEMA and standard LoRaWAN protocol
- Frequency bands: EU863-870MHz, AU915-928MHz, US902-928MHz, AS923, CN470-510MHz and RU864-870MHz
- Remote control for lamp ON/OFF and dimming
- Supports data collection of current, voltage, power and electricity consumption
- Supports 1 PWM or 0-10V dimming output
- Overload and short-circuit protection
- Easy installation and quick response to the application platform
- Working temperature: -40°C to +80°C
- Built-in photocell supports automatic lamp ON/OFF and brightness adjustment according to ambient light
