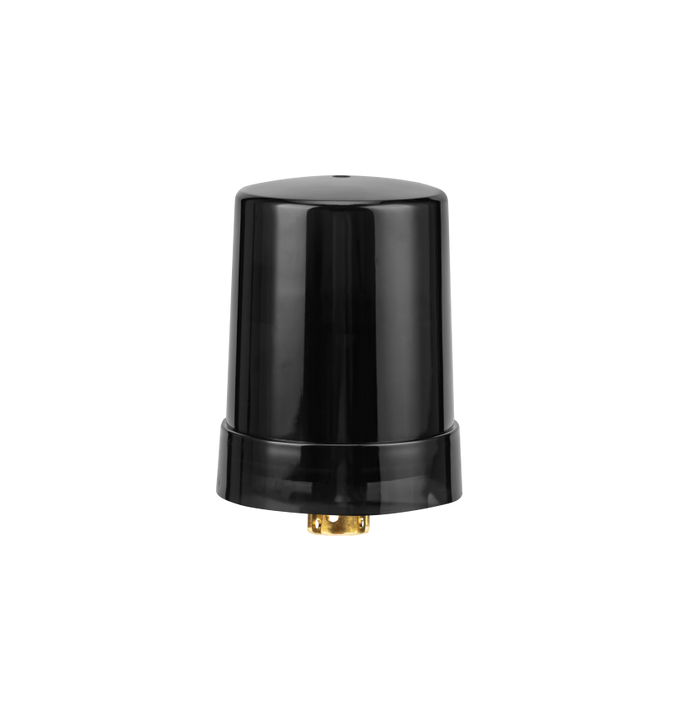

WLC-NEMA-03 LoRaWAN NEMA Lamp Controller
Low Stock, 1 left
Product Description
WLC-NEMA-03 LoRaWAN NEMA Lamp Controller is designed for the applications supported by the specifications below. It suits users selecting this exact part by its documented function, connection and physical format. The Max Transmit Power specification is 19 dBm (adjustable). It accepts AC 90–265 V, 50 Hz at the specified input. The output-voltage specification is AC 90–265 V, 50 Hz. When choosing this lorawan nema lamp controller, start with the documented configuration. Match the part’s stated requirements to the equipment or assembly you already have. The package list establishes what is supplied, while compatibility and operating conditions should be checked separately when planning the complete installation. The Power Consumption specification is <3 W. The Frequency Bands specification is EU 863–870 MHz / US 902–928 MHz / AU 915–928 MHz / AS 923–925 MHz. The Relay Contact Capacity specification is 16 A @ AC 220 V (recommended <10 A). The dimensions figure is Φ84 × 97.8 mm. The Communication specification is LoRaWAN Class C.
Applications
Product Specifications
| Brand | Winext |
| Model | WLC-NEMA-03 |
| Product Type | LoRaWAN NEMA Lamp Controller |
| Communication | LoRaWAN Class C |
| Frequency Bands | EU 863–870 MHz / US 902–928 MHz / AU 915–928 MHz / AS 923–925 MHz |
| Max Transmit Power | 19 dBm (adjustable) |
| Receive Sensitivity | -141 dBm @ SF12 |
| Measured Parameters | Voltage, current, active power, electricity consumption |
| Control Parameters | Switch status, brightness level |
| Input Voltage | AC 90–265 V, 50 Hz |
| Output Voltage | AC 90–265 V, 50 Hz |
| Power Consumption | <3 W |
| Relay Contact Capacity | 16 A @ AC 220 V (recommended <10 A) |
| Dimming Output | 0–10 V (default) or 5 Vpp PWM (optional) |
| Output Circuit | 1 relay channel (normally closed) |
| Operating Temperature | -40°C to +80°C |
| Operating Humidity | 10%–95% RH |
| Dimensions | Φ84 × 97.8 mm |
| Ingress Protection | IP65 |
Product Features
- Operation is based on LoRaWAN Class C communication for responsive remote street-lighting control.
- Available functions include remote switching and dimming of individual lamps through the application platform.
- Collects voltage, current, active power and electricity-consumption data for each controlled lamp.
- Available functions include a standard 0-10V dimming interface and optional 5Vpp PWM dimming.
- Enabled by Built-in photocell: automatic lamp switching and brightness adjustment according to ambient light.
- Overload and short-circuit protection improve reliability in field deployments.
- IP65 construction and a -40°C to +80°C operating range suit outdoor lighting applications.
- Use this version for urban roads, tunnels, landscape lighting and smart-city street-lighting systems.
Package Includes
- 1 × Winext WLC-NEMA-03 LoRaWAN NEMA Lamp Controller
