100-000C1 - NB-IoT & LTE-M Solar Bluetooth Gateway
Low Stock, 1 left
Product Description

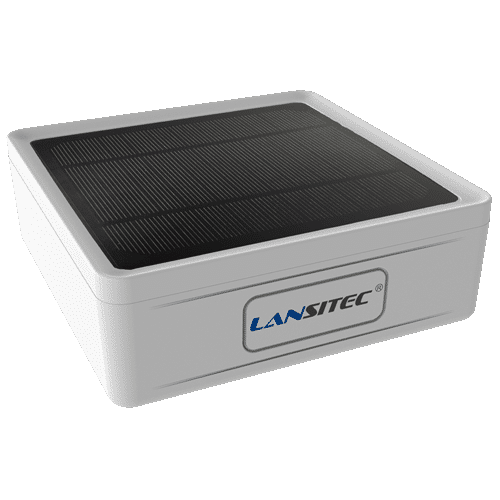

NB-IoT & LTE-M Solar Bluetooth Gateway
The Lansitec NB-IoT & LTE-M Solar Bluetooth Gateway receives nearby Bluetooth 5.0 iBeacon, Eddystone, and compatible proprietary BLE sensor/beacon broadcasts and relays selected location, environmental or asset-management data through a cellular NB-IoT or LTE-M network using MQTT or HTTP. Its 3 W integrated solar panel, 5,300 mAh rechargeable Li-ion battery and IP66 anti-UV PC/ABS enclosure suit outdoor inventory, vehicle, facility, field-security and personnel-monitoring deployments.
The gateway supports Nano SIM or eSIM connectivity, TLS 1.2 secure transport, configurable BLE payload filters, reporting and heartbeat intervals, and Bluetooth firmware updates. Manufacturer specifications state a 160 × 160 × 55 mm enclosure, about 460 g weight, support for up to 105 beacons, and approximately one month of battery operation at the stated 10-second Bluetooth scan / 60-second reporting test settings without adequate solar input. Actual runtime depends on sunlight, settings and mobile network conditions.
Internal catalog verification required before publication: Manufacturer NB-IoT/LTE-M solar product documentation identifies part 100-NBBG1, whereas requested part 100-000C1 is catalogued by specialist suppliers as the LTE Cat-1 Solar Bluetooth Gateway. Verify which OEM part number the quoted ₹18,882 price applies to before activating this draft.
Applications
Vehicle Tracking
Hospital Asset Tracking
Smart Factory
Smart Building
Retail Inventory Management
Asset and Personal Tracking
Product Specifications
| Manufacturer | Lansitec |
|---|---|
| Requested Ordering Part Number | 100-000C1 — pending correction/confirmation |
| OEM NB-IoT/LTE-M Solar Model Number | 100-NBBG1 per Lansitec ordering datasheet |
| TwoElectrons SKU | 2ESE2206 |
| Category | Edge Networking / BLE Gateways |
| Gateway Type | Solar-powered Bluetooth 5.0 to NB-IoT/LTE-M cellular gateway |
| Cellular Connection | NB-IoT (Cat NB1/NB2) and LTE-M |
| Cellular LTE-M Bands | B1, B2, B3, B4, B5, B8, B12, B13, B18, B19, B20, B25, B26, B27, B28, B66, B85 |
| Cellular NB-IoT Bands | B1, B2, B3, B4, B5, B8, B12, B13, B18, B19, B20, B25, B28, B66, B71, B85 |
| SIM Support | Nano SIM or eSIM |
| Cloud / Uplink Protocols | MQTT and HTTP |
| LoRaWAN | Optional variant only; not standard NB-IoT/LTE-M backhaul |
| Wi-Fi | Optional 2.4 GHz positioning feature; not standard backhaul |
| Bluetooth Version | Bluetooth 5.0 |
| BLE Beacon Formats | iBeacon, Eddystone and supported proprietary formats |
| Bluetooth RF Output Power | -20 dBm to +4 dBm, adjustable in 4 dBm steps |
| Bluetooth Sensitivity | -96 dBm |
| Maximum Beacons Supported | 105 (manufacturer stated reference capacity) |
| Maximum Uplink Report Size | 1,400 bytes |
| Data Security | TLS 1.2 |
| Position Report Interval | 5 seconds × n (n = 1–65536) |
| Heartbeat Interval | 30 seconds × n (n = 1–65536) |
| BLE Payload Filtering | Configurable |
| Firmware Upgrade | Bluetooth FOTA supported |
| Mechanical Switch | Supported |
| Solar Panel Power | 3 W |
| Battery Type | Rechargeable lithium-ion battery |
| Battery Capacity | 5,300 mAh |
| Battery Endurance (OEM Reference) | Approximately 1 month at 10-second Bluetooth scan/receive and 60-second reports under OEM test conditions; solar charging can extend operation |
| Maximum Solar Charging Rate | Up to 1,500 mAh/day, conditions dependent |
| Standby Current | 25 µA |
| Maximum Device Current | 300 mA |
| Maximum Charging Current | 500 mA |
| Dimensions | 160 × 160 × 55 mm |
| Weight | 460 g on current Lansitec product page; older documents may vary |
| Housing | Anti-UV PC/ABS |
| Ingress Protection | IP66 |
| PCB Coating | Water-resistant coating |
| Operating Temperature | -20°C to +65°C (current OEM page) |
| Charging Temperature | -20°C to +60°C |
| Storage Temperature | -45°C to +85°C |
| Operating Humidity | 0%–95% RH, non-condensing |
| OEM-Listed Certifications | CE, FCC and RCM for the NB-IoT/LTE-M solar gateway family |
Product Features
- Cellular BLE Data Bridge: Scans nearby Bluetooth 5.0 beacons and sensors and uploads decoded or filtered payload data via NB-IoT or LTE-M to a configured MQTT or HTTP server.
- Solar-Powered Outdoor Operation: A 3 W integrated solar panel replenishes the rechargeable 5,300 mAh Li-ion battery, reducing manual servicing for suitable sun-exposed deployments.
- IP66 Environmental Protection: Anti-UV PC/ABS housing with water-resistant PCB coating is rated IP66 against dust and powerful water jets.
- Flexible Network Integration: Supports supported LTE-M and NB-IoT cellular bands, a Nano SIM/eSIM and custom server reporting. Requires an activated compatible network/SIM.
- Wide Bluetooth Interoperability: Receives iBeacon, Eddystone and supported manufacturer-specific Bluetooth packets from tags, sensors and wearable beacons.
- Low-Power Reporting and Battery Management: Manufacturer quotes approximately one month in a defined 10-second Bluetooth receiving / 60-second reporting scenario without solar replenishment; actual life depends on radio coverage and solar conditions.
- Edge Filtering and Remote Management: Adjustable payload data filters and reporting/heartbeat intervals help reduce network usage. Supported maintenance includes Bluetooth FOTA; remote application configuration depends on deployed software.
- Fleet and Field Visibility: Suitable for monitoring outdoor warehouses, vehicle lots, hospital equipment staging, temporary field-security posts and smart-city asset tags.
Package Includes
- 1 × Lansitec Solar Bluetooth Gateway, NB-IoT/LTE-M family (manufacturer model 100-NBBG1); exact ordering part number must be confirmed before fulfillment
- Integrated 3 W solar panel and rechargeable 5,300 mAh battery, as factory fitted
SIM/eSIM service, mounting accessories, antenna options and any software subscriptions should be checked against the supplied OEM packing list.
Frequently Asked Questions
What does the NB-IoT & LTE-M Solar Bluetooth Gateway do?
Is Lansitec part number 100-000C1 the NB-IoT/LTE-M version?
How are the gateway and solar battery powered?
Which Bluetooth protocols and connectivity does it support?
Can it be installed outdoors and remotely configured?
Other Information
Warranty Information
6 Months Seller Warranty
This item is covered with a standard warranty of 6 months from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What Voids Warranty
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Shipping & Returns Policy
Shipping Policy:
- In-stock items are delivered within 7-10 working days for orders within India. Delivery varies based on location and courier service.
- In-stock items are delivered within up to 20 working days for orders outside India. Delivery varies based on location and courier service.
- If the item is out of stock, you can still place an order. The estimated delivery time will be notified to you by email.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests from here: Return Request or contact us at 09831070550.
- Refunds are processed within 3-4 working days after inspection and approval.
Main Features
- Outdoor Bluetooth 5.0 gateway with NB-IoT and LTE-M cellular backhaul
- Receives iBeacon, Eddystone and proprietary BLE sensor/beacon broadcasts
- Integrated 3 W solar panel and rechargeable 5,300 mAh Li-ion battery
- IP66 anti-UV PC/ABS enclosure for outdoor and industrial installation
- MQTT and HTTP data uplinks over supported cellular NB-IoT/LTE-M networks
- Nano SIM or eSIM support; LTE-M / NB-IoT region and operator bands apply
- Configurable Bluetooth payload filtering, reporting intervals and TLS 1.2 protection
- Bluetooth firmware-over-the-air updates; capacity up to 105 beacons
