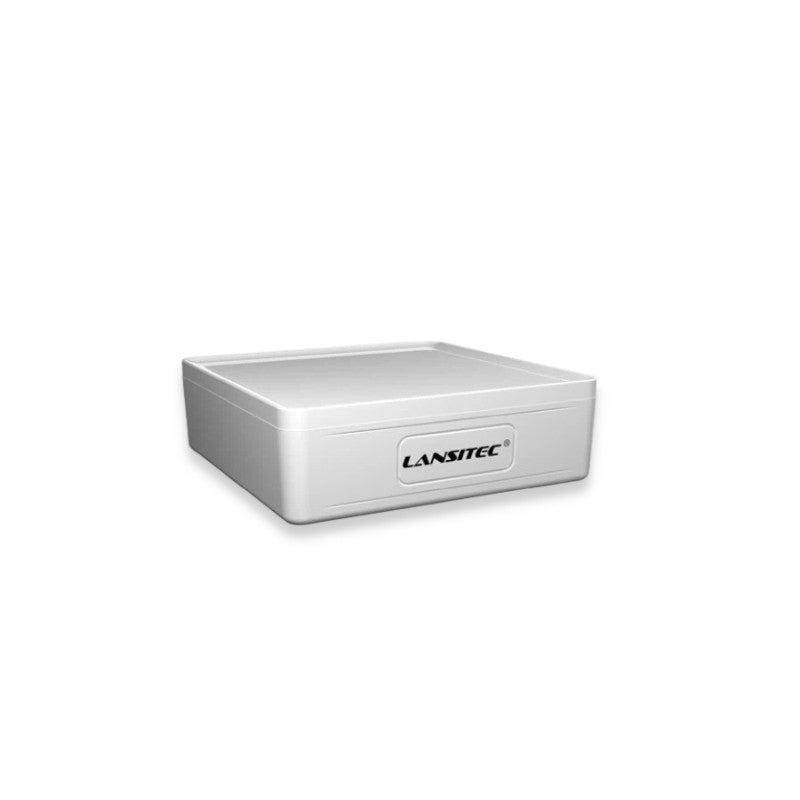

100-000C2 - LTE Cat-1 Macro Bluetooth Gateway
Low Stock, 1 left
Product Description
The 100-000C2 LTE Cat-1 Macro Bluetooth Gateway combines Bluetooth 5.0 beacon reception with an LTE Cat-1 cellular uplink for tracking assets and personnel where wired networks and local Wi-Fi are unavailable. It receives compatible iBeacon, Eddystone and proprietary BLE transmissions, selectively processes their data and forwards reports to configured servers over MQTT, HTTP(S), TCP or UDP. The 160 × 160 × 55 mm IP66-rated enclosure is suitable for outdoor installations and demanding industrial sites.
Two industrial 19,000 mAh non-rechargeable Li-SOCl₂ batteries provide 38,000 mAh nominal combined capacity, with optional four- or six-cell configurations. estimates around five years of operation under its defined test condition of 5-second Bluetooth receiving windows and a 240-second reporting interval. The gateway supports up to 150 m clear-line-of-sight Bluetooth reception, adjustable reporting intervals, Bluetooth firmware updates, battery-level reporting and AES128 encryption. Actual battery life and positioning performance depend on deployment, radio conditions and cellular network configuration.
Applications
Asset Tracking
Equipment Tracking
Logistics Tracking
Remote Sensor Monitoring
Wireless Sensor Networking
Remote Infrastructure
Product Specifications
| OEM Manufacturer | Lansitec |
|---|---|
| Manufacturer Part Number | 100-000C2 |
| Model Name | LTE Cat-1 Macro Bluetooth Gateway |
| Product Category | Edge Networking / BLE Gateways |
| Gateway Type | Bluetooth Low Energy to LTE Cat-1 cellular gateway |
| Bluetooth Version | 5.0 |
| Supported Beacon Formats | iBeacon, Eddystone and compatible proprietary BLE formats |
| BLE TX Power | -20 to +4 dBm, adjustable in 4 dBm steps |
| Bluetooth Receiver Sensitivity | -96 dBm |
| Bluetooth Distance | Up to 150 m line of sight |
| Reference Positioning Precision | 3 m with compatible positioning infrastructure |
| Cellular Network | 4G LTE Cat-1 |
| LTE Cat-1 FDD (China / India) | Bands B1/B3/B5/B8 |
| LTE Cat-1 TDD (China / India) | Bands B34/B38/B39/B40/B41 |
| Other Region Bands | North America FDD B2/B4/B5/B12/B13/B66; Europe/Africa FDD B1/B3/B5/B7/B8/B20; Latin America FDD B2/B3/B4/B5/B7/B8/B28/B66 |
| SIM Interface | Nano SIM or eSIM |
| Network Reporting Protocols | MQTT, HTTP(S), TCP, UDP |
| Security Encryption | AES128 |
| Default Battery | 2 × 19,000 mAh Li-SOCl₂ non-rechargeable primary cells |
| Nominal Battery Capacity | 38,000 mAh total |
| Optional Battery Configurations | 4 × or 6 × 19,000 mAh primary cells, subject to OEM supply |
| OEM Estimated Battery Life | 5 years at 5-second BLE receiving and 240-second reporting interval |
| Standby Current | 25 µA |
| Maximum Current | 500 mA |
| Position Report Interval | 5 s × n (n = 1 to 65,536) |
| Heartbeat Report Interval | 30 s × n (n = 1 to 65,536) |
| BLE Payload Filtering | Configurable selected payload bytes |
| Battery-Level Reporting | Available |
| FOTA | Firmware update over Bluetooth |
| Mechanical Switch | Provided |
| Dimensions | 160 × 160 × 55 mm |
| Weight | 530 g |
| Enclosure Material | Anti-UV PC-ABS |
| PCB Coating | Water-resistant coating |
| Ingress Protection | IP66 |
| Operating Temperature | -20°C to +65°C (OEM technical table) |
| Storage Temperature | -45°C to +85°C |
| Operating Humidity | 0–95% RH, non-condensing |
| Certifications Listed by OEM | CE, FCC for the product family |
| External Power / Wired Interfaces | Not specified as standard in the OEM macro gateway technical table |
| Gateway Internet Connection | Cellular LTE Cat-1; not standalone Wi-Fi or LoRaWAN uplink |
Product Features
- Cellular BLE Data Relay: Collects nearby Bluetooth 5.0 tag or sensor broadcasts and forwards selected data over the LTE Cat-1 mobile network to compatible application servers.
- Long-Lived Industrial Power: Two non-rechargeable 19,000 mAh Li-SOCl₂ batteries form the standard 38,000 mAh pack; larger four- and six-cell options are listed by Lansitec.
- Outdoor Industrial Housing: IP66 anti-UV PC-ABS enclosure and PCB water-resistant coating offer protection for remote utilities, logistics yards and factory locations.
- Global LTE Cat-1 Options: Regional cellular LTE Cat-1 bands are offered for North America, Europe/Africa, China/India and Latin America; confirm India band/SIM compatibility before deployment.
- Flexible Application Integration: MQTT, HTTP(S), TCP and UDP reporting; configurable payload filters can forward selected bytes from received Bluetooth packets.
- Bluetooth Radio and Positioning: Bluetooth 5.0 with iBeacon, Eddystone and proprietary format support; up to 150 m sight distance and around 3 m positioning precision with suitable BLE receiver/site infrastructure.
- Configurable Reporting and Firmware: Position report interval and heartbeat period can be adjusted; firmware updates are supported via Bluetooth, and battery-level reporting is available.
- Maintenance-Free Design Goal: OEM reports five-year reference service under defined scanning and reporting intervals; battery life changes with scan windows, network signal and frequency of data uploads.
Package Includes
- 1 × Lansitec 100-000C2 LTE Cat-1 Macro Bluetooth Gateway
- Standard installed battery configuration (2 × 19,000 mAh Li-SOCl₂ cells), as supplied by OEM
SIM/eSIM service, mounting accessories and software platforms are not confirmed as standard inclusions; check the supplier packing list.
Frequently Asked Questions
What is the Lansitec 100-000C2 LTE Cat-1 Macro Bluetooth Gateway used for?
How long do the gateway batteries last, and are they rechargeable?
Which Bluetooth and cellular networks does this gateway support?
Is the 100-000C2 suitable for outdoor and industrial installations?
Can the 100-000C2 gateway be remotely configured or updated?
Other Information
Warranty Information
1 Year Seller Warranty
This item is covered with a standard warranty of 1 year from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What Voids Warranty
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Shipping & Returns Policy
Shipping Policy:
- In-stock items are delivered within 7-10 working days for orders within India. Delivery varies based on location and courier service.
- In-stock items are delivered within up to 20 working days for orders outside India. Delivery varies based on location and courier service.
- If the item is out of stock, you can still place an order. The estimated delivery time will be notified to you by email.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests from here: Return Request or contact us at 09831070550.
- Refunds are processed within 3-4 working days after inspection and approval.
Main Features
- Bluetooth 5.0 gateway with LTE Cat-1 cellular data backhaul
- Supports iBeacon, Eddystone and compatible proprietary BLE broadcasts
- 38,000 mAh standard industrial battery pack (2 × 19,000 mAh Li-SOCl₂ primary cells)
- Up to 5 years OEM-estimated runtime at 5-second BLE receiving / 240-second reporting conditions
- IP66 anti-UV PC-ABS housing with water-resistant PCB coating
- MQTT, HTTP(S), TCP and UDP reporting with AES128 data encryption
- Up to 150 m Bluetooth line-of-sight range; configurable scanning and reporting
- Nano SIM or eSIM; Bluetooth firmware upgrade and low-battery monitoring
