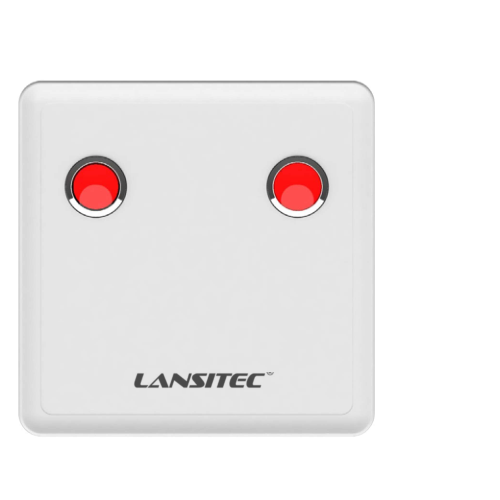

100-02386- LoRaWAN Macro Proximity Gateway
Out of stock
Product Description
LoRaWAN Macro Proximity Gateway
The Lansitec 100-02386 Macro Proximity Gateway combines Bluetooth 5.0 and LoRaWAN connectivity for proximity alarming, indoor tracking and BLE-to-LoRaWAN data forwarding. When a Bluetooth beacon enters the configured proximity range, the gateway activates its buzzer and LED flash, then transmits the beacon ID and received signal strength indicator (RSSI) to a LoRaWAN gateway. The distance between devices is estimated from RSSI.
In addition to proximity detection, the unit functions as a Bluetooth gateway by collecting messages from nearby Bluetooth beacons and forwarding them through LoRaWAN. Users can configure the alarm range, alarm duration, heartbeat period, location reporting interval, Bluetooth receiving duration and message payload size to suit the application.
Part number 100-02386 is supplied with a built-in antenna, Bluetooth 5.0, an IP66 enclosure and a 76,000mAh Li-SOCl2 battery configuration. It is designed for applications such as hospital asset tracking, vehicle tracking and personnel tracking.
Product Specifications
| Model / Part Number | 100-02386 |
|---|---|
| Product Type | LoRaWAN Macro Proximity Gateway |
| Dimension | 160 × 160 × 55 mm |
| Weight | 530g |
| Operating Temperature | -45°C to +85°C |
| Storage Temperature | -60°C to +90°C |
| Operating Humidity | 0% to 95% (non-condensing) |
| Ingress Protection | IP66 |
| Battery | Li-SOCl2, 19,000mAh × 4 (76,000mAh total for part number 100-02386) |
| Optional Battery Configurations | 38,000mAh / 76,000mAh / 114,000mAh |
| Standby Current | 15μA |
| Bluetooth Protocol | Bluetooth 5.0 |
| Bluetooth TX Power | 4, 0, -4, -8, -12, -16, -20dBm |
| Bluetooth Sensitivity | -96dBm |
| Bluetooth Receiving Range | 50m |
| LoRaWAN Protocol | LoRaWAN 1.0.2B |
| LoRa Frequency | US915, AU915, EU868, EU433, AS923, RU864, KR920, IN865, CN470 |
| LoRa Maximum RF Power | 22dBm |
| High TX Power Option | Max. 30dBm; receiving sensitivity down to -150dBm |
| LoRa Sensitivity | -139dBm @ SF12, BW125kHz, 434/470MHz; -137dBm @ SF12, BW125kHz, 868/915MHz |
| Access Quantity | >500 in one LoRaWAN gateway |
| Encryption | AES128 |
| Alarm RSSI Threshold | Default -65dBm, adjustable |
| Buzzer Volume | 0 (silent) to 4 (maximum) |
| Buzzer Duration | 10s × n (1 to 255) |
| Position Report Interval | 5s × n (1 to 65536) |
| Heartbeat Report Interval | 30s × n (1 to 255) |
| FOTA over Bluetooth | Supported |
| Switch | Mechanical |
| Maximum Beacons Supported | 105; maximum 15 beacon messages in one LoRaWAN packet @ SF9 |
| Certification | CE, FCC, RCM |
Product Features
- Proximity Alarm: Activates buzzer and LED flash when a Bluetooth beacon enters the configured proximity range.
- RSSI-Based Distance Estimation: Calculates proximity using received signal strength between the gateway and Bluetooth beacon.
- BLE-to-LoRaWAN Gateway: Collects nearby Bluetooth beacon messages and forwards them through LoRaWAN.
- Configurable Reporting: Position report interval 5s × n (1–65536) and heartbeat interval 30s × n (1–255).
- Adjustable Alarm: Default alarm RSSI threshold -65dBm, adjustable; buzzer volume 0–4 and buzzer duration 10s × n (1–255).
- Bluetooth Payload Filtering: Filters selected Bluetooth payload bytes before reporting via LoRaWAN.
- Rugged Design: IP66 enclosure, 160 × 160 × 55 mm, 530g.
- Remote Maintenance: FOTA over Bluetooth supported.
Package Includes
- 1 × 100-02386 LoRaWAN Macro Proximity Gateway
Other Information
Country of Origin: China
Warranty Information
1 Year Seller Warranty
This item is covered with a standard warranty of 1 year from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What Voids Warranty
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Shipping & Returns Policy
Shipping Policy:
- Delivery time within metro cities in India is 1-3 days; for other locations, it is 3-7 days. Delivery varies based on location and courier service.
- If the item is out of stock, the estimated delivery time is 7-14 days from order confirmation. Delivery varies based on location and courier service.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests from here: Return Request or contact us at 09831070550.
- Refunds are processed within 3-4 working days after inspection and approval.
Main Features
- Bluetooth 5.0 + LoRaWAN 1.0.2B for proximity alarming and BLE data forwarding.
- Built-in buzzer and LED flash for configurable close-proximity alarms.
- Indoor tracking and geo-fence support using RSSI-based proximity estimation.
- Configurable alarm range, buzzer duration, heartbeat, position report interval and Bluetooth payload.
- Supports tracking labels, beacons, sensors and bracelets.
- Bluetooth receiving range up to 50m with configurable TX power.
- FOTA over Bluetooth and AES128 encryption.
- IP66 enclosure with 76,000mAh Li-SOCl2 battery configuration for part number 100-02386.
- CE, FCC and RCM certified.
