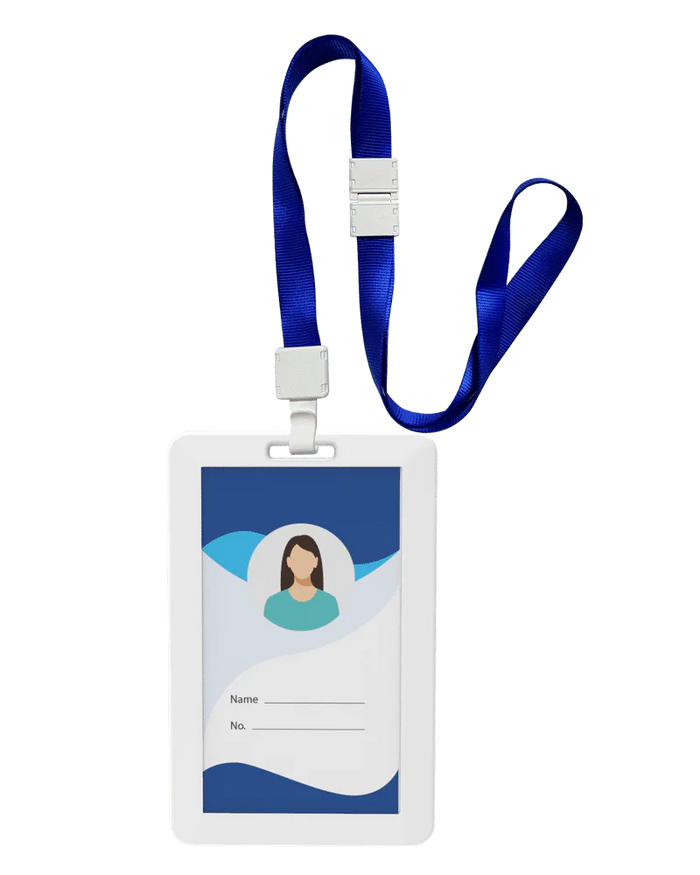

100-02566 - LoRaWAN Badge Tracker
Low Stock, 1 left
Product Description
LoRaWAN Badge Tracker
100-02566 - LoRaWAN Badge Tracker is designed for keeping track of assets in the applications named below. Positioning method and radio support determine how a tracker fits into the wider monitoring system. Charging Interface support is listed as Micro USB. Power is provided through the stated 600mAh rechargeable Li-ion battery arrangement. The Battery Life specification is Up to 5 months. When choosing this lorawan badge tracker, start with the documented configuration. Plan the receiving network alongside the tracker. Battery endurance and communication-distance figures describe the conditions stated for this model; actual deployment conditions also matter. This version also supports low-battery alert. The LoRa Frequency specification is US915, AU915, EU868, EU433, AS923, RU864, KR920, IN865, CN470. The dimensions figure is 97 × 62 × 7 mm. The Weight specification is 28 g. The Operating Temperature specification is -10°C to +65°C.
Product Specifications
| Model / Part Number | 100-02566 |
|---|---|
| Product Type | LoRaWAN Badge Tracker |
| Dimensions | 97 × 62 × 7 mm |
| Weight | 28 g |
| Operating Temperature | -10°C to +65°C |
| Storage Temperature | -20°C to +80°C |
| Operating Humidity | 0–95% RH, non-condensing |
| Battery | 600mAh rechargeable Li-ion battery |
| Battery Life | Up to 5 months |
| Charging Interface | Micro USB |
| Operating Current | 20μA–139mA |
| Bluetooth | Bluetooth 5.0 |
| Bluetooth Positioning Accuracy | 1–3 m indoors |
| Bluetooth Distance | 150 m line-of-sight |
| LoRaWAN | LoRaWAN 1.0.2B |
| LoRa Frequency | US915, AU915, EU868, EU433, AS923, RU864, KR920, IN865, CN470 |
| LoRa Communication Distance | Greater than 1 km in urban area |
| LoRa Sensitivity | -139dBm @ SF12, BW125kHz, 434/470MHz; -137dBm @ SF12, BW125kHz, 868/915MHz |
| GNSS Positioning Accuracy | Less than 2.5 m CEP |
| Accelerometer | Built-in 3-axis accelerometer |
| Encryption | AES128 |
| Low-Battery Alert | Supported |
| Vibration Intensity Adjustment | Supported |
| Buzzer | Supported |
| NFC | Supported |
| Operating Mode | Adjustable GNSS acquisition frequency, adjustable LoRa communication frequency, automatic Bluetooth/GNSS tracking switching |
| Certification | CE, FCC, RCM |
Product Features
- Dual Indoor/Outdoor Positioning:Switches between Bluetooth for indoor tracking with 1–3m accuracy and GNSS for outdoor tracking with less than 2.5m CEP, helping maintain visibility of personnel or assets.
- Low Total Cost:LoRaWAN connectivity removes the need for cellular data plans, reducing recurring network costs and simplifying deployment.
- 3-Axis Accelerometer:Detects movement, falls or illegal handling and helps conserve battery by adjusting tracking activity in line with motion status.
- Flexible Configuration:GNSS location acquisition frequency, LoRa communication intervals and Bluetooth parameters can be adjusted for performance and power optimization.
- Long-Lasting Battery:The 600mAh rechargeable battery can provide up to five months of battery life depending on configuration and usage.
- Enhanced Security Features:AES128 encryption, vibration-intensity adjustment and low-battery alerts support secure and consistent tracking.
- Additional Functions:Built-in buzzer and NFC are supported.
Package Includes
- 1 × 100-02566 LoRaWAN Badge Tracker
Frequently Asked Questions
What is the 100-02566 - LoRaWAN Badge Tracker used for?
What are its main features?
What are the power or battery requirements?
Which interfaces or communication protocols does it use?
What is included in the package?
Other Information
Warranty Information
1 Year Seller Warranty
This item is covered with a standard warranty of 1 year from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What Voids Warranty
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Shipping & Returns Policy
Shipping Policy:
- In-stock items are delivered within 7-10 working days for orders within India. Delivery varies based on location and courier service.
- In-stock items are delivered within up to 20 working days for orders outside India. Delivery varies based on location and courier service.
- If the item is out of stock, you can still place an order. The estimated delivery time will be notified to you by email.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests from here: Return Request or contact us at 09831070550.
- Refunds are processed within 3-4 working days after inspection and approval.
Main Features
- The Product Type specification is LoRaWAN Badge Tracker.
- Charging Interface support is listed as Micro USB.
- Power is provided through the stated 600mAh rechargeable Li-ion battery arrangement.
- The dimensions figure is 97 × 62 × 7 mm.
- The Battery Life specification is Up to 5 months.
