100-02567 - LoRaWAN Badge Tracker
Low Stock, 1 left
Product Description

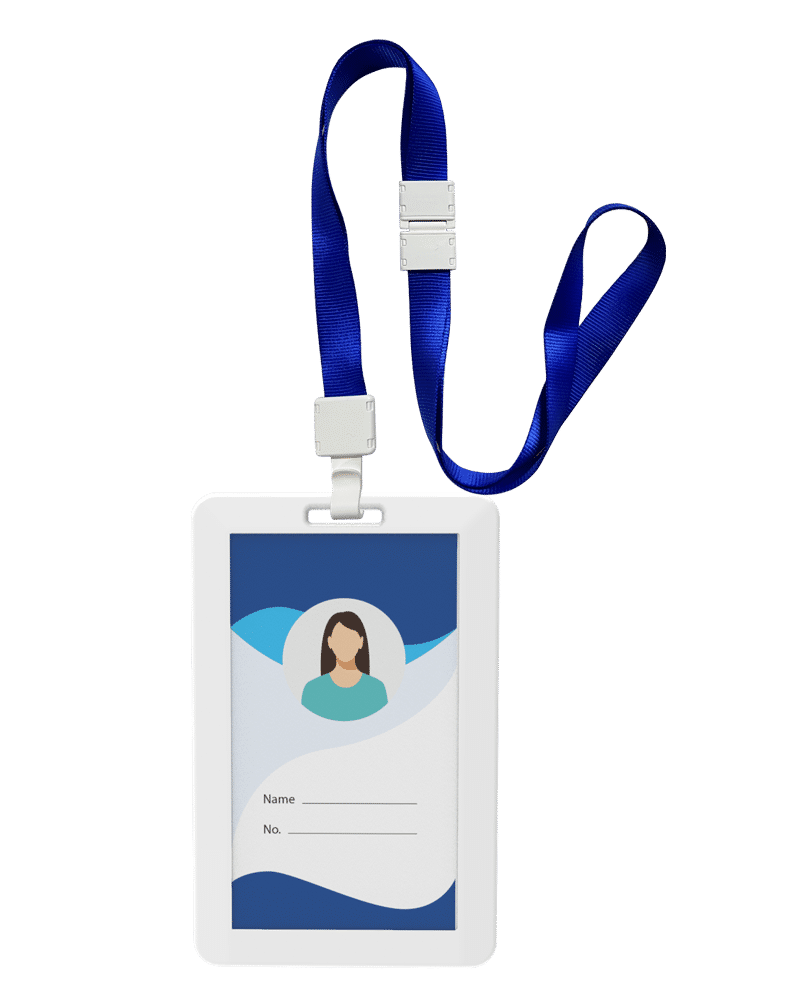

LoRaWAN Badge Tracker
The Lansitec 100-02567 LoRaWAN Badge Tracker is a compact rechargeable staff and visitor tracking badge for compatible LoRaWAN and Bluetooth-based real-time location systems. This IN865 model provides Bluetooth 5.0 indoor positioning and LoRaWAN communication, without built-in GNSS/GPS. Positioning data relies on a suitable Bluetooth gateway/anchor setup, LoRaWAN gateway and location-management platform.
The slim 97 × 62 × 7 mm badge has a 600 mAh rechargeable Li-ion battery, Micro-USB charging and a built-in 3-axis accelerometer for motion-aware operation. Lansitec lists a maximum battery standby time of five months and a LoRaWAN communication range greater than 1 km in suitable urban conditions. NFC, buzzer and low-battery alert functionality are listed for the badge family; confirm the delivered hardware and firmware configuration with Lansitec.
Applications
Factory Personnel Tracking
Construction Worker Tracking
Visitor Management
Warehouse Personnel Tracking
Event Attendee Tracking
Workplace Safety & Emergency Response
Product Specifications
| OEM / Manufacturer | Lansitec |
|---|---|
| OEM Part Number | 100-02567 |
| Product Name | LoRaWAN Badge Tracker |
| TwoElectrons SKU | 2ESE2204 |
| Product Category | RTLS / People Tracking |
| Model / Radio Variant | IN865, Bluetooth-enabled, without GNSS (per OEM ordering table) |
| LoRaWAN Protocol | LoRaWAN 1.0.2B |
| LoRaWAN Frequency | IN865 (India, exact 100-02567 part number) |
| LoRaWAN Connectivity | LoRaWAN gateway and compatible network/server required |
| LoRaWAN Range | Greater than 1 km in suitable urban conditions |
| LoRaWAN Sensitivity | -139 dBm at SF12 / BW125 kHz (434/470 MHz variants); -137 dBm at SF12 / BW125 kHz (868/915 MHz variants); family figures, not specific to IN865 |
| Bluetooth Protocol | Bluetooth 5.0 |
| Bluetooth Positioning | Indoor BLE positioning using compatible gateway/anchor infrastructure |
| Indoor Positioning Accuracy | Approx. 1–3 m for compatible BLE location systems under OEM reference conditions |
| Bluetooth Line-of-Sight Distance | Up to 150 m on OEM product page; actual range site-dependent |
| GNSS / GPS | Not integrated in part 100-02567 (100-02566 is GNSS-equipped variant) |
| Battery | 600 mAh rechargeable Li-ion |
| Charging Interface | Micro USB |
| Battery Life | Maximum 5 months standby (OEM reference; depends on reporting settings) |
| Operating Current | 20 µA–139 mA |
| Dimensions | 97 × 62 × 7 mm |
| Weight | 28 g |
| Operating Temperature | -10°C to +65°C |
| Storage Temperature | -20°C to +80°C |
| Operating Humidity | 0%–95% RH, non-condensing |
| Motion Sensor | Built-in 3-axis accelerometer |
| Encryption | AES128 |
| Low Battery Alert | Supported |
| Vibration Intensity Adjustment | Supported in badge family; verify exact firmware |
| Buzzer / NFC | Listed by OEM badge family; confirm exact supplied part/firmware |
| Configuration | LoRaWAN reporting intervals and Bluetooth parameters adjustable through supported configuration tools |
| Certifications Listed by OEM | CE, FCC, RCM; verify exact part/batch for India import compliance |
| Ingress Protection / Hazardous Area Rating | Not established on OEM page; do not assume certification |
Product Features
- IN865 LoRaWAN Connectivity: Dedicated Indian-frequency IN865 version connects to a compatible LoRaWAN gateway and application server for wide-area telemetry without a SIM or cellular data plan.
- Indoor Bluetooth Positioning: BLE 5.0 supports indoor people and asset positioning when combined with nearby compatible BLE receivers, gateways or anchors and a tracking platform.
- Part-Number Accuracy: Lansitec identifies 100-02567 as its IN865 LoRaWAN + Bluetooth model with no built-in GNSS; the related 100-02566 part number includes GNSS.
- Rechargeable Power: Internal 600 mAh rechargeable lithium-ion battery with Micro-USB charge interface; maximum standby time up to five months according to the OEM under suitable settings.
- Motion-Aware Operation: Built-in 3-axis accelerometer detects movement and helps adjust the tracking and reporting strategy to reduce unnecessary activity.
- Configurable Reporting: Supports configuration of LoRaWAN reporting intervals and Bluetooth scanning/positioning settings using supported OEM provisioning tools and network configuration.
- Personnel Visibility: Suitable for warehouses, factories, visitors, event attendees and construction sites with BLE positioning infrastructure.
- Safety and Security: LoRaWAN AES128 encryption and low-battery alerts; buzzer, vibration and NFC are listed for the badge family, subject to delivered model and firmware verification.
Package Includes
- 1 × Lansitec LoRaWAN Badge Tracker, part 100-02567 (IN865 Bluetooth-only positioning variant; no integrated GNSS)
USB cable, charging adapter, lanyard and network equipment are not confirmed as standard inclusions; verify the accepted packing list. LoRaWAN gateway and Bluetooth positioning infrastructure are sold separately.
Frequently Asked Questions
What is the Lansitec 100-02567 LoRaWAN Badge Tracker used for?
Does 100-02567 include built-in GPS/GNSS positioning?
Which LoRaWAN band does the 100-02567 support?
What is the battery capacity and how long can it operate?
Does the LoRaWAN Badge Tracker support movement alerts and remote configuration?
Other Information
Warranty Information
6 Months Seller Warranty
This item is covered with a standard warranty of 6 months from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What Voids Warranty
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Shipping & Returns Policy
Shipping Policy:
- In-stock items are delivered within 7-10 working days for orders within India. Delivery varies based on location and courier service.
- In-stock items are delivered within up to 20 working days for orders outside India. Delivery varies based on location and courier service.
- If the item is out of stock, you can still place an order. The estimated delivery time will be notified to you by email.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests from here: Return Request or contact us at 09831070550.
- Refunds are processed within 3-4 working days after inspection and approval.
Main Features
- IN865 LoRaWAN and Bluetooth 5.0 personnel-tracking badge for India
- Precisely specified OEM part 100-02567 — BLE positioning, without integrated GNSS/GPS
- Bluetooth positioning with compatible anchors/gateways, manufacturer quotes approximately 1–3 m indoor accuracy for the system
- LoRaWAN 1.0.2B communication, with more than 1 km range in suitable urban conditions
- Integrated rechargeable 600 mAh Li-ion battery, Micro-USB charging and up to five-month maximum standby
- Built-in 3-axis accelerometer for motion/status detection and power-aware tracking
- Thin 97 × 62 × 7 mm, 28 g wearable badge; employee and visitor management
- AES128 LoRaWAN security, low-battery notification, optional configuration-dependent alarm functions
