100-0NBM1 - NB-IoT & LTE-M Container Tracker
Low Stock, 1 left
Product Description

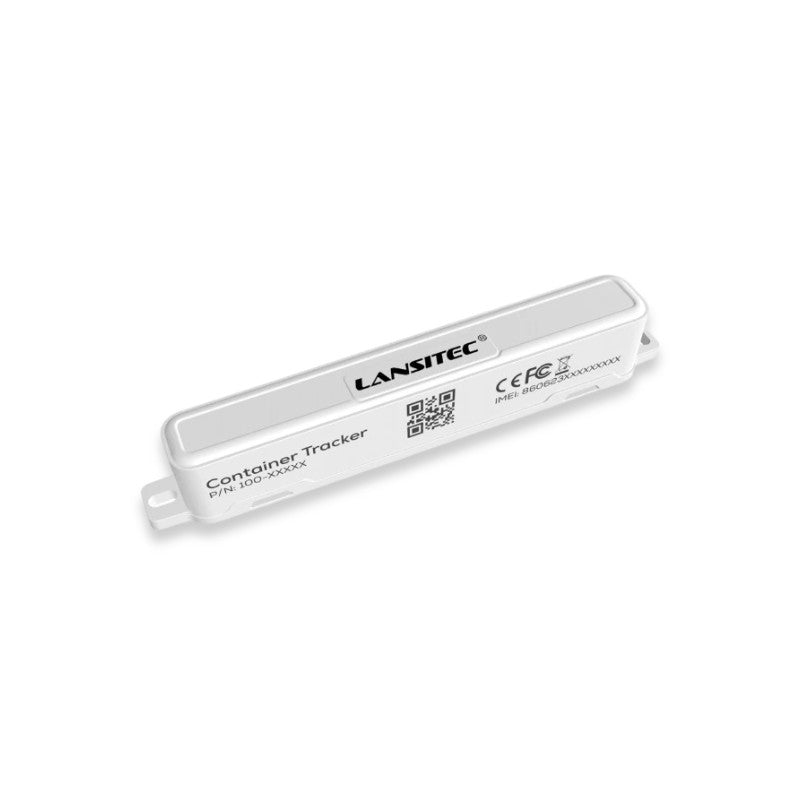

NB-IoT & LTE-M Container Tracker
The Lansitec 100-0NBM1 NB-IoT & LTE-M Container Tracker combines low-power NB-IoT/LTE-M cellular reporting, multi-constellation GNSS positioning and Bluetooth 5.0 beacon reception for cargo containers, transit cases, logistics pallets and industrial equipment. It transmits outdoor position data and compatible nearby Bluetooth tag information to a configured tracking platform over MQTT or HTTP. The integrated 3D accelerometer, tamper and shock detection and door-open/close monitoring support asset security and movement visibility. Optional Bluetooth-based indoor positioning requires compatible infrastructure.
The tracker features a rugged IP68-rated PC/ABS enclosure measuring 198 × 28 × 33 mm, weighing approximately 130 g. Its two non-rechargeable 4,000 mAh Li-SOCl₂ batteries provide 8,000 mAh combined nominal capacity, with the OEM quoting up to five years of operation at a 30-minute reporting interval under suitable test conditions. GNSS accuracy is specified below 2.5 m CEP, with approximately 11,000 GNSS or 24,000 Bluetooth positioning reports under the OEM's respective reference settings. The tracker supports flexible reporting, offline caching of up to 40 positions and Bluetooth firmware upgrades. Optional temperature sensing and NFC must be confirmed at ordering.
Applications
Shipping Container Tracking
Cargo & Pallet Monitoring
Transit Case Management
Industrial Machinery Monitoring
Construction Equipment Security
Offshore Logistics
Product Specifications
| OEM / Manufacturer | Lansitec |
|---|---|
| OEM Part Number | 100-0NBM1 |
| Model | NB-IoT & LTE-M Container Tracker (NBM1) |
| TwoElectrons SKU | 2ESE2214 |
| Category | RTLS / Asset Tracking |
| Device Function | GNSS and BLE asset-tracking device with NB-IoT and LTE-M cellular uplink |
| Cellular Connectivity | NB-IoT (Cat NB1/NB2) and LTE-M (Cat M1), compatible regional variants |
| Cellular SIM | Nano SIM or eSIM |
| Internet / Cloud Protocols | MQTT, HTTP |
| LoRaWAN | Optional OEM configuration; not included by default |
| 2.4 GHz Wi-Fi | Optional, positioning only; not the standard backhaul |
| GNSS Constellations | BDS (BeiDou), GPS, GLONASS, Galileo, QZSS |
| GNSS Accuracy | Less than 2.5 m CEP, manufacturer reference |
| GNSS Cold Start | 30–60 seconds per current OEM page (an older datasheet lists up to 120 s) |
| Assisted GNSS (A-GPS) | Supported |
| Bluetooth Version | 5.0 |
| Bluetooth Beacon Formats | iBeacon, Eddystone and supported private BLE packets |
| BLE TX Power | −20 dBm to +4 dBm, adjustable in 4 dBm steps |
| BLE Receiver Sensitivity | −96 dBm |
| Bluetooth-Based Indoor Positioning | Optional; depends on compatible beacons/anchors and tracking platform |
| Nearby Bluetooth Tag Management | Supported |
| Primary Battery Technology | Non-rechargeable lithium thionyl chloride (Li-SOCl₂) |
| Installed Battery Configuration | 2 × 4,000 mAh |
| Nominal Total Battery Capacity | 8,000 mAh |
| OEM Battery Service Estimate | Up to 5 years at a 30-minute reporting interval under reference conditions |
| GNSS Reports per Battery | Approximately 11,000 at GNSS reporting interval >10 minutes, OEM reference |
| BLE Position Reports per Battery | Approximately 24,000, OEM reference |
| Standby Current | 25 µA, current OEM product page |
| Maximum Current | 200 mA, current OEM product page |
| Position Report Interval | 5 seconds × n (n = 1–65,536) |
| Heartbeat Report Interval | 30 seconds × n (n = 1–65,536) |
| 3-Axis Accelerometer | Built in |
| Movement Duration Reporting | Supported |
| Shock / Vibration Detection | Supported |
| Tamper / Removal Detection | Supported |
| Container Door Open / Close Sensing | Supported |
| Geo-fence Alerts | Supported with compatible software |
| Offline Position Cache | Up to 40 positions |
| Magnetic Power Switch | Supported |
| Bluetooth FOTA | Supported |
| NFC Tag | Optional 1 KB |
| Temperature Reporting | Optional; confirm sensor variant when ordering |
| Optional Temperature Range | −40°C to +85°C |
| Optional Temperature Sensor Accuracy | ±5°C (enclosure/chamber temperature, OEM reference) |
| Optional Temperature Sensor Resolution | 0.25°C |
| Dimensions | 198 × 28 × 33 mm (OEM page); older datasheet dimensions vary slightly |
| Weight | 130 g |
| Enclosure Material | PC / ABS |
| PCB Coating | Waterproof coating |
| Ingress Protection | IP68 |
| Operating Temperature | −20°C to +70°C (current product specification table) |
| Storage Temperature | −10°C to +30°C (current product specification table) |
| Operating Humidity | 0–95% RH, non-condensing |
| Regional Cellular Bands | Confirm operator frequency compatibility and India-variant hardware with supplier |
| Connectivity Requirements | Compatible NB-IoT or LTE-M operator coverage, active SIM/eSIM and configured MQTT/HTTP server |
Product Features
- Global Cellular Container Tracking: NB-IoT and LTE-M cellular backhaul supports remote position and status reporting across operators offering compatible network coverage and radio-band versions.
- Outdoor GNSS and Indoor BLE Assistance: GNSS offers sub-2.5 m CEP manufacturer reference accuracy outdoors. Optional Bluetooth-based indoor positioning and BLE tag association require compatible software, beacons and infrastructure.
- Multi-Constellation Navigation: Supports GPS, BeiDou, Galileo, GLONASS, QZSS and Assisted GNSS for mobile container and heavy-equipment positioning.
- Five-Year OEM Reference Battery Life: The two 4,000 mAh Li-SOCl₂ primary cells provide 8,000 mAh. Lansitec states up to five years of service at 30-minute reports under favourable operating conditions; actual lifetime varies.
- IP68 Weather and Dust Resistance: Sealed PC/ABS housing with waterproof-coated PCB offers protection for outside yards, maritime logistics and remote construction equipment; refer to rated operating temperature.
- Asset Security Alerts: Monitors vibration, impact/shock, tampering or removal, door open/close events and movement duration using a built-in three-axis accelerometer and corresponding sensing functions.
- Resilient Data Reporting: Stores up to 40 positions without cellular service and can forward the cached data when connectivity returns. MQTT and HTTP uplinks are supported.
- Firmware and Device Administration: Bluetooth FOTA, adjustable GNSS position reporting and device heartbeat intervals, mechanical/magnetic switching and optional NFC help manage assets with compatible OEM tools.
- Optional Temperature Reports: OEM offers temperature measurement as an order-time option; it should not be assumed to be fitted as standard.
Package Includes
- 1 × Lansitec 100-0NBM1 NB-IoT & LTE-M Container Tracker
- 2 × 4,000 mAh Li-SOCl₂ non-rechargeable primary batteries, factory-fitted standard configuration
SIM/eSIM subscription, mounting accessories, extra BLE beacon tags, optional NFC or temperature sensor, software licenses and other accessories are not confirmed as standard inclusions. Verify the OEM packing list.
Frequently Asked Questions
What does the Lansitec 100-0NBM1 NB-IoT & LTE-M Container Tracker do?
How long do the NBM1 batteries last, and are they rechargeable?
Can the Container Tracker provide indoor and outdoor positioning?
Is the 100-0NBM1 waterproof, and what alarms does it support?
What connectivity and remote-management options are available?
Other Information
Warranty Information
6 Months Seller Warranty
This item is covered with a standard warranty of 6 months from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What Voids Warranty
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Shipping & Returns Policy
Shipping Policy:
- In-stock items are delivered within 7-10 working days for orders within India. Delivery varies based on location and courier service.
- In-stock items are delivered within up to 20 working days for orders outside India. Delivery varies based on location and courier service.
- If the item is out of stock, you can still place an order. The estimated delivery time will be notified to you by email.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests from here: Return Request or contact us at 09831070550.
- Refunds are processed within 3-4 working days after inspection and approval.
Main Features
- NB-IoT and LTE-M container tracker for global logistics, industrial assets and transit cases
- Multi-GNSS outdoor tracking: BDS/BeiDou, GPS, GLONASS, Galileo and QZSS
- GNSS positioning precision below 2.5 m CEP in OEM reference conditions
- Bluetooth 5.0 iBeacon, Eddystone and proprietary tag reception; optional indoor BLE positioning
- 8,000 mAh combined primary battery (2 × 4,000 mAh non-rechargeable Li-SOCl₂ cells)
- IP68-rated PC/ABS enclosure and long service life, up to 5 years at a 30-minute reporting interval
- Tamper, door opening/closing, vibration, shock and movement-duration monitoring
- Offline storage of up to 40 positions, Bluetooth FOTA and MQTT/HTTP data delivery
