100-0NBM2 - NB-IoT & LTE-M Badge Tracker
Low Stock, 1 left
Product Description

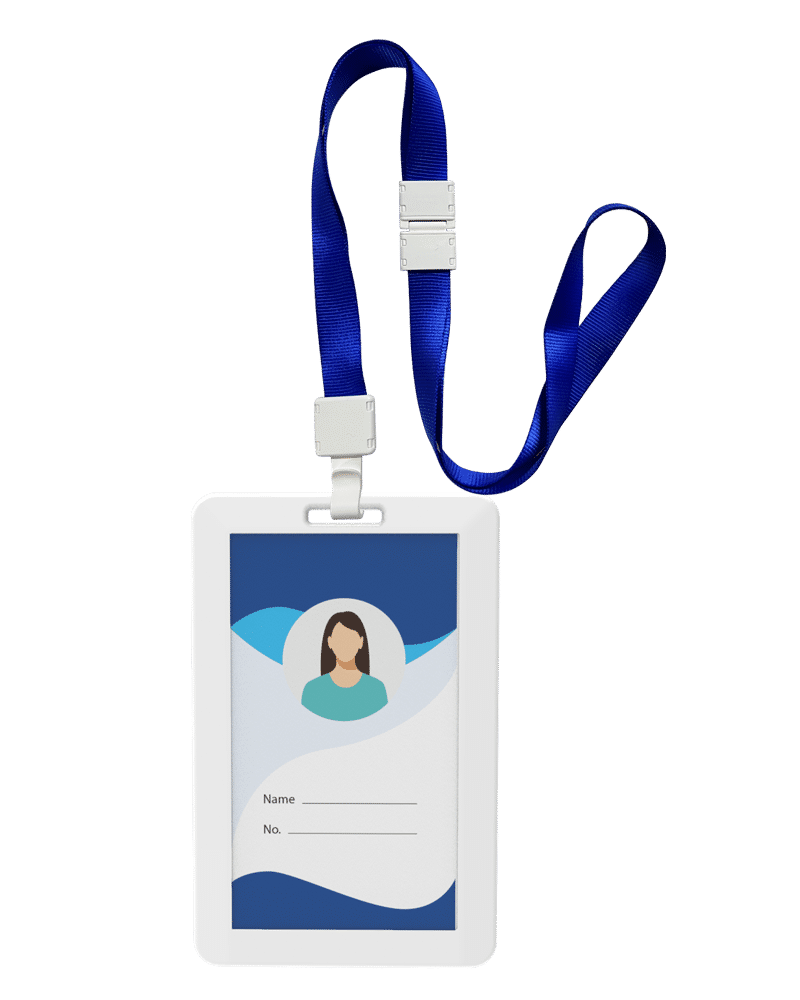

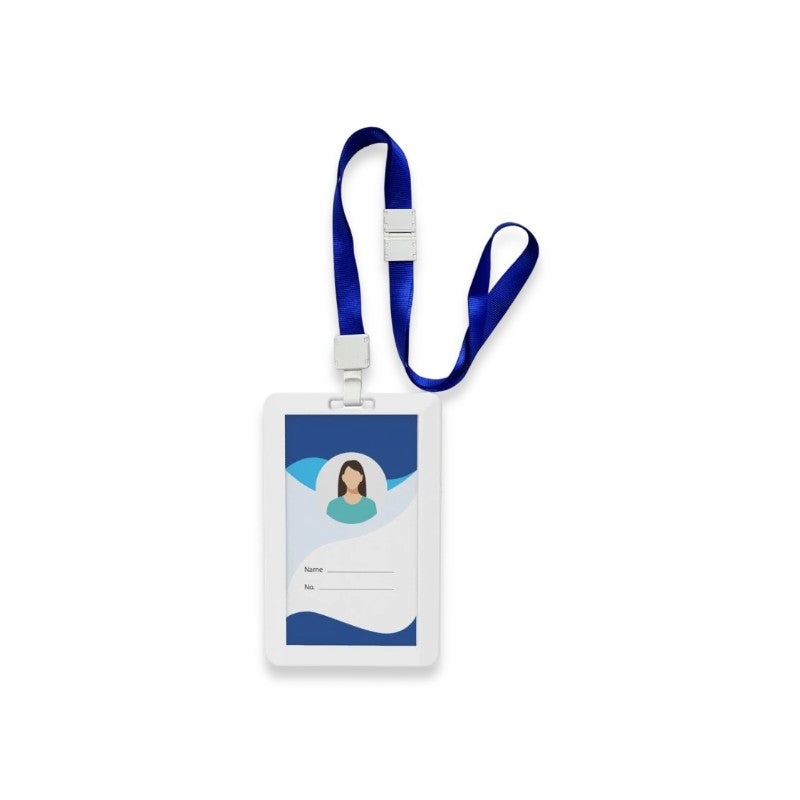

NB-IoT & LTE-M Badge Tracker
The Lansitec 100-0NBM2 NB-IoT & LTE-M Badge Tracker is a slim wearable positioning device for people and mobile assets. It combines multi-constellation GNSS for outdoor positioning, Bluetooth 5.0 for indoor locating with compatible RTLS infrastructure, and NB-IoT/LTE-M cellular reporting to an MQTT or HTTP tracking platform. The built-in three-axis accelerometer supports motion-based tracking, fall detection and movement alerts. With suitable application software, the badge can support panic alerts, geo-fence / restricted-zone detection and worker safety monitoring at industrial sites, factories, hospitals and events.
The tracker measures 97 × 62 × 7 mm and weighs approximately 35 g. Lansitec describes up to six months of standby operation under appropriate conditions, less than 2.5 m GNSS reference accuracy and approximately 3 m Bluetooth positioning accuracy in suitably deployed systems. The OEM technical table specifies a 600 mAh rechargeable Li-ion battery, while the same page's marketing summary lists 1,200 mAh; confirm the capacity for the exact order configuration. Bluetooth firmware updates, configurable location/heartbeat intervals and optional NFC are available. Lansitec's feature summary identifies IP66/IK10 protection, subject to confirming the supplied version and certification documentation.
Applications
Construction Worker Tracking
Factory Personnel Management
Hospital Staff Tracking
Visitor & Event Management
Confined Space Safety
Mobile Asset & Fleet Tracking
Product Specifications
| OEM / Manufacturer | Lansitec |
|---|---|
| OEM Part Number | 100-0NBM2 |
| Product Model | NB-IoT & LTE-M Badge Tracker (NBM2) |
| TwoElectrons SKU | 2ESE2219 |
| Category | RTLS / Asset Tracking |
| Primary Application | Personnel, visitor and mobile-asset tracking |
| Cellular Connectivity | NB-IoT (Cat NB1 / NB2) and LTE-M (Cat M1), hardware region dependent |
| SIM Interface | Nano SIM or eSIM |
| Network Reporting | MQTT and HTTP |
| GNSS Satellites | GPS, BDS/BeiDou, GLONASS, Galileo and QZSS |
| GNSS Reference Accuracy | Less than 2.5 m CEP |
| GNSS Cold Start | 30–60 seconds |
| Assisted GNSS | Supported |
| Bluetooth Standard | Bluetooth 5.0 |
| BLE Broadcast Formats | iBeacon, Eddystone and proprietary BLE data |
| BLE Transmit Power | -20 to +4 dBm in 4 dB increments |
| Bluetooth Sensitivity | -96 dBm |
| Indoor BLE Positioning | Approximately 3 m when used with suitable RTLS infrastructure |
| Battery Chemistry | Rechargeable lithium-ion |
| Battery Capacity | 600 mAh in the OEM technical table; marketing feature summary states 1,200 mAh; confirm before order |
| Advertised Maximum Standby | Up to 6 months in favourable conditions |
| GNSS Position Reports | Approximately 600 at GNSS intervals longer than 10 minutes (technical table reference) |
| Bluetooth Position Reports | Approximately 2,000 (technical table reference) |
| Standby Current | 25 µA (OEM technical table) |
| Maximum Current | 200 mA (OEM technical table) |
| Position Report Interval | 5 seconds × n, n = 1 to 65,536 |
| Heartbeat Report Interval | 30 seconds × n, n = 1 to 65,536 |
| 3-Axis Accelerometer | Supported |
| Movement Duration Monitoring | Supported |
| Fall Detection | Supported |
| Panic Alarm | Described by OEM feature summary; compatible firmware/platform required |
| Zone / Geo-fence Alerts | Described by OEM feature summary; compatible firmware/platform required |
| Overstay Alarm | Described by OEM feature summary; platform configuration required |
| Barometer | Advertised by OEM feature summary; verify exact shipped variant |
| Barometric Altitude Accuracy | ±1 m claim in OEM feature summary; configuration verification required |
| Switch | Supported |
| Bluetooth Firmware Update | FOTA supported |
| Optional NFC | 1 KB tag, optional |
| Optional LoRaWAN | Available only as a separate OEM configuration |
| Optional Wi-Fi Positioning | 2.4 GHz, positioning only; not standard uplink |
| Enclosure Dimensions | 97 × 62 × 7 mm |
| Product Weight | 35 g |
| Housing Material | ABS |
| Protection Ratings | IP66 and IK10 advertised in OEM marketing; obtain confirmation for supplied version |
| Operating Temperature | -10°C to +65°C |
| Storage Temperature | -20°C to +80°C |
| Relative Humidity | 5%–95% RH, non-condensing |
| Regional Mobile Network | Confirm India-compatible LTE-M/NB-IoT radio SKU, active SIM/eSIM, mobile carrier coverage and platform configuration |
| Certifications | No region-specific approval certificates independently confirmed for 100-0NBM2; request OEM documents |
Product Features
- Indoor & Outdoor Positioning: GNSS positioning outdoors and Bluetooth 5.0-based indoor tracking with compatible BLE tags/anchors and software provide coordinated personnel and asset visibility.
- NB-IoT / LTE-M Uplink: Compatible cellular network reports GNSS and status events using Nano SIM or eSIM with MQTT and HTTP integration; hardware radio version and operator coverage must be checked.
- Worker Safety Functionality: The manufacturer highlights fall detection, panic alarm, zone/geofence alerts and overstay reporting for worker, visitor and event-security systems; app configuration may be required.
- Integrated Movement Sensor: Three-axis accelerometer detects activity and changes reporting behaviour to improve energy use and support movement and fall events.
- Wearable Form Factor: Compact 97 × 62 × 7 mm ABS enclosure, approx. 35 g, suitable as a badge-style employee or visitor tracker.
- Battery & Standby: Rechargeable lithium-ion battery; the OEM technical table states 600 mAh while marketing notes 1,200 mAh. Up to six months of standby is an OEM reference claim, not assured real-world endurance.
- Rugged Use Claims: OEM feature summary advertises IP66 and IK10 ratings, and a barometer for altitude assessment; these details are not repeated in its technical specifications, so obtain exact-variant confirmation.
- Adjustable Reporting & Maintenance: Configure position reporting at 5 seconds × n and heartbeat at 30 seconds × n, with compatible firmware. Bluetooth firmware updates and an optional NFC tag are supported.
- Optional Radio Positioning: LoRaWAN capability and 2.4 GHz Wi-Fi positioning appear as optional OEM configurations, not the standard NB-IoT / LTE-M data backhaul.
Package Includes
- 1 × Lansitec 100-0NBM2 NB-IoT & LTE-M Badge Tracker with integrated rechargeable lithium-ion battery
Lanyard, USB charging cable, power adapter, active SIM/eSIM service, cloud tracking subscription, additional BLE tags and optional NFC hardware are not confirmed as standard package inclusions. Verify the supplier packing list and battery option.
Frequently Asked Questions
What is the Lansitec 100-0NBM2 NB-IoT & LTE-M Badge Tracker used for?
How accurate is indoor and outdoor tracking?
What is the rechargeable battery capacity and standby life?
Does the NB-IoT Badge Tracker support fall detection and panic alerts?
How does the tracker connect and can it be configured remotely?
Other Information
Warranty Information
6 Months Seller Warranty
This item is covered with a standard warranty of 6 months from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What Voids Warranty
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Shipping & Returns Policy
Shipping Policy:
- In-stock items are delivered within 7-10 working days for orders within India. Delivery varies based on location and courier service.
- In-stock items are delivered within up to 20 working days for orders outside India. Delivery varies based on location and courier service.
- If the item is out of stock, you can still place an order. The estimated delivery time will be notified to you by email.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests from here: Return Request or contact us at 09831070550.
- Refunds are processed within 3-4 working days after inspection and approval.
Main Features
- NB-IoT and LTE-M wearable badge tracker with GNSS and Bluetooth 5.0 positioning
- Outdoor GNSS accuracy below 2.5 m CEP and indoor BLE location approximately 3 m with compatible RTLS
- Multi-GNSS GPS, BeiDou, GLONASS, Galileo and QZSS; assisted GNSS supported
- Movement and fall detection using integrated three-axis accelerometer
- Panic, restricted-zone and overstay alarms with compatible tracking platform and selected firmware
- Slim 97 × 62 × 7 mm wearable ABS badge weighing approximately 35 g
- Rechargeable lithium-ion battery; 600 mAh in OEM technical table (marketing summary lists 1,200 mAh—confirm ordered hardware)
- Up to six months of standby under suitable conditions; Bluetooth FOTA and optional 1 KB NFC
