100-18469 - LoRaWAN Indoor Bluetooth Gateway
Out of stock
Product Description

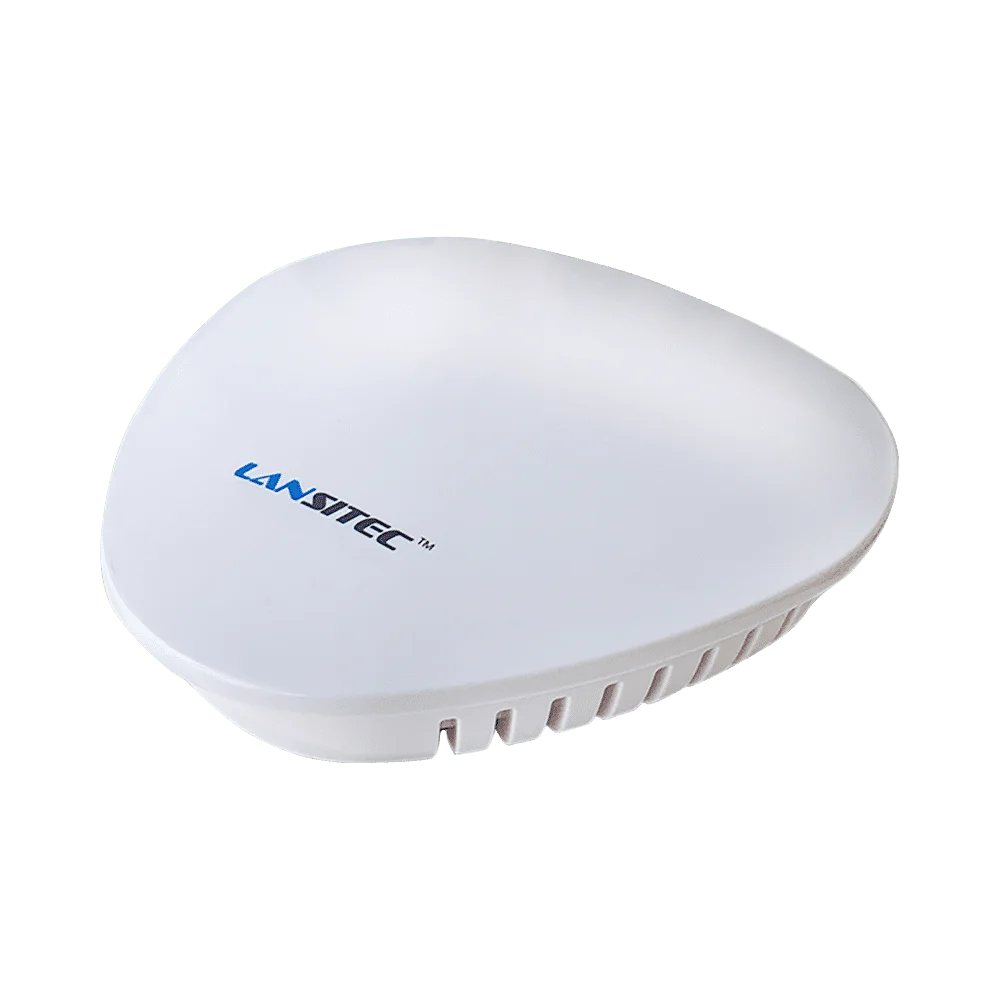

LoRaWAN Indoor Bluetooth Gateway
Elevate your indoor asset and personnel tracking with the Lansitec Indoor Bluetooth Gateway. Designed around Bluetooth 5.0 technology and LoRaWAN, this gateway ensures seamless data transmission without additional network fees—even across long distances. By collecting beacon signals from badges, bracelets, and various BLE sensors, it provides real-time insights into locations, movements, and environmental conditions. Whether you’re managing security staff, monitoring warehouse inventory, or overseeing event operations, the Indoor Bluetooth Gateway delivers low-power, high-efficiency connectivity to help you stay informed and in control.
Product Specifications
| Model / Part Number | 100-18469 |
|---|---|
| Product Type | LoRaWAN Indoor Bluetooth Gateway |
| Bluetooth Protocol | Bluetooth 5.0 |
| LoRaWAN Protocol | LoRaWAN 1.0.2B |
| LoRa Frequency | IN865 (part number 100-18469); platform also supports US915, AU915, EU868, EU433, AS923, RU864, KR920 and CN470 variants |
| Fastest LoRa Communication Frequency | 5s |
| LoRa Sensitivity | -139dBm @ SF12, BW125kHz, 434/470MHz; -137dBm @ SF12, BW125kHz, 868/915MHz |
| Dimension | 120 × 120 × 31 mm |
| Weight | 175g |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -45°C to +85°C |
| Operating Humidity | 5% to 95% RH, non-condensing |
| Geo-Fence | Supported |
| Encryption | AES128 |
| Transmission Capacity | Up to 100 beacon messages received within 1s; maximum 15 beacon messages per LoRaWAN packet |
| Bluetooth Payload Filtering | Configurable; selected payload bytes can be reported via LoRaWAN |
| Switch | Mechanical |
| Position Report Interval | 5s × n (1 to 65536) |
| Heartbeat Report Interval | 30s × n (1 to 65536) |
| FOTA over Bluetooth | Supported |
| Battery | 600mAh rechargeable Li-ion |
| Power Supply | 5V / 1A |
| External Power Connection | Supported |
| Charging Interface | Micro USB |
| Certification | CE, FCC, RCM |
Product Features
- Optimized for Indoor Deployment: Designed for indoor asset, personnel and BLE sensor data collection.
- Bluetooth 5.0: Supports long-distance, low-power Bluetooth communication with compatible beacons, badges, bracelets and sensors.
- LoRaWAN Backhaul: Forwards collected Bluetooth data over LoRaWAN without requiring a local cellular or Wi-Fi backhaul.
- Geo-Fence Support: Enables zone-based monitoring for tracking and security applications.
- Configurable Bluetooth Payload: Filters selected Bluetooth payload bytes and reports the required data through LoRaWAN.
- Flexible Power: Includes a 600mAh rechargeable Li-ion battery and supports 5V / 1A external power through Micro USB.
- Remote Maintenance: Supports FOTA over Bluetooth and configurable position and heartbeat reporting intervals.
Package Includes
- 1 × 100-18469 LoRaWAN Indoor Bluetooth Gateway
Other Information
Warranty Information
1 Year Seller Warranty
This item is covered with a standard warranty of 1 year from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What Voids Warranty
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Shipping & Returns Policy
Shipping Policy:
- Delivery time within metro cities in India is 1-3 days; for other locations, it is 3-7 days. Delivery varies based on location and courier service.
- If the item is out of stock, the estimated delivery time is 7-14 days from order confirmation. Delivery varies based on location and courier service.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests from here: Return Request or contact us at 09831070550.
- Refunds are processed within 3-4 working days after inspection and approval.
Main Features
- Bluetooth 5.0 and LoRaWAN gateway for collecting nearby BLE beacon and sensor data.
- IN865 ordering version for India: part number 100-18469.
- Geo-fence support for zone-based asset and personnel monitoring.
- Configurable Bluetooth payload filtering and reporting over LoRaWAN.
- 600mAh rechargeable Li-ion battery with 5V / 1A power input.
- Receives up to 100 beacon messages within 1 second and sends up to 15 beacon messages per LoRaWAN packet.
- FOTA over Bluetooth with AES128 encryption.
- CE, FCC and RCM certified.
