100-NBBG1 - NB-IoT & LTE-M Solar Bluetooth Gateway
Low Stock, 1 left
Product Description
NB-IoT & LTE-M Solar Bluetooth Gateway

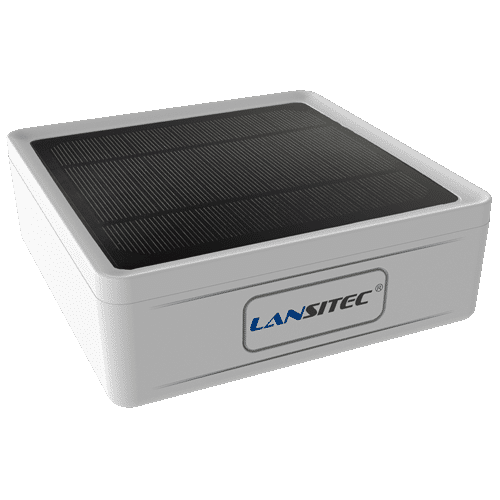

The Lansitec 100-NBBG1 NB-IoT & LTE-M Solar Bluetooth Gateway is a weather-resistant BLE-to-cellular data collector that receives Bluetooth 5.0 iBeacon, Eddystone and compatible proprietary beacon or sensor data, then forwards selected information to a configured server through NB-IoT or LTE-M using MQTT or HTTP. Its integrated 3 W solar panel, rechargeable battery and IP66 housing make it suitable for outdoor asset tracking, factory inventory, emergency staging areas, remote security sites and temporary event deployments without a continuous wired power supply.
The gateway integrates a 5,300 mAh rechargeable lithium-ion battery, a 160 × 160 × 55 mm anti-UV PC-ABS enclosure weighing approximately 460 g, configurable BLE-payload filtering and reporting, TLS 1.2 security and firmware updates over Bluetooth. Lansitec lists up to 105 supported BLE beacons, up to 1,400 bytes per uplink report, and approximately 150,000 Bluetooth positioning operations in reference conditions. The OEM quotes around one month of battery-only operation for 10-second BLE receiving and a 60-second report interval; solar availability, signal coverage and duty cycle affect endurance. LoRaWAN connectivity and 2.4 GHz Wi-Fi positioning are optional configurations, not standard backhaul.
Applications
Hospital Asset Tracking
Vehicle & Fleet Monitoring
Industrial Inventory
Remote Security Outposts
Outdoor Retail & Events
Smart Logistics & Warehouses
Product Specifications
| OEM / Manufacturer | Lansitec |
|---|---|
| OEM Part Number | 100-NBBG1 |
| Product Model | NB-IoT & LTE-M Solar Bluetooth Gateway |
| TwoElectrons SKU | 2ESE2217 |
| Product Category | Edge Networking / BLE Gateways |
| Gateway Role | Solar-powered Bluetooth 5.0 beacon/sensor receiver with NB-IoT / LTE-M cellular uplink |
| Cellular Technology | NB-IoT (Cat NB1/NB2) and LTE-M (Cat M1) |
| SIM Card | Nano SIM or eSIM |
| Application Protocols | MQTT and HTTP |
| Bluetooth Specification | Bluetooth 5.0 |
| Supported BLE Formats | iBeacon, Eddystone and proprietary BLE data |
| Bluetooth TX Power | -20 dBm to +4 dBm, configurable in 4 dBm steps |
| Bluetooth Receiver Sensitivity | -96 dBm |
| BLE Beacon Capacity | Up to 105 supported compatible beacons; larger capacity subject to OEM confirmation |
| BLE Data Filtering | Custom Bluetooth advertisement-byte selection and reporting |
| Bluetooth Firmware Upgrade | FOTA over Bluetooth |
| Transport Encryption | TLS 1.2 |
| Maximum Uplink Report Size | 1,400 bytes |
| Reporting Interval | 5 s × n, n from 1 to 65,536 |
| Heartbeat Interval | 30 s × n, n from 1 to 65,536 |
| Main Power Source | Solar panel with integrated rechargeable battery |
| Solar Panel Power | 3 W (current OEM product page) |
| Rechargeable Battery Type | Lithium-ion |
| Battery Capacity | 5,300 mAh |
| OEM Reference Battery Operation | Around 1 month with 10 s BLE receiving and 60 s reporting; field operation depends on solar charging and conditions |
| Bluetooth Positioning Operations | Approximately 150,000 under OEM reference battery conditions |
| Standby Current | 25 µA |
| Maximum Operating Current | 300 mA |
| Maximum Charging Current | 500 mA |
| Maximum Solar Charging Quantity | Up to 1,500 mAh per day under suitable solar conditions |
| Power Switch | Mechanical |
| Dimensions | 160 × 160 × 55 mm |
| Weight | 460 g (current OEM specification; older manufacturer datasheet has a different reference weight) |
| Enclosure Material | Anti-UV PC-ABS |
| Ingress Protection | IP66 |
| PCB Protection | Waterproof coating |
| Operating Temperature | -20°C to +65°C |
| Charging Temperature | -20°C to +60°C |
| Storage Temperature | -45°C to +85°C |
| Operating Humidity | 0–95% RH, non-condensing |
| Manufacturer-Listed Certifications | CE, FCC, RCM (confirm exact supplied regional variant paperwork) |
| Optional LoRaWAN Connectivity | Available as an OEM option; not standard for 100-NBBG1 |
| Optional Wi-Fi Feature | 2.4 GHz Wi-Fi positioning only; not standard data uplink |
| GNSS Positioning | Not confirmed as a standard built-in feature on 100-NBBG1 |
| Installation Requirement | Outdoor light exposure and suitable mounting, active compatible SIM/eSIM, NB-IoT or LTE-M operator coverage and configured IoT server |
Product Features
- Solar-Managed Remote Operation: Integrated 3 W photovoltaic panel recharges the internal 5,300 mAh Li-ion battery. Solar availability, panel orientation, weather, signal coverage and transmission duty-cycle determine service time.
- NB-IoT and LTE-M Network Backhaul: Collects nearby Bluetooth 5.0 beacon and sensor advertisements and uploads selected data to a server through an active compatible NB-IoT/LTE-M SIM/eSIM over MQTT or HTTP.
- Bluetooth Multi-Protocol Reception: Supports Bluetooth 5.0, iBeacon, Eddystone and compatible private sensor advertisements with adjustable transmit power from -20 to +4 dBm and -96 dBm receiver sensitivity.
- Custom Payload Filtering: Firmware can select and forward specific data bytes from BLE frames, reducing unnecessary bandwidth and server processing overhead.
- Outdoor-Grade Solar Housing: 160 × 160 × 55 mm, 460 g anti-UV PC-ABS industrial enclosure provides IP66 ingress protection with a waterproof PCB coating and a -20°C to +65°C specified operating range.
- Flexible Data Reporting: Position/data report interval of 5 s × n (n 1–65,536), heartbeat interval of 30 s × n, plus TLS 1.2 and up to 1,400 bytes per uplink report.
- High Beacon Support: Manufacturer lists support for up to 105 simultaneous compatible BLE beacons; contact Lansitec for larger deployments.
- Bluetooth Firmware Upgrades: FOTA via Bluetooth, mechanical power switch and compatible OEM management tools support remote equipment maintenance.
- Optional Connectivity Features: LoRaWAN is an OEM optional configuration, and 2.4 GHz Wi-Fi positioning is optional; neither is assumed to be standard on the 100-NBBG1 cellular SKU.
Package Includes
- 1 × Lansitec 100-NBBG1 NB-IoT & LTE-M Solar Bluetooth Gateway with integrated 3 W solar panel and rechargeable 5,300 mAh Li-ion battery
Mounting kit, fasteners, SIM/eSIM data service, BLE beacons, third-party sensors and tracking software subscriptions are not confirmed as standard inclusions. Verify the accepted supplier packing list.
Frequently Asked Questions
What is the Lansitec 100-NBBG1 NB-IoT & LTE-M Solar Bluetooth Gateway used for?
Does the 100-NBBG1 use solar power and what is the battery capacity?
Is the NB-IoT/LTE-M Solar Bluetooth Gateway waterproof and suitable outdoors?
What Bluetooth protocols and server communication does it support?
Can the solar Bluetooth gateway be configured remotely, and is GPS included?
Other Information
Warranty Information
6 Months Seller Warranty
This item is covered with a standard warranty of 6 months from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What Voids Warranty
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Shipping & Returns Policy
Shipping Policy:
- In-stock items are delivered within 7-10 working days for orders within India. Delivery varies based on location and courier service.
- In-stock items are delivered within up to 20 working days for orders outside India. Delivery varies based on location and courier service.
- If the item is out of stock, you can still place an order. The estimated delivery time will be notified to you by email.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests from here: Return Request or contact us at 09831070550.
- Refunds are processed within 3-4 working days after inspection and approval.
Main Features
- Outdoor solar-powered Bluetooth 5.0 beacon and sensor gateway with NB-IoT / LTE-M cellular uplink
- Integrated 3 W solar panel with rechargeable 5,300 mAh lithium-ion battery
- Receives iBeacon, Eddystone and compatible proprietary BLE packets and sensor data
- IP66 anti-UV PC-ABS enclosure with waterproof PCB coating
- Up to 105 supported BLE beacons; customizable BLE payload filters
- MQTT and HTTP uplink with TLS 1.2 secure connectivity
- Configurable report and heartbeat intervals, mechanical switch and Bluetooth FOTA
- Designed for solar-supported deployments in outdoor yards, industrial logistics and remote locations
