VVM701-4G IoT Gateway Board ESP32S3 Quectel EC200U with RS485 RS232 Ethernet Analog Digital IO for Industrial Applications

Back to previous page
Low Stock, 1 left
Vajravolt AI IoT 4G LTE Industrial Gateway Board VVM701

Product Description

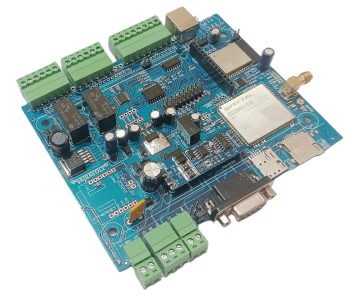

The Vajravolt VVM701 is an industrial IoT gateway and development board designed for data acquisition, remote monitoring and control. It combines an ESP32-S3 controller with a Quectel EC200U-CN 4G LTE Cat 1 module to support connected industrial and edge IoT applications.

The ESP32-S3-WROOM-1-N16R8 controller operates at up to 240 MHz and includes 16 MB flash memory and 8 MB PSRAM. Wi-Fi, Bluetooth 5 and AI acceleration support provide a foundation for developing embedded applications.

The Quectel EC200U-CN module provides 4G LTE connectivity and GNSS/GPS functionality. A nano SIM slot allows the board to connect to a cellular network for applications where remote communication is needed.

For communication with industrial equipment, the VVM701 provides jumper-selectable RS485 or RS232 interfaces. It also supports Ethernet connectivity through an optional W5500 module and protocols including MQTT, HTTP, FTP, Modbus, SPI and I2C.

The board includes five analog inputs for 4–20 mA or 0–5 V signals, four isolated digital inputs rated up to 24 V, and two relay outputs rated at 30 V DC / 2 A. These interfaces support the connection of field signals and control equipment.

A microSD card slot supports local storage, and expansion options include cameras, I2S microphones, LCDs and LoRa modules. The board also supports over-the-air updates. It operates from a 9–30 V DC supply and has PCB dimensions of 130 × 105 mm.

The VVM701 is suitable for industrial automation, equipment monitoring, data logging and custom IoT gateway development.

Applications

Embedded/Edge AIoT solutions Industrial automation systems Data acquisition and logging Control systems Remote monitoring applications

Product Specifications

ESP32-S3 GPIO Pin MappingAll peripherals not mounted on board. Few pins may be shared among peripherals.
EC200U-CN 4G LTE / GPS Module (Serial Communication)41(Tx) to Rx, 40(Rx) to Tx, 42 to Power Key respectively of 4G Module
SPI Communication for Ethernet/LCD/LoRa11(MOSI), 13(MISO), 12(CLK) - Regular SPI for W5500 Ethernet, 2.4 inch Touchscreen LCD, RFM95W LoRa
SD Card (HSPI Communication)38(MISO), 47(MOSI), 39(CLK), 48(CS) Alternate HSPI
RS485 / RS232 / CAN (Serial Comm.)1(Tx), 2(Rx). Select either RS485 or RS232 or CAN by the Jumper Selector
RTC (DS3231 based – I2C Comm.)4(SCL), 5(SDA)
Data Acquisition (Serial Comm.)TXD0 and RXD0 for communication with Nuvoton MS51FB9AE for 5 Analog Channel, 4 Isolated Digital Channel and 2 Relay Channel
W5500 Ethernet (SPI Comm.)21 for Chip Select, plus regular SPI pins
2.4” TFT Touchscreen LCD (SPI)9(LCD Reset), 10(LCD DC), 14(LCD CS), 8(Touch CS), plus regular SPI pins
LoRa RFM95W (SPI)16(LoRa CS), 17(LoRa RST), plus regular SPI pins
Camera (SCCB Communication)OV2640, OV7670 or similar cameras. 4(SCL/SIOC), 5(SDA/SIOD), 6(VSYNC), 7(HREF), 15(PCLK), 16(D7), 17(XCLK), 3(D6), 46(D5), 10(D4), 11(D0), 12(D2), 13(D3), 45(D1)
INMP441 I2S Microphone6(I2S CLK), 7(I2S WS), 15(I2S SDATA)
Green Status LED18, used for diagnosis to indicate network, data transmission, health, etc.

Product Features

  1. ESP32-S3 WROOM-1-N16R8: Wi-Fi, Bluetooth 5, 240MHz with 16MB Flash and 8MB PS-RAM, 36 programmable GPIOs, AI acceleration support, full speed USB 2.0
  2. Quectel EC200U-CN 4G LTE Cat 1 module with 10Mbps downlink
  3. Built-in GNSS/GPS
  4. Isolated RS485 / RS232 (jumper selector)
  5. Micro SD Card and Nano SIM slot
  6. Single USB Type-B connector for programming and monitoring
  7. DS3231 RTC based on I2C protocol
  8. MS51FB9AE for Data acquisition
  9. 5 ch. 12-bit Analog Inputs 4-20mA / 0-5v
  10. 4 ch. Digital Isolated Inputs (up to 24v)
  11. 2 Relay Output 30v DC / 2A
  12. Protocols: MQTT(s), HTTP(s), DHCP, FTP, Modbus, SPI, I2C, etc.; FOTA supported
  13. 9 - 30v DC Power Supply, PCB size 130x105, separate enclosure available

Frequently Asked Questions

What is the VVM701-4G IoT Gateway Board ESP32S3 Quectel EC200U with RS485 RS232 Ethernet Analog Digital IO for Industrial Applications used for?
The Vajravolt VVM701 is an industrial AIoT gateway and development board built around the ESP32-S3 and Quectel EC200U-CN 4G LTE Cat 1 module. It combines Wi-Fi, Bluetooth 5, GNSS/GPS, isolated serial interfaces, industrial analog and digital I/O, relay outputs, local storage and expansion support in a single platform for embedded/edge AIoT, industrial automation, data acquisition, logging, control and remote monitoring applications.
What are its main features?
Microcontroller: ESP32-S3 WROOM-1-N16R8; Wi-Fi and Bluetooth 5.0; AI acceleration support; 240 MHz processor with 16MB Flash and 8MB PSRAM.
What specifications should I check before choosing this product?
ESP32-S3 GPIO Pin Mapping: All peripherals not mounted on board. Few pins may be shared among peripherals.; EC200U-CN 4G LTE / GPS Module (Serial Communication): 41(Tx) to Rx, 40(Rx) to Tx, 42 to Power Key respectively of 4G Module; SPI Communication for Ethernet/LCD/LoRa: 11(MOSI), 13(MISO), 12(CLK) - Regular SPI for W5500 Ethernet, 2.4 inch Touchscreen LCD, RFM95W LoRa; SD Card (HSPI Communication): 38(MISO), 47(MOSI), 39(CLK), 48(CS) Alternate HSPI.
Which interfaces or communication protocols does it use?
SPI Communication for Ethernet/LCD/LoRa: 11(MOSI), 13(MISO), 12(CLK) - Regular SPI for W5500 Ethernet, 2.4 inch Touchscreen LCD, RFM95W LoRa; W5500 Ethernet (SPI Comm.): 21 for Chip Select, plus regular SPI pins. Check that your host, gateway or controller supports the listed interface and required configuration.
What is included in the package?
A package-content list is not specified for VVM701-4G IoT Gateway Board ESP32S3 Quectel EC200U with RS485 RS232 Ethernet Analog Digital IO for Industrial Applications. Confirm the supplied quantity and any required cables, power supplies, batteries or mounting accessories before ordering.

Other Information

Power Supply
  • Connect a regulated DC supply (9–30V) to the power input terminal.
  • Ensure proper polarity to avoid damage.
4G and GPS Setup
  • Attach the 4G antenna and insert a Nano SIM card with an active data plan.
  • Connect an active GPS antenna if required.
Micro SD Card

Insert a Micro SD card (optional) for data logging or additional storage.

Programming
  • Connect the board to your computer via USB Type-B for programming.
  • Use Arduino IDE or similar platforms with ESP32-S3 configuration.
  • Default Baud Rate: 115200.
Web Interface
  • Connect to the hotspot with SSID: iotgateway and password: iot@1234.
  • Access the web interface at iotgateway.local.

Warranty Information

1 Year Seller Warranty

This item is covered with a standard warranty of 1 year from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.

What Voids Warranty

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.

Shipping & Returns Policy

Shipping Policy:
  • In-stock items are shipped within 7-10 working days for orders within India. Delivery varies based on location and courier service.
  • In-stock items are shipped within up to 20 working days for orders outside India. Delivery varies based on location and courier service.
  • If the item is out of stock, you can still place an order. The estimated delivery time will be notified to you by email.
Return & Refund Policy:
  • Return window: 7 days from receipt unless stated otherwise.
  • No refunds or replacements after the return window.
  • Returns are accepted only for non-working or damaged products.
  • Initiate return requests from here: Return Request or contact us at 09831070550.
  • Refunds are processed within 3-4 working days after inspection and approval.

Main Features

  • ESP32-S3-WROOM-1-N16R8 controller with 240 MHz processor, 16 MB flash and 8 MB PSRAM
  • Quectel EC200U-CN 4G LTE Cat 1 module with GNSS/GPS
  • Wi-Fi, Bluetooth 5 and AI acceleration support
  • Jumper-selectable RS485 or RS232 interface
  • 5 analog inputs for 4–20 mA or 0–5 V signals
  • 4 isolated digital inputs up to 24 V and 2 relay outputs rated 30 V DC / 2 A
  • MicroSD card slot supporting up to 16 GB and nano SIM slot
  • Optional Ethernet support via W5500 module
  • Supports MQTT, HTTP, FTP, Modbus, SPI, I2C and over-the-air updates
  • Expansion support for cameras, I2S microphones, LCDs and LoRa modules
  • 9–30 V DC power supply; PCB dimensions 130 × 105 mm
