VVM701-4G IoT Gateway Board ESP32S3 Quectel EC200U with RS485 RS232 Ethernet Analog Digital IO for Industrial Applications
Back to previous page
Product Description

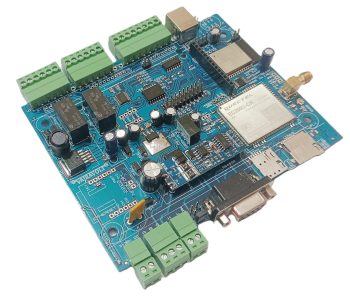

The Vajravolt VVM701 is an industrial IoT gateway and development board designed for data acquisition, remote monitoring and control. It combines an ESP32-S3 controller with a Quectel EC200U-CN 4G LTE Cat 1 module to support connected industrial and edge IoT applications.
The ESP32-S3-WROOM-1-N16R8 controller operates at up to 240 MHz and includes 16 MB flash memory and 8 MB PSRAM. Wi-Fi, Bluetooth 5 and AI acceleration support provide a foundation for developing embedded applications.
The Quectel EC200U-CN module provides 4G LTE connectivity and GNSS/GPS functionality. A nano SIM slot allows the board to connect to a cellular network for applications where remote communication is needed.
For communication with industrial equipment, the VVM701 provides jumper-selectable RS485 or RS232 interfaces. It also supports Ethernet connectivity through an optional W5500 module and protocols including MQTT, HTTP, FTP, Modbus, SPI and I2C.

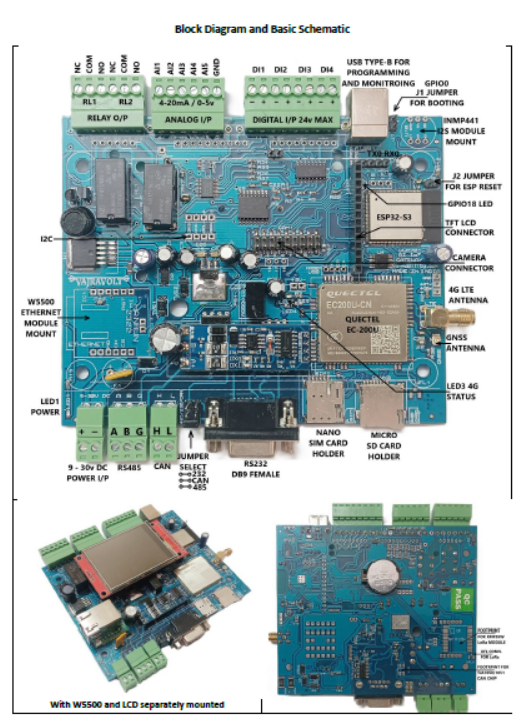

The board includes five analog inputs for 4–20 mA or 0–5 V signals, four isolated digital inputs rated up to 24 V, and two relay outputs rated at 30 V DC / 2 A. These interfaces support the connection of field signals and control equipment.
A microSD card slot supports local storage, and expansion options include cameras, I2S microphones, LCDs and LoRa modules. The board also supports over-the-air updates. It operates from a 9–30 V DC supply and has PCB dimensions of 130 × 105 mm.
The VVM701 is suitable for industrial automation, equipment monitoring, data logging and custom IoT gateway development.
Applications
Product Specifications

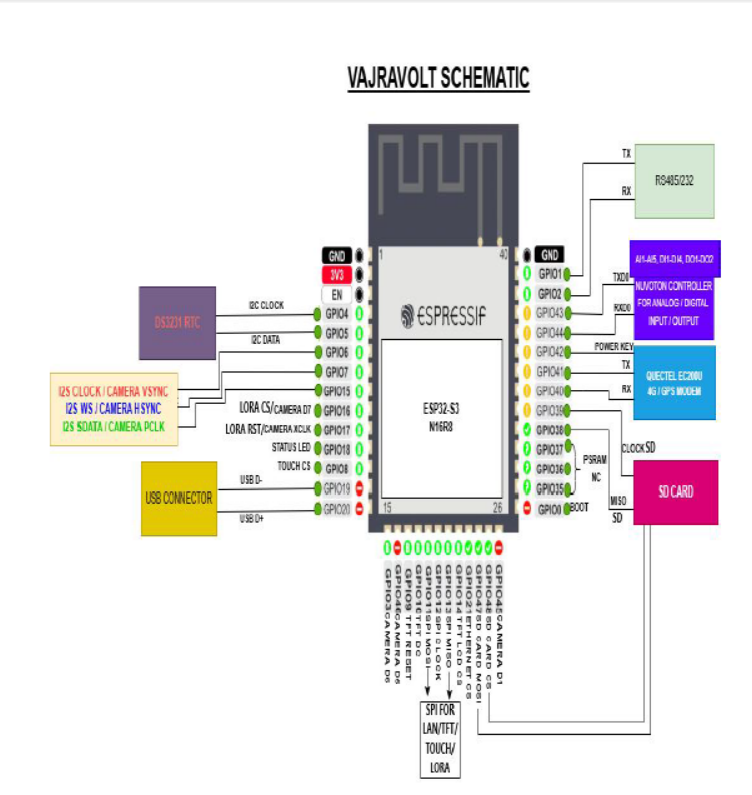

| ESP32-S3 GPIO Pin Mapping | All peripherals not mounted on board. Few pins may be shared among peripherals. |
| EC200U-CN 4G LTE / GPS Module (Serial Communication) | 41(Tx) to Rx, 40(Rx) to Tx, 42 to Power Key respectively of 4G Module |
| SPI Communication for Ethernet/LCD/LoRa | 11(MOSI), 13(MISO), 12(CLK) - Regular SPI for W5500 Ethernet, 2.4 inch Touchscreen LCD, RFM95W LoRa |
| SD Card (HSPI Communication) | 38(MISO), 47(MOSI), 39(CLK), 48(CS) Alternate HSPI |
| RS485 / RS232 / CAN (Serial Comm.) | 1(Tx), 2(Rx). Select either RS485 or RS232 or CAN by the Jumper Selector |
| RTC (DS3231 based – I2C Comm.) | 4(SCL), 5(SDA) |
| Data Acquisition (Serial Comm.) | TXD0 and RXD0 for communication with Nuvoton MS51FB9AE for 5 Analog Channel, 4 Isolated Digital Channel and 2 Relay Channel |
| W5500 Ethernet (SPI Comm.) | 21 for Chip Select, plus regular SPI pins |
| 2.4” TFT Touchscreen LCD (SPI) | 9(LCD Reset), 10(LCD DC), 14(LCD CS), 8(Touch CS), plus regular SPI pins |
| LoRa RFM95W (SPI) | 16(LoRa CS), 17(LoRa RST), plus regular SPI pins |
| Camera (SCCB Communication) | OV2640, OV7670 or similar cameras. 4(SCL/SIOC), 5(SDA/SIOD), 6(VSYNC), 7(HREF), 15(PCLK), 16(D7), 17(XCLK), 3(D6), 46(D5), 10(D4), 11(D0), 12(D2), 13(D3), 45(D1) |
| INMP441 I2S Microphone | 6(I2S CLK), 7(I2S WS), 15(I2S SDATA) |
| Green Status LED | 18, used for diagnosis to indicate network, data transmission, health, etc. |
Product Features
- ESP32-S3 WROOM-1-N16R8: Wi-Fi, Bluetooth 5, 240MHz with 16MB Flash and 8MB PS-RAM, 36 programmable GPIOs, AI acceleration support, full speed USB 2.0
- Quectel EC200U-CN 4G LTE Cat 1 module with 10Mbps downlink
- Built-in GNSS/GPS
- Isolated RS485 / RS232 (jumper selector)
- Micro SD Card and Nano SIM slot
- Single USB Type-B connector for programming and monitoring
- DS3231 RTC based on I2C protocol
- MS51FB9AE for Data acquisition
- 5 ch. 12-bit Analog Inputs 4-20mA / 0-5v
- 4 ch. Digital Isolated Inputs (up to 24v)
- 2 Relay Output 30v DC / 2A
- Protocols: MQTT(s), HTTP(s), DHCP, FTP, Modbus, SPI, I2C, etc.; FOTA supported
- 9 - 30v DC Power Supply, PCB size 130x105, separate enclosure available
Frequently Asked Questions
What is the VVM701-4G IoT Gateway Board ESP32S3 Quectel EC200U with RS485 RS232 Ethernet Analog Digital IO for Industrial Applications used for?
What are its main features?
What specifications should I check before choosing this product?
Which interfaces or communication protocols does it use?
What is included in the package?
Other Information
Warranty Information
1 Year Seller Warranty
This item is covered with a standard warranty of 1 year from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What Voids Warranty
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Shipping & Returns Policy
Shipping Policy:
- In-stock items are shipped within 7-10 working days for orders within India. Delivery varies based on location and courier service.
- In-stock items are shipped within up to 20 working days for orders outside India. Delivery varies based on location and courier service.
- If the item is out of stock, you can still place an order. The estimated delivery time will be notified to you by email.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests from here: Return Request or contact us at 09831070550.
- Refunds are processed within 3-4 working days after inspection and approval.
Main Features
- ESP32-S3-WROOM-1-N16R8 controller with 240 MHz processor, 16 MB flash and 8 MB PSRAM
- Quectel EC200U-CN 4G LTE Cat 1 module with GNSS/GPS
- Wi-Fi, Bluetooth 5 and AI acceleration support
- Jumper-selectable RS485 or RS232 interface
- 5 analog inputs for 4–20 mA or 0–5 V signals
- 4 isolated digital inputs up to 24 V and 2 relay outputs rated 30 V DC / 2 A
- MicroSD card slot supporting up to 16 GB and nano SIM slot
- Optional Ethernet support via W5500 module
- Supports MQTT, HTTP, FTP, Modbus, SPI, I2C and over-the-air updates
- Expansion support for cameras, I2S microphones, LCDs and LoRa modules
- 9–30 V DC power supply; PCB dimensions 130 × 105 mm
