AN-113 LoRaWAN Asset Tracker
Low Stock, 5 left
Product Description
LoRaWAN Displacement Monitor
The AN-113 LoRaWAN Displacement Monitor is a wireless asset tracker based on the standard LoRaWAN protocol. It is designed for tracking and monitoring a variety of movable assets, including vehicles, movable property, bulk commodities and shared bicycles across different applications.
Using LoRa technology, the AN-113 supports long-range wireless data transmission with low power consumption and wide-area coverage. The built-in G-sensor and anti-dismantle switch sensor enable real-time monitoring of movement, displacement and tampering. It also features an integrated power switch module and charging interface for convenient power management.
The compact IP65 device includes a built-in 2400mAh rechargeable battery, automatic alarm functions, alert tones and magnetic charging capability, making it suitable for anti-theft tracking and displacement monitoring of personnel, objects and valuable movable assets.
Applications
Product Specifications
| Model | AN-113 |
| Product Type | LoRaWAN Asset Tracker / Displacement Monitor |
| CPU | ARM Cortex-M3, 32MHz, 32-bit |
| Memory | 128KB Flash, 16KB RAM, 4KB EEPROM |
| G-Sensor | Gravity detection: 2g / 4g / 8g / 16g |

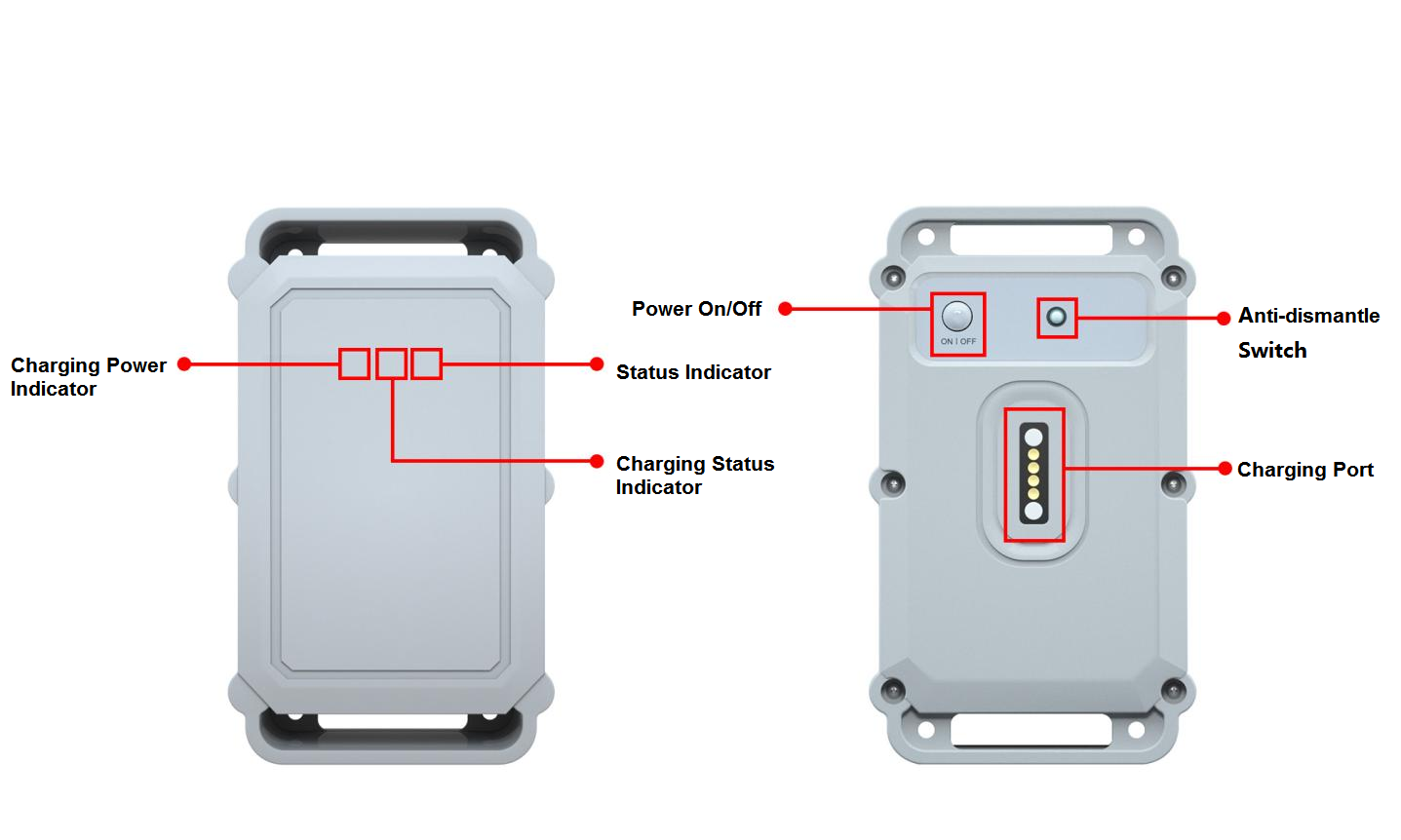

| Anti-Dismantle Switch | Closure removal or dismantle detection |
| Power On/Off | Physical button for power on/off |
| LoRa Antenna | Built-in LoRa antenna; bandwidth ±40MHz; impedance 50Ω; gain 1dBi; VSWR ≤1.5 |
| Data Transmission Rate | 300bps–5.4Kbps |
| Frequency Bands | CN470 / EU868 / US915 / AS923 / KR923 / IN865MHz (optional) |
| LoRaWAN Protocol | LoRaWAN 1.0.2 |
| Maximum Transmit Power | 19dBm |
| Receive Sensitivity | -141dBm |
| Battery Capacity | 4.2V / 2400mAh |
| Power Input | 5V / 1000mA |
| Power Supply | Built-in rechargeable Li-SOCL2 battery |
| Power Voltage | DC 4.2V |
| Standby Current | ≤20µA |
| TX Current | 150mA |
| Operating Temperature | -20°C to +60°C |
| Operating Humidity | 10%–90% RH |
| Ingress Protection | IP65 |

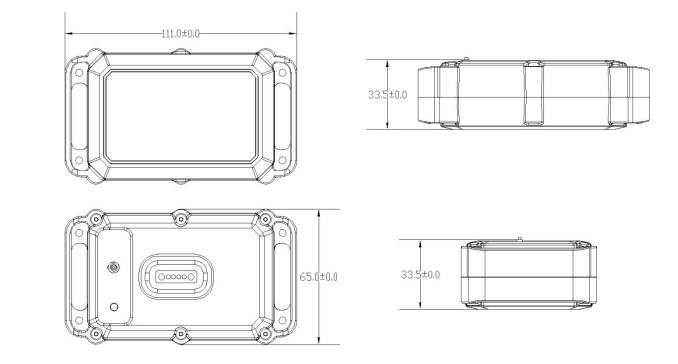

| Dimensions | 111 × 65 × 33.5mm |
Product Features
- Supports the standard LoRaWAN protocol.
- Supports LoRa frequency bands: CN470 / EU868 / US915 / AS923 / KR923 / IN865 MHz (optional).
- Built-in G-sensor gravity sensor supports object movement detection.
- IP65 ingress protection.
- Supports anti-theft tracking for personnel or objects.
- Built-in anti-dismantle sensor with alarm function.
- Built-in 2400mAh rechargeable battery.
- Low power consumption.
Package Includes
- 1 × AN-113 LoRaWAN Asset Tracker
Other Information
Warranty Information
1 Year Seller Warranty
This item is covered with a standard warranty of 1 year from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What Voids Warranty
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Shipping & Returns Policy
Shipping Policy:
- Delivery time within metro cities in India is 1-3 days; for other locations, it is 3-7 days. Delivery varies based on location and courier service.
- If the item is out of stock, the estimated delivery time is 7-14 days from order confirmation. Delivery varies based on location and courier service.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests from here: Return Request or contact us at 09831070550.
- Refunds are processed within 3-4 working days after inspection and approval.
Main Features
- Supports the standard LoRaWAN protocol
- LoRa frequency bands: CN470 / EU868 / US915 / AS923 / KR923 / IN865 MHz (optional)
- Built-in G-sensor gravity sensor for object movement detection
- IP65 ingress protection
- Supports anti-theft tracking for personnel or objects
- Built-in anti-dismantle sensor with alarm function
- Built-in 2400mAh rechargeable battery
- Low power consumption
