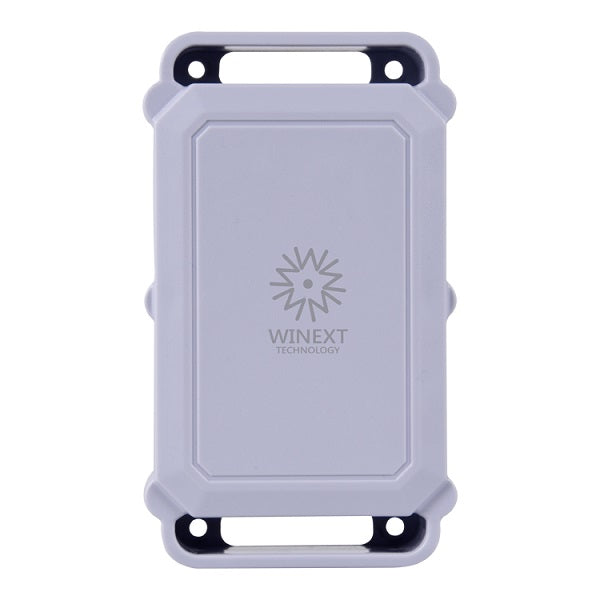

AN-113 LoRaWAN Asset Tracker
Low Stock, 1 left
Product Description
LoRaWAN Displacement Monitor
AN-113 LoRaWAN Asset Tracker is designed for keeping track of assets in the applications named below. Positioning method and radio support determine how a tracker fits into the wider monitoring system. LoRaWAN Protocol support is listed as LoRaWAN 1.0.2. The Power On/Off specification is Physical button for power on/off.
The Maximum Transmit Power specification is 19dBm. When choosing this lorawan asset tracker / displacement monitor, start with the documented configuration. Plan the receiving network alongside the tracker. Battery endurance and communication-distance figures describe the conditions stated for this model; actual deployment conditions also matter. The Battery Capacity specification is 4.2V / 2400mAh.
It accepts 5V / 1000mA at the specified input. Power is provided through the stated Built-in rechargeable Li-SOCL2 battery arrangement. The Power Voltage specification is DC 4.2V. The Frequency Bands specification is CN470 / EU868 / US915 / AS923 / KR923 / IN865MHz (optional).
Applications
Product Specifications
| Model | AN-113 |
| Product Type | LoRaWAN Asset Tracker / Displacement Monitor |
| CPU | ARM Cortex-M3, 32MHz, 32-bit |
| Memory | 128KB Flash, 16KB RAM, 4KB EEPROM |
| G-Sensor | Gravity detection: 2g / 4g / 8g / 16g |
| Anti-Dismantle Switch | Closure removal or dismantle detection |
| Power On/Off | Physical button for power on/off |
| LoRa Antenna | Built-in LoRa antenna; bandwidth ±40MHz; impedance 50Ω; gain 1dBi; VSWR ≤1.5 |
| Data Transmission Rate | 300bps–5.4Kbps |
| Frequency Bands | CN470 / EU868 / US915 / AS923 / KR923 / IN865MHz (optional) |
| LoRaWAN Protocol | LoRaWAN 1.0.2 |
| Maximum Transmit Power | 19dBm |
| Receive Sensitivity | -141dBm |
| Battery Capacity | 4.2V / 2400mAh |
| Power Input | 5V / 1000mA |
| Power Supply | Built-in rechargeable Li-SOCL2 battery |
| Power Voltage | DC 4.2V |
| Standby Current | ≤20µA |
| TX Current | 150mA |
| Operating Temperature | -20°C to +60°C |
| Operating Humidity | 10%–90% RH |
| Ingress Protection | IP65 |
| Dimensions | 111 × 65 × 33.5mm |
Product Features
- Available functions include the standard LoRaWAN protocol.
- Available functions include LoRa frequency bands: CN470 / EU868 / US915 / AS923 / KR923 / IN865 MHz (optional).
- Supported by Built-in G-sensor gravity sensor: object movement detection.
- IP65 ingress protection.
- Available functions include anti-theft tracking for personnel or objects.
- Built-in anti-dismantle sensor with alarm function.
- Built-in 2400mAh rechargeable battery.
- Low power consumption.
Package Includes
- 1 × AN-113 LoRaWAN Asset Tracker
Frequently Asked Questions
What is the AN-113 LoRaWAN Asset Tracker used for?
What are its main features?
What are the power or battery requirements?
Which interfaces or communication protocols does it use?
What is included in the package?
