AN-122D LoRaWAN + GPS Tracker
Lead Time
Product Description
AN-122D LoRaWAN + GPS Tracker is designed for keeping track of assets in the applications named below. Positioning method and radio support determine how a tracker fits into the wider monitoring system. The Power On/Off specification is Physical button. The Maximum TX Power specification is 19 dBm. The BLE TX Power specification is 0 dBm. When choosing this lorawan + gps asset tracker, start with the documented configuration. Plan the receiving network alongside the tracker. Battery endurance and communication-distance figures describe the conditions stated for this model; actual deployment conditions also matter. Power is provided through the stated Solar-powered and rechargeable battery arrangement. Power is provided through the stated 3.7 V / 2000mAh rechargeable arrangement. It accepts DC 4.2 V at the specified input. The Frequency Bands specification is CN470 / EU868 / US915 / AS923 / KR923 / IN865 MHz (optional). The dimensions figure is 111 × 65 × 33.5 mm.
Used by the tracker: an intelligent adaptive positioning mode. When the device moves outdoors, it automatically activates GNSS positioning to obtain fast and accurate location data. When it enters an indoor environment, it switches to Bluetooth Beacon scanning to support seamless all-scenario positioning coverage.
Included in the AN-122D also: anti-tamper detection and an alarm buzzer. If abnormal disassembly is detected, the device can trigger a sharp audible alarm and report the event to the monitoring platform.
With its compact IP65 enclosure, solar-assisted power system, built-in 2000mAh rechargeable battery, low-power design and easy installation, the AN-122D is intended for enterprise asset monitoring, movable asset management, livestock tracking, bulk commodity supervision, logistics and shared-bike management.
Provided by This versatile tracker: reliable real-time positioning, movement monitoring and security alerts across a wide range of asset-tracking applications.
Applications
Product Specifications
| Model | AN-122D |
| Product Type | LoRaWAN + GPS Asset Tracker |
| Core | ARM Cortex-M33 @ 38.4MHz (32-bit) |
| Memory | 352KB Flash, 32KB RAM |
| G-Sensor | 2g MEMS 3-axis accelerometer |

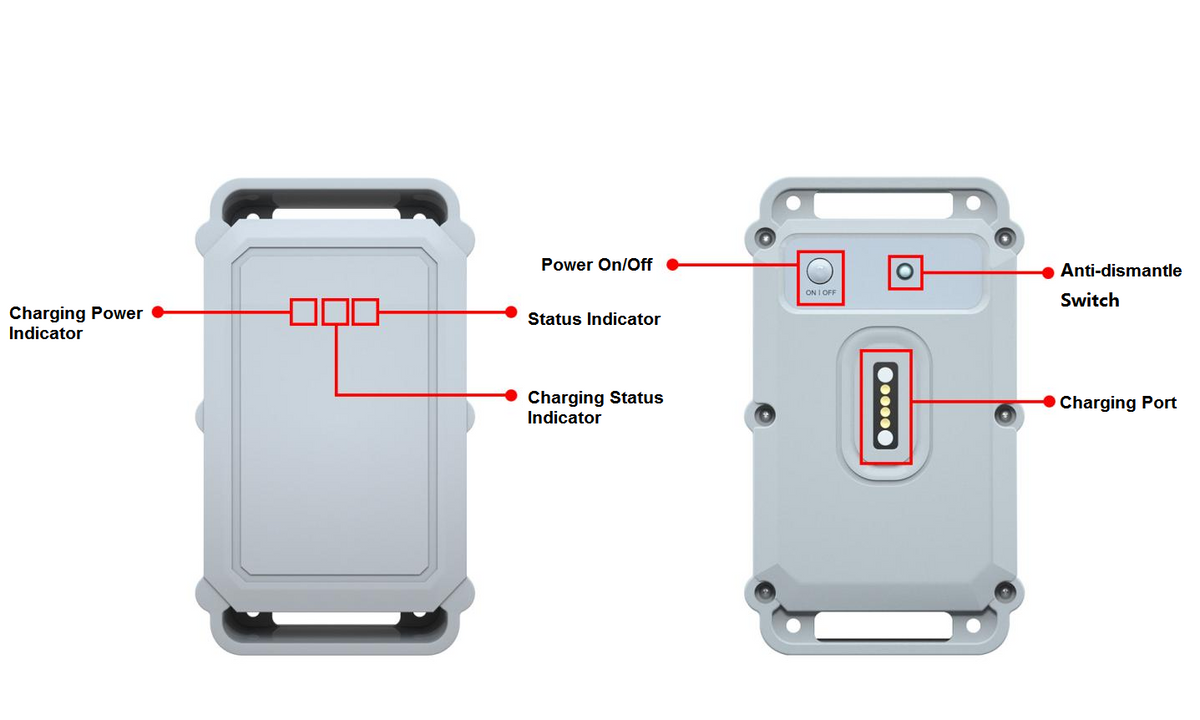

| Anti-Tamper | Anti-tamper button with tamper alarm |

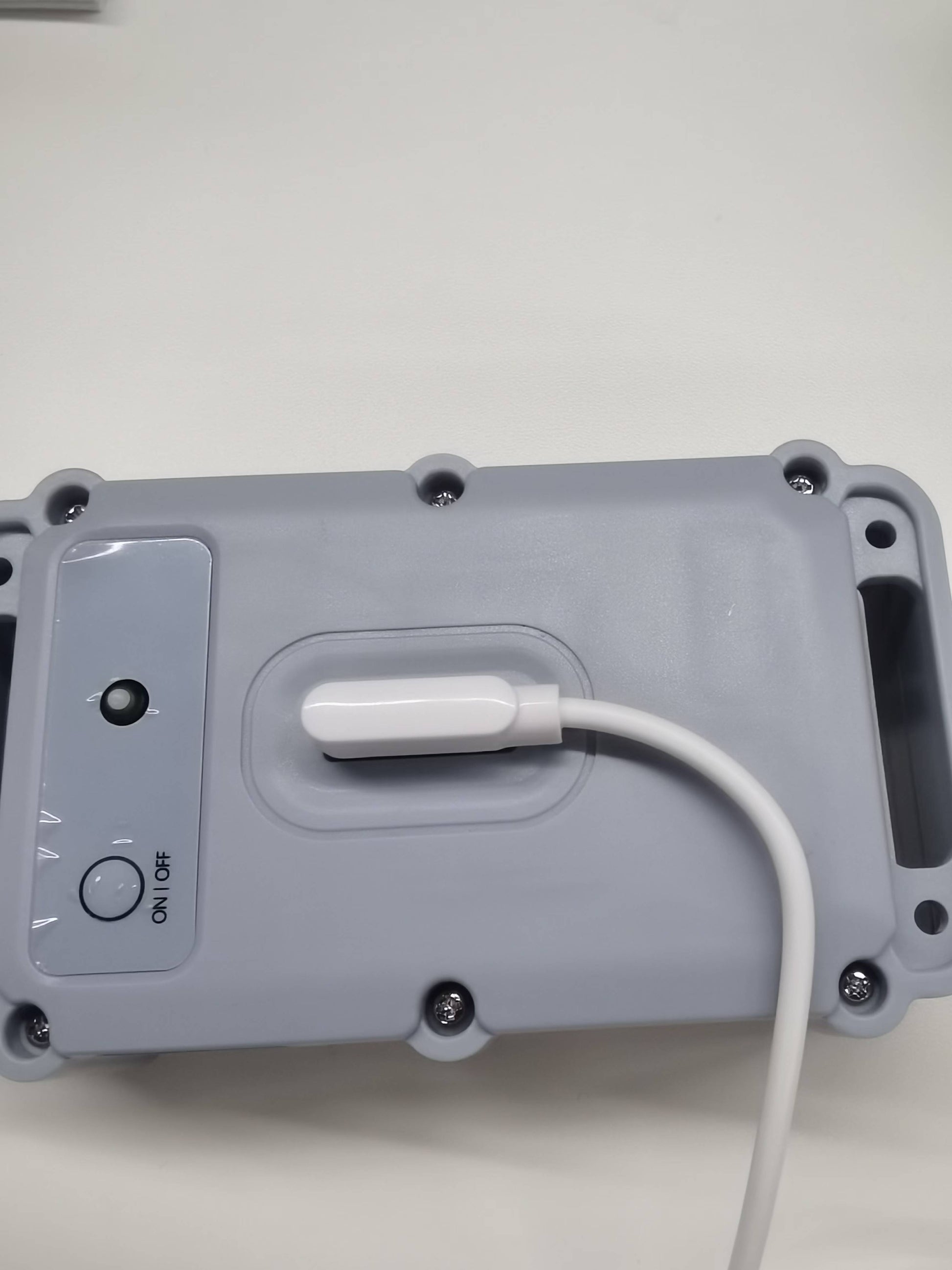

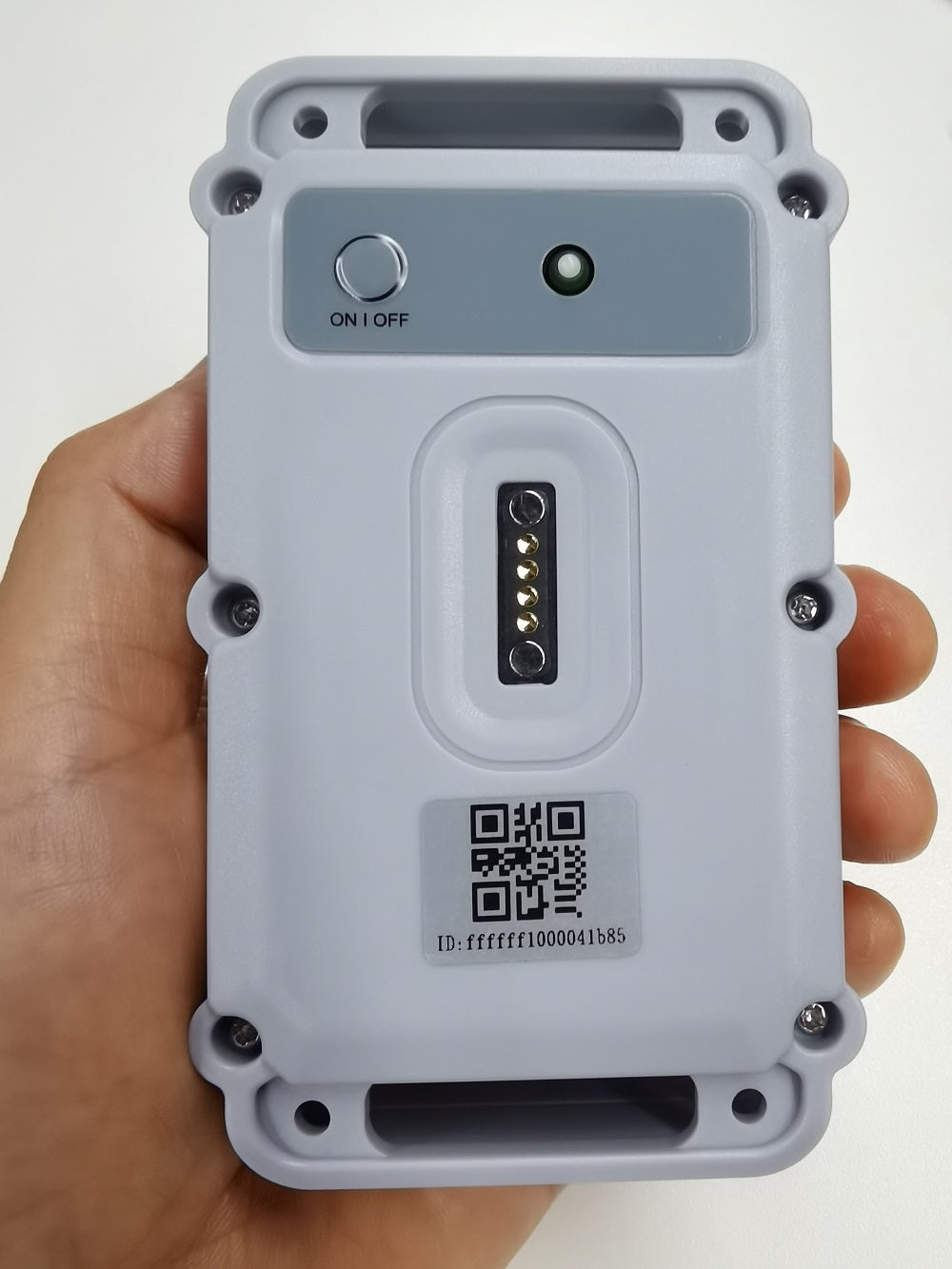

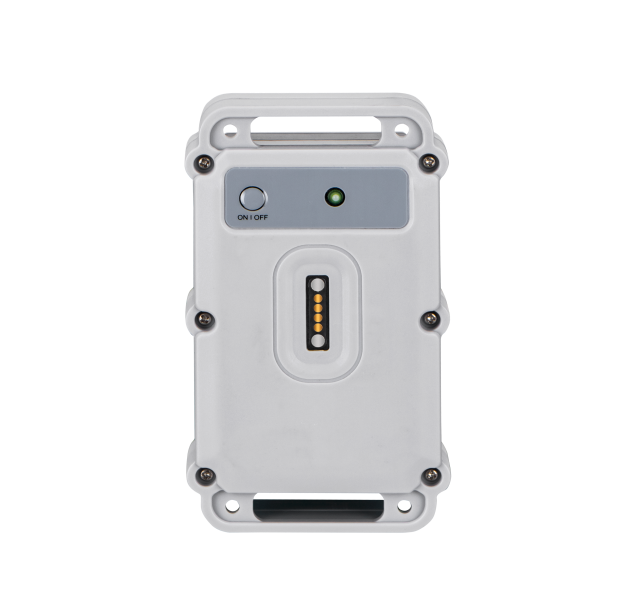

| Power On/Off | Physical button |
| GNSS Positioning | GPS + BeiDou |
| GPS Accuracy | ≤5 m |
| Bluetooth | Bluetooth 5.0 and above |
| GPS Antenna | 1575.42 MHz, bandwidth ±2 MHz, gain 2 dBi |
| LoRa Antenna | Built-in, bandwidth ±40 MHz, gain 1 dBi |
| Data TX Rate | 300 bps–5.4 Kbps |
| Frequency Bands | CN470 / EU868 / US915 / AS923 / KR923 / IN865 MHz (optional) |
| Network Access | OTAA / ABP (optional) |
| LoRaWAN Class | Class A |
| Configuration | LoRa P2P, Bluetooth |
| Maximum TX Power | 19 dBm |
| LoRa RX Sensitivity | -141 dBm (SF12) |
| BLE TX Power | 0 dBm |
| BLE RX Sensitivity | -96 dBm |
| Working Temperature | -20°C to +60°C |
| Working Humidity | 10%–90% RH |

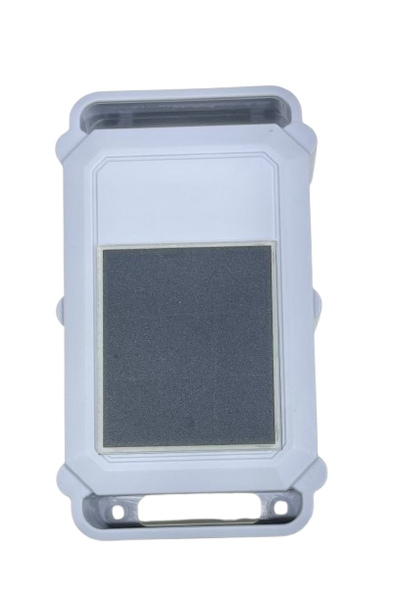

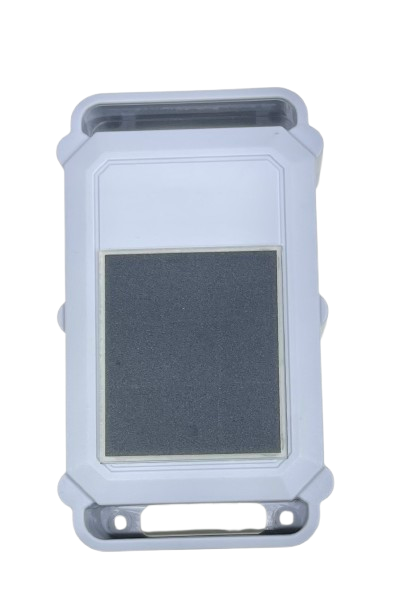

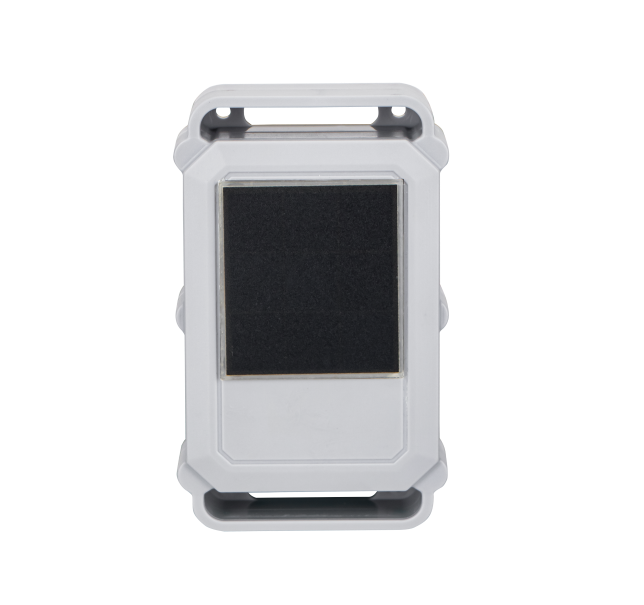

| Power Supply | Solar-powered and rechargeable battery |
| Battery | 3.7 V / 2000mAh rechargeable |
| Solar Input | 5 V / 40mA |
| Supply Voltage | DC 4.2 V |
| Standby Current | ≤40 µA |
| RX Current | ≤16 mA |
| TX Current | ≤150 mA |
| Ingress Protection | IP65 |

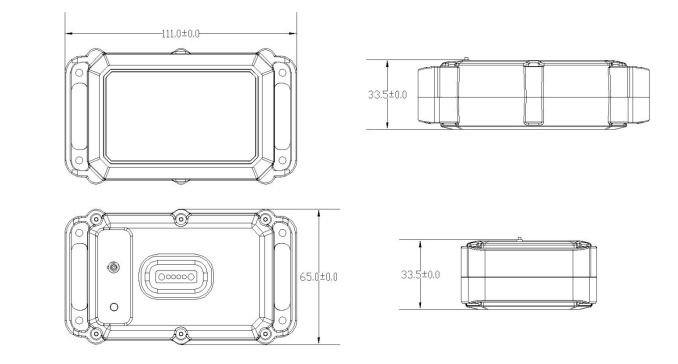

| Dimensions | 111 × 65 × 33.5 mm |
Product Features
- Available functions include the standard LoRaWAN protocol.
- Available functions include GPS positioning with accuracy within 5 meters.
- Built-in MEMS 3-axis accelerometer for monitoring device movement and tilt status.
- Built-in anti-dismantle sensor with alarm function.
- Solar-assisted power system with a onboard 2000mAh rechargeable battery for extended operating life.
- High-precision dual-mode GNSS positioning with Bluetooth for accurate indoor and outdoor location tracking.
- Smart logic algorithms for accurate positioning.
- Available functions include Bluetooth configuration for easier device setup and commissioning.
- Available functions include motion mode and interval reporting mode for different application scenarios.
- IP65 ingress protection.
Package Includes
- 1 × Winext AN-122D LoRaWAN + GPS Tracker
Accessories may vary by package configuration.
