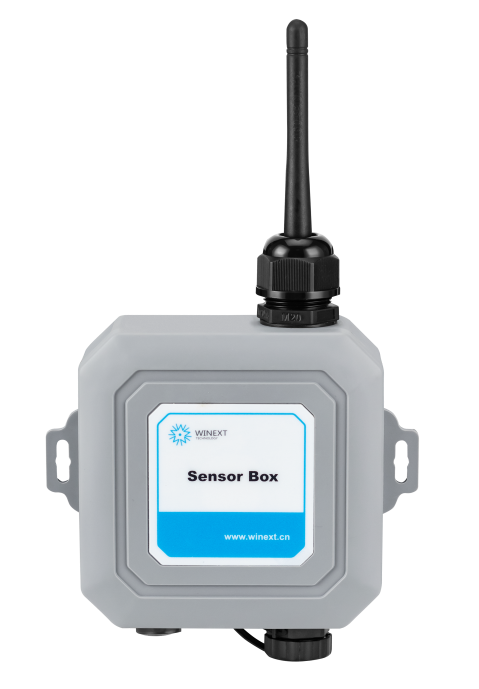

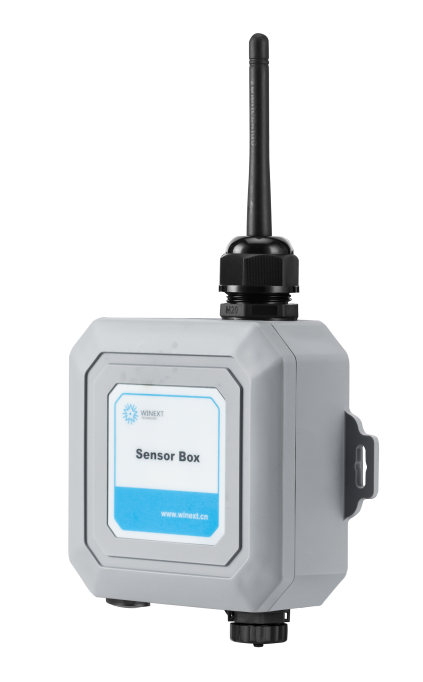

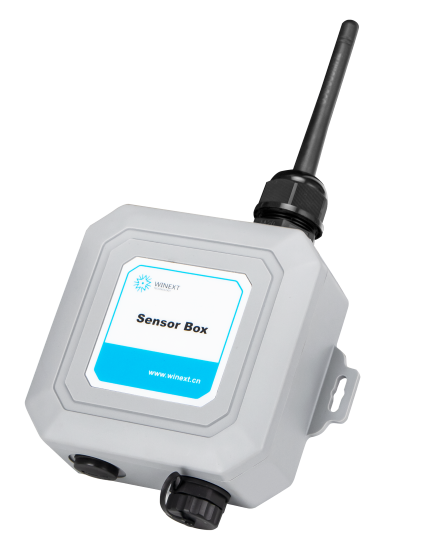

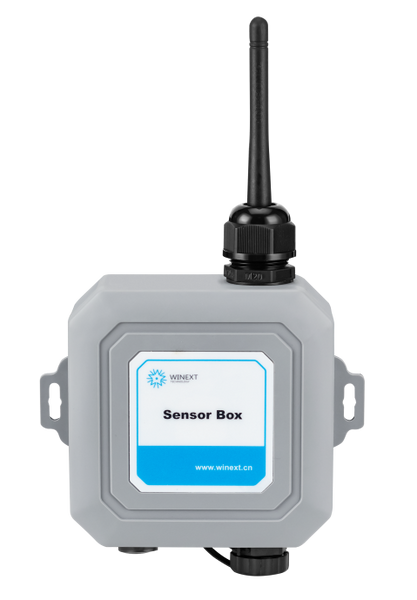

AN-201A LoRaWAN Sensor Box
Low Stock, 5 left
Product Description
AN-201A Sensor Box is a LoRaWAN-compliant wireless data gathering device designed to connect a wide variety of external sensors through UART, SPI, I2C, GPIO, ADC and RS485 interfaces. Its high-gain omnidirectional external antenna supports long-range communication, while optional DC 5–24 V external power or a built-in 3.6 V / 19000 mAh battery provides flexible deployment. The device also supports multiple sensor supply voltages, wired and wireless parameter configuration, firmware upgrades, remote configuration, low-battery alarms and configurable heartbeat reporting. With an IP65 enclosure and wall- or pole-mount installation, it is suitable for demanding industrial, agricultural and environmental monitoring applications.
Applications
- Angle and tilt sensor monitoring
- Hydrological, water level, flow and pressure monitoring
- Industrial workshop and warehouse monitoring
- Agricultural greenhouses and smart agriculture
- Environmental sensing, wind monitoring and utility metering
Applications
Product Specifications
| Brand | Winext |
| Model | AN-201A |
| Wireless Protocol | LoRaWAN |
| Data Rate | 300 bps–5.4 Kbps |
| Frequency Bands | CN470–510 / EU863–870 / US902–928 / AS923–925 / AU915–928 / CT850 MHz |
| Maximum TX Power | 19 dBm |
| Maximum Link Budget | 160 dB |
| Maximum RX Sensitivity | -140 dBm (SF12) |
| LoRa Antenna | Omnidirectional external antenna |
| Communication Ports | UART, SPI, I2C, GPIO, ADC, RS485 |
| Operating Temperature | -20°C to +70°C |
| Operating Humidity | 10–95% RH, non-condensing |
| Power Supply | DC 5–24 V input; built-in battery optional |
| Battery Capacity | 3.6 V / 19000 mAh |
| Sleep Current | ≤6 µA |
| TX Current | ≤125 mA |
| RX Current | ≤16 mA |
| Ingress Protection | IP65 |
| Dimensions | 110 × 110 × 45 mm (antenna excluded) |
Product Features
- LoRaWAN wireless data gathering device for multiple external sensor types.
- Supports UART, SPI, I2C, GPIO, ADC and RS485 interfaces.
- External omnidirectional antenna supports long-range field communication.
- Supports DC 5–24 V input or an optional 3.6 V / 19000 mAh battery.
- Very low sleep current of ≤6 µA for battery-powered deployments.
- Supports remote parameter configuration, wired/wireless setup and firmware upgrades.
- Supports low-battery alarms and configurable heartbeat reporting.
- IP65 enclosure is suitable for wall or pole mounting in indoor and outdoor monitoring applications.
Package Includes
- 1 × AN-201A LoRaWAN Sensor Box
- 1 × External LoRa antenna
External sensors, power supply and mounting accessories depend on the selected OEM configuration and are not included unless specified.
Other Information
Country of Origin: China
Warranty Information
15 Days Seller Warranty:
This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What Voids Warranty:
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Shipping & Returns Policy
Shipping Policy:
- Delivery time within metro cities in India is 1-3 days; for other locations, it is 3-7 days. Delivery varies based on location and courier service.
- If the item is out of stock, the estimated delivery time is 7-14 days from order confirmation. Delivery varies based on location and courier service.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests from here: Return Request or contact us at 09831070550.
- Refunds are processed within 3-4 working days after inspection and approval.
Main Features
- Supports standard LoRaWAN protocol
- Frequency bands: CN470–510 / EU863–870 / US902–928 / AS923–925 / AU915–928 / CT850 MHz
- Interfaces: SPI, UART, ADC, GPIO, I2C and RS485
- IP65 ingress protection
- Low-power design with external power or optional 3.6 V / 19000 mAh battery
- Supports multiple sensor output voltages: 3.3 V, 5 V, 9 V and 12 V
- Supports wired and wireless parameter configuration and firmware upgrades
- Supports remote configuration
- Supports low-battery alarm and configurable heartbeat reporting
- Operating temperature: -20°C to +70°C
