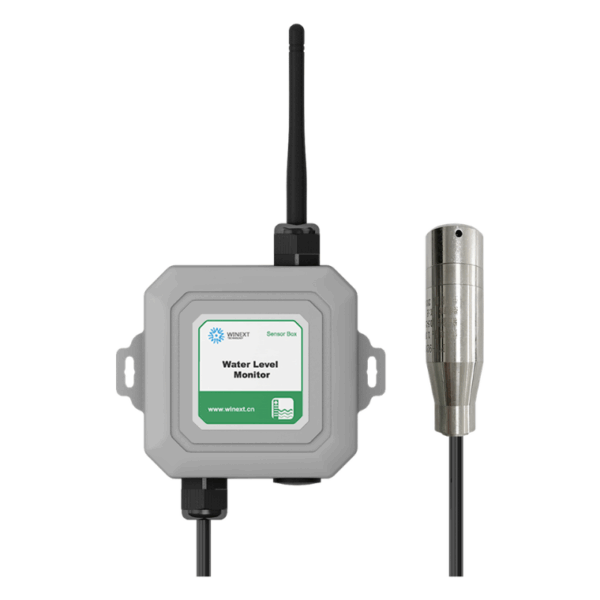

AN-203A Water Level Monitor
Lead Time
Product Description
The AN-203A is a wireless level transmitter based on LoRaWAN standard protocol. It features a ceramic capacitive pressure sensor, which is resistant to clogging, easy to clean, and offers excellent corrosion resistance. Advanced digital circuit technology is employed, incorporating zero tracking, linearity compensation, and temperature compensation functions. Leveraging the spread spectrum communication technology of LoRa, coupled with a high-gain external antenna, the device ensures better transmission and reception of wireless signals, thereby extending the wireless communication range. With its low power consumption and built-in high-capacity battery, the AN-203A ensures a long operational lifespan and service cycle.
The AN-203A is easy to install and maintain, can be installed in pole-mounted or wall-mounted. Suitable for water or liquid level measurement and monitoring in the fields of property fire-fighting, industry, petroleum, power plant, mining, urban water supply and drainage, hydrological exploration, etc.
Applications
Product Specifications
| Model | AN-203A |
| Product Type | LoRaWAN Water Level Monitor |
| Measurement Range | 0–5 m, 0–10 m through 100 m (optional) |
| Accuracy | ±0.5% FS |
| Sensor Material | 96% alumina ceramic |
| Housing Material | 316L stainless steel and PTFE |
| Seal Material | Fluororubber and PTFE |
| Cable Length | 10 m, customizable |
| Protocol | LoRaWAN |
| Frequency Bands | CN470–510 / EU863–870 / US902–928 / AS923 / AU915–928 MHz |
| Data Rate | 300 bps–5.4 Kbps |
| Max Transmit Power | 19 dBm |
| Receive Sensitivity | -140 dBm (SF=12) |
| Operating Temperature | 0°C to 60°C |
| Operating Humidity | 0%–95% |
| Battery | 3.6 V / 19,000mAh internal |
| Standby Current | ≤10 µA |
| Transmit Current | ≤130 mA |
| Ingress Protection | IP64 |
| Sensor Box | 110 × 110 × 45 mm |
| Level Sensor | Ø27 × 100 mm |
Product Features
- Designed for remote water-level monitoring in wells, aquifers, reservoirs and water towers.
- Ceramic capacitive pressure sensor provides stable measurement with resistance to corrosion and clogging.
- Supports measurement configurations from 0–5 m through 100 m with ±0.5% FS accuracy.
- LoRaWAN connectivity supports long-range, low-power telemetry for remote infrastructure.
- High-capacity 19,000mAh internal battery reduces maintenance requirements.
- 316L stainless steel, PTFE and fluororubber construction supports demanding liquid-level applications.
- Supports high and low level alerting for remote monitoring workflows.
- Suitable for water utilities, industrial water management, mining, hydrology and oil-sector telemetry.
Docs & Resources
Package Includes
- 1 × Winext AN-203A Water Level Monitor
Other Information
Country of Origin: China
Warranty Information
1 Year Seller Warranty
This item is covered with a standard warranty of 1 year from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What Voids Warranty
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Shipping & Returns Policy
Shipping Policy:
- Delivery time for orders within India is 7-10 working days. Delivery varies based on location and courier service.
- Delivery time for orders outside India is up to 20 working days. Delivery varies based on location and courier service.
- If the item is out of stock, you can still place an order. The estimated delivery time will be notified to you by email.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests from here: Return Request or contact us at 09831070550.
- Refunds are processed within 3-4 working days after inspection and approval.
Main Features
- LoRaWAN wireless water-level monitoring
- Selectable measurement ranges from 0–5 m up to 100 m
- ±0.5% FS measurement accuracy
- 96% alumina ceramic pressure sensor
- 316L stainless-steel and PTFE wetted construction
- Built-in 3.6 V / 19,000mAh battery
- IP64 enclosure for remote field installations
- Supports CN470, EU868, US915, AS923 and AU915 regional bands
