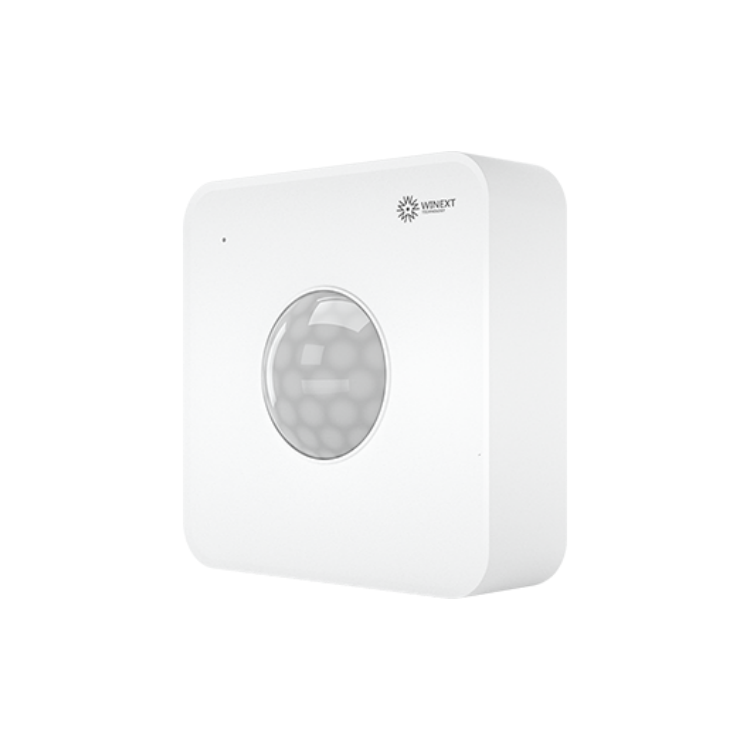

AN-308 LoRaWAN Illuminance Sensor
Lead Time
Product Description
AN-308 is an advanced wireless illuminance sensor based on LoRa technology, featuring low-power sleep-wake operation and long battery life for convenient wire-free deployment. Its photometric technology provides high linearity and precise measurement in low-light ranges, making it particularly suitable for indoor and obstructed environments.
With LoRa technology offering strong anti-interference capability, long communication range and strong penetration, the AN-308 is well suited to IoT environmental monitoring applications including agricultural greenhouses, smart breeding, smart homes, smart buildings, smart transportation and industrial monitoring.
Applications
Product Specifications
| Brand | Winext |
|---|---|
| Model | AN-308 |
| Product Type | LoRaWAN Illuminance Sensor |
| Measurement Range | 0–65,535 LUX |
| Accuracy | ±7% |
| Data Transmission Rate | 300 bps–5.4 Kbps |
| Operating Frequency | CN470–510MHz / EU863–870MHz / AU915–928MHz / AS923 / US902–928MHz, etc. (optional) |
| Maximum Transmit Power | 20 dBm |
| Maximum Receive Sensitivity | -141 dBm |
| Operating Temperature | -10°C to +50°C |
| Operating Humidity | 10%–95% RH |
| Power Supply | Built-in lithium battery |
| Battery Specification | ER18505 (3.6V / 8000mAh) |
| Dimensions | 86 × 86 × 26 mm |
Product Features
- Low-power wireless sensing
Sleep-wake operation and an 8000mAh built-in battery support long-life wire-free deployment. - Precise illuminance measurement
Photometric sensing provides high linearity and precise measurement in low-light ranges. - LoRaWAN connectivity
Long communication range, strong penetration and anti-interference capability for IoT monitoring. - Security monitoring
Supports tamper-proof alarms and low-voltage detection. - Wireless configuration
Supports P2P wireless configuration for convenient deployment.
Package Includes
- 1 × AN-308 LoRaWAN Illuminance Sensor
Frequently Asked Questions
What is the AN-308 LoRaWAN Illuminance Sensor used for?
What are its main features?
What are the power or battery requirements?
What operating or installation limits should I consider?
What is included in the package?
Other Information
Warranty Information
1 Year Seller Warranty
This item is covered with a standard warranty of 1 year from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What Voids Warranty
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Shipping & Returns Policy
Shipping Policy:
- Delivery time for orders within India is 7-10 working days. Delivery varies based on location and courier service.
- Delivery time for orders outside India is up to 20 working days. Delivery varies based on location and courier service.
- If the item is out of stock, you can still place an order. The estimated delivery time will be notified to you by email.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests from here: Return Request or contact us at 09831070550.
- Refunds are processed within 3-4 working days after inspection and approval.
Main Features
- Supports the LoRaWAN protocol
- Supports tamper-proof alarms and low-voltage detection
- Supports P2P wireless configuration
- Built-in 8000mAh battery
- Measurement range: 0–65,535 LUX
- Accuracy: ±7%
SKU: 2ESE20127
