AN-308 LoRaWAN Illuminance Sensor

No reviews yet
Expert Online
Consultation Remote
Configuration Support Onsite
Deployment Knowledge
Video
Low Stock, 5 left

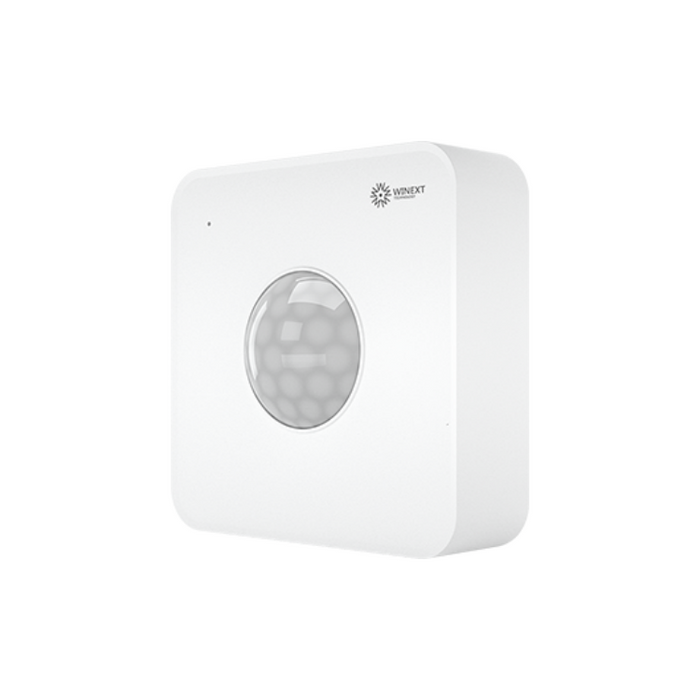

Winext AN-308 LoRaWAN Illuminance Sensor
  • Winext AN-308 LoRaWAN Illuminance Sensor
  • AN-308 illuminance sensor front and back controls diagram
  • AN-308 illuminance sensor dimensions

Product Description

AN-308 is an advanced wireless illuminance sensor based on LoRa technology, featuring low-power sleep-wake operation and long battery life for convenient wire-free deployment. Its photometric technology provides high linearity and precise measurement in low-light ranges, making it particularly suitable for indoor and obstructed environments.

With LoRa technology offering strong anti-interference capability, long communication range and strong penetration, the AN-308 is well suited to IoT environmental monitoring applications including agricultural greenhouses, smart breeding, smart homes, smart buildings, smart transportation and industrial monitoring.

Applications

Agriculture & Livestock Smart Home Smart Buildings Transportation & Mobility Manufacturing & Industrial

Product Specifications

BrandWinext
ModelAN-308
Product TypeLoRaWAN Illuminance Sensor
Measurement Range0–65,535 LUX
Accuracy±7%
Data Transmission Rate300 bps–5.4 Kbps
Operating FrequencyCN470–510MHz / EU863–870MHz / AU915–928MHz / AS923 / US902–928MHz, etc. (optional)
Maximum Transmit Power20 dBm
Maximum Receive Sensitivity-141 dBm
Operating Temperature-10°C to +50°C
Operating Humidity10%–95% RH
Power SupplyBuilt-in lithium battery
Battery SpecificationER18505 (3.6V / 8000mAh)
Dimensions86 × 86 × 26 mm

Product Features

  1. Low-power wireless sensing
    Sleep-wake operation and an 8000mAh built-in battery support long-life wire-free deployment.
  2. Precise illuminance measurement
    Photometric sensing provides high linearity and precise measurement in low-light ranges.
  3. LoRaWAN connectivity
    Long communication range, strong penetration and anti-interference capability for IoT monitoring.
  4. Security monitoring
    Supports tamper-proof alarms and low-voltage detection.
  5. Wireless configuration
    Supports P2P wireless configuration for convenient deployment.

Package Includes

  • 1 × AN-308 LoRaWAN Illuminance Sensor

Other Information

Applications
  • Agricultural greenhouses and smart breeding
  • Smart homes and smart buildings
  • Smart transportation
  • Industrial and IoT environmental monitoring
Operating Instructions
  • Power On: Press and hold the power button until the green light comes on and then goes off. Release the button after it goes off.
  • Power Off: Press and hold the button for more than 3 seconds until the red light comes on and then goes off. Release the button after it goes off.
  • Network Registration: After powering on, the terminal flashes the green light once when it successfully registers on the network and begins sending data.
