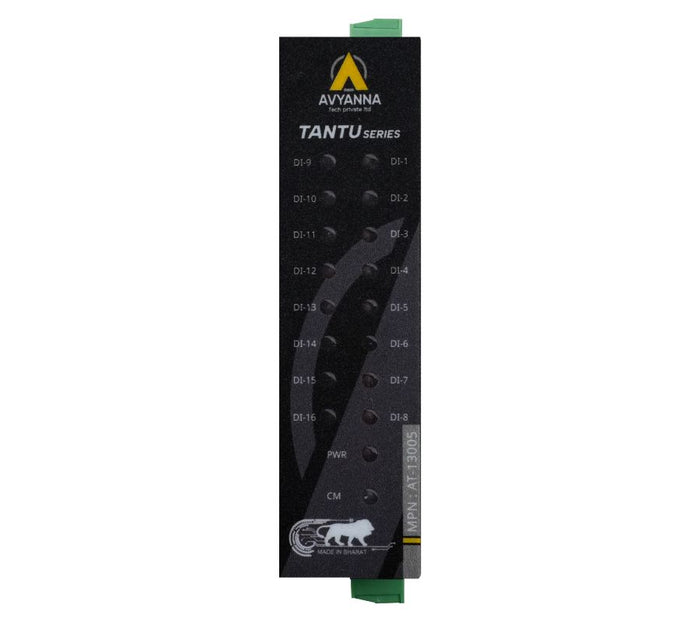

AT-13005 – 16-Channel Digital Input Module with Modbus RTU
Low Stock, 1 left
Product Description
AT-13005 – 16-Channel Digital Input Module with Modbus RTU
AT-13005 – 16-Channel Digital Input Module with Modbus RTU is designed for linking field signals or loads with compatible control equipment. It suits monitoring and automation work that needs the documented channel types rather than a general-purpose connection board. Communication Interface support is listed as RS-485. Protocol support is listed as Modbus RTU.
The Input Isolation Voltage specification is 5000 Vrms. When choosing this 16-channel digital input module, start with the documented configuration. Match each signal or contact requirement to the field equipment. Channel count, communication, supply and isolation describe separate constraints; use the stated configuration information when planning the complete control system. It accepts 9–36 VDC at the specified input.
The Mounting specification is DIN rail. The Digital Inputs specification is 16 channels. The Input Type specification is Sinking. The Logic Level 1 specification is ≥6 V.
Applications
- Remote digital signal acquisition
- Equipment status monitoring and control
- Building Management Systems (BMS)
- Energy management systems
- Integration with PLC and SCADA systems
Applications
Product Specifications
| Manufacturer | Avyanna Tech |
| Model / MPN | AT-13005 |
| Product Type | 16-Channel Digital Input Module |
| Communication Interface | RS-485 |
| Protocol | Modbus RTU |
| Digital Inputs | 16 channels |
| Input Type | Sinking |
| Input Isolation Voltage | 5000 Vrms |
| Logic Level 1 | ≥6 V |
| Logic Level 0 | ≤5 V |
| Maximum Input Current | 10 mA per input |
| Grouping | 16 + Common, separate for each DI |
| Galvanic Isolation | 2.5 kV |
| Operating Temperature | 0°C to 60°C |
| Input Voltage | 9–36 VDC |
| Mounting | DIN rail |
| Certification | RoHS |
| Country of Origin | India |
Product Features
- 16-Channel Digital Input:Sixteen sinking-type digital inputs for industrial signal acquisition.
- High Input Isolation:Supported by 5000 Vrms isolation: stable operation in electrically noisy environments.
- Defined Logic Levels:Logic ‘1’ at ≥6 V and logic ‘0’ at ≤5 V, with maximum input current of 10 mA per input.
- Flexible Grouping:16 + common configuration, separate for each digital input.
- Industrial Communication:RS-485 with Modbus RTU protocol and Automatic Data Direction Control (ADDC).
- Galvanic Isolation:Up to 2.5 kV isolation for dependable industrial operation.
- System Reliability:Serial configuration utility and onboard watchdog timers.
- Wide DC Supply:9–36 VDC operating input with small DIN-rail mounting.
