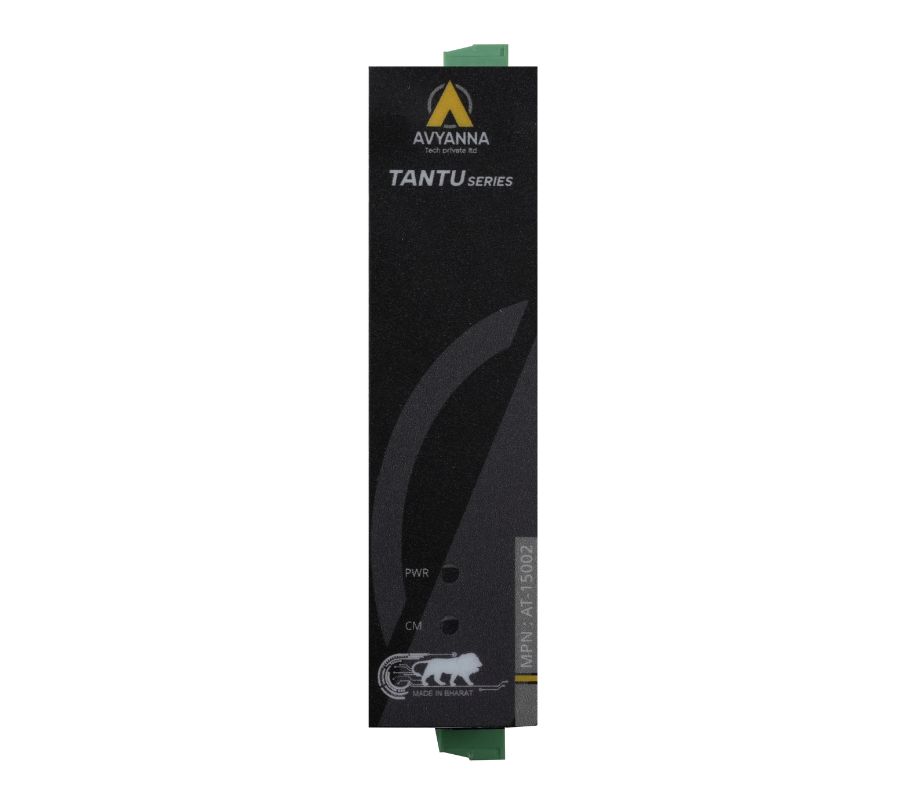

AT-15002 7-ch RTD Module with Modbus RTU
Low Stock, 5 left
Product Description

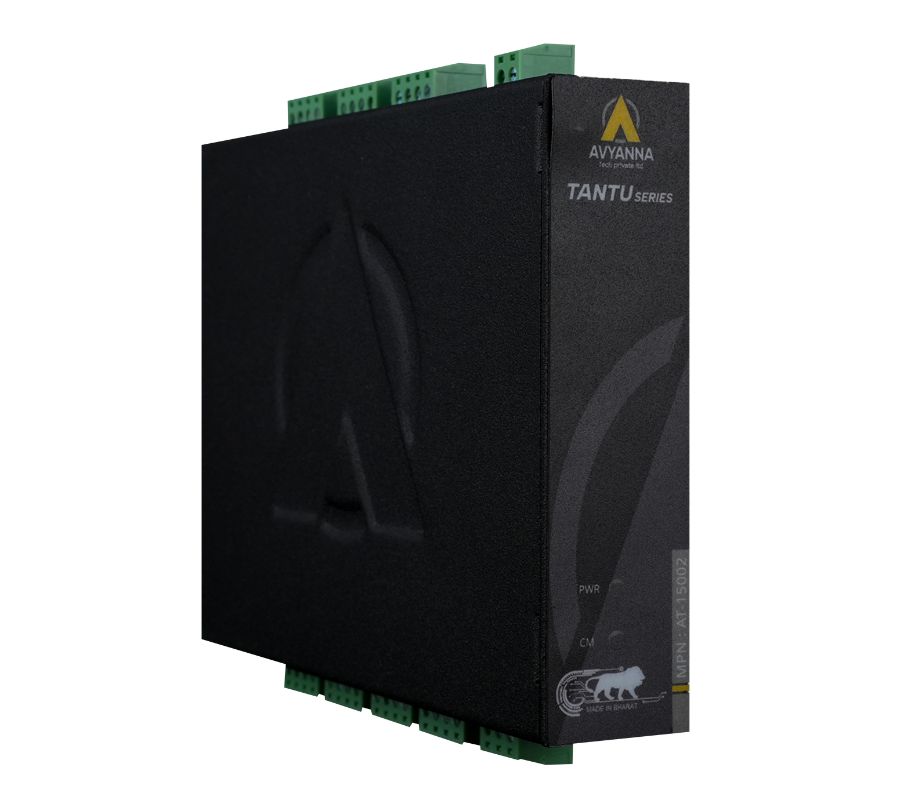

AT-15002 – 7-Channel RTD Input Module with Modbus RTU
The AT-15002 is a high-accuracy 7-channel RTD input module designed for precise temperature measurement and monitoring over the Modbus RTU protocol. It supports Pt100 and Pt1000 sensors with 2-wire, 3-wire, and 4-wire connections, providing flexibility for various industrial temperature sensing applications.
With an accuracy of ±0.5°C, the module ensures stable and reliable readings across wide temperature ranges — Pt100: -200°C to +850°C and Pt1000: -70°C to +550°C. Its rugged design, 2.5 kV galvanic isolation and Modbus RTU communication make it ideal for integration into existing industrial control systems.
Main Features
- 7-channel RTD input
- Protocols: Modbus RTU

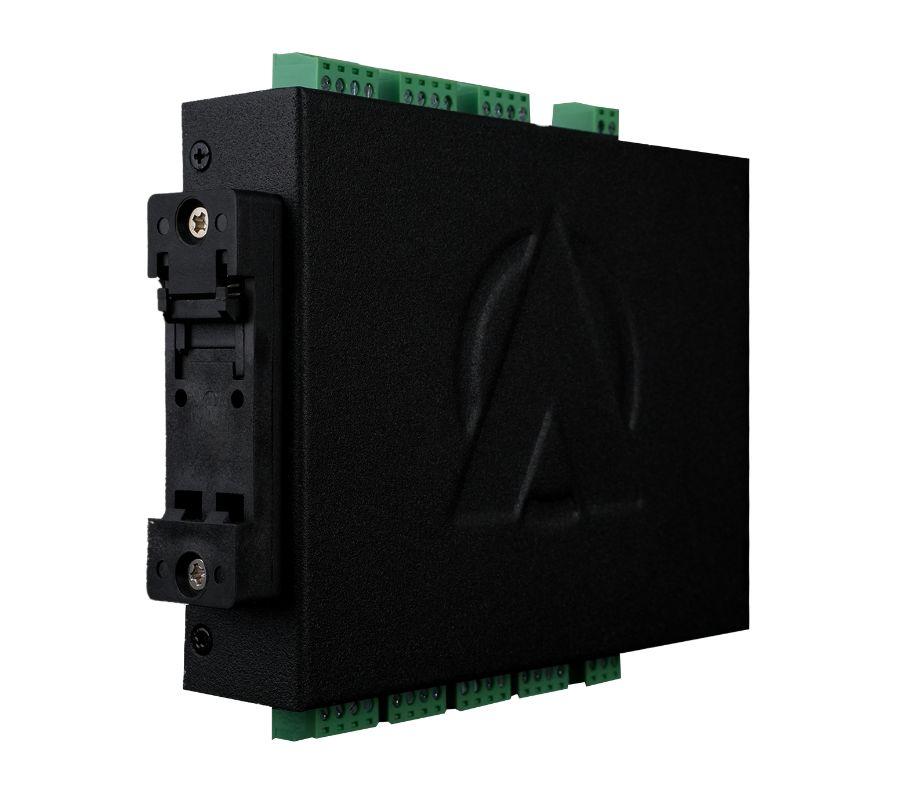

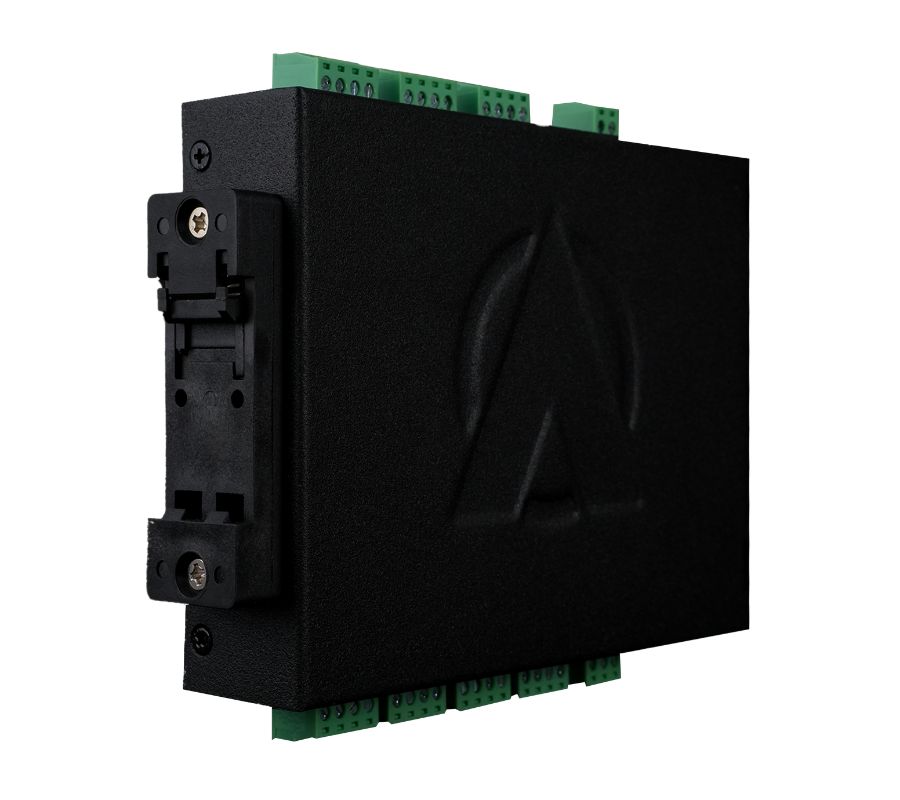

- Compact DIN-rail mountable design
- Galvanic Isolation of 2.5 kV
Applications
- HVAC Systems
- Remote Monitoring Systems
- Building Management Systems (BMS)
- Energy and Utility Monitoring
- Industrial Equipment Control
Product Specifications
| Model | AT-15002 |
| RTD Channels | 7 |
| Supported Sensors | Pt100 / Pt1000 |

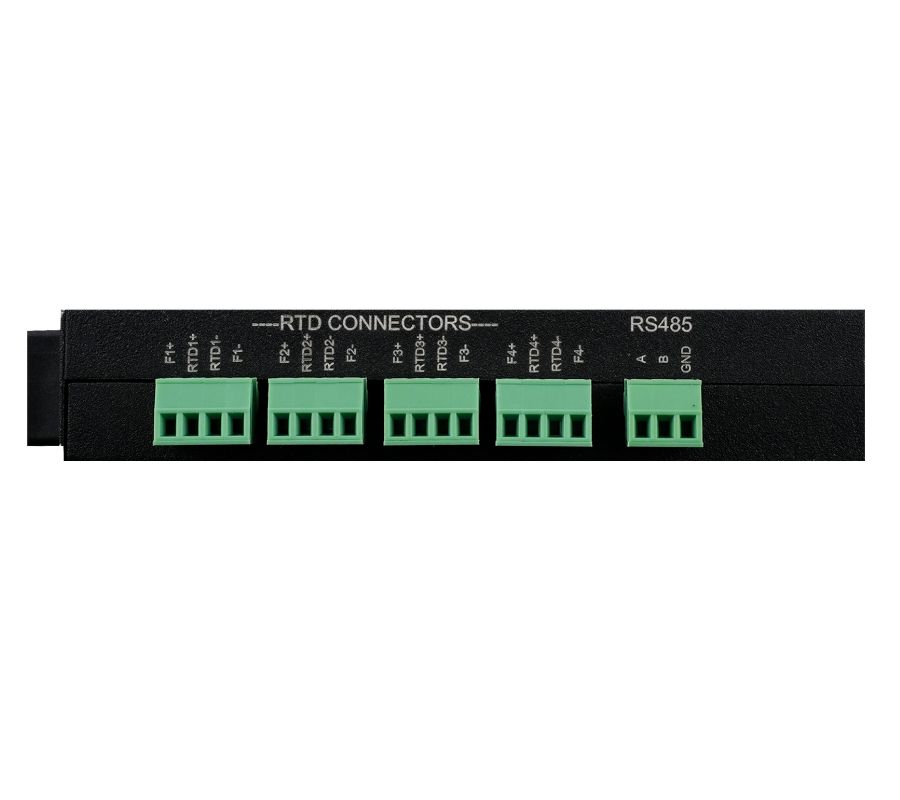

| Input Connections | 2-wire / 3-wire / 4-wire |
| Communication Interface | RS-485 |
| Protocol | Modbus RTU |
| Accuracy | ±0.5°C (0.05% of Full Scale max) |
| Pt100 Temperature Range | -200°C to +850°C |
| Pt1000 Temperature Range | -70°C to +550°C |
| Galvanic Isolation | 2.5 kV |
| Operating Temperature | 0°C to 60°C |
| Input Voltage | 9–36 VDC |
| Certification | RoHS |
Warranty Information
15-day warranty, subject to TwoElectrons warranty terms and conditions.
Shipping & Returns Policy
Shipping and returns are subject to the standard TwoElectrons Shipping & Returns Policy.
Applications
Product Specifications
| Manufacturer | Avyanna Tech |
| Model | AT-15002 |
| Product Type | 7-Channel RTD Input Module |
| Protocol | Modbus RTU |
| Communication Interface | RS-485 |
| RTD Input Channels | 7 |
| Supported Sensors | Pt100 / Pt1000 |
| Input Connections | 2-wire / 3-wire / 4-wire |
| Accuracy | ±0.5°C (0.05% of Full Scale max) |
| Pt100 Temperature Range | -200°C to +850°C |
| Pt1000 Temperature Range | -70°C to +550°C |
| Galvanic Isolation | 2.5 kV |
| Operating Temperature | 0°C to 60°C |
| Input Voltage | 9–36 VDC |
| Certification | RoHS |
Product Features
- 7 RTD Channels: Seven high-accuracy RTD inputs for temperature monitoring.
- Pt100 / Pt1000 Support: Compatible with Pt100 and Pt1000 platinum RTDs.
- Flexible Wiring: Supports 2-wire, 3-wire and 4-wire RTD connections.
- High Accuracy: ±0.5°C (0.05% of full scale max).
- Industrial Serial Communication: RS-485 with Modbus RTU protocol.
- Wide DC Supply: Operates from 9–36 VDC.
- Isolation: 2.5 kV galvanic isolation.
- DIN-Rail Mounting: Compact industrial form factor.
