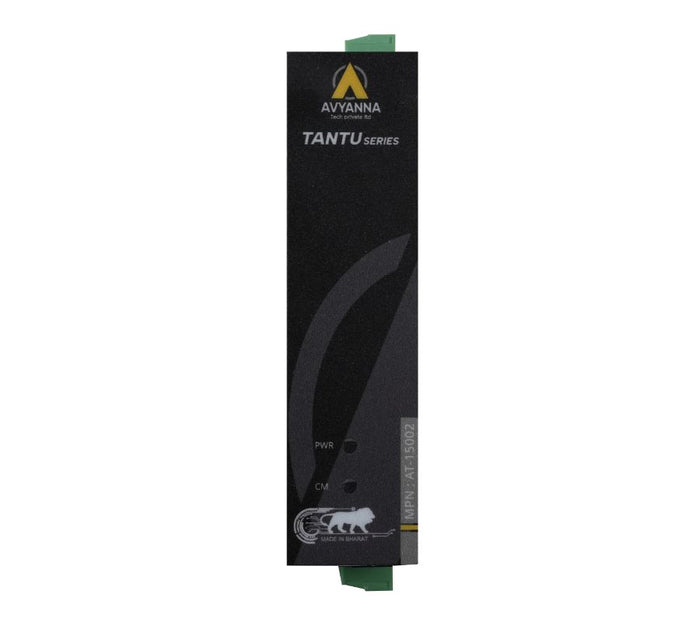

AT-15002 7-ch RTD Module with Modbus RTU
Low Stock, 1 left
Product Description
The Avyanna Tech AT-15002 is a 7-channel RTD input module for industrial temperature measurement and monitoring over Modbus RTU. It connects platinum resistance temperature sensors to compatible control systems via an RS-485 interface.
Designed to accept Pt100 and Pt1000 RTDs, the module supports 2-wire, 3-wire and 4-wire sensor connections. The manufacturer specifies a temperature measurement accuracy of ±0.5°C (maximum 0.05% of full scale), making it suitable for multi-point process monitoring, HVAC systems and building management installations.
The AT-15002 operates from a 9–36 VDC supply and includes 2.5 kV galvanic isolation. Its compact DIN-rail mountable design is intended for installation in industrial panels and remote I/O systems.
For wiring information and manufacturer specifications, see the Avyanna Tech AT-15002 product page.
Applications
Product Specifications
| General | |
|---|---|
| Manufacturer | Avyanna Tech |
| Model / MPN | AT-15002 |
| Product Type | 7-Channel RTD Input Module |
| RTD Input | |
| Channels | 7 |
| Sensor Type | Pt100 / Pt1000 platinum RTD |
| Input Connections | 2-wire / 3-wire / 4-wire |
| Pt100 Range | −200°C to +850°C |
| Pt1000 Range | −70°C to +550°C |
| Accuracy | ±0.5°C (0.05% of full scale max) |
| Communication | |
| Interface | RS-485 |
| Protocol | Modbus RTU |
| Power & Installation | |
| Input Voltage | 9–36 VDC |
| Connectors | 2 × plug-in terminal blocks (#14–22 AWG) |
| Mounting | DIN rail |
| Environmental & Compliance | |
| Galvanic Isolation | 2.5 kV |
| Operating Temperature | 0°C to 60°C |
| Compliance | RoHS |
Product Features
- Collects measurements from up to seven RTD sensor channels for industrial temperature monitoring.
- Supports Pt100 and Pt1000 platinum resistance temperature detectors with 2-wire, 3-wire and 4-wire connection options.
- Provides a manufacturer-stated maximum accuracy of ±0.5°C (0.05% of full scale).
- Supports Pt100 measurement from −200°C to +850°C and Pt1000 measurement from −70°C to +550°C.
- Uses RS-485 with Modbus RTU for integration with PLCs, data acquisition systems and compatible industrial controllers.
- Operates from a 9–36 VDC DC supply with 2.5 kV galvanic isolation.
- Compact DIN-rail mountable industrial design for panel installation.
Package Includes
- 1 × AT-15002 7-Channel RTD Input Module
Frequently Asked Questions
What is the AT-15002 7-ch RTD Module with Modbus RTU used for?
What are its main features?
What are the power or battery requirements?
Which interfaces or communication protocols does it use?
What is included in the package?
