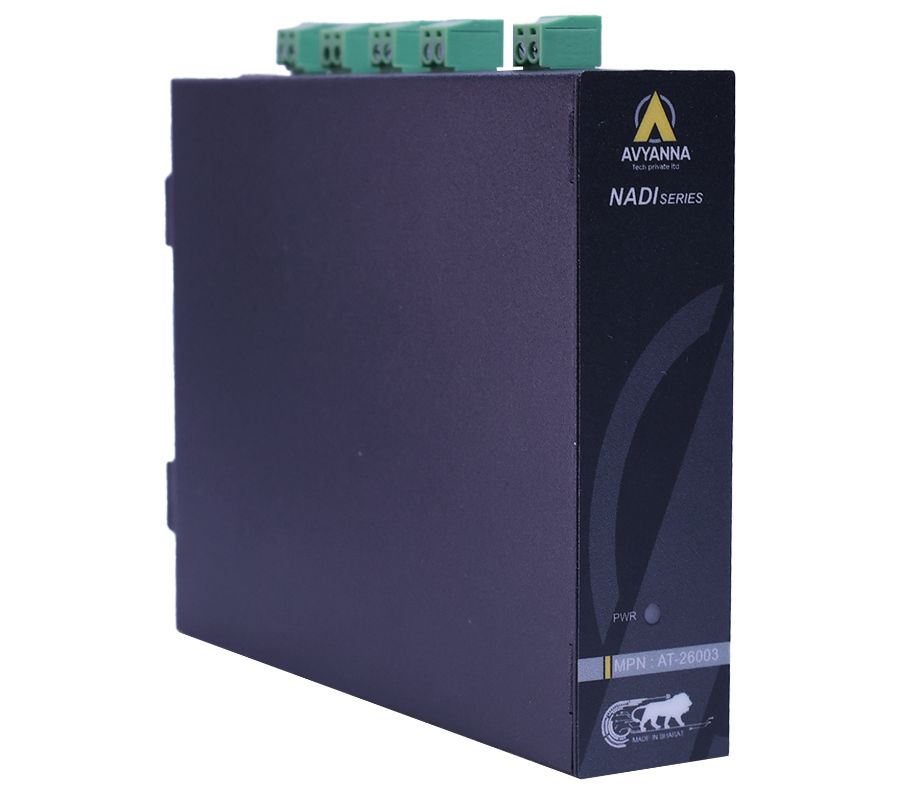

AT-26003 – 8-Channel Thermocouple Input Module with Modbus TCP
AT-26003 – 8-Channel Thermocouple Input Module with Modbus TCP
Low Stock, 1 left
Product Description
The Avyanna Tech AT-26003 is an eight-channel thermocouple-input module for industrial temperature data acquisition over Modbus TCP. It supports several thermocouple types and communicates temperature measurements over a standard Ethernet interface.
Key functions include 8 differential thermocouple channels; supports K, J, N, R, S, T, B and E thermocouples; 19-bit measurement resolution. Check the product specifications for supported electrical, interface, installation and operating requirements before selecting equipment for your system.
Applications
Temperature Monitoring
Sensor Data Acquisition
Edge Data Acquisition
Process Monitoring
Industrial Automation
Product Specifications
| I/O & Signal Performance | |
|---|---|
| Thermocouple Channels | 8 (differential) |
| Input Types | K, J, N, R, S, T, B, E |
| Resolution | 19 bit |
| Cold-Junction Accuracy | ±0.7°C max (-20°C to +85°C) |
| Connectivity & Configuration | |
| Network Protocols | Modbus TCP, TCP/IP, HTTP, DHCP, DNS, UDP, ARP |
| Ethernet Port | 1 × RJ-45 Female, 10/100 Mbit/s |
| Physical & Environmental | |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | 0°C to 70°C |
| Operating Humidity | 20–95% RH |
| Mounting | DIN rail |
| Enclosure | Mild steel |
| Compliance & Origin | |
| Certification | RoHS |
Product Features
- Flexible thermocouple measurement: Eight differential thermocouple channels support K, J, N, R, S, T, B and E input types with 19-bit resolution and cold-junction compensation.
- Ethernet Modbus TCP integration: Supported by 10/100 Mbit/s RJ-45 Ethernet: Modbus TCP along with TCP/IP, HTTP, DHCP, DNS, UDP and ARP for industrial network integration.
- Industrial monitoring and configuration: A 2-second system and communication watchdog, web server configuration and Ethernet Utility support dependable setup and monitoring in a small DIN-rail mild steel enclosure.
Package Includes
- 1 × Avyanna Tech AT-26003 8-Channel Thermocouple Input Module
Power supplies, cables and optional accessories are included only if specified in the order.
Frequently Asked Questions
What is the AT-26003 – 8-Channel Thermocouple Input Module with Modbus TCP used for?
What are its main features?
What specifications should I check before choosing this product?
Which interfaces or communication protocols does it use?
What is included in the package?
Other Information
Warranty Information
1 Year Seller Warranty
This item is covered with a standard warranty of 1 year from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What Voids Warranty
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Shipping & Returns Policy
Shipping Policy:
- In-stock items are delivered within 7-10 working days for orders within India. Delivery varies based on location and courier service.
- In-stock items are delivered within up to 20 working days for orders outside India. Delivery varies based on location and courier service.
- If the item is out of stock, you can still place an order. The estimated delivery time will be notified to you by email.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests from here: Return Request or contact us at 09831070550.
- Refunds are processed within 3-4 working days after inspection and approval.
Main Features
- 8 differential thermocouple channels
- Thermocouple types K, J, N, R, S, T, B and E
- 19-bit resolution
- Modbus TCP via 10/100 Mbps Ethernet
- DIN-rail mounting
