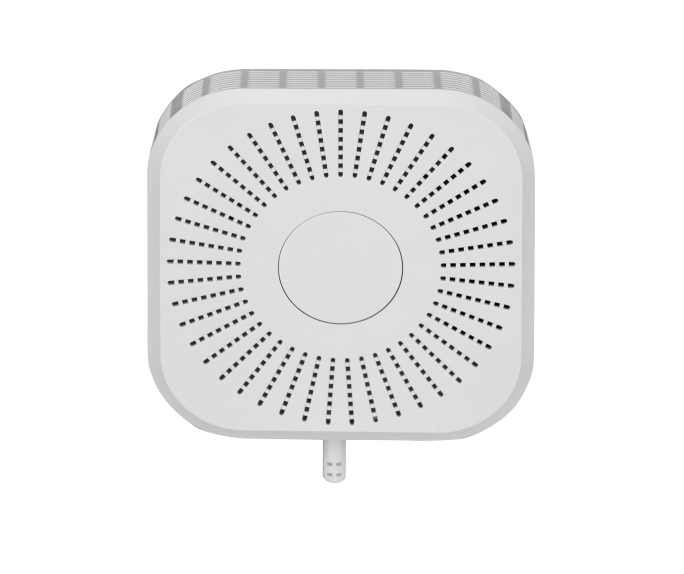

CU606 Indoor 6-in-1 Environmental Monitoring Sensor
Low Stock, 1 left
Product Description
CU606 Indoor 6-in-1 Environmental Monitoring Sensor is designed for the sensing and monitoring work identified in its specifications. It gives a compatible controller or monitoring system access to the quantities this model is designed to measure. The Maximum TX Power specification is 19 dBm. Power is provided through the stated DC 24V (10–30V supported), Type-C arrangement. The Frequency Bands specification is CN470–510 / EU863–870 / AU915–928 / AS923 / US902–928 MHz (optional). When choosing this indoor 6-in-1 environmental monitoring sensor, start with the documented configuration.
The measurement range and signal output should suit the job before you choose a sensor. Supply, mounting and environmental limits are separate checks; any stated calibration or handling requirements also remain relevant. The PM2.5 Range / Accuracy specification is 0–1000 µg/m³; ±10 µg/m³ ±10%. The CO2 Range / Accuracy specification is 400–5000 ppm; ±50 ppm +3% FS. The TVOC Range / Accuracy specification is 0–50 mg/m³; ±10%. The HCHO Range / Accuracy specification is 0–1.5 mg/m³; ±10 µg/m³ ±10% FS. The Temperature Range / Accuracy specification is -10°C to +50°C; ±0.2°C @25°C.
Applications
Product Specifications
| Brand | Winext |
| Model | CU606 |
| Product Type | Indoor 6-in-1 Environmental Monitoring Sensor |
| Monitoring Parameters | PM2.5, CO2, TVOC, HCHO, Temperature, Humidity |
| LoRa TX Rate | 292 bps–5.4 kbps (SF7–SF12) |
| Frequency Bands | CN470–510 / EU863–870 / AU915–928 / AS923 / US902–928 MHz (optional) |
| Maximum TX Power | 19 dBm |
| Maximum RX Sensitivity | -141 dBm (SF12) |
| Network Access | OTAA / ABP (configurable) |
| LoRaWAN Class | Class C |
| LoRa Antenna | Built-in omni-directional antenna |
| Bluetooth | Mobile phone parameter configuration |
| Operating Temperature | -10°C to +55°C |
| Operating Humidity | 0–95% RH, non-condensing |
| Mounting | Wall-mounted / ceiling-mounted |
| Material | ABS |
| Power Supply | DC 24V (10–30V supported), Type-C |
| Dimensions | 100 × 100 × 32 mm |
| PM2.5 Range / Accuracy | 0–1000 µg/m³; ±10 µg/m³ ±10% |
| CO2 Range / Accuracy | 400–5000 ppm; ±50 ppm +3% FS |
| TVOC Range / Accuracy | 0–50 mg/m³; ±10% |
| HCHO Range / Accuracy | 0–1.5 mg/m³; ±10 µg/m³ ±10% FS |
| Temperature Range / Accuracy | -10°C to +50°C; ±0.2°C @25°C |
| Humidity Range / Accuracy | 0–99% RH; ±3% RH @60% RH, 25°C |
Product Features
- Monitors six indoor environmental parameters: PM2.5, CO2, TVOC, formaldehyde (HCHO), temperature and humidity.
- Operation is based on standard LoRaWAN Class C communication for periodic environmental data reporting.
- Available functions include OTAA and ABP network access modes with configurable parameters.
- Allowed by Bluetooth: convenient local parameter configuration from a mobile phone.
- The compatible equipment includes standard LoRaWAN gateways and third-party network server platforms.
- Available functions include wall or ceiling installation for flexible indoor deployment.
- Operates from DC 24V with a supported 10–30V range and Type-C power input.
- Compact ABS enclosure measures 100 × 100 × 32 mm.
Package Includes
- 1 × Winext CU606 Indoor 6-in-1 Environmental Monitoring Sensor
Power adapter and mounting accessories depend on the selected OEM package configuration.
Frequently Asked Questions
What is the CU606 Indoor 6-in-1 Environmental Monitoring Sensor used for?
What are its main features?
What are the power or battery requirements?
Which interfaces or communication protocols does it use?
What is included in the package?
