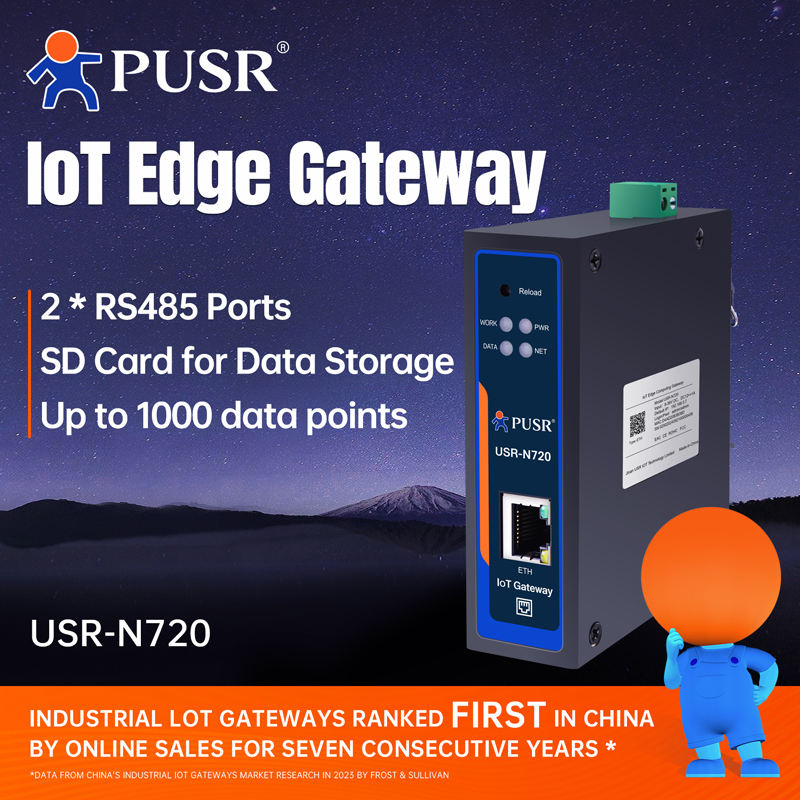

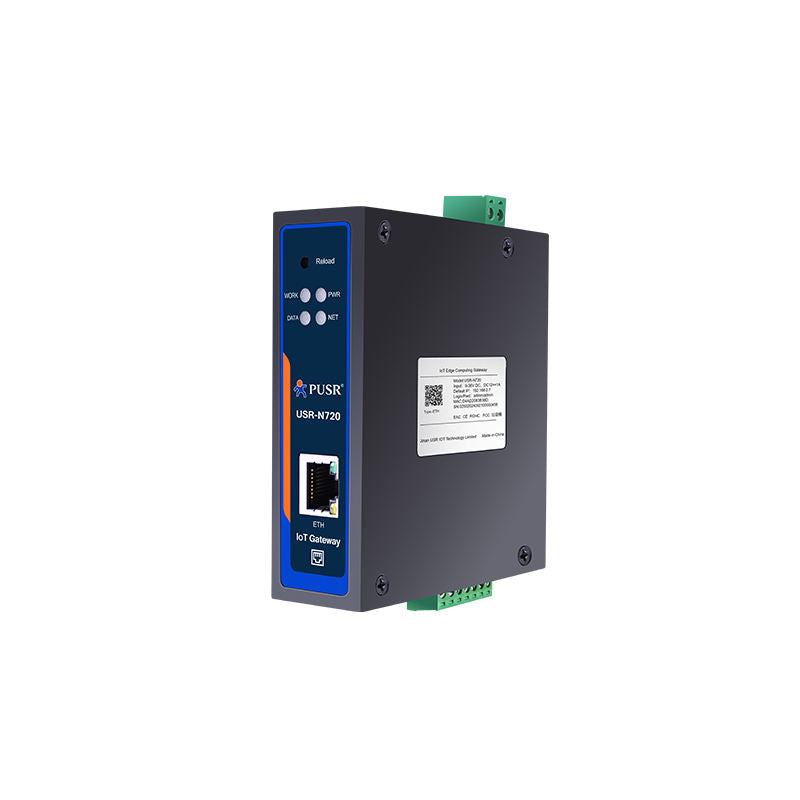

Edge Computing IoT Gateway 2xRS485 with SD Card Modbus/MQTT RS485 to Ethernet DL645 MQTT RISC-V 600MHz USR-N720-ETH
No reviews yet
Low Stock, 2 left
Product Description

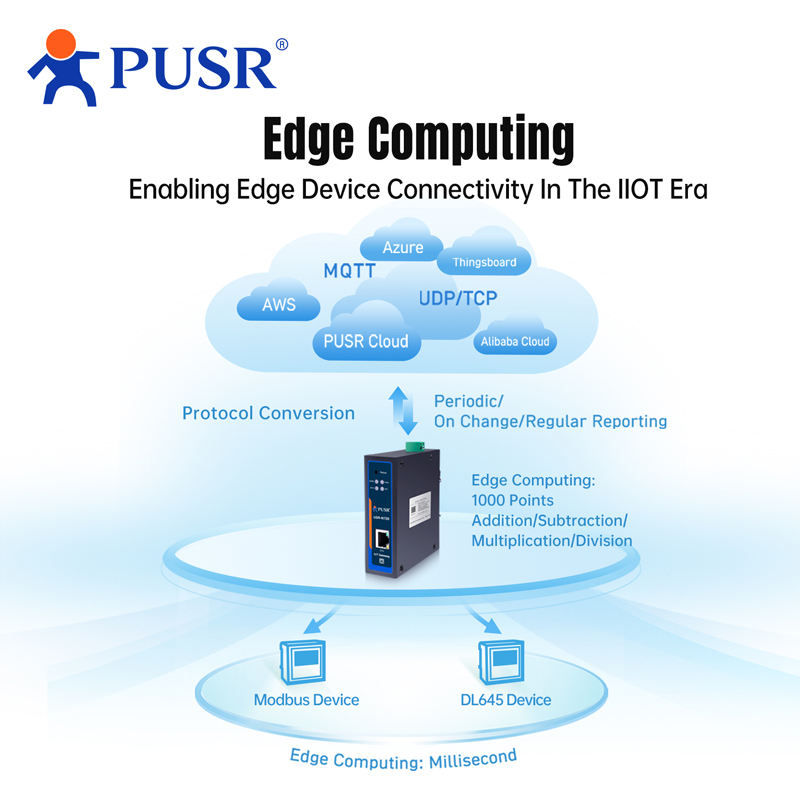

N720-ETH is the next generation edge IoT gateway which support edge computing, data acquisiton, protocol conversion and data reporting in json format. It comes with 2 RS485 ports and 1 RJ45 ports which can quickly establish the connection between industrial field equipment and the cloud. With these features, it can be widely used in various fields such as smart factories, smart grid, smart water service and so on.
Product Features
- Rich Communication Protocol: MQTT/TCP

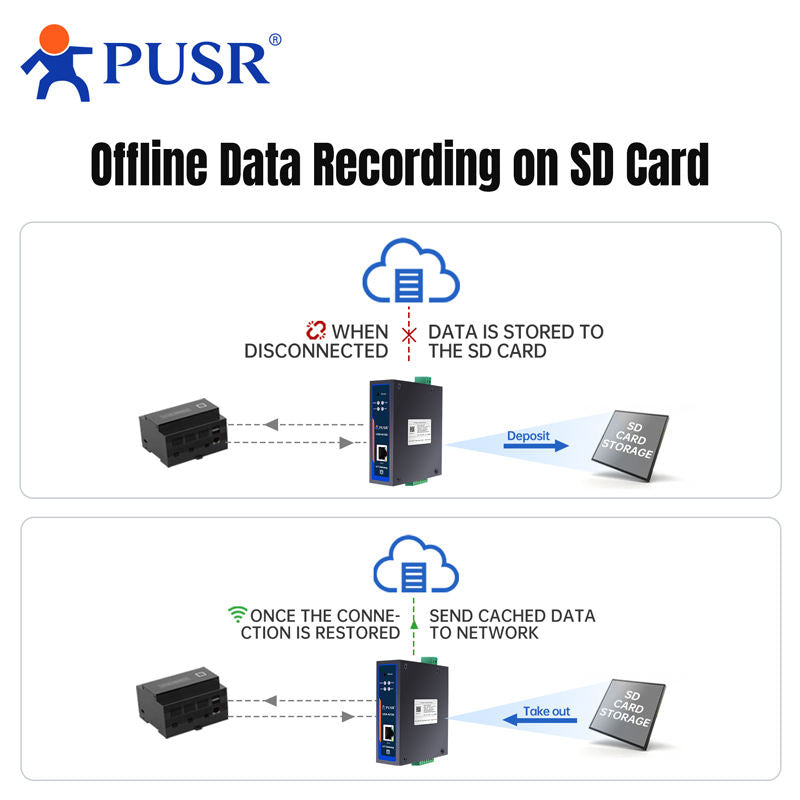

- SD Card for Data Storage：To ensure data integrity
- Modbus RTU to Modbus TCP
- Multi-Host Modbus Polling
- JSON message custom conversion
- It support up to 5 connections with different remote survice, including 2*MQTT, 2*TCP and 1*PUSR connection. For MQTT and TCP connections, users can enable SSL encryption to ensure data security.
- Users can monitor the running status, upgrade firmware, configure parameters of the N720 remotely, saving users time and cost.
- Metal Housing: effective cooling.
- Wide Power Input: DC 9-36V
- Wide Operating Temp: -40℃ ~ +85℃, industrial grade design.
- High EMC Protection: ensuring stable operation in harsh environments
- Watchdog Protection: Hardware & software dual watchdog to ensure stable operation.

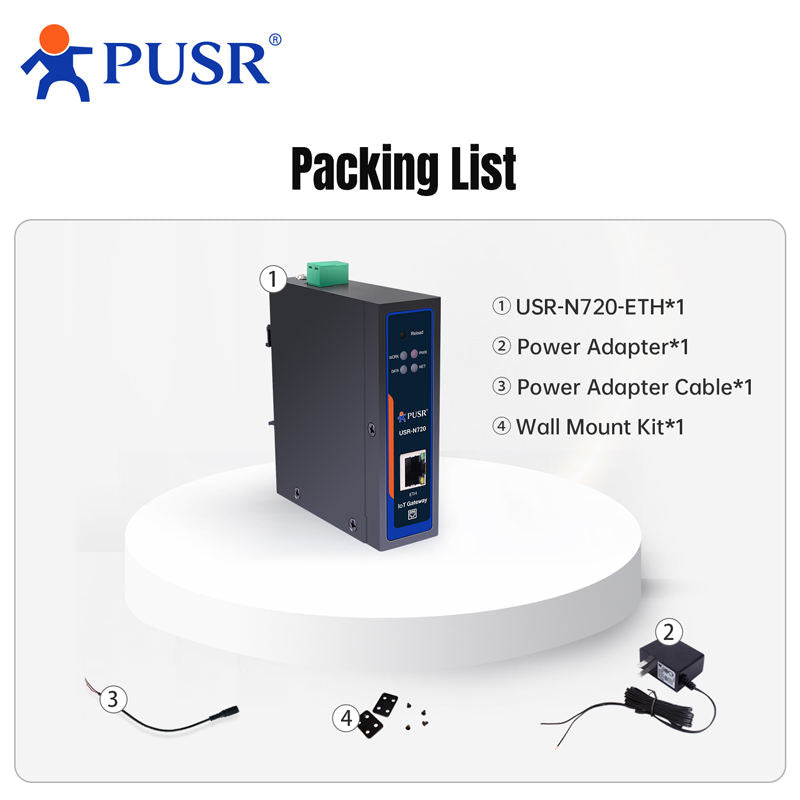

Package Includes
- USR-N720-ETH*1
- Power Adapter*1
- Power Adapter Cable*1
- Wall Mount Kit*1
Other Information
Warranty Information
3 Months Seller Warranty:
This item is covered with a standard warranty of 3 months from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What Voids Warranty:
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Shipping & Returns Policy
Shipping Policy:
- Delivery time within metro cities in India is 1-3 days; for other locations, it is 3-7 days. Delivery varies based on location and courier service.
- If the item is out of stock, the estimated delivery time is 7-14 days from order confirmation. Delivery varies based on location and courier service.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests from here: Return Request or contact us at 09831070550.
- Refunds are processed within 3-4 working days after inspection and approval.
Main Features
- Multiple Interface: Ethernet+2*RS485
- Powerful Edge Computing Capabilities: 1000 points+data acquisition+analysis
- Data Encryption: TCP+SSL, MQTT+SSL
- Protocol Conversion: Modbus to MQTT+Json, DL645 to MQTT+Json
SKU: 2ETWO251
