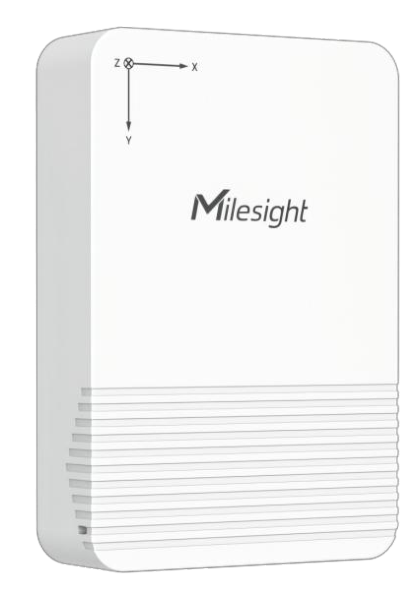

EM320-TILT-868M - Tilt Sensor, Angling for Accuracy, Flexibility and Safety
EM320-TILT-868M - Tilt Sensor, Angling for Accuracy, Flexibility and Safety
Low Stock, 1 left
Product Description
EM320-TILT-868M – LoRaWAN Tilt Sensor provides battery-powered, long-range monitoring of angle and inclination changes for trees, utility poles, slopes, structures and movable assets.

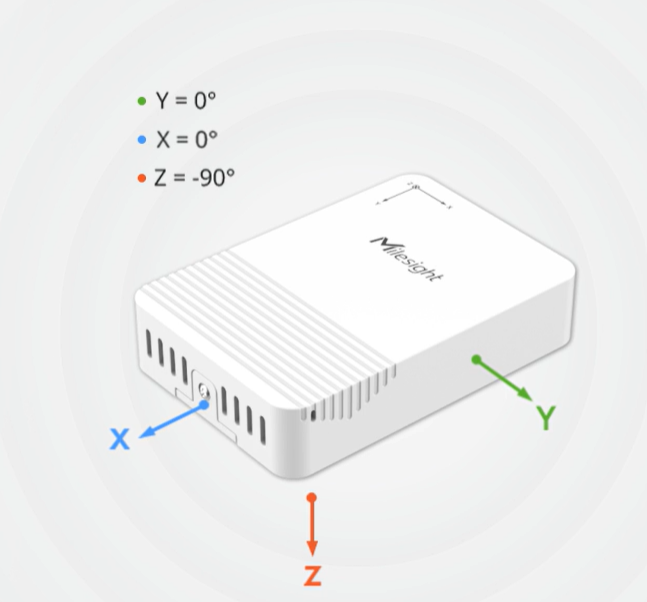

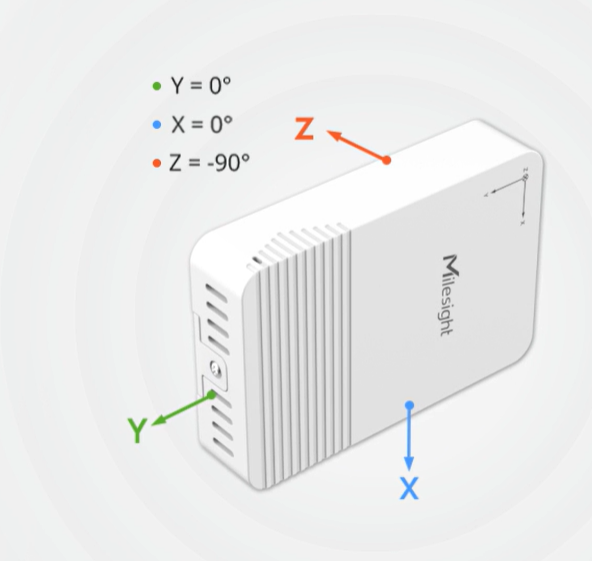

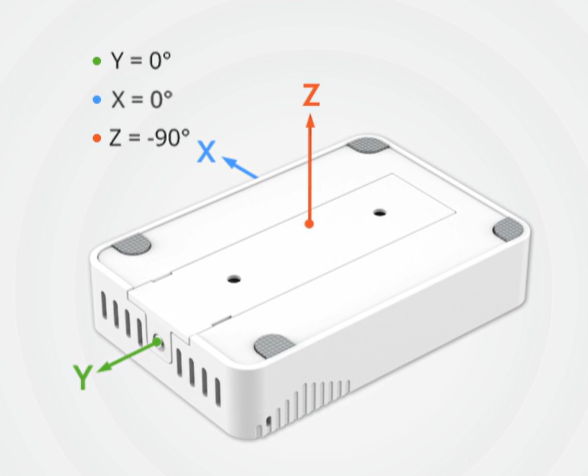

Its integrated 3-axis MEMS accelerometer measures tilt along X, Y and Z, helping operators detect inclination changes remotely and receive threshold alarms through a compatible LoRaWAN network.
With a measurement range of −90° to +90° , ±1° measurement accuracy and 0.01° resolution , the EM320-TILT can be commissioned in its installed orientation and can use a configurable initial position as the reference for detecting later changes.
Customizable threshold conditions enable detection of unexpected shifts, leaning and movement.
Applications
Tilt and Angle Monitoring
Equipment Tracking
Industrial Asset Monitoring
Remote Equipment Monitoring
Worker Safety
Smart Building
Product Specifications
| OEM / Brand | Milesight |
| Model | EM320-TILT-868M |
| Product Name | LoRaWAN® Tilt Sensor |
| Sensor Type | 3-Axis MEMS Tilt / Inclination Sensor |
| Measurement Axes | X, Y, Z |
| Tilt Angle Range | −90° to +90° |
| Measurement Accuracy | ±1° |
| Measurement Resolution | 0.01° |
| Reference / Zero Setting | Customizable initial mounting position |
| Advanced Function | Configurable tilt threshold alarm |
| Wireless Communication | LoRaWAN® |
| Requested Variant Frequency | 868 MHz (EU868 frequency plan) |
| Other Family Frequency Plans | CN470, IN865, RU864, US915, AU915, KR920, AS923-1/2/3/4 |
| Transmit Power at 868 MHz | 16 dBm |
| Receiver Sensitivity | −137 dBm at 300 bps |
| LoRaWAN Activation / Class | OTAA / ABP Class A |
| Antenna | Internal |
| Wireless Range | Up to 15 km line of sight under ideal conditions |
| Local Configuration | NFC via compatible mobile app |
| Remote Monitoring | Via compatible LoRaWAN gateway/network server and Milesight IoT Cloud |
| Remote Settings Configuration | Not documented in supplied datasheet; NFC local configuration specified |
| Internal LED | 1 × LED Indicator |
| Internal Button | 1 × Power / Reset button |
| Power Supply | 2 × 2,700 mAh ER14505 lithium thionyl chloride (Li-SOCl₂) batteries |
| Battery Life – EU868 SF7 | Approx. 4 years (OEM lab: 10-minute reporting, 25°C) |
| Battery Life – EU868 SF10 | Approx. 3 years (OEM lab: 10-minute reporting, 25°C) |
| Operating Temperature | −30°C to +60°C |
| Operating Humidity | ≤95% RH, non-condensing |
| Ingress Protection | IP67 |
| Housing | PC + ABS, white |

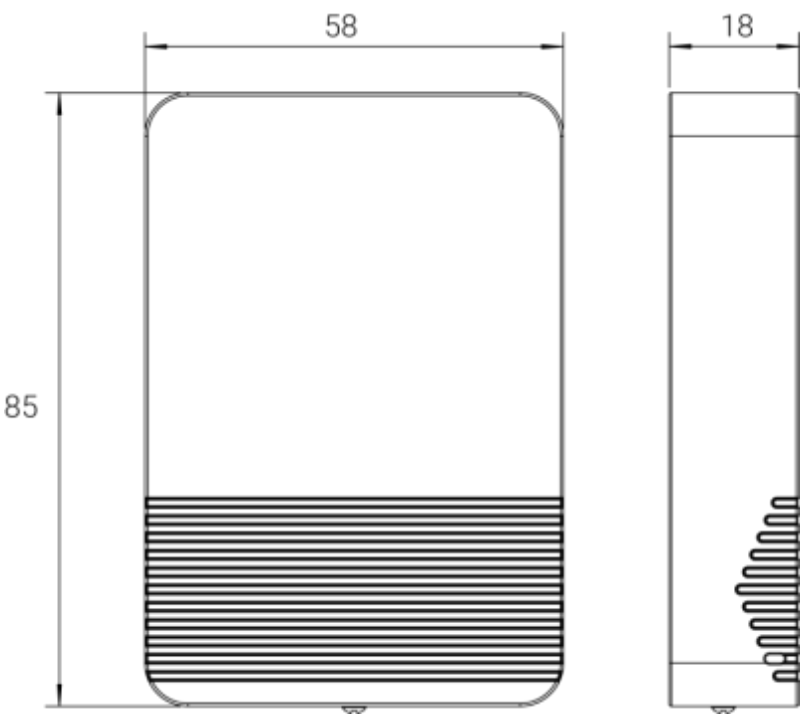

| Dimensions | 85 × 58 × 18 mm |
| Mounting | Wall screw mounting or pole mounting |
| Physical Security | Anti-theft design on back cover |
| Manufacturer Regulatory Approvals | CE, FCC, Telec |
| Manufacturer Environmental Compliance | RoHS |
| Seller Warranty | 1 year |
| Shipping & Returns | Subject to the published TwoElectrons policy |
| India Wireless Notice | Verify EU868 radio compatibility and applicable authorization; IN865 is a separate regional plan |
Product Features
- Measures angle and inclination changes on X, Y and Z using an integrated MEMS accelerometer.
- Supported per-axis angle range is −90° to +90°.
- Rated tilt measurement accuracy is ±1° according to the supplied datasheet.
- Tilt angle resolution is 0.01°.
- Allows an installation-specific initial position rather than relying solely on a fixed factory reference.
- Configurable tilt thresholds support movement and inclination alerting.
- Suitable for tree leaning, utility-pole inclination, landslide/ground movement awareness and related asset tilt monitoring.
- Uses LoRaWAN® wireless technology and an internal antenna.
- The EM320-TILT-868M requested here refers to 868 MHz EU868 regional operation.
- The device family is offered in additional regional plans including IN865, CN470, RU864, US915, AU915, KR920 and AS923, which are distinct versions.
- Radio output power at 868 MHz is 16 dBm.
- LoRa receiver sensitivity is −137 dBm at 300 bps.
- OTAA and ABP join modes with LoRaWAN Class A functionality.
- Up to 15 km wireless line-of-sight range in favorable conditions; field range is deployment-dependent.
- Compatible with standard LoRaWAN® gateways and network servers, as well as Milesight IoT Cloud.
- Local parameter configuration and power on/off are supported through NFC and a suitable mobile app.
- The supplied datasheet does not specify remote configuration by LoRaWAN downlink; this should not be presumed available.
- Internal power/reset pushbutton and one internal LED indicator.
- Two 2,700 mAh ER14505 Li-SOCl₂ batteries supply operating power.
- At EU868 SF7, OEM laboratory battery-life estimate is around 4 years for ten-minute reporting at 25°C.
- At EU868 SF10, OEM laboratory battery-life estimate is around 3 years for ten-minute reporting at 25°C.
- Durable IP67 weather-resistant enclosure for indoor/outdoor installation.
- Operating temperature from −30°C to +60°C, and ≤95% non-condensing relative humidity.
- White PC+ABS housing measures 85 × 58 × 18 mm.
- Wall screw or pole mounting is supported with an anti-theft back-cover design.
- OEM approval list contains CE, FCC, Telec and RoHS; no ATEX, IECEx or PESO approval is stated.
Package Includes
- 1 × Milesight EM320-TILT-868M LoRaWAN® Tilt Sensor
- Operating power source: 2 × 2,700 mAh ER14505 Li-SOCl₂ batteries (confirm supplied/installed condition in OEM packing list)
- Mounting: wall screws or pole mounting; exact brackets and installation accessories depend on the shipment packing list
Frequently Asked Questions
What does the Milesight EM320-TILT-868M sensor measure?
What applications are suitable for the EM320-TILT?
What radio frequency does EM320-TILT-868M use, and will it work in India?
Can the tilt sensor be configured remotely, and how are alarms monitored?
What battery life, protection rating and mounting options does EM320-TILT have?
Other Information
Warranty Information
1 Year Seller Warranty
This item is covered with a standard warranty of 1 year from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What Voids Warranty
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Shipping & Returns Policy
Shipping Policy:
- In-stock items are delivered within 7-10 working days for orders within India. Delivery varies based on location and courier service.
- In-stock items are delivered within up to 20 working days for orders outside India. Delivery varies based on location and courier service.
- If the item is out of stock, you can still place an order. The estimated delivery time will be notified to you by email.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests from here: Return Request or contact us at 09831070550.
- Refunds are processed within 3-4 working days after inspection and approval.
Main Features
- 3-axis MEMS accelerometer for tilt-angle measurement along X, Y and Z
- Measurement range −90° to +90° with ±1° accuracy and 0.01° resolution
- Configurable initial reference position for relative tilt and movement detection
- Flexible tilt threshold alarm rules for monitored assets
- Outdoor-ready IP67 water- and dust-resistant housing
- Anti-theft back-cover design to support secure installations
- Long-range LoRaWAN® wireless transmission: up to 15 km line of sight under ideal conditions
- EM320-TILT-868M uses EU868 / 868 MHz radio frequency plan
- Internal antenna and OTAA/ABP Class A communication
- Local one-touch NFC configuration via Milesight ToolBox mobile app
- Remote monitoring of tilt values and alarms via compatible Milesight IoT Cloud/LoRaWAN network
- Powered by two 2,700 mAh ER14505 Li-SOCl₂ batteries
- Approx. four-year laboratory battery estimate at EU868 SF7 with ten-minute reporting
- 85 × 58 × 18 mm compact PC+ABS enclosure; −30°C to +60°C operation
- Wall screw or pole mounting for trees, poles, slopes and structures
- Manufacturer lists CE, FCC, Telec and RoHS approvals
