EM500-PP Pipe Pressure Sensor
Low Stock, 1 left
Product Description

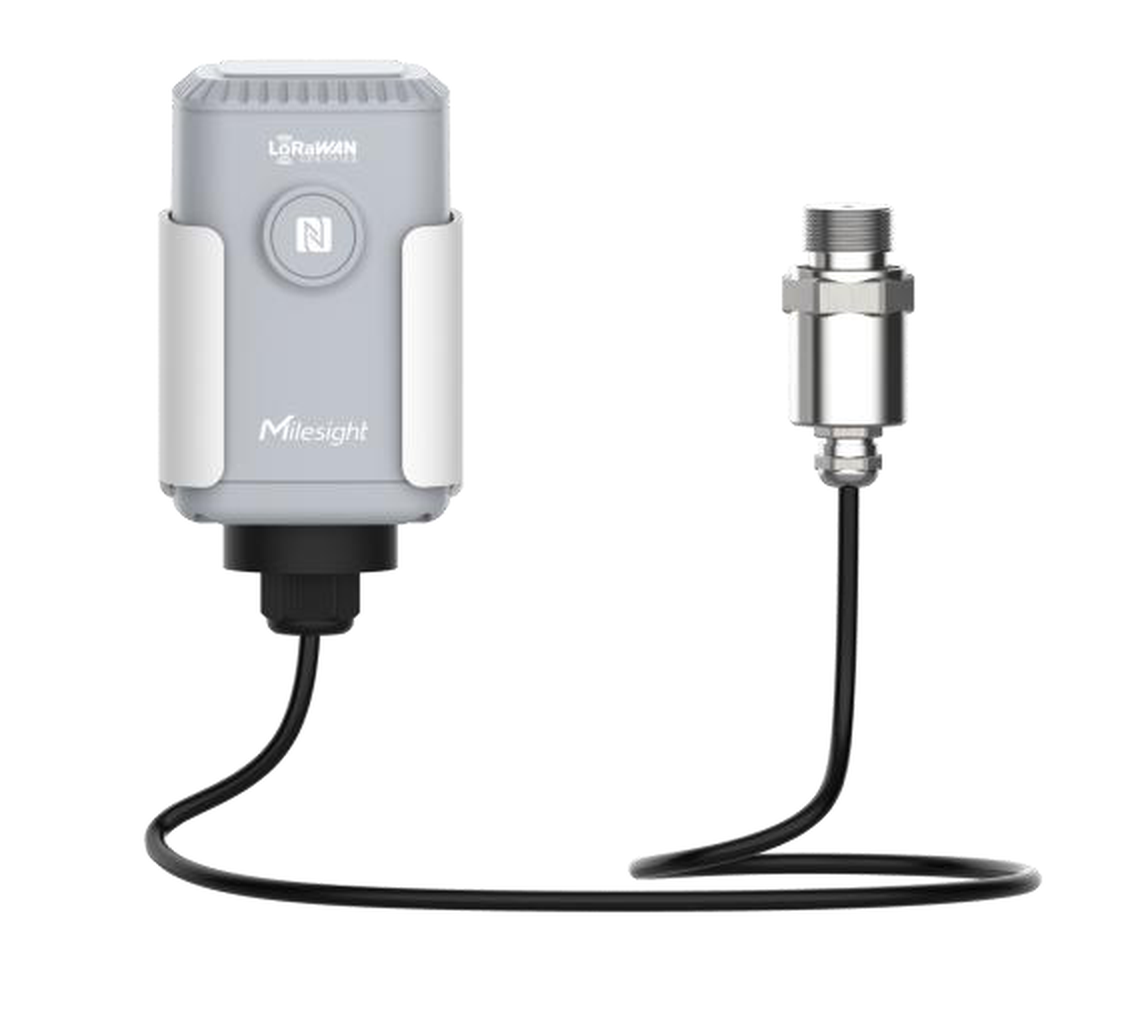

EM500-PP Pipe Pressure Sensor is a battery-powered LoRaWAN vented-gauge pressure monitoring system for pipelines, tanks, pumps and suitable industrial liquid or gas pressure applications.
It consists of a corrosion-resistant stainless-steel pressure sensing head connected by a 1.5 m cable to a separate wireless transmitter.
The product enables remote pressure readings for smart buildings, water distribution, pump systems and industrial process monitoring using compatible LoRaWAN gateways and network servers.
Pressure measurement: 0–1600 kPa (0–16 bar) ; accuracy ±0.5% of full scale (FS) , resolution 1 kPa (0.01 bar) , overload capacity 150% FS , and long-term stability ±0.3% FS/year .
Applications
Pipe Pressure Monitoring
Pipeline Monitoring
Pump Station Monitoring
Remote Equipment Monitoring
Remote Infrastructure
Wireless Sensor Networking
Product Specifications
| Brand / Manufacturer | Milesight |
| Product Model | EM500-PP |
| Product Type | LoRaWAN Pipe Pressure Sensor |
| Pressure Sensing Type | Vented gauge |
| Pressure Range | 0–1600 kPa (0–16 bar) |
| Pressure Accuracy | ±0.5% FS |
| Pressure Resolution | 1 kPa (0.01 bar) |
| Overload Capability | 150% FS |
| Long-term Stability | ±0.3% FS/year |
| Process Connection | G 1/2-inch male |
| Pressure Sensor Material | 316L stainless steel |
| Pressure Sensor Colour | Silver |
| Pressure Sensor Dimensions | 60.5 × Ø27 mm |
| Pressure Sensor Weight | 187 g including cable |
| Pressure Sensor Operating Temperature | −10°C to +70°C |
| Pressure Sensor Ingress Protection | IP65 |
| Cable Length | 1.5 m |
| Wireless Protocol | LoRaWAN |
| Wireless Antenna | Internal antenna |
| Radio Frequency Options | CN470 / IN865 / RU864 / EU868 / US915 / AU915 / KR920 / AS923-1/2/3/4 (regional model-dependent) |
| Radio Transmission Power | 16 dBm at 868 MHz / 20 dBm at 915 MHz / 19 dBm at 470 MHz |
| Radio Receiver Sensitivity | −137 dBm at 300 bps |
| LoRaWAN Activation and Class | OTAA / ABP, Class A |
| Wireless Transmission Range | Up to 10 km line-of-sight under favorable conditions |
| Internal Status LED | 1 |
| Internal Power / Reset Button | 1 |
| Internal USB Interface | 1 × USB Type-C for configuration and console |
| Power On/Off | NFC or internal power button |
| Configuration | NFC mobile app, USB Type-C PC software, LoRaWAN downlink |
| Local Records | 1,000 entries |
| Data Management | Retrieval and retransmission |
| Alert Feature | Threshold alarm |
| Other Supported Feature | Milesight D2D Controller |
| Power Supply | 1 × 19,000 mAh ER34615 Li-SOCl₂ battery, replaceable |
| Battery Life (OEM Lab Reference) | 10 years at 10-minute reporting interval and 25°C |
| Transceiver Operating Temperature | −30°C to +70°C |
| Transceiver Relative Humidity | 0–100%, non-condensing |
| Transceiver Ingress Protection | IP67 |
| Transceiver Housing and Colour | ABS + PC, grey |
| Transceiver Dimensions | 105.4 × 71 × 69.5 mm |
| Transceiver Weight | 328 g with battery and mounting bracket |
| Transceiver Installation | Pole, wall or DIN-rail mounting |
| OEM Regulatory Approvals | CE, FCC, ISED, ICASA, Telec |
| OEM Environmental Compliance | RoHS |
Product Features
- Measures vented-gauge pressure over 0–1600 kPa, corresponding to 0–16 bar.
- Manufacturer-defined pressure accuracy is ±0.5% of full scale.
- Pressure measurement resolution is 1 kPa or 0.01 bar.
- Overload tolerance is 150% of full scale; do not treat overload as continuous measurement range.
- Long-term stability is ±0.3% of full scale per year.
- Pressure sensor uses a G 1/2-inch male threaded process connection.
- Pressure sensing head is made from 316L stainless steel (silver appearance) and carries an IP65 rating.
- Pressure sensing head measures 60.5 × Ø27 mm and weighs 187 g including cable.
- The pressure sensor's operating temperature is −10°C to +70°C.
- Separate grey ABS + PC wireless transmitter has IP67 protection and measures 105.4 × 71 × 69.5 mm.
- Transmitter operating temperature is −30°C to +70°C; relative humidity 0–100% non-condensing.
- LoRaWAN OTAA/ABP Class A technology with internal antenna.
- OEM frequency variants are CN470, IN865, RU864, EU868, US915, AU915, KR920 and AS923-1/2/3/4.
- Radio TX power 16 dBm on 868 MHz, 20 dBm on 915 MHz and 19 dBm on 470 MHz; sensitivity −137 dBm @300 bps.
- Long-distance transmission up to approximately 10 km in suitable line-of-sight environments.
- One 1.5 m cable joins sensing head and transmitter.
- NFC mobile-app or USB Type-C PC configuration; LoRaWAN downlink permits remote settings updates.
- One internal status LED, internal power/reset button and USB Type-C console interface.
- Supports internal storage of up to 1,000 readings, retrieval, retransmission and threshold alarms.
- Milesight D2D Controller is an OEM-listed feature.
- Replaceable 19,000 mAh ER34615 Li-SOCl₂ battery; OEM battery estimate is 10 years at 10-minute reporting interval and 25°C laboratory conditions.
- Transmitter permits pole, wall or DIN-rail mounting; pressure head connects mechanically to compatible pipe or tank fitting.
- OEM lists CE, FCC, ISED, ICASA and Telec regulatory approvals, plus RoHS environmental compliance; confirm shipped regional variant certificates.
- Applications include pressure monitoring of pipes and tanks, pump monitoring, and oil and gas systems. Trends can support leak detection within a monitoring system; device does not directly detect moisture leaks.
Package Includes
- 1 × Milesight EM500-PP LoRaWAN Pipe Pressure Sensor system
- 316L stainless steel pipe-pressure sensing head with specified G 1/2-inch male connection and 1.5 m connecting cable
- IP67 LoRaWAN transceiver as specified for the system; verify supplied battery, mounting bracket, fasteners and accessories with quotation and packing list
Frequently Asked Questions
What is the Milesight EM500-PP Pipe Pressure Sensor used for?
What are its main features?
What specifications should I check before choosing this product?
How should I prepare this product for use?
What is included in the package?
Other Information
Warranty Information
1 Year Seller Warranty
This item is covered with a standard warranty of 1 year from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What Voids Warranty
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Shipping & Returns Policy
Shipping Policy:
- In-stock items are delivered within 7-10 working days for orders within India. Delivery varies based on location and courier service.
- In-stock items are delivered within up to 20 working days for orders outside India. Delivery varies based on location and courier service.
- If the item is out of stock, you can still place an order. The estimated delivery time will be notified to you by email.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests from here: Return Request or contact us at 09831070550.
- Refunds are processed within 3-4 working days after inspection and approval.
Main Features
- Vented-gauge pipe pressure measurement across 0–1600 kPa (0–16 bar)
- Pressure accuracy ±0.5% FS; resolution 1 kPa (0.01 bar)
- 150% FS overload tolerance and ±0.3% FS/year long-term stability
- 316L stainless-steel sensing head with G 1/2-inch male process connection
- Separate IP65 pressure sensor and IP67 weather-resistant LoRaWAN transmitter
- 1.5 m pressure probe cable for pipeline or tank installations
- LoRaWAN OTAA/ABP Class A communication with internal antenna
- Up to 10 km line-of-sight LoRaWAN transmission in suitable conditions
- NFC mobile-app, USB Type-C PC console and remote LoRaWAN downlink configuration
- 1,000 historical records with retrieval and retransmission plus threshold alerts
- Replaceable 19,000 mAh ER34615 lithium battery; 10-year OEM laboratory estimate
- Pipe and tank pressure, water distribution, pump and industrial process monitoring
