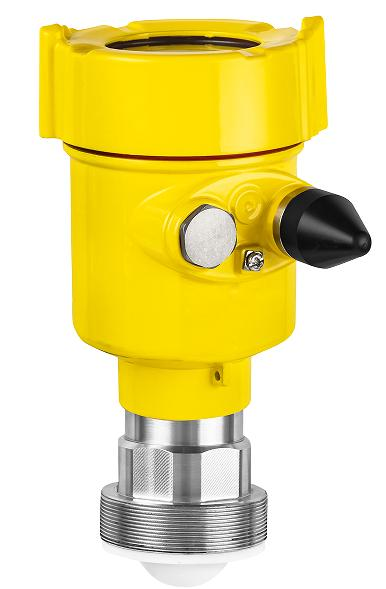

EX-205 LoRaWAN Wireless Radar Level Sensor
In Stock
Product Description
The Winext EX-205 is an explosion-proof LoRaWAN wireless radar level sensor for non-contact monitoring of liquids and solids. Its 80 GHz millimetre-wave radar operates reliably through light, rain, dust, fog and frost, while the integrated LCD displays the current level locally and LoRaWAN transfers data to a remote platform.
It is suitable for water supply, sewage, petroleum, chemical, metallurgy, food, pharmaceutical, papermaking and mining applications.
Applications
Product Specifications
| Brand | Winext |
| Model | EX-205 |
| Product Type | LoRaWAN Wireless Radar Level Sensor |
| Measurement Technology | 80 GHz radar |
| Range / Accuracy | 0.1-15/20 m / ±2 mm |
| Protocol | LoRaWAN Class A |
| Frequency Bands | CN470 / EU868 / US915 / AS923 / AU915 MHz |
| Max Tx / Rx Sensitivity | 19 dBm / -140 dBm (SF12) |
| Data Rate | 300 bps-5.4 Kbps |
| Configuration | Bluetooth / P2P wireless |
| Display / Protection | LCD / IP67 |
| Operating Temperature | -20°C to +125°C |
| Operating Humidity | 10-95% RH |
| Dimensions | 121 × 93.4 mm |
| Power Supply | Built-in 3.6V / 38,000mAh battery |
Product Features
- Provides continuous non-contact measurement using 80 GHz radar.
- Supports LoRaWAN Class A on CN470, EU868, US915, AS923 and AU915 bands.
- Uploads level readings remotely and shows the current value on the LCD.
- Measures 0.1-15/20 m with ±2 mm stated accuracy.
- Supports Bluetooth and P2P wireless configuration.
- IP67 construction suits demanding industrial environments.
- Suitable for water, sewage, petroleum, chemical, food, pharmaceutical, papermaking and mining.
Package Includes
- 1 × Winext EX-205 LoRaWAN Wireless Radar Level Sensor
- 1 × Built-in 3.6V / 38,000mAh battery
Other Information
Warranty Information
15 Days Seller Warranty:
This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What Voids Warranty:
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Shipping & Returns Policy
Shipping Policy:
- Delivery time within metro cities in India is 1-3 days; for other locations, it is 3-7 days. Delivery varies based on location and courier service.
- If the item is out of stock, the estimated delivery time is 7-14 days from order confirmation. Delivery varies based on location and courier service.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests from here: Return Request or contact us at 09831070550.
- Refunds are processed within 3-4 working days after inspection and approval.
Main Features
- Explosion-proof LoRaWAN wireless radar level monitoring
- 80 GHz radar for liquids and solids
- 0.1-15/20 m range with ±2 mm accuracy
- Reliable through light, rain, dust, fog and frost
- Integrated LCD level display
- Bluetooth / P2P wireless configuration
- IP67 enclosure with 38,000mAh battery
SKU: 2ESE20100
