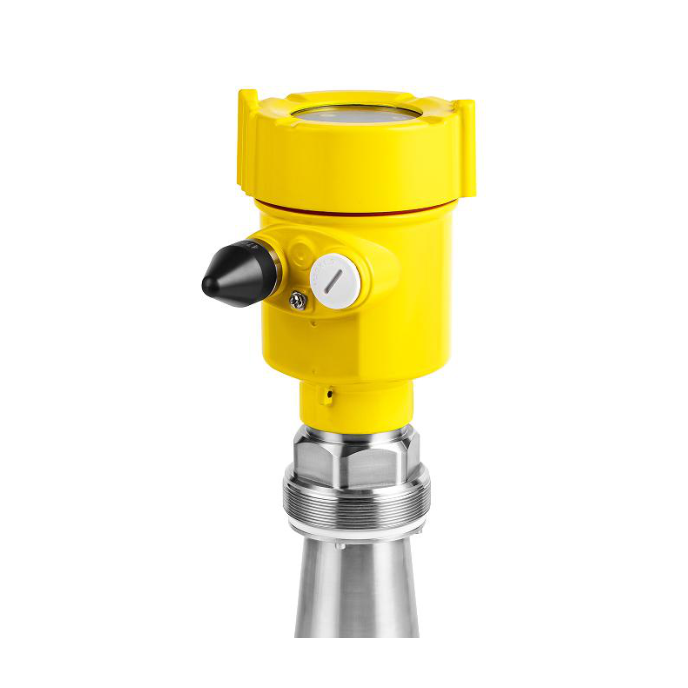

EX-205C LoRaWAN Wireless Radar Level Sensor
Low Stock, 1 left
Product Description
The Winext EX-205C is an explosion-proof LoRaWAN wireless radar level sensor for non-contact level monitoring of liquids and solids. It uses an 80GHz high-frequency millimeter-wave radar chip, offering long-range measurement, strong anti-interference performance and reliable target detection in conditions such as light, rain, dust, fog and frost.
An integrated LCD displays the current level locally, while level data can be transmitted to a cloud platform through a LoRaWAN network. The stainless-steel trumpet tube protects the radar sensor and supports durable tank installation in demanding industrial environments.
Applications
Suitable for level measurement in water supply, sewage, petroleum, chemical, metallurgy, food, pharmaceutical, papermaking and mining applications.
Applications
Product Specifications
| Brand | Winext |
| Model | EX-205C |
| Product Type | LoRaWAN Wireless Radar Level Sensor |
| Frequency Bands | CN470 / EU868 / US915 / AS923 / AU915 MHz |
| Protocol | LoRaWAN Class A |
| Max Transmit Power | 19 dBm |
| Max Receive Sensitivity | -140 dBm (SF=12) |
| Measurement Range | 0.1–15/20 m |
| Measurement Accuracy | ±2 mm |
| Measurement Frequency | 80 GHz |
| Data Transfer Rate | 300 bps–5.4 Kbps |
| Configuration | Bluetooth / P2P Wireless |
| Operating Temperature | -20°C to +125°C |
| Operating Humidity | 10%–95% |
| Ingress Protection | IP67 |
| Display | LCD |
| Dimensions | 121 × 93.4 mm |
| Trumpet Tube Size | 8 cm × φ6.5 cm by default (customized option available) |
| Power Supply | 3.6 V / 38000 mAh built-in battery |
Product Features
- Uses an 80GHz high-frequency millimeter-wave radar chip for precise non-contact measurement of liquid and solid levels.
- Supports LoRaWAN Class A connectivity across CN470, EU868, US915, AS923 and AU915 frequency bands.
- Provides a 0.1–15/20 m measurement range with ±2 mm accuracy for industrial level-monitoring applications.
- Integrated LCD enables on-site viewing of the current level height.
- Bluetooth and P2P wireless configuration simplify commissioning and parameter adjustment.
- IP67 protection and explosion-proof construction support operation in demanding industrial environments.
- The stainless-steel trumpet tube protects the radar sensor for improved durability and tank installation.
- Designed for dependable operation in conditions involving light, rain, dust, fog and frost.
- Suitable for water supply, sewage, petroleum, chemical, metallurgy, food, pharmaceutical, papermaking and mining applications.
Package Includes
- 1 × EX-205C LoRaWAN Wireless Radar Level Sensor
Frequently Asked Questions
What is the EX-205C LoRaWAN Wireless Radar Level Sensor used for?
What are its main features?
What are the power or battery requirements?
Which interfaces or communication protocols does it use?
What is included in the package?
