EX-301 Wireless Temperature and Vibration Sensor
In Stock
Product Description
The EX-301 is a high-performance LoRaWAN wireless monitoring sensor that simultaneously measures the vibration and surface temperature of industrial equipment. Its intelligent analysis functions collect raw acceleration data and record the time and duration of peak acceleration events for condition monitoring and predictive maintenance.
The sensor combines a high-strength alloy IP67 enclosure, bolt or magnetic mounting, and a built-in 3.6V 8500mAh battery for reliable operation in demanding industrial environments. It is suitable for pipelines, generators, air compressors, pumps and other critical assets across chemical, metallurgical, power-generation and mechanical-manufacturing applications.
Applications

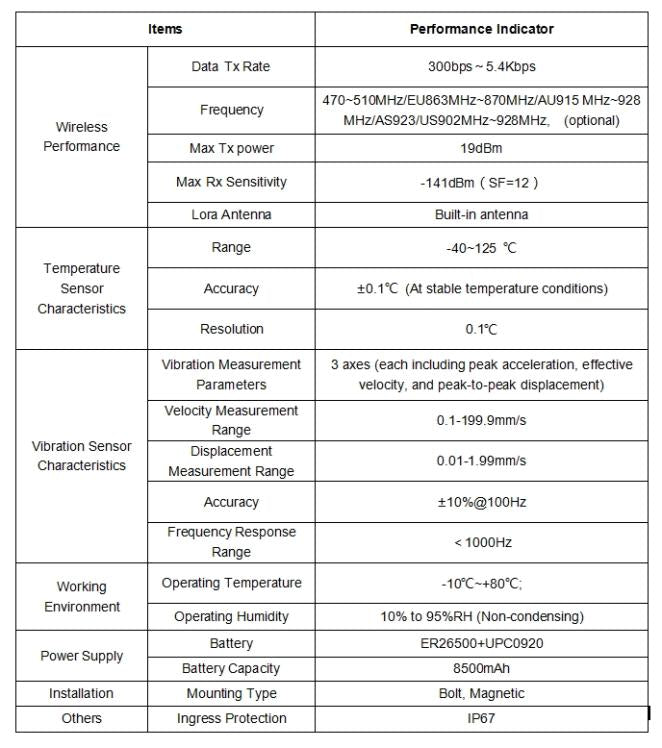

Product Specifications
| Brand | Winext |
|---|---|
| Model | EX-301 |
| Product type | Wireless temperature and vibration sensor |
| Wireless protocol | LoRaWAN Class A |
| Frequency bands | CN470 / EU868 / US915 / AS923 / AU915 MHz |
| Maximum transmit power | 19dBm |
| Maximum receive sensitivity | -141dBm (SF12) |
| Data-transfer rate | 300bps to 5.4Kbps |
| Temperature measurement range | -40°C to 125°C |
| Temperature accuracy | ±0.1°C under stable temperature conditions |
| Velocity measurement range | 0.1 to 199.9mm/s |
| Acceleration measurement range | 0.001 to 156.800m/s² (±16g) |
| Displacement measurement range | 0.01 to 1.99mm/s (source-listed) |
| Measurement accuracy | ±10% at 100Hz |
| Operating temperature | -10°C to +80°C |
| Operating humidity | 10% to 95% |
| Ingress protection | IP67 |
| Mounting type | Bolt / Magnetic |
| Power supply | Built-in 3.6V / 8500mAh battery |
| Battery specification | ER26500 + UPC0920 |
Product Features
- Monitors equipment surface temperature and vibration data simultaneously for online condition monitoring.
- Intelligent analysis captures raw acceleration data and records the time and duration of peak acceleration events.
- Supports CN470, EU868, US915, AS923 and AU915 regional LoRaWAN frequency plans.
- Measures velocity from 0.1 to 199.9mm/s, acceleration from 0.001 to 156.800m/s² (±16g), and source-listed displacement from 0.01 to 1.99mm/s.
- Suitable for predictive maintenance of pipelines, generators, air compressors, pumps and other critical industrial equipment.
- Designed for chemical, metallurgical, power-generation and mechanical-manufacturing environments.
Package Includes
- 1 × EX-301 Wireless Temperature and Vibration Sensor
- 1 × Built-in 3.6V 8500mAh battery
Other Information
Warranty Information
15 Days Seller Warranty:
This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What Voids Warranty:
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Shipping & Returns Policy
Shipping Policy:
- Delivery time within metro cities in India is 1-3 days; for other locations, it is 3-7 days. Delivery varies based on location and courier service.
- If the item is out of stock, the estimated delivery time is 7-14 days from order confirmation. Delivery varies based on location and courier service.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests from here: Return Request or contact us at 09831070550.
- Refunds are processed within 3-4 working days after inspection and approval.
Main Features
- Simultaneous wireless temperature and vibration monitoring
- LoRaWAN Class A communication for long-range industrial connectivity
- Measures vibration velocity, acceleration and displacement
- Records raw acceleration data and peak-event timing and duration
- -40°C to 125°C temperature measurement range
- IP67 high-strength alloy industrial enclosure
- Bolt or magnetic mounting
- Built-in 3.6V 8500mAh battery for low-maintenance operation
