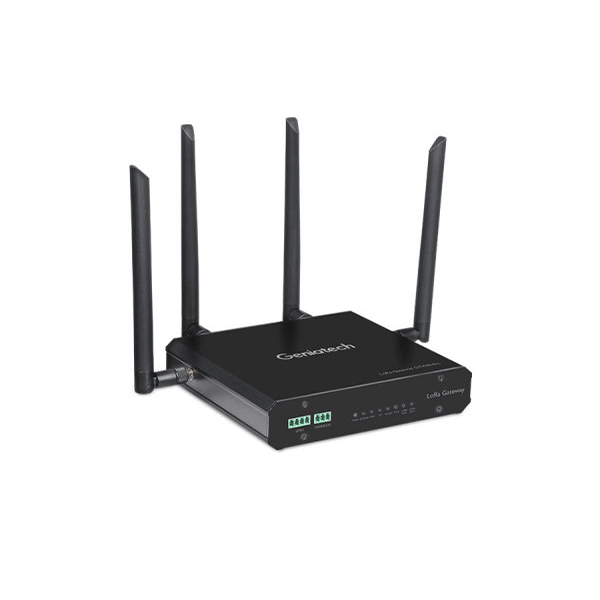

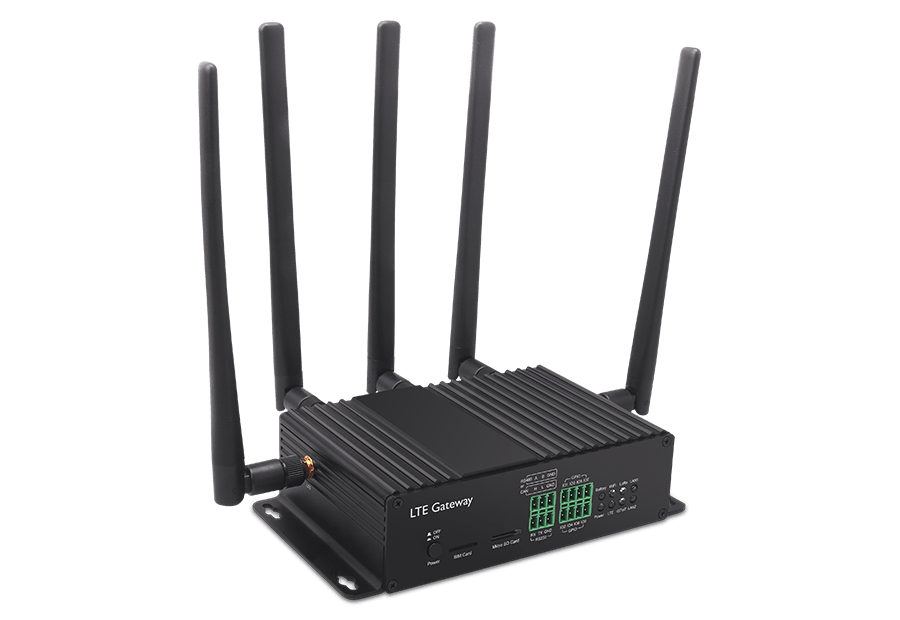

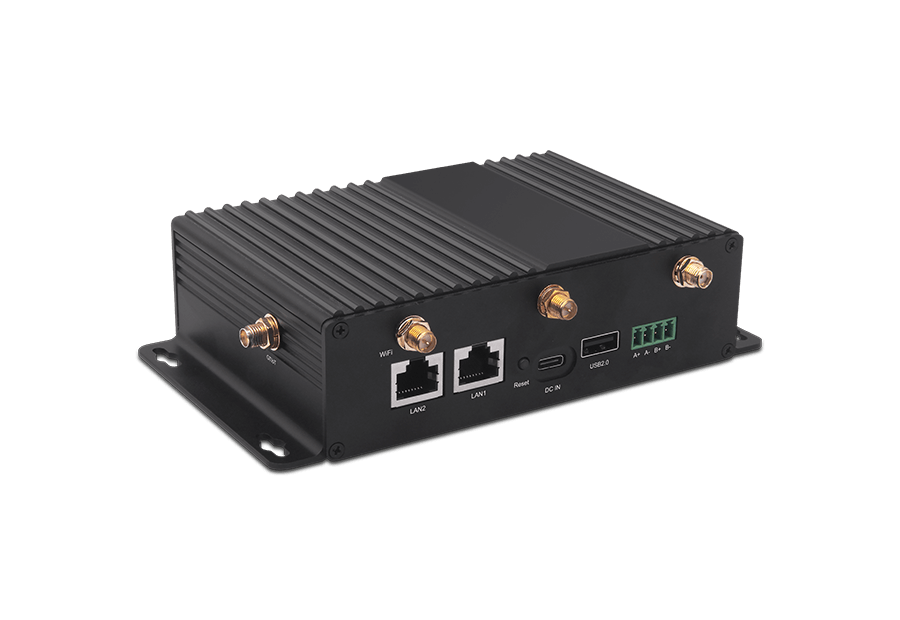

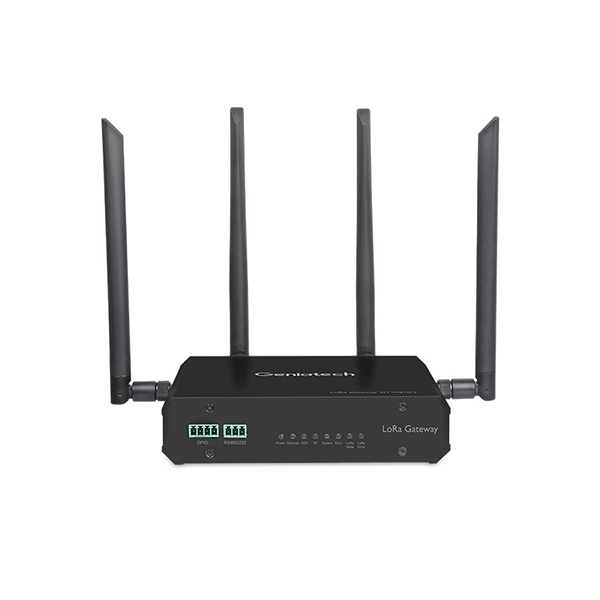

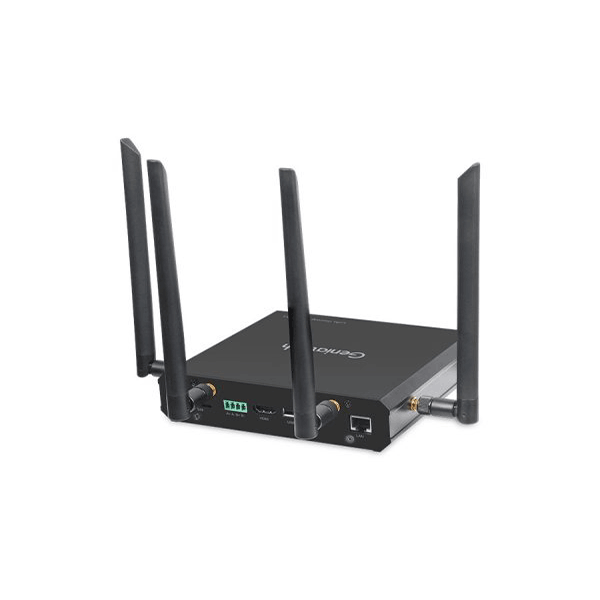

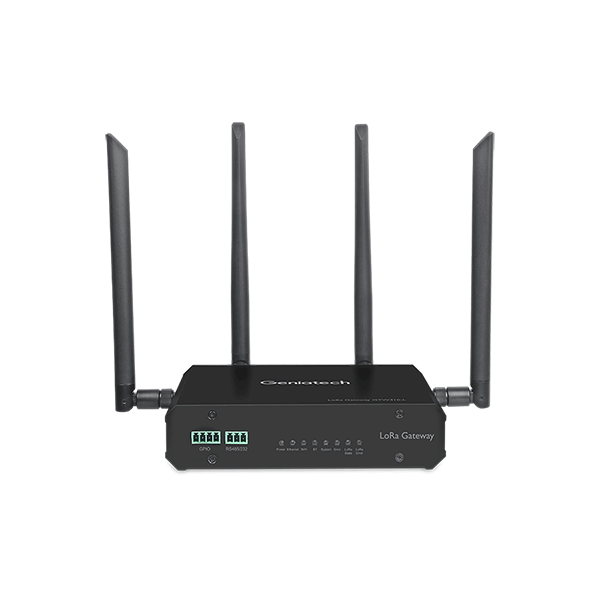

Geniatech GTW410 Series High-Performance Industrial Gateway support WiFi, LTE, Bluetooth, Zigbee, LoRa, Z-Wave protocol
No reviews yet
Low Stock, 2 left
Product Description

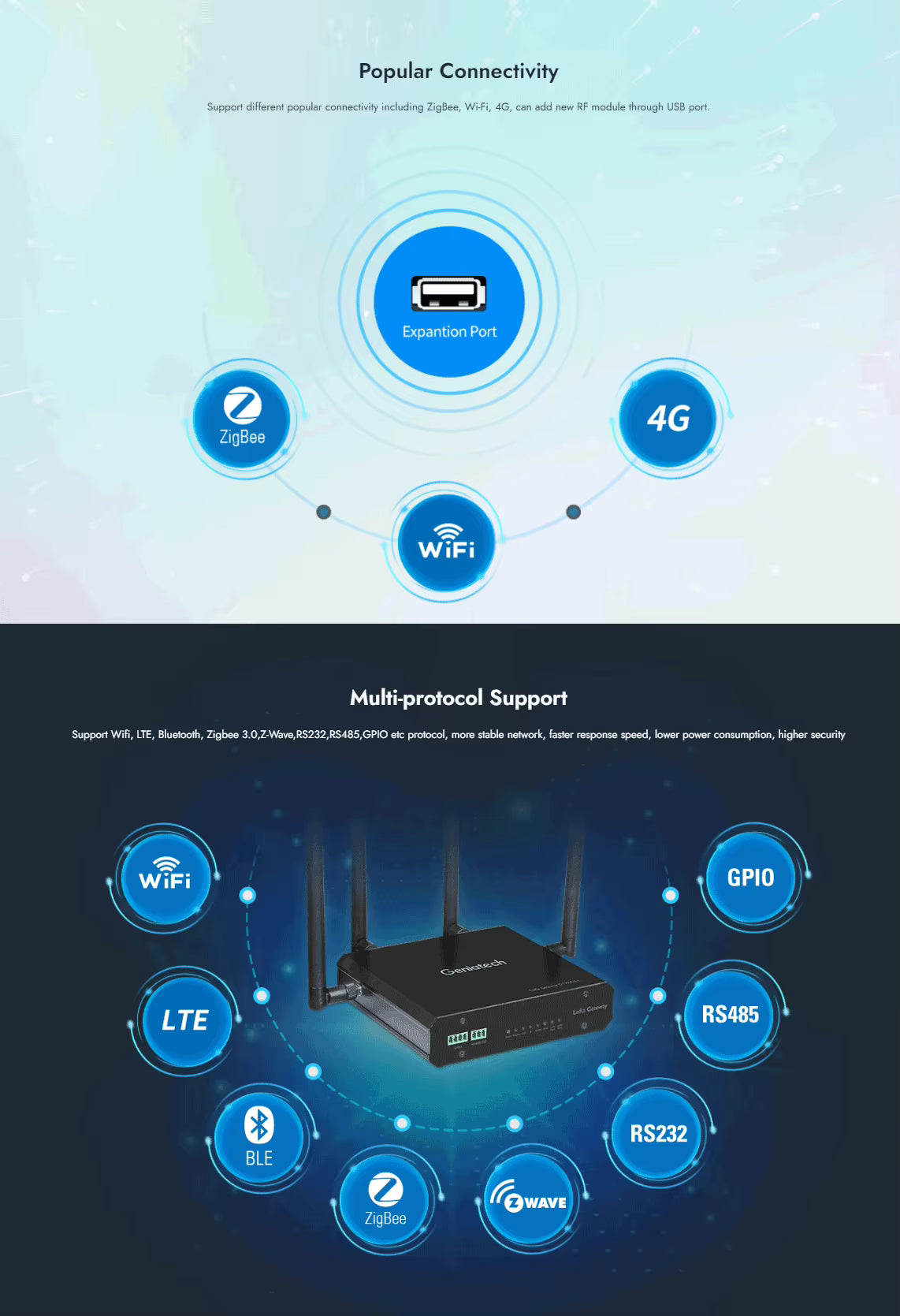

GTW410 is a high-end multi-functional smart home gateway, and as the gateway of industrial Internet of Things, itadoptsQualcomm Snapdragon 410 processor. It integrates ZigBee, Wi-Fi and BLE communication protocols, GTW410canbecustomized including integration with all possible combinations of ZigBee, Zwave, BLE, LoRa, 4G/3G/2GandWi-Fi forremotedata acquisition and remote control functions. Using industrial grade aluminum shell and wireless technologyandthehighest level of encryption, to ensure your network security, prevent malicious intrusion, GTW410 all-weatherreliableoperation, real-time network transmission performance is high. It can be widely used in building automation, industrialcontrol, digital signage, intelligent monitoring and other Internet of things industries.
Product Specifications
| CPU Frequency | Up to 1.2GHz |
| CPU | Snapdragon 410C quad coreARM®Cortex® A53 (64bit, 1.2GHz) Qualcomm® Adreno™306 GPU |
| Internal Memory | 2GB RAM(1GB Optional) |
| Internal Storage | 8GB/16GB eMMC Optional |
| OS | Linux(Full Function) Android (Function is limited) Windows 10 IoT |
| Built-in 2G/3G/4G | Optional Support 4G/LTE(EU/AU/US/CN) etc. |
| Built-in WiFi | Wi-Fi 4 |
| Serial port | 1*RS232/RS485 |
| Relay | 2*3A 250VAC |
| Interface | 4*GPIO |
| Ethernet port | 1*RJ45 10/100Mbps |
| USB Interface | 2*USB 2.0 ; 1*Micro USB |
| SIM Slot | Onboard |
| BT 5.0/BLE | Optional(Dongle and Module) |
| ZigBee3.0 | Optional(Dongle and Module) |
| Z-Wave | Optional(Dongle and Module) |
| LoRa | Optional(Module) |
| Wireless M-bus | Optional(Module) |
| Size (mm) | 145*165*45 |
| Net Weight (g) | 500(No Module Inside) |
| Power | DC12/1.5A |
Other Information
Warranty Information
3 Months Seller Warranty:
This item is covered with a standard warranty of 3 months from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What Voids Warranty:
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Shipping & Returns Policy
Shipping Policy:
- Delivery time within metro cities in India is 1-3 days; for other locations, it is 3-7 days. Delivery varies based on location and courier service.
- If the item is out of stock, the estimated delivery time is 7-14 days from order confirmation. Delivery varies based on location and courier service.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests from here: Return Request or contact us at 09831070550.
- Refunds are processed within 3-4 working days after inspection and approval.
Main Features
- Qualcomm Snapdragon 410E ARM® Cortex® A53 processor, Maximum frequency to 1.2GHz, supports 32 and 64bit.
- Qualcomm® Adreno ™ 306 Graphics processing chip, PC-level graphics processing capability.
- Support LTE (4G/3G/2G), the gateway can be connected to the server
- Reserved RF extension interfaces such as ZigBee, LoRa,Z-Wave, BT5.0/BLE
SKU: 2ETWO252
₹ 47,999.00
