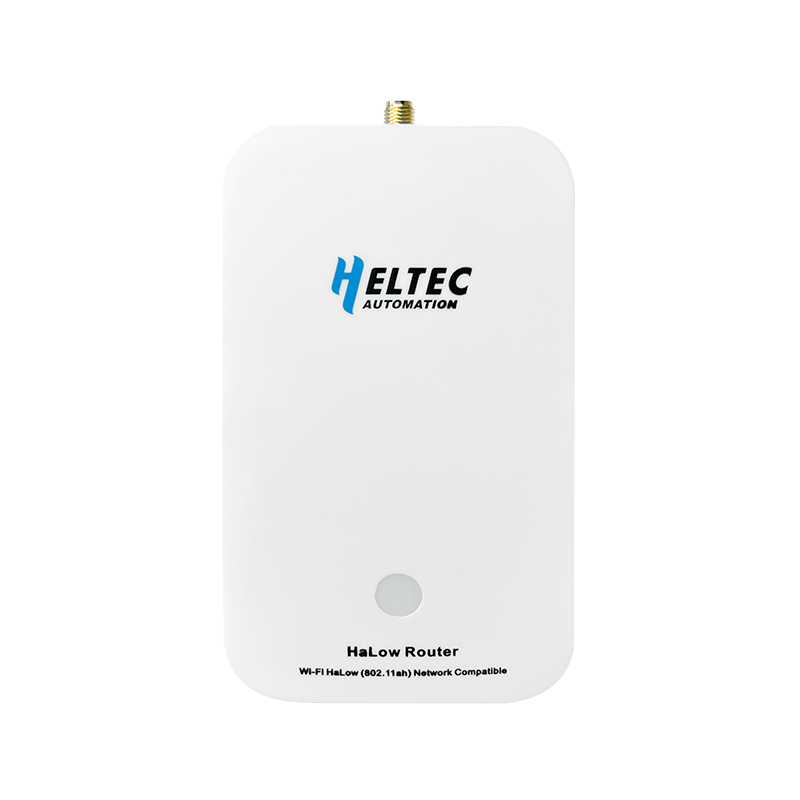

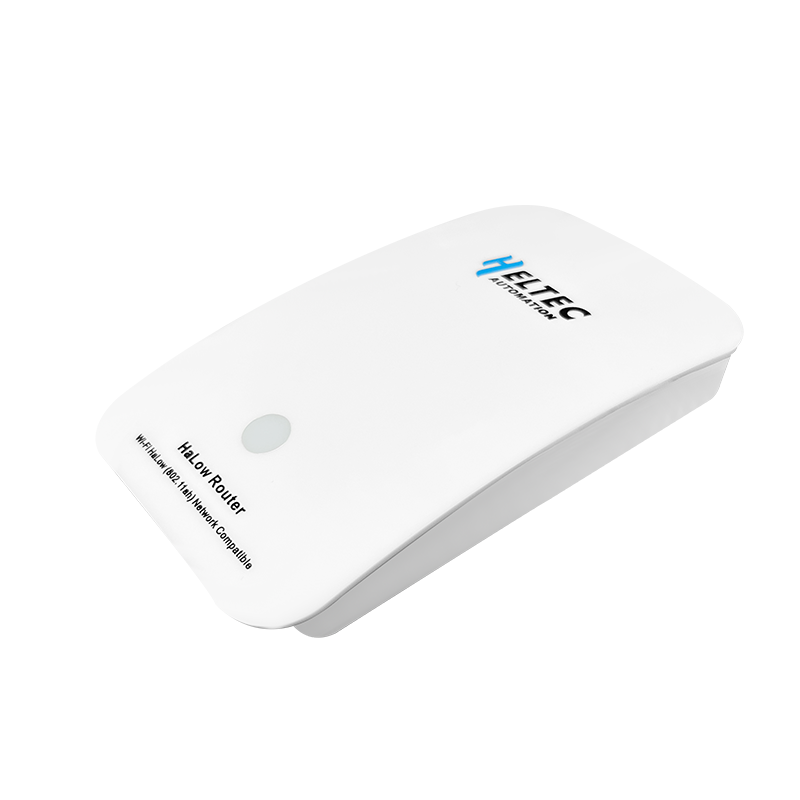

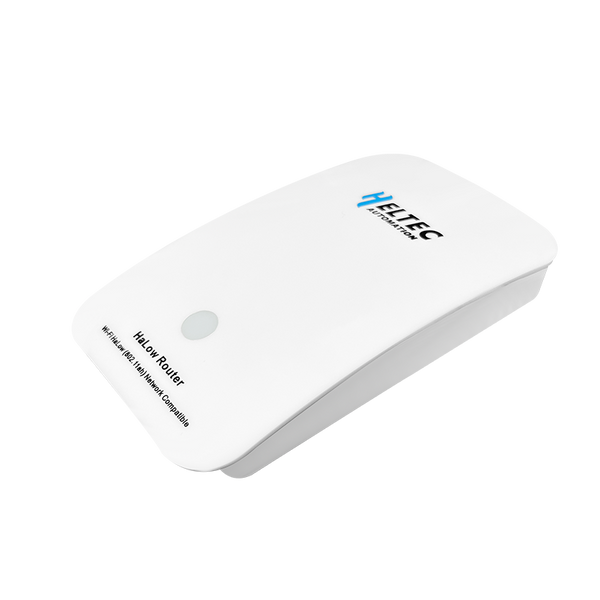

HT-H7608 V2 Wi-Fi HaLow 802.11ah Router / Gateway
No reviews yet
Low Stock, 5 left
Product Description
Wi-Fi HaLow Router is an innovative WiFi HaLow gateway from Heltec Automation designed to meet the needs of long-distance/high-speed data transmission for IoT applications. The gateway uses Wi-Fi HaLow(IEEE 802.11ah) technology that operates in the sub-1 GHz unlicensed band, which has stronger penetration and larger coverage compared with the traditional WiFi standard. It is equipped with powerful hardware including advanced RF capabilities, high-performance MCU, and flexible interfaces for seamless integration with existing networks. It can be easily configured and OTA upgraded through web UI, and supports the simultaneous connection of a large number of devices, which making it a great solution for intelligent manufacturing, smart city, etc.
Product Specifications
| MCU | MT7628 |
| Wi-Fi HaLow module | HT-HC01 |
| Wi-Fi HaLow Standard | IEEE 802.11ah |
| Wi-Fi Standard | IEEE 802.11b/g/n |
| Flash | 32M |
| RAM | 128M |
| Power Supply | 5V/1~2A DC |
| Power consumption | 205~305mA |
| Operating humidity | 10%～90%, no-condensing |
| Dimensions | 109*66*30.50 mm |
| Operating Temperature | -20 ~ 70 ℃ |

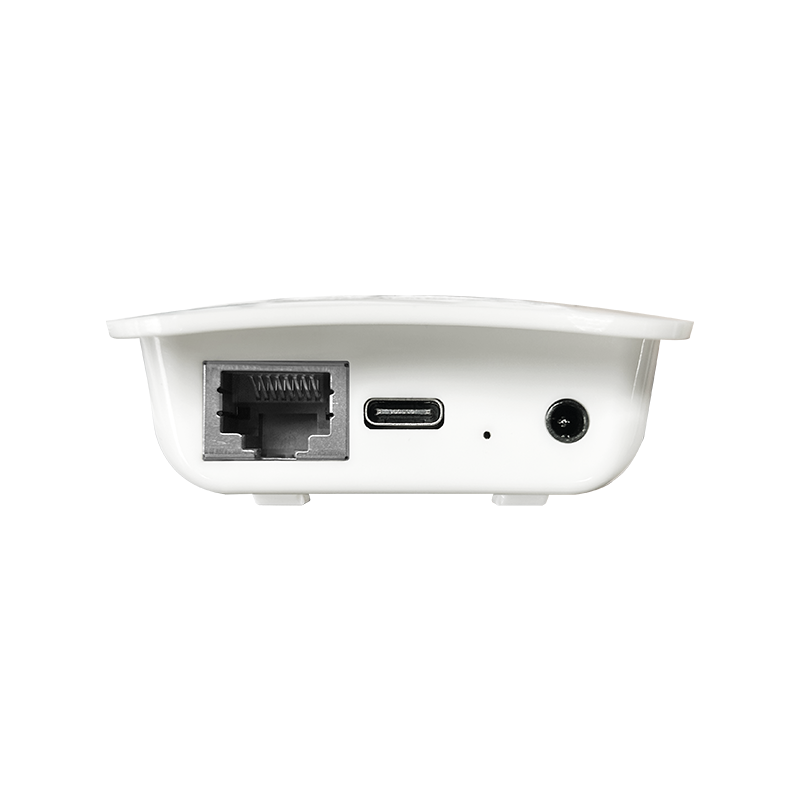

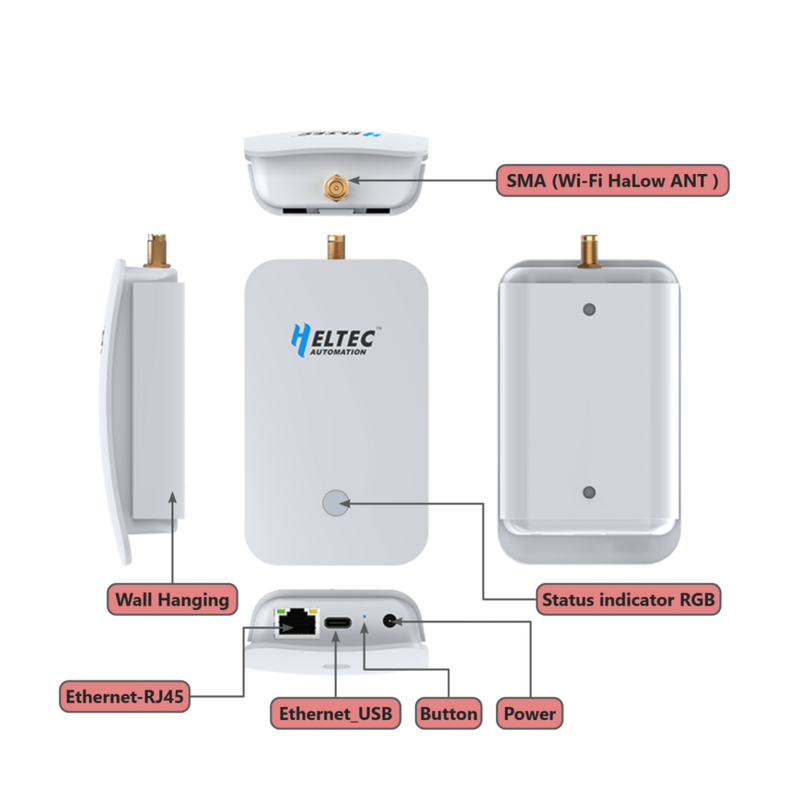

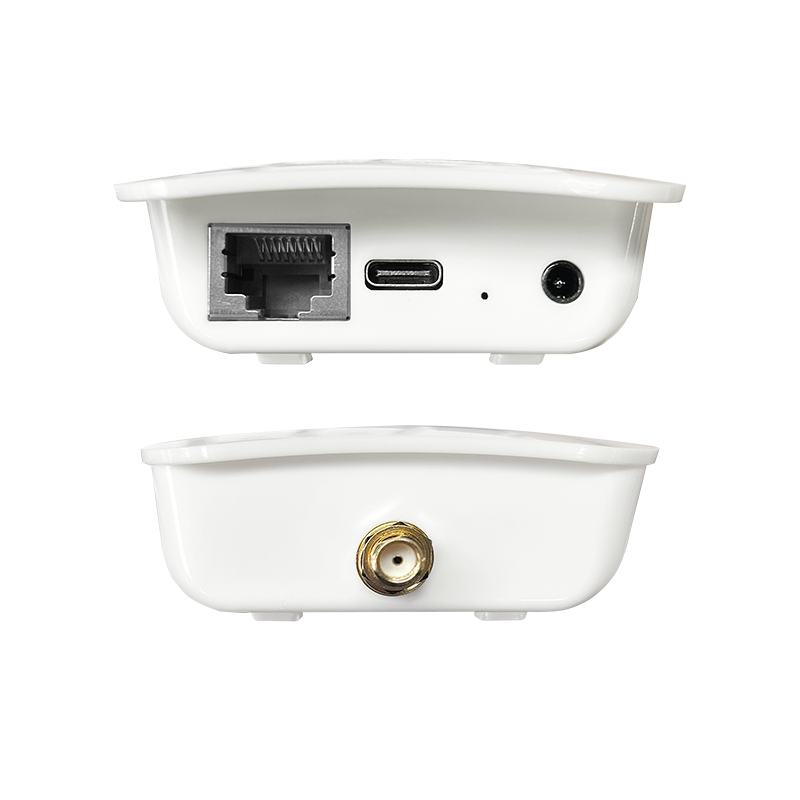

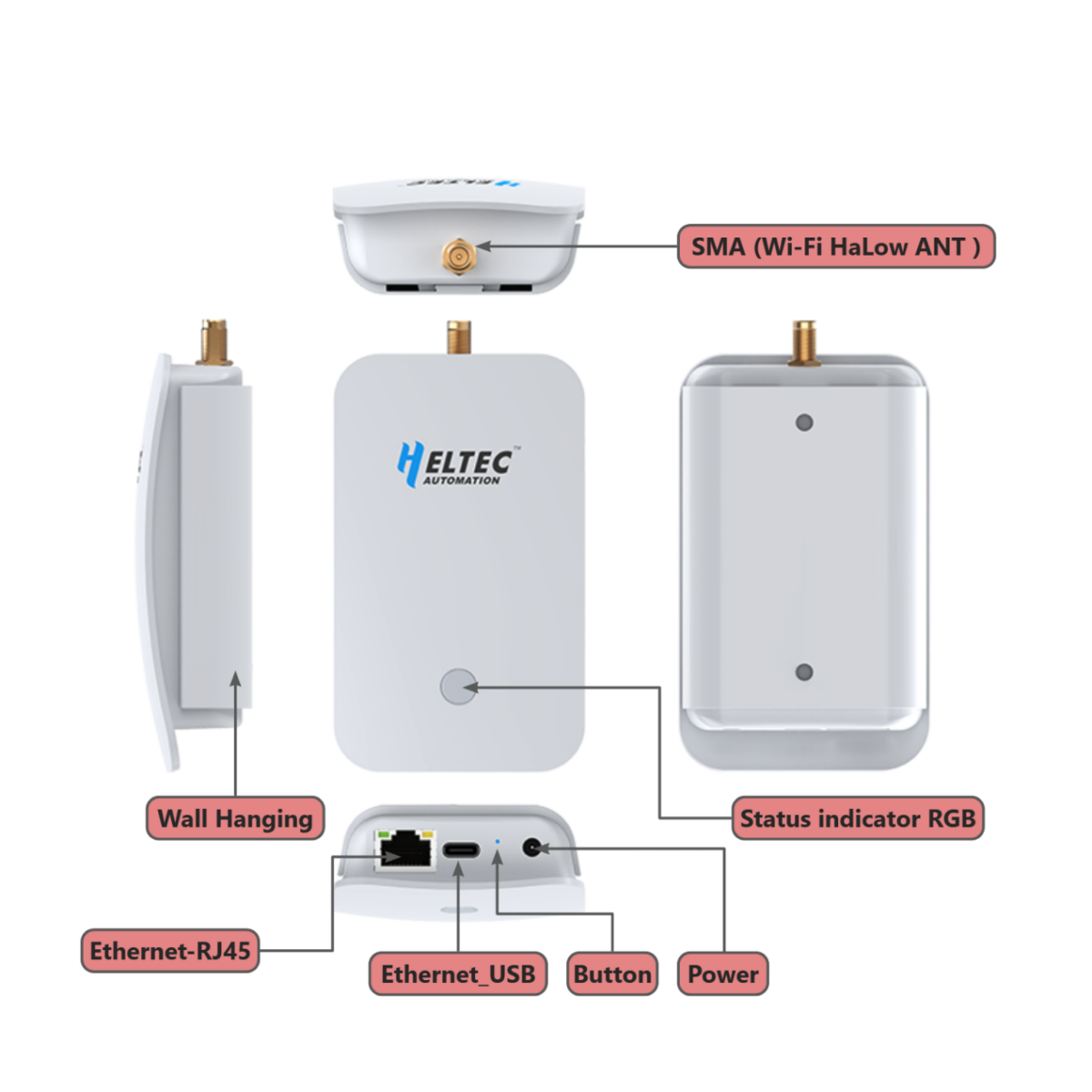

| Interface | DC-031A: Power Supply RJ45: Ethernet port USB-C: Power supply and USB Network port |
| Module | HT-HC01 |
| Wi-Fi Standard | IEEE 802.11ah |
| Frequency | 863-870MHz 902-928 MHz |
| Max. output power | 915MHz: 27 dBm 868MHz: 16 dBm |
| Channel Bandwidth | 915MHz: 1/2/4/8 MHz 868MHz: 1 MHz |
| Data Rate | Maximum Physical Layer Air Interface Data Rate 32.5 Mbps |

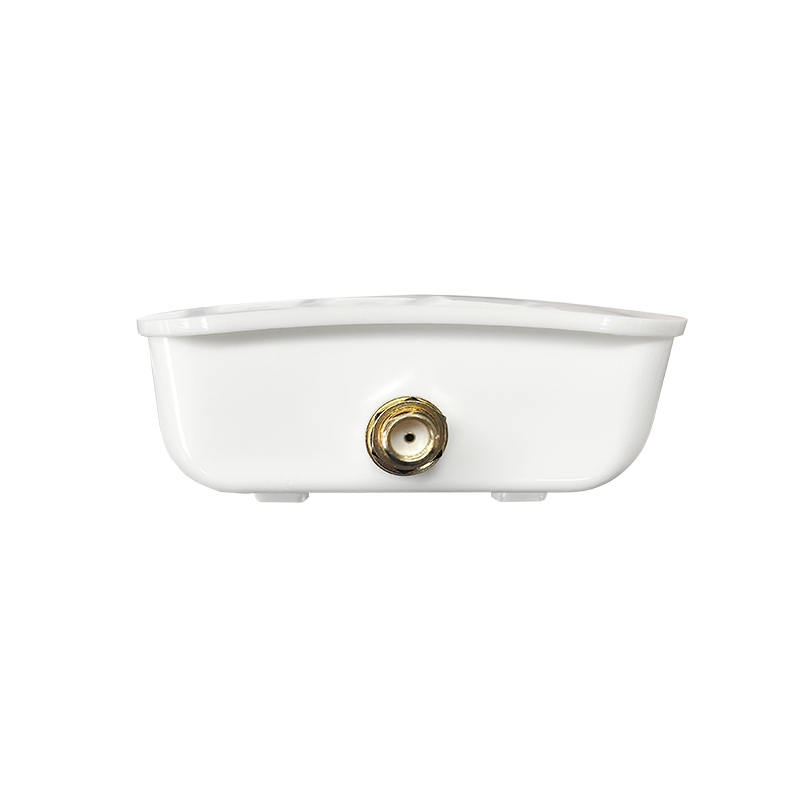

| Antenna connector | SMA |
Product Features
- Wi-Fi and Ethernet supported, WiFi HaLow and 2.4GHz dual-band design.

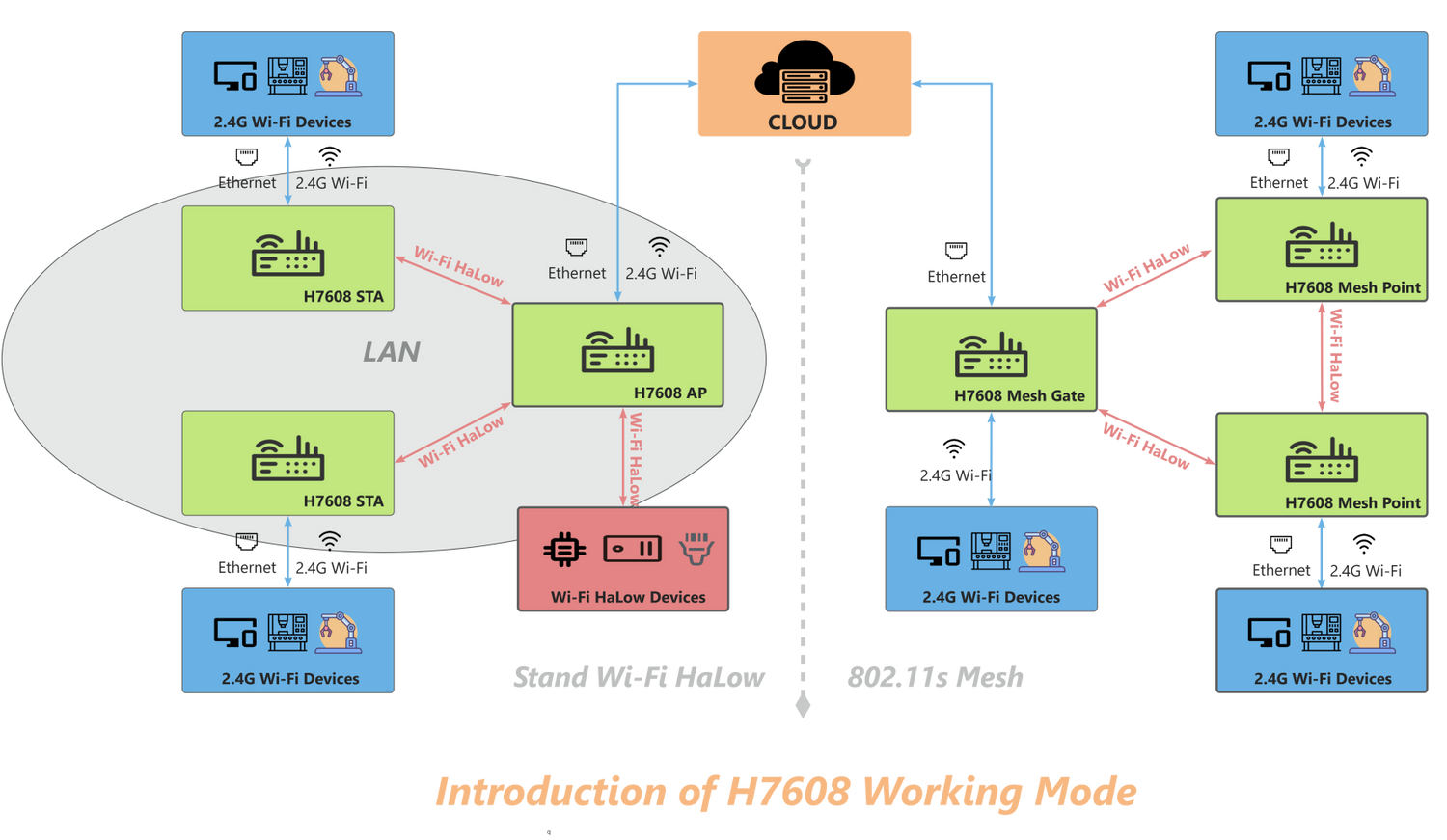

- Flexible networking methods, including AP, STA, Mesh, etc.
- Easy setup and OTA upgrade via the Web UI.
- -20°C to 70°C maximum operating temperature range.
- Light and stylish wall-mounted, simple to install.
- Long-range transmission capability, the range can reach 1km and further within the visual distance.
- Supports access to a large number of devices, more than 4 times that of traditional Wi-Fi access points.
- High transmission speed, it maintains 150Kbps at the limit distance and 32Mbps at close distances.
Package Includes
- HT-H7608 - X1
- Suction Cup Rubber Rod Antenna - X1
- 5V 1A Power Adapter - X1
