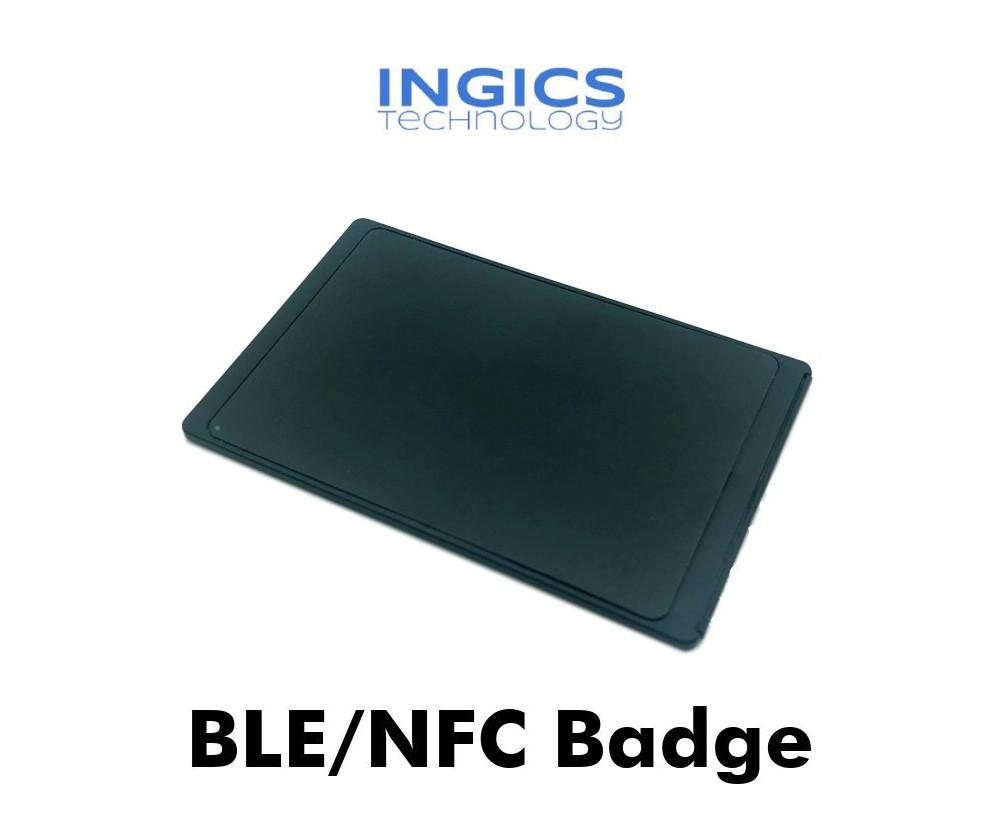

iBS06 NFC Card Beacon
No reviews yet
Lead Time
Product Description
iBS06 is an ultra-slim Bluetooth® Low Energy (BLE) NFC card beacon designed for tracking, identification, access control, and personnel management applications. It combines BLE 5 beacon functionality with NFC MIFARE technology in a standard card-size form factor suitable for employee ID cards, hotel cards, and asset tags.
Product Specifications
| Key Specifications | |
| Product Model | iBS06 |
| Product Type | NFC Card Beacon |
| Wireless Technology | Bluetooth® Low Energy 5 (BLE 5) |
| NFC Technology | NXP MIFARE S50 EV1 / MIFARE Classic 1K |
| NFC Standard | ISO/IEC 14443-A |
| NFC Frequency | 13.56 MHz |
| User Memory | 1 KByte EEPROM |
| UID | 7-byte UID |
| Maximum BLE Range | Up to 100 meters (Line of Sight) |
| Frequency Band | 2.4 GHz |
| Processor | ARM Cortex-M4 32-bit |
| Transmit Power | Up to +4 dBm |
| Receiver Sensitivity | -97 dBm @1Mbps |
| Battery Type | CR2012 x 2 |
| Battery Life | Up to 1.7 years (5s advertising interval) |
| Advertising Interval | 100ms to 60 minutes configurable |
| Operating Temperature | -5°C to 45°C |
| Waterproof Rating | IPX4 |
| Dimensions | 85.6mm × 54mm × 2.4mm |
| Weight | 18g |
| Configuration | Android App Configuration |
| Certifications | CE / FCC / TELEC / NCC |
Product Features
- Ultra-slim NFC card beacon design for wearable and ID card applications
- Bluetooth® Low Energy (BLE 5) wireless communication support
- Integrated NFC functionality for tap-and-read operations
- Real-time indoor positioning and proximity detection support
- Suitable for employee attendance and access control systems
- Compact lightweight card format for easy carrying
- Long battery operation optimized for continuous beacon transmission
- Compatible with BLE gateways, smartphones, and IoT platforms
- Supports smart office and industrial IoT deployments
- Ideal for personnel tracking and visitor management applications
- Fast BLE advertising transmission for reliable detection
- Low power consumption architecture for extended operational life
- Supports indoor navigation and asset visibility systems
- Easy integration with cloud-based monitoring platforms
- Durable enclosure suitable for daily industrial usage
- Supports beacon UUID, Major, and Minor configuration
- Suitable for hospitals, warehouses, offices, and smart buildings
- Wireless configuration support through mobile applications
- Enhanced mobility for workforce identification and tracking
- Reliable BLE communication in high-density environments
Package Includes
- iBS06 NFC Card Beacon
- Pre-installed CR2012 Batteries
- User Guide
Other Information
Warranty Information
15 Days Seller Warranty:
This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What Voids Warranty:
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Shipping & Returns Policy
Shipping Policy:
- Delivery time within metro cities in India is 1-3 days; for other locations, it is 3-7 days. Delivery varies based on location and courier service.
- If the item is out of stock, the estimated delivery time is 7-14 days from order confirmation. Delivery varies based on location and courier service.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests from here: Return Request or contact us at 09831070550.
- Refunds are processed within 3-4 working days after inspection and approval.
Main Features
- Ultra-slim card type BLE beacon with NFC functionality
- Supports Bluetooth® Low Energy 5 with Coded PHY
- Integrated NFC MIFARE Classic 1K technology
- Standard credit-card sized design
- Up to 100 meters BLE communication range
- Up to 1.7 years battery life
- User-replaceable batteries
- Suitable for employee ID and access control systems
- Supports indoor positioning and tracking applications
- Android application support for configuration
- Real-time BLE broadcasting
- Compact lightweight design for wallet or badge usage
- IPX4 splash-resistant protection
- Low power consumption operation
- Supports asset tracking and personnel management
- Ideal for smart office and hotel access applications
