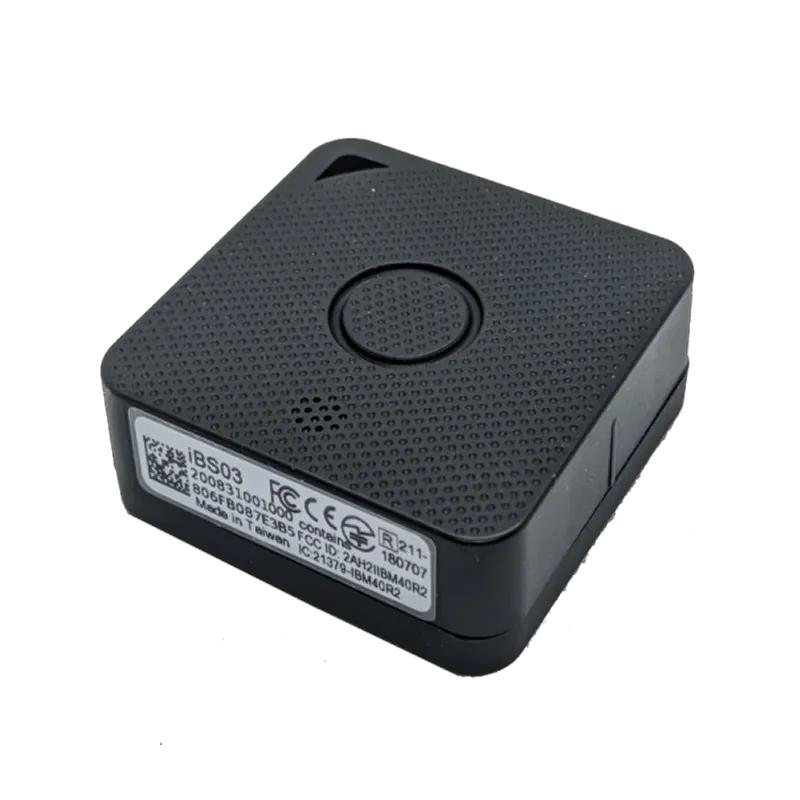

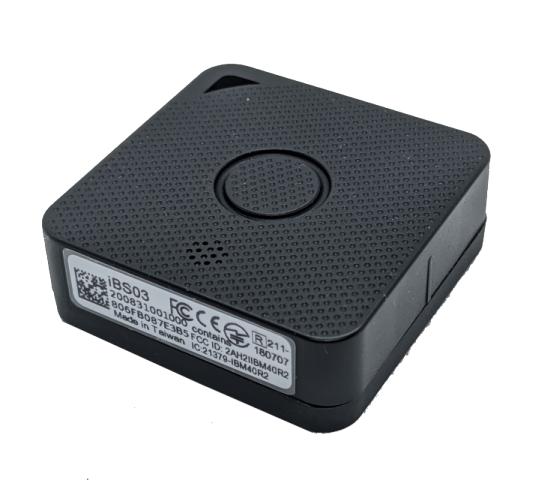

INGICS iBS03 Open/Close Detection Hall Sensor Beacon
No reviews yet
In Stock
Product Description
The iBS03 Open/Close Detection Hall Sensor Beacon is a rugged Bluetooth® Low Energy (BLE) waterproof sensor beacon designed for open/close detection, access monitoring, and industrial asset tracking applications. It uses a Hall sensor with magnet-based detection to monitor door, window, hatch, cabinet, and enclosure status in real time
Product Specifications
| Product Model | iBS03 |
| Sensor Type | Hall Sensor (Magnet-based Open/Close Detection) |
| Wireless Technology | Bluetooth® Low Energy (BLE 5 with Coded PHY Support) |
| BLE Range | Up to 100 meters (Line of Sight) |
| Frequency Band | 2.4 GHz |
| Battery Type | CR2450 x 1 |
| Battery Life | Up to 4 years (5s advertising interval) |
| Waterproof Rating | IPx7 / IP67 Waterproof |
| Operating Temperature | -20°C to 75°C |
| Transmit Power | Up to +5 dBm |
| Receiver Sensitivity | -97 dBm @1Mbps |
| Processor | ARM Cortex-M3 32-bit |
| Dimensions | 43mm × 43mm × 14.8mm |
| Drop Protection | Up to 2 meters |
| Configuration | Android App / Beacon Utility |
| Certifications | CE / FCC / IC / TELEC / NCC |
| Mounting | Adhesive / Screw Mount |
| Trigger Mechanism | Hall Sensor + Button Activation |
| Advertising Interval | Configurable (100ms to 1 minute) |
Product Features
- Hall sensor technology for reliable magnetic open/close detection
- Real-time status monitoring for doors, windows, cabinets, and enclosures
- Bluetooth® Low Energy (BLE 5) with long-range coded PHY support
- Up to 100 meters wireless communication range in open space
- Rugged IP67 / IPx7 waterproof industrial enclosure
- Long battery operation up to 4 years using CR2450 battery
- Compact and lightweight design for flexible installations
- Sensor-triggered burst BLE transmission for instant event reporting
- Supports beacon-based location tracking applications
- Android mobile app support for easy configuration and management
- Built-in panic/alarm button functionality
- Internal power ON/OFF switch
- Low power sensor activity wake-up mechanism
- Durable housing with up to 2-meter drop protection
- Suitable for industrial automation and smart building applications
- Easy adhesive or screw mounting installation
- Compatible with BLE gateways and IoT monitoring platforms
- Supports access control and facility integrity monitoring
- Ideal for warehouse asset visibility and perimeter monitoring
- Operates in harsh environments from -20°C to 75°C
- Certified with CE, FCC, IC, TELEC, and NCC approvals
Other Information
Warranty Information
3 Months Seller Warranty:
This item is covered with a standard warranty of 3 months from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What Voids Warranty:
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Shipping & Returns Policy
Shipping Policy:
- Delivery time within metro cities in India is 1-3 days; for other locations, it is 3-7 days. Delivery varies based on location and courier service.
- If the item is out of stock, the estimated delivery time is 7-14 days from order confirmation. Delivery varies based on location and courier service.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests from here: Return Request or contact us at 09831070550.
- Refunds are processed within 3-4 working days after inspection and approval.
Main Features
- Waterproof industrial-grade enclosure (IP67/IPx7)
- Real-time open/close status detection
- Long battery operation up to 4 years
- Compact rugged design
- BLE 5 Long Range support
- Fast sensor-triggered BLE transmission
- Easy installation with magnetic detection
- Suitable for indoor and outdoor deployments
- Supports asset tracking and monitoring systems
