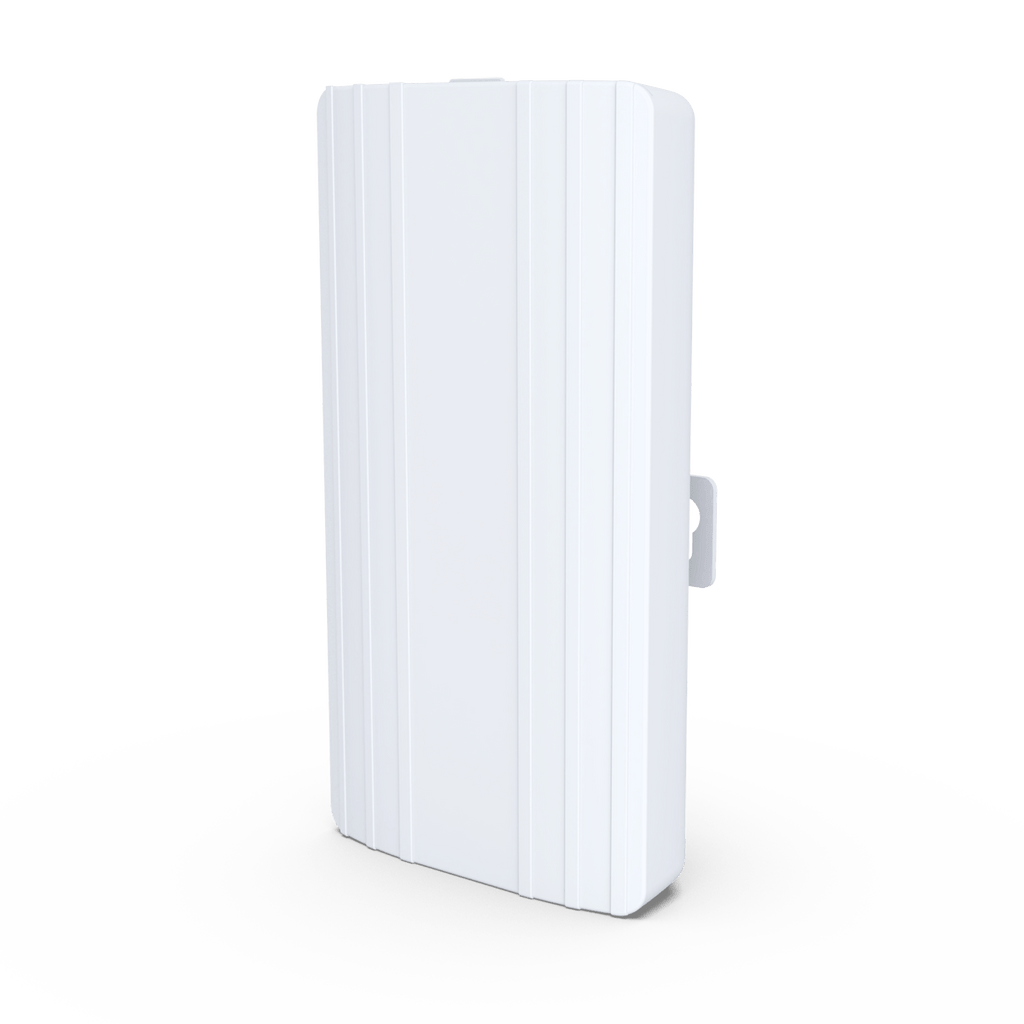

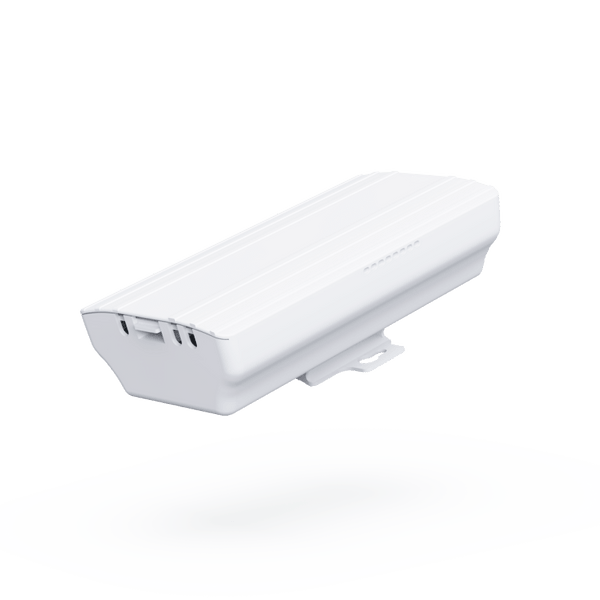

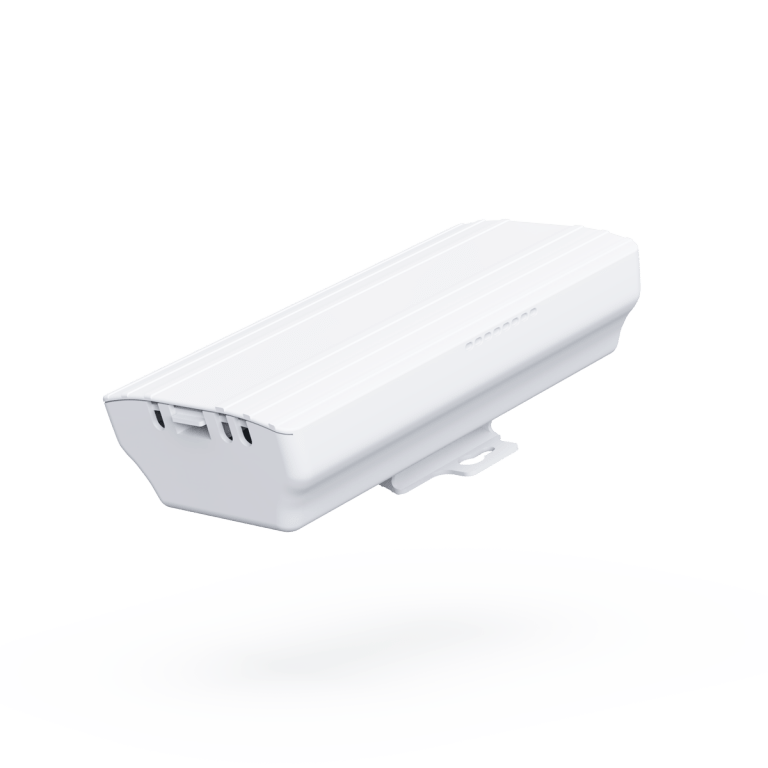

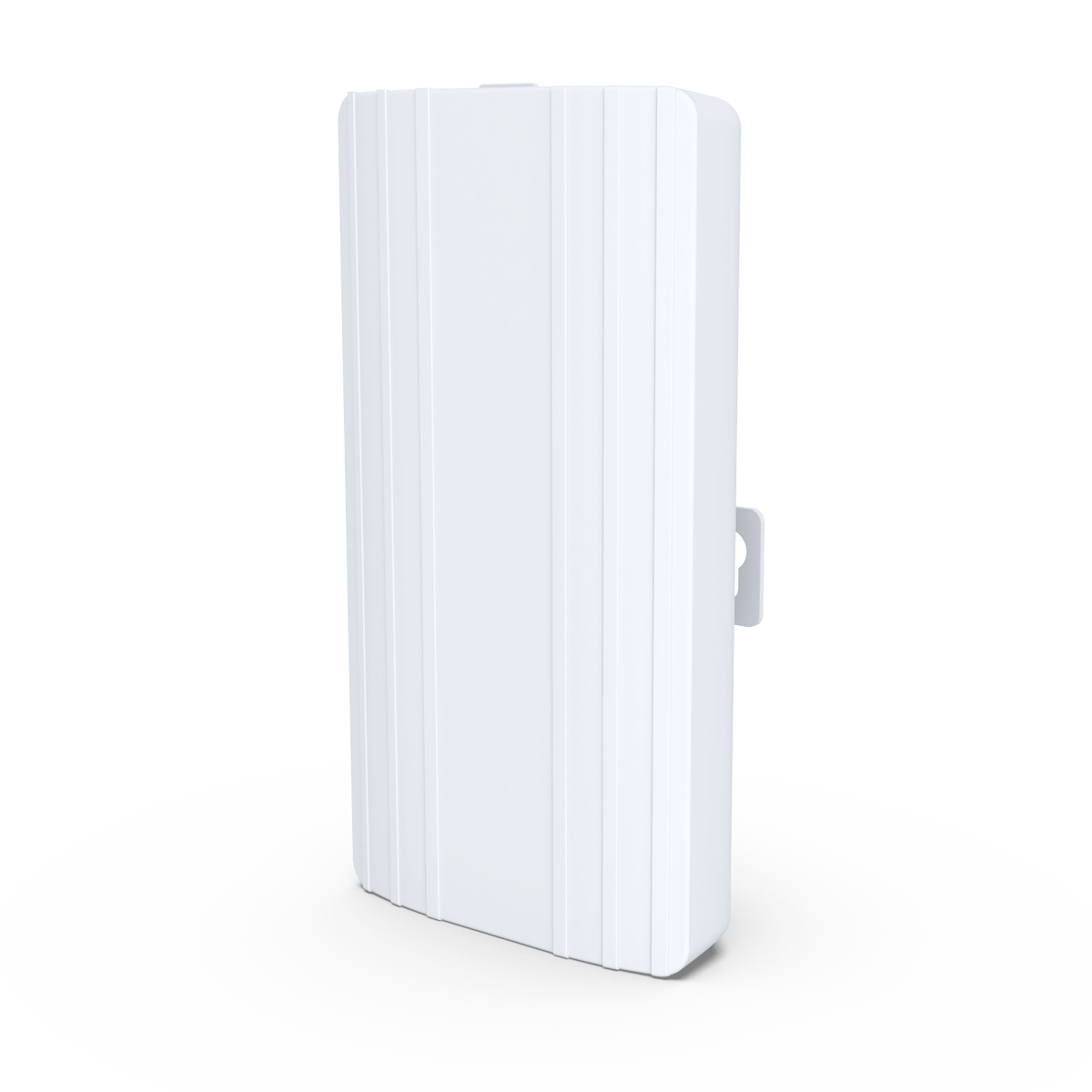

KG01 Outdoor Bluetooth Gateway
No reviews yet
Low Stock, 2 left
Product Description
KG01 Outdoor Bluetooth Gateway is an industrial-grade Bluetooth 5.0 gateway that provides true long-range Bluetooth 5.0 communication and reliable cellular/Ethernet/WiFi connectivity for IoT devices. KG01 beacon gateway collects the data from iBeacon, Eddystone, BLE sensor or other BLE devices, and upload data to the local or remote cloud server by MQTT/HTTPS protocol over 3G/4G, ethernet, Wi-Fi or WiFI hopping. And it also support update the KKM beacons pareameter remotely.
It extends the reach of beacons, sensors and tags by collecting data over BLE and sending it to cloud/local servers.

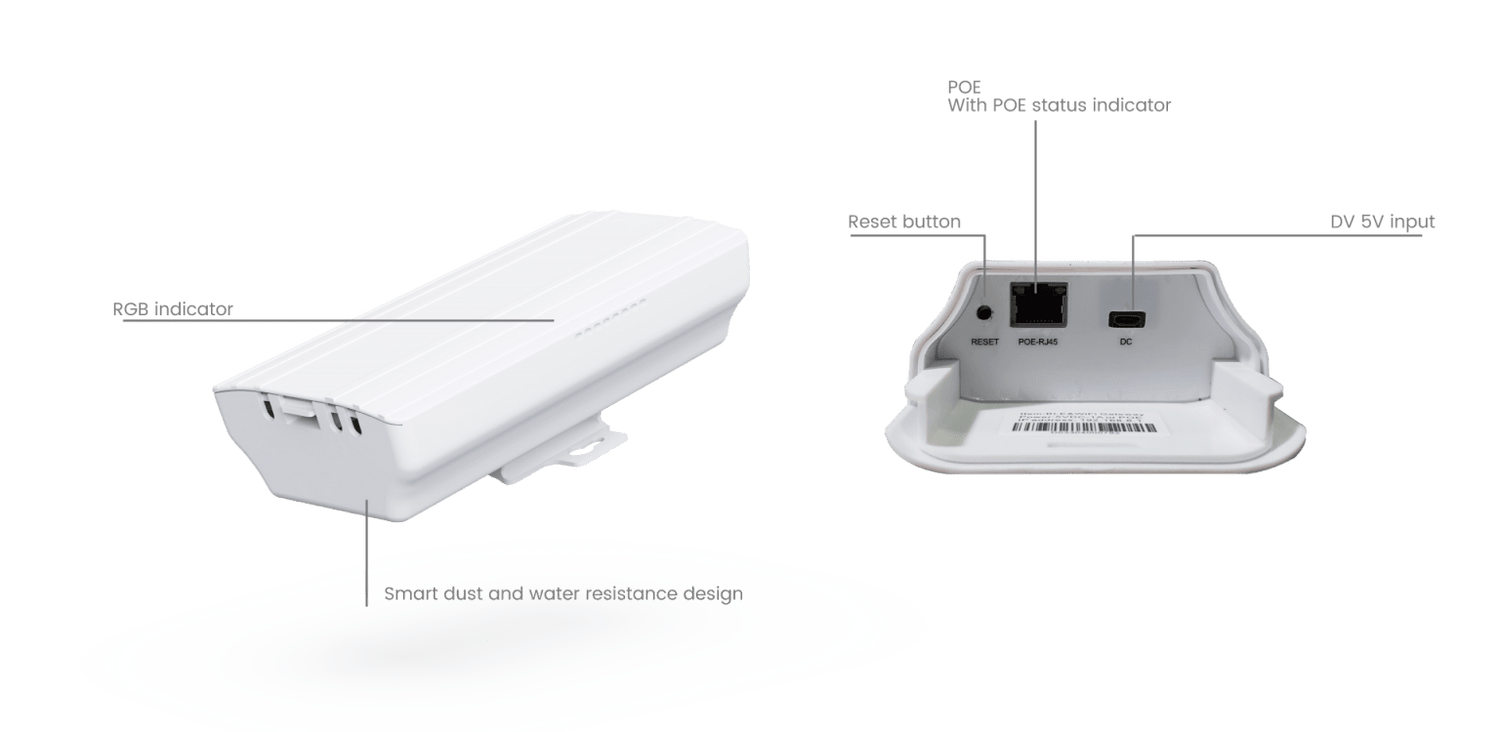

KG01 Outdoor BLE Gateway comes with smart design, designed to work outdoor.
KG01 Outdoor IoT Bluetooth Gateway supports Bluetooth 5.0 LE Coded PHY long range.
KG01 Outdoor Beacon Gateway provides offline storage, it prevent data packet lost due to the network disconnection.
KKM KG01 IoT BLE gateway also provide convenient operation & maintanence tools. The user is easy to configure the KG01 Bluetooth gateway | Beacon Gateway via a web/phone UI, and it support remote configuration.

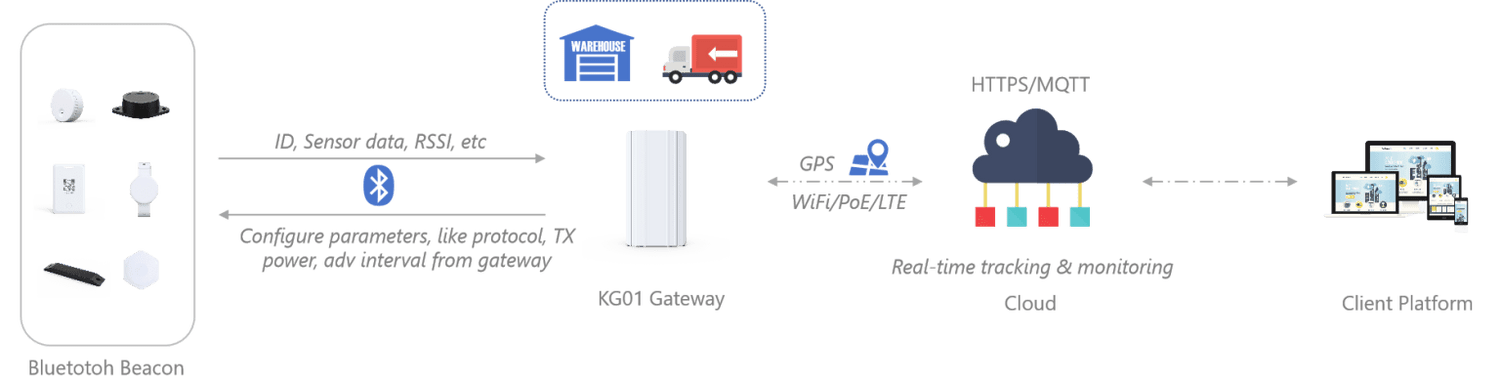

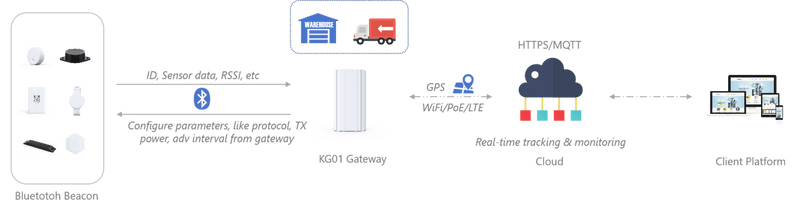

The KG01 Outdoor BLE gateway is mainly use to gather the information from Bluetooth beacons around it, then uploading the information to the server through HTTPS/MQTT TLS protocols. You can also use KKM Outdoor Beacon Gateway to remote configure Bluetooth Beacon parameters.
Product Specifications
| Power | POE or DC 5V |
| Scanning Ability | >240 beacons per second |
| Wireless Distance | BLE 4.0/4.1/4.2: 150 meters | BLE 5.0: up to 900 meters in open space (depends on environment) |
| Transimitting Way | Cellular (3G/4G dongle), ethernet, WiFi, WiFi hoppen |
| Transmitting Protocol | HTTPS, MQTT |
| Installation Way | Screw |
| Waterproof/Dustproof | IP54 (outdoor use design) |
| Material | ABS |
Product Features
- Water proof-IP54/Sun proof
- BLE5.0 Long distance Feature
- BLE distance: BLE5.0 Coded PHY mode up to 300 meters in open space
- Open protocol: Local server or HTTPS/MQTT to cloud
- WiFI WPA2, 802.1x Enterprise
- Bi-directional: reads advertisement data and sends command(update beacon parameters from cloud)
- Configuration: Web portal and phone protal
- Transmit: ETH/Wifi/Wifi-hopping or usb extend(3G/4G module)
- Power: 5V DC or ETH PoE(802.3af)
- Base on latest OpenWrt 18.29
- BLE chip: nRF528xx serie
- With 3dBi flexible FPC antenna
- Up to 150 Mbps PHY data rate
- Built-in RTC and NTP support
- 1T1R 2.4GHz frequency band
- IEEE 802.11b/g/n
- Supports 802.3af PoE standard
- Supports firmware upgrade Over-the-Air
- Supports remote configuration
- POE status LED indicator
- Data usage monitoring
