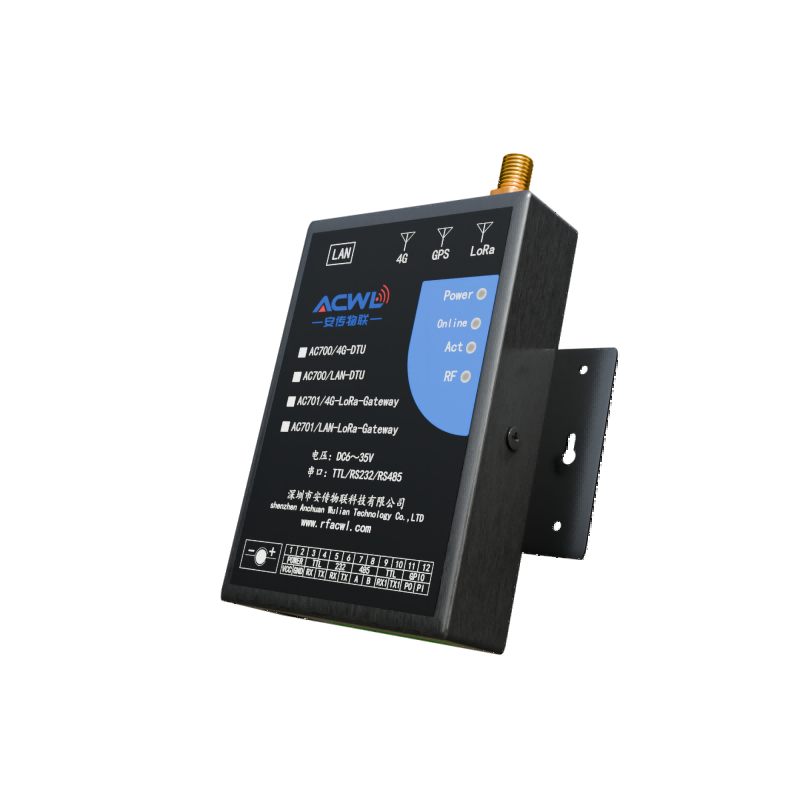

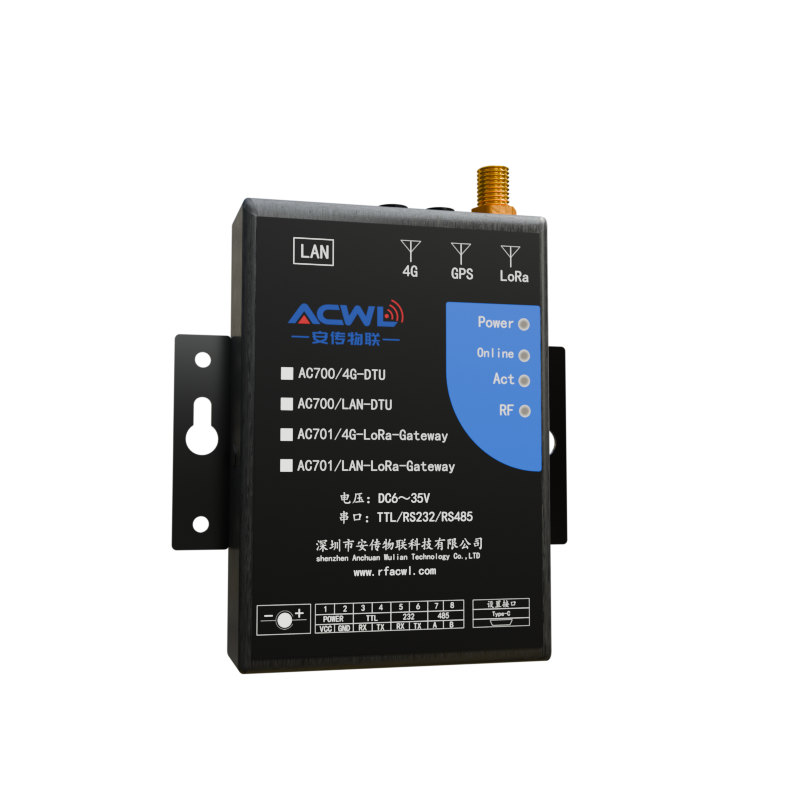

LoRaWAN Gateway with 4G Cellular & Ethernet Support - AC701 Wireless Gateway LoRa to Cloud Server Bridge for Remote Monitoring
No reviews yet
Low Stock, 2 left
Product Description

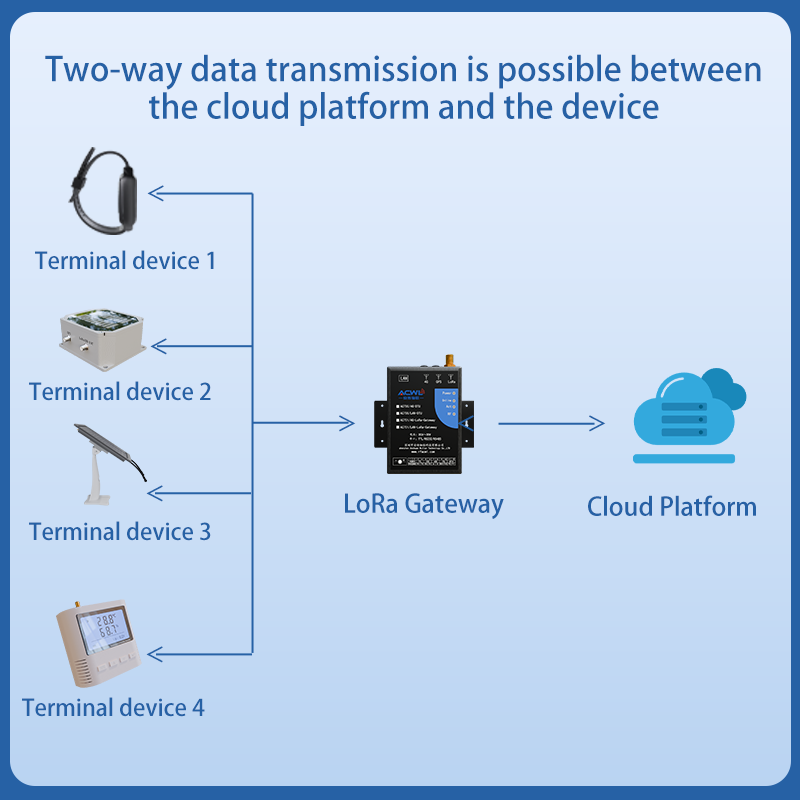

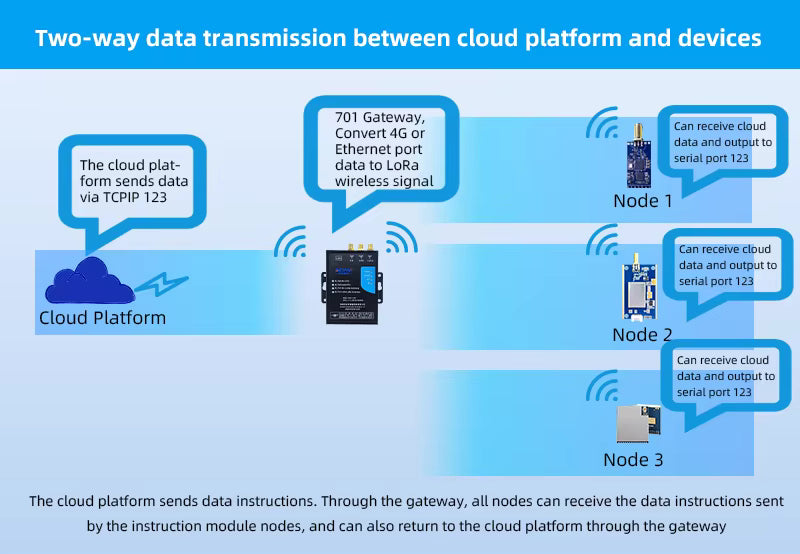

The AC701 is a wireless LoRa-to-4G/RJ45 (Ethernet) data transmission gateway designed to convert LoRa/serial data into TCP data (or vice versa) for relay transmission over wireless networks. Its hardware integrates a controller unit, communication modules (4G module, LoRa module, Ethernet module), power management, and interface conversion circuits.
Product Specifications
| Hardware Version | 4G – Supports global 4G networks with cross-carrier compatibility and regional frequency bands. |
| Standards & Bands | 4G – FDD-LTE / TDD-LTE / WCDMA / TD-SCDMA / CDMA / GSM. |
| Theoretical Bandwidth | 4G –, FDD-LTE: Downlink ≤100 Mbps, Uplink ≤50 Mbps., TDD-LTE: Downlink ≤61 Mbps, Uplink ≤18 Mbps., WCDMA: Downlink ≤42 Mbps, Uplink ≤5.76 Mbps, , TD-SCDMA: Downlink ≤4.2 Mbps, Uplink ≤2.2 Mbps, CDMA: Downlink ≤5.4 Mbps, Uplink ≤14.7 Mbps. |
| Transmit Power | 4G –., GSM850/PCS1900: -109 dBm., CDMA: -107 dBm., WCDMA: -110 dBm, TD-SCDMA: -109 dBm, LTE FDD: -99 dBm, , LTE TDD: -98 dBm |
| Processor | Industrial-grade STM32 processor with M3 core. |
| Data Serial Port | UART-TTL / RS232 / RS485: Supports 1200–115200 bps. Configurable data formats: 8N1, 8O1, 8E1. |
| Configuration Port | Dedicated TTL port for parameter setup. Fixed at 115200 bps, 8N1. |

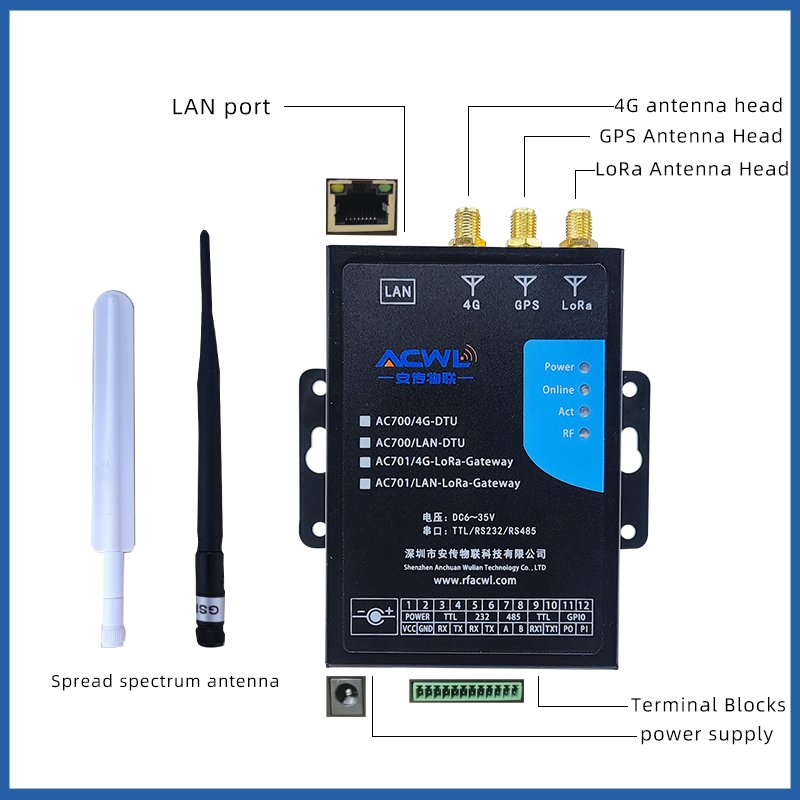

| Antenna Interface | Standard SMA female connector (50Ω impedance). |
| RJ45 | Standard Ethernet port with rate adaptation. |
| SIM/UIM Card Slot | Drawer-style SIM/UIM card slot. Supports 1.8V/3V SIM/UIM cards with built-in 15KV ESD protection. |
| Power Interface | Terminal block with built-in reverse polarity and over-voltage protection. |
| Power Range | DC 6V–35V, ≥2A. |
| Standby Current | 50–90 mA @12V DC; 115–165 mA @5V DC. |
| Peak Current | 1–1.5A @12V DC; 1.5–2A @5V DC |
| Enclosure | Metal housing with IP30 protection. Electrically isolated design for industrial environments. |

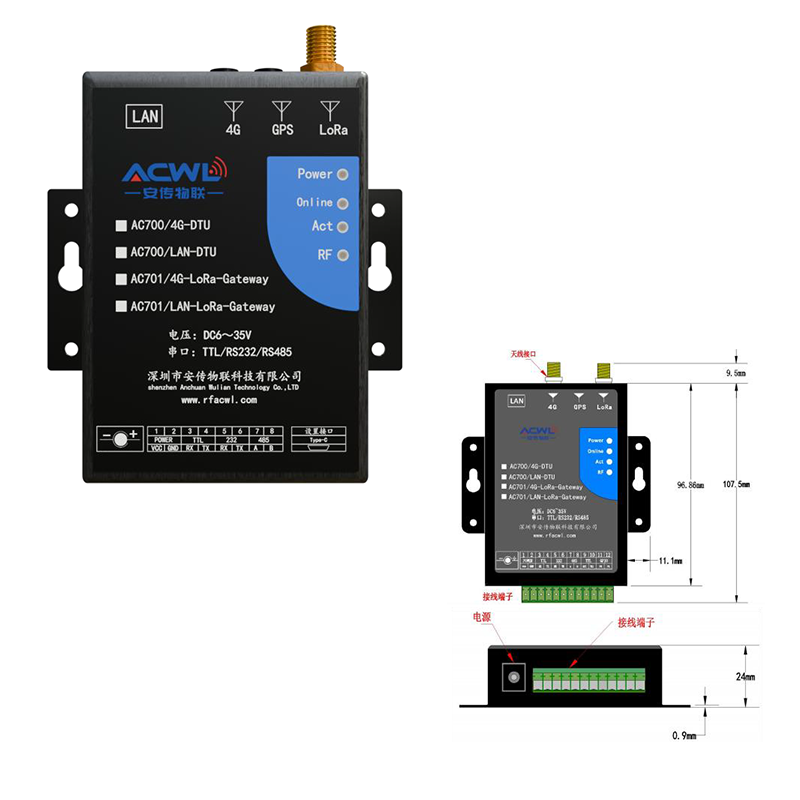

| Dimensions & Weight | 91 mm × 72.5 mm × 21.8 mm; 150 g (excluding accessories). |
| Operating Temperature | -40°C to +85°C (-13°F to +185°F), ≤95% humidity (non-condensing). |
| Storage Temperature | -45°C to +125°C (-40°F to +257°F), ≤95% humidity (non-condensing). |
Product Features
- Compatibility with our LoRa terminal modules or finished LoRa devices.
- TTL/RS232/RS485 ports: Support common baud rates (1200-115200bps) and data formats (8N1/8O1/8E1) for transparent serial data transfer.
- Dedicated TTL port: For parameter configuration via companion software.
- Robust design: Metal housing (IP30-rated), external wiring terminals, wide DC 5-24V input, and support for DIN rail/hook mounting
- Maintenance: Firmware upgrade via serial port and remote server maintenance.
Other Information
Warranty Information
3 Months Seller Warranty:
This item is covered with a standard warranty of 3 months from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What Voids Warranty:
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Shipping & Returns Policy
Shipping Policy:
- Delivery time within metro cities in India is 1-3 days; for other locations, it is 3-7 days. Delivery varies based on location and courier service.
- If the item is out of stock, the estimated delivery time is 7-14 days from order confirmation. Delivery varies based on location and courier service.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests from here: Return Request or contact us at 09831070550.
- Refunds are processed within 3-4 working days after inspection and approval.
Main Features
- A high-performance 32-bit communication processor with embedded real-time OS.
- Embedded TCP/IP stack supporting transparent serial data transmission
- WDT (Watchdog Timer) for system stability and anti-dropout mechanisms to ensure persistent online connectivity
- SIM/UIM card interface with 15KV ESD protection
SKU: 2ETWO248
₹ 13,499.00
