LoRaWAN Indoor Bluetooth Gateway

No reviews yet
Lansitec
China
11 products
Share this prouct
Lead Time

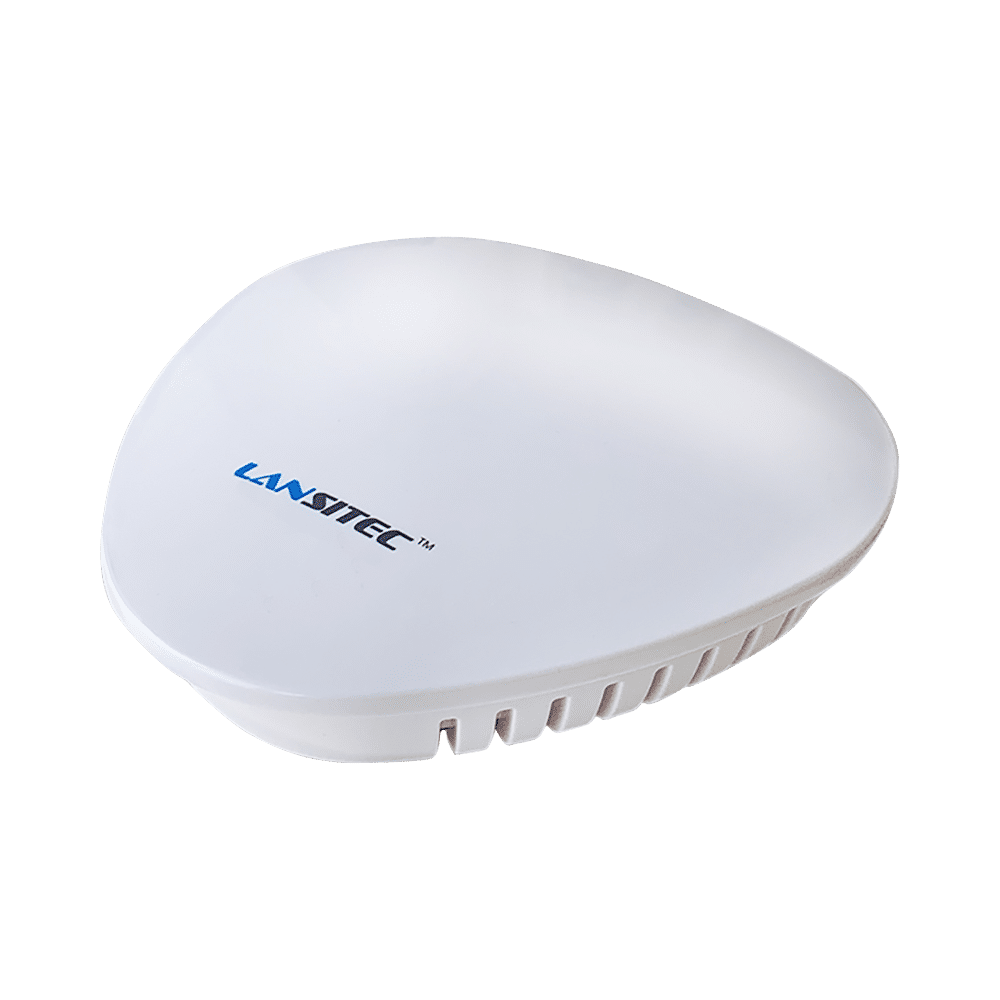

LoRaWAN Indoor Bluetooth Gateway
  • LoRaWAN Indoor Bluetooth Gateway

Product Description

The LoRaWAN Indoor Bluetooth Gateway is an indoor BLE-to-LoRaWAN gateway designed for real-time asset tracking, personnel monitoring, and Bluetooth sensor data collection. It receives nearby Bluetooth beacon packets and forwards them through LoRaWAN networks for long-range, low-power communication without cellular fees.

The gateway supports iBeacon, Eddystone, and private BLE protocols, making it suitable for hospitals, warehouses, offices, campuses, retail spaces, and other indoor IoT environments.

Product Specifications

Dimension 86 × 86 × 33 mm
Weight Approx. 175g
Operating Temperature -10°C ~ +45°C
Storage Temperature -40°C ~ +85°C
Operating Humidity 5% ~ 95% (non-condensing)
Ingress Protection IP30
Power Supply POE or 5V USB
Bluetooth Protocol Bluetooth 5.0
LoRaWAN Protocol LoRaWAN 1.0.2B
LoRa Frequency US915, AU915, EU868, EU433, AS923, RU864, KR920, IN865, CN470
LoRa Maximum RF Power 22dBm
LoRa Sensitivity -139dBm @SF12
Encryption AES128
Geo-Fence Supported
Bluetooth Payload Filter Supported
FOTA over Bluetooth Supported
TDMA Synchronization Supported

Product Features

  1. Bluetooth 5.0 + LoRaWAN 1.0.2B connectivity
  2. Indoor BLE beacon and sensor data collection
  3. Supports iBeacon, Eddystone, and private BLE protocols
  4. Geo-fence and indoor positioning support
  5. AES128 encrypted communication
  6. Bluetooth payload filtering and configurable reporting
  7. FOTA over Bluetooth support
  8. Supports up to 100 beacon messages per second
  9. TDMA synchronization support
  10. Low-power indoor deployment design
LoRaWAN Indoor Bluetooth Gateway - Additional Image 1
LoRaWAN Indoor Bluetooth Gateway - Additional Image 2
LoRaWAN Indoor Bluetooth Gateway - Additional Image 3
LoRaWAN Indoor Bluetooth Gateway - Additional Image 4

Other Information

Applications & Use Cases

  • Hospital Asset Tracking
    Track wheelchairs, infusion pumps, diagnostic devices, and other critical medical equipment in real time.
  • Smart Warehousing
    Monitor pallets, forklifts, inventory bins, and BLE-tagged assets to improve logistics efficiency.
  • Office & Campus Monitoring
    Enable indoor positioning and movement tracking across office buildings, schools, and campuses.
  • Retail & Shopping Centers
    Monitor customer flow, inventory movement, and BLE-enabled retail devices.
  • Personnel Safety Monitoring
    Configure geo-fence alerts and restricted-area monitoring for workers and visitors.

Advantages

  • No SIM card or cellular subscription required
  • Reliable long-range LoRaWAN communication
  • Easy indoor deployment with POE or USB power
  • Supports large-scale BLE beacon deployments
  • Real-time indoor asset visibility
  • Configurable payload filtering reduces bandwidth usage
  • Compatible with public and private LoRaWAN networks

Certification

  • CE, FCC, RCM
