LTE Cat-1 - Macro Bluetooth Gateway
  • LTE Cat-1 - Macro Bluetooth Gateway

Product Description

The LoRaWAN Macro Bluetooth Gateway is an industrial-grade IoT gateway designed with Bluetooth 5.0 and LoRaWAN technology for long-range BLE data transmission, asset tracking, and real-time monitoring applications. It captures nearby Bluetooth beacon and sensor data, restructures the payload, and forwards it to a LoRaWAN gateway for cloud-based monitoring and analytics.

Product Specifications

Dimension 160 × 160 × 55 mm
Weight 530g
Operating Temperature -20°C ~ +65°C
Storage Temperature -60°C ~ +90°C
Operating Humidity 0% ~ 95% (non-condensing)
Ingress Protection IP66
Battery Li-SoCl₂ Battery, 19000mAh × 2
Battery Life Up to 83 months depending on reporting interval
Standby Current 25μA
Bluetooth Protocol Bluetooth 5.0
LoRaWAN Protocol LoRaWAN 1.0.2B
LoRa Frequency US915, AU915, EU868, EU433, AS923, RU864, KR920, IN865, CN470
LoRa Maximum RF Power 22dBm
LoRa Sensitivity -139dBm @SF12
Data Rate 300bps ~ 30Kbps
Encryption AES128
Indoor Positioning Accuracy Approx. 3m
Bluetooth Data Filter Supported
Geo-Fence Supported
FOTA over Bluetooth Supported
Beacon Capacity >500 beacons
TDMA Synchronization Supported

Product Features

  1. Bluetooth 5.0 + LoRaWAN 1.0.2B connectivity
  2. Supports iBeacon, Eddystone, and private BLE protocols
  3. Up to 7 years battery life with industrial Li-SoCl₂ batteries
  4. Rugged IP66 enclosure for harsh outdoor environments
  5. AES128 encrypted communication
  6. Supports Bluetooth payload filtering and compression
  7. Geo-fencing and indoor positioning support
  8. FOTA (Firmware Over The Air) via Bluetooth
  9. Global LoRa frequency support including EU868, US915, AS923, IN865, and more
  10. Can handle more than 500 BLE beacons simultaneously

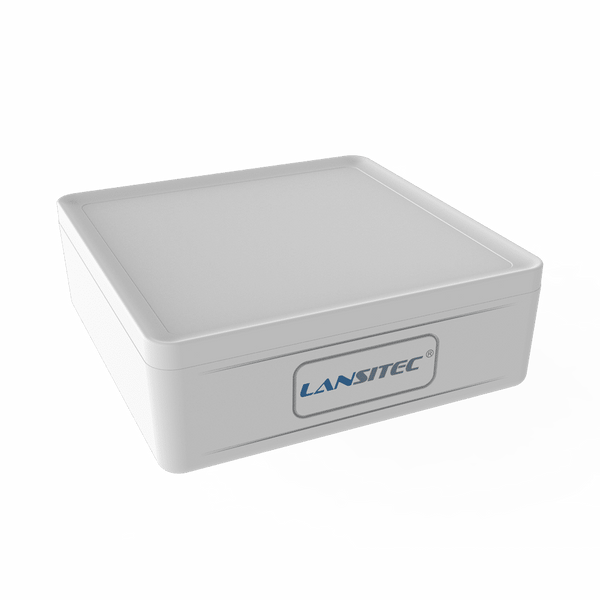

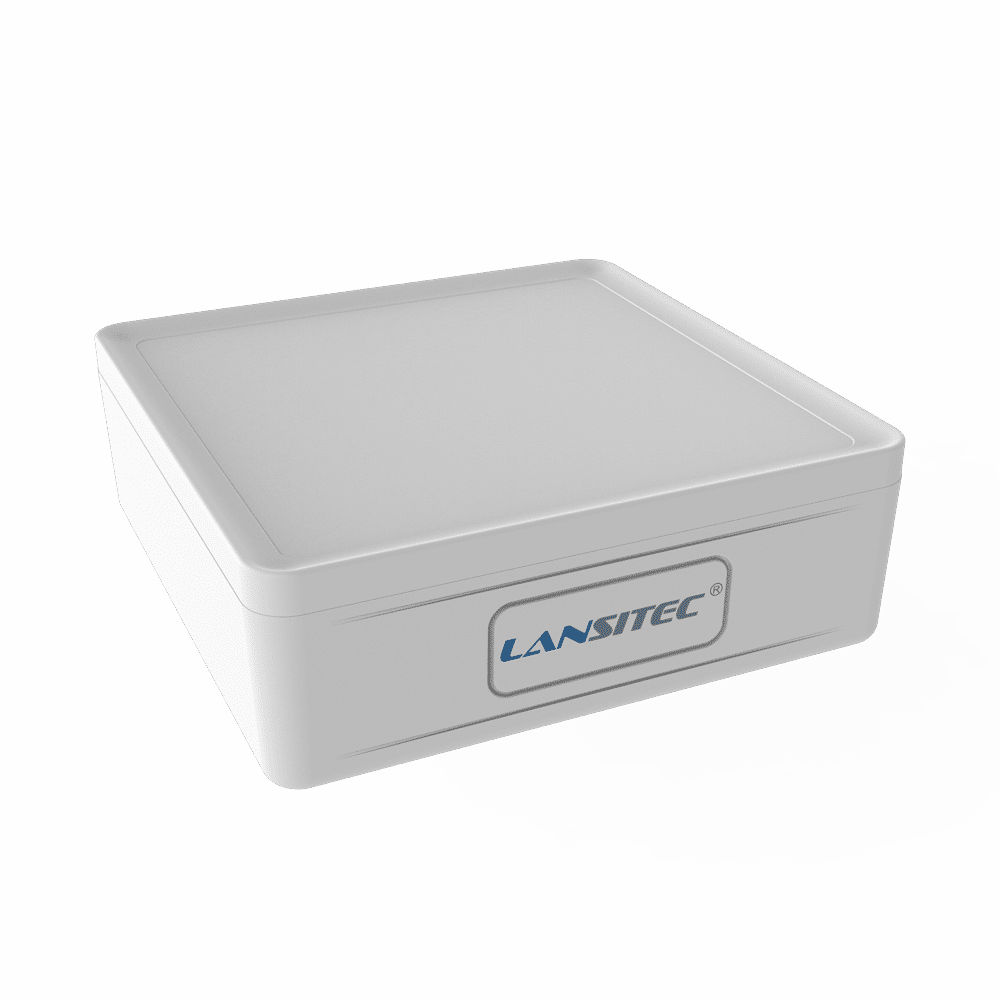

LTE Cat-1 - Macro Bluetooth Gateway - Additional Image 1
LTE Cat-1 - Macro Bluetooth Gateway - Additional Image 2
LTE Cat-1 - Macro Bluetooth Gateway - Additional Image 3
LTE Cat-1 - Macro Bluetooth Gateway - Additional Image 4

Other Information

Applications & Use Cases

  • Asset Tracking – Track industrial equipment, pallets, medical devices, and containers in real time across warehouses and factories.
  • Fleet & Vehicle Monitoring – Monitor trailers, service vehicles, and logistics assets using BLE beacon positioning.
  • Hospital Equipment Tracking – Locate wheelchairs, infusion pumps, and medical trolleys instantly to improve operational efficiency.
  • Personnel Safety Monitoring – Configure geo-fence alerts for restricted zones and hazardous environments.
  • Smart Warehousing – Automate pallet movement tracking and inventory visibility through BLE tags and LoRaWAN connectivity.
  • Event & Exhibition Monitoring – Deploy temporary tracking systems for visitor flow analytics and rental equipment protection.


Advantages

  • Extremely long battery life reduces maintenance cost
  • No SIM card or cellular subscription required
  • Reliable long-range communication using LoRaWAN
  • Suitable for indoor and outdoor deployments
  • Industrial-grade design for harsh environments
  • Supports large-scale BLE deployments efficiently
