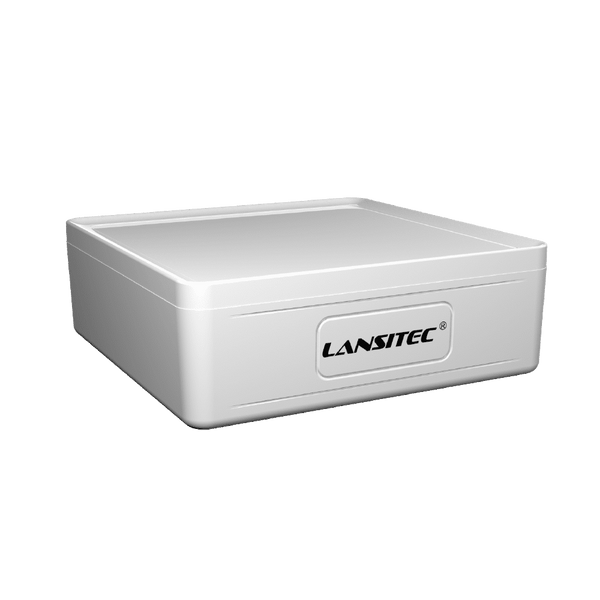

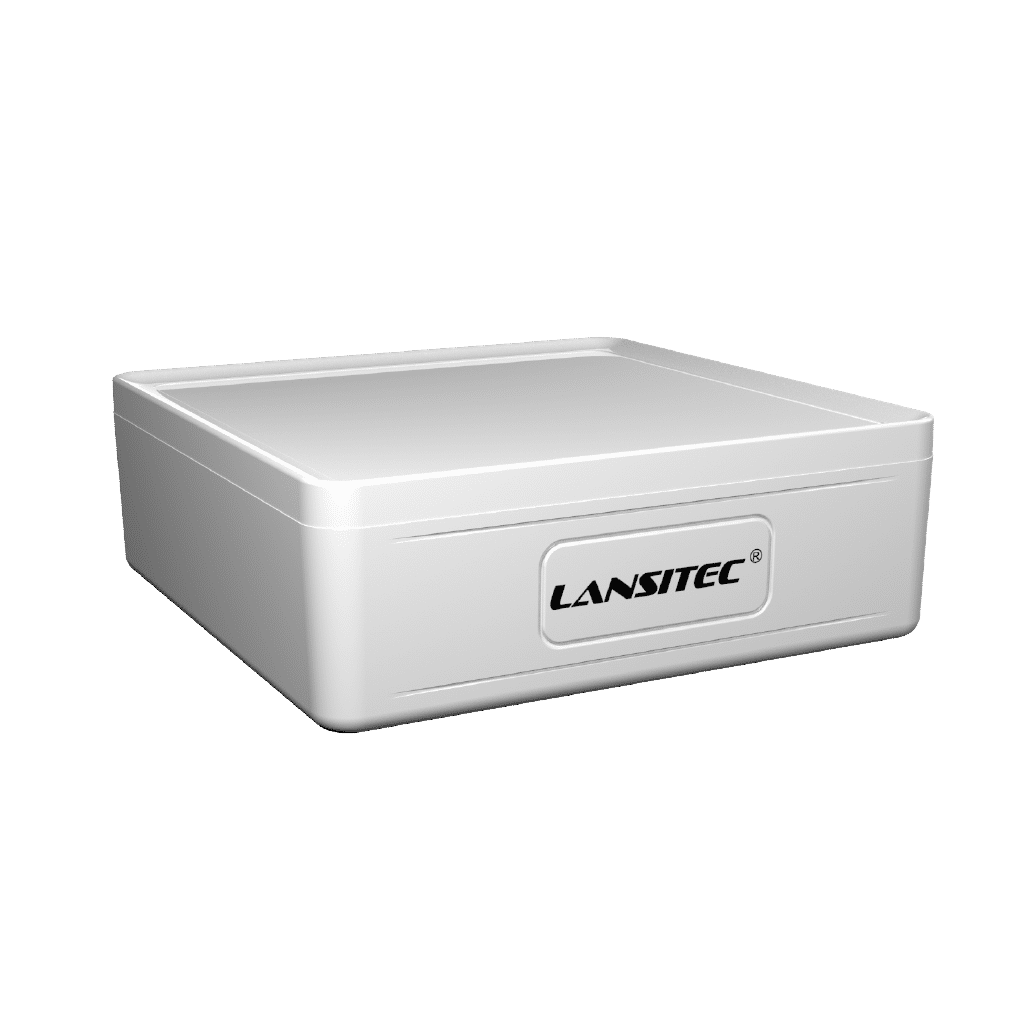

LoRaWAN Macro Bluetooth Gateway
Lead Time
Product Description
Long-life battery-powered LoRaWAN and Bluetooth 5.0 gateway for collecting BLE data and forwarding it over long-range LoRaWAN links.
Product Specifications
| Manufacturer | Lansitec |
|---|---|
| Product family | IoT gateway |
| Dimension | 160*160*55mm |
| Operating Temperature | -20°C ~ +65°C |
| Storage Temperature | -60°C ~ +90°C |
| Operating Humidity | 0% ~ 95% (non-condensing) |
| Weight | 530g |
| Ingress Protection | IP66 |
| Power | Battery |
| Li-SoCl2 Battery, 19000mAhx2 | Battery Life |
| Bluetooth Protocol | Bluetooth 5.0 |
| LoRaWAN Protocol | LoRaWAN 1.0.2B |
| LoRa Frequency | US915, AU915, EU868, EU433, AS923, RU864, KR920, IN865, CN470 |
| LoRa Maximum RF Power | 22dBm |
| High TX Power Option | Max. 30dBm and -150dBm receiving sensitivity |
| LoRa Sensitivity | -139dBm @SF12, BW125kHz, 434MHz/470MHz -137dBm @SF12, BW125kHz, 868MHz/915MHz |
| Access Quantity | >500 in one LoRaWAN gateway |
| Data Rate (bps) | 300~30K |
| Functions | Encryption |
| AES128 | Positioning Precision |
| 3m | Bluetooth Data Filter and Report |
| Filter any data bytes in a Bluetooth payload and report any via LoRaWAN | Switch |
| Mechanical | Adjustable Position Report Interval |
| 5s x n (1 to 65536) | Heartbeat Report Interval |
| 30s x n (1 to 255) | FOTA over Bluetooth |
| Support | Switch |
| Technical reference | Manufacturer product page |
Product Features
- Industrial-Grade Battery (38,000mAh)
Powered by dual 19,000mAh (up to 6 are supported) Li-SoCl2 batteries, delivering up to seven years of continuous service for minimal downtime. - Indoor Tracking Precision (3m)
Maintain accurate, real-time asset or personnel visibility in complex indoor spaces, reducing operational inefficiencies. - Geo-Fencing
Configure virtual boundaries for proactive alerts when tracked items move beyond defined zones. - Rugged IP66 Construction
Sealed against dust and moisture, the Macro Bluetooth Gateway is built to withstand harsh environments. - Flexible Data Transmission
Forward beacon and sensor readings via LoRaWAN to your app or cloud platform, with adjustable reporting intervals to optimize battery life.
Package Includes
- 1 × LoRaWAN Macro Bluetooth Gateway
- Standard accessories for the selected configuration
- Digital product documentation
Other Information
Country of Origin: China
Warranty Information
1 Year Seller Warranty:
This item is covered with a standard warranty of 1 year from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What Voids Warranty:
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Shipping & Returns Policy
Shipping Policy:
- Delivery time within metro cities in India is 1-3 days; for other locations, it is 3-7 days. Delivery varies based on location and courier service.
- If the item is out of stock, the estimated delivery time is 7-14 days from order confirmation. Delivery varies based on location and courier service.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests from here: Return Request or contact us at 09831070550.
- Refunds are processed within 3-4 working days after inspection and approval.
Main Features
- Industrial-Grade Battery (38,000mAh)
- Indoor Tracking Precision (3m)
- Geo-Fencing
- Rugged IP66 Construction
- Flexible Data Transmission
