LoRaWAN Macro Proximity Gateway

No reviews yet
Lansitec
China
11 products
Share this prouct
Lead Time

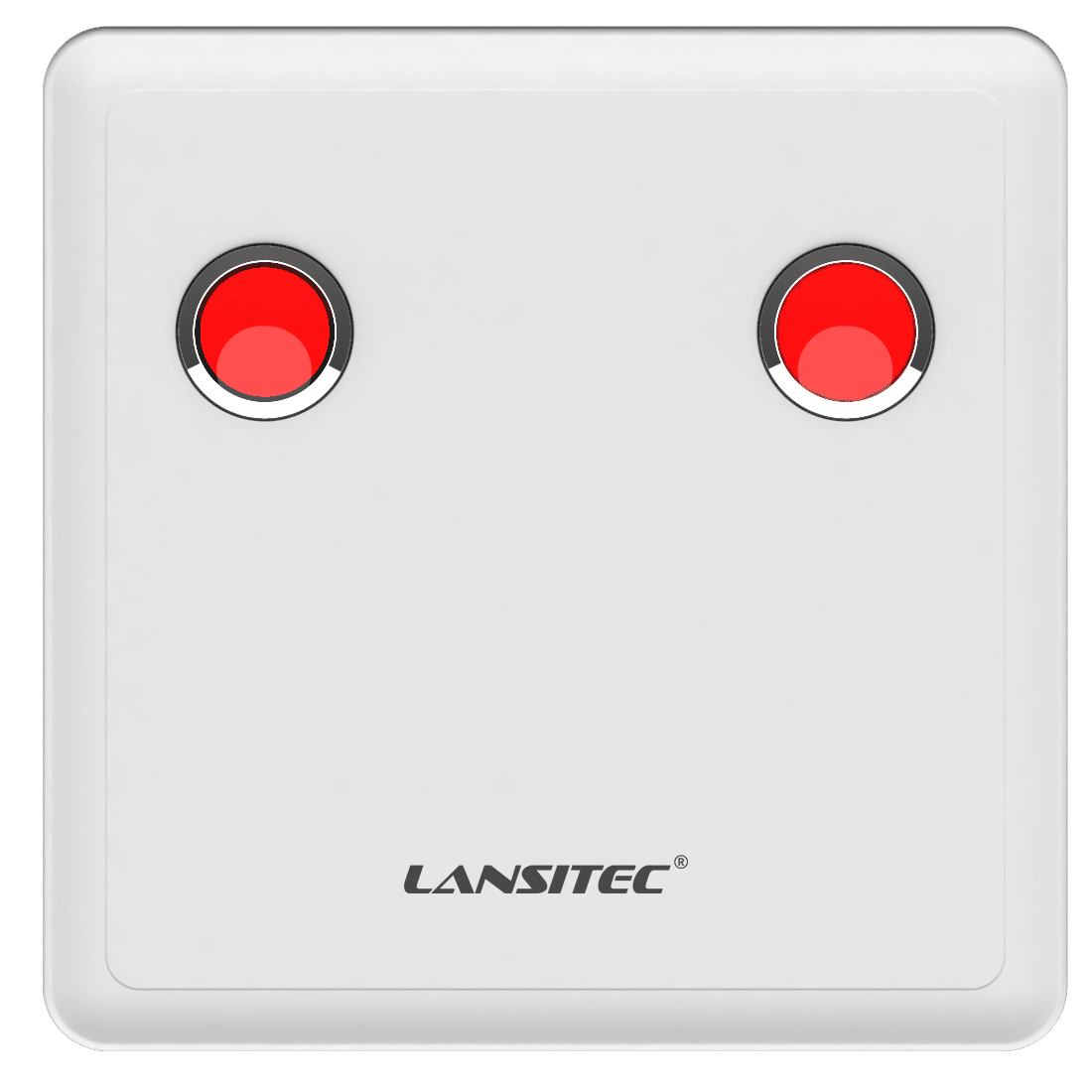

LoRaWAN Macro Proximity Gateway
  • LoRaWAN Macro Proximity Gateway

Product Description

The LoRaWAN Macro Proximity Gateway is an industrial-grade Bluetooth 5.0 and LoRaWAN-based proximity monitoring device designed for asset tracking, personnel safety, and real-time proximity alerts. When a BLE beacon enters a predefined range, the gateway activates audible and visual alarms while transmitting beacon ID and RSSI data to a LoRaWAN gateway for cloud monitoring and analytics. It is ideal for warehouses, hospitals, factories, logistics hubs, and restricted safety zones.

Product Specifications

Mechanics
Dimension 160 × 160 × 55 mm
Weight 530g
Operating Temperature -20°C ~ +65°C
Storage Temperature -60°C ~ +90°C
Operating Humidity 0% ~ 95% (non-condensing)
Ingress Protection IP66
Housing Material Anti-UV PC-ABS
Power
Battery Li-SoCl₂ Battery, 19000mAh × 2 / 4 / 6
Standby Current 15μA
Battery Life More than 1 year depending on configuration
Connectivity
Bluetooth Protocol Bluetooth 5.0
LoRaWAN Protocol LoRaWAN 1.0.2B
LoRa Frequency US915, AU915, EU868, EU433, AS923, RU864, KR920, IN865, CN470
LoRa Maximum RF Power 22dBm
LoRa Sensitivity -139dBm @SF12
Encryption AES128
Functional Features
Proximity Alarm Buzzer + LED Flash
Distance Detection RSSI-based
Geo-Fence Supported
Bluetooth Payload Filter Supported
Adjustable Alarm Range Supported
Adjustable Reporting Interval Supported
FOTA over Bluetooth Supported
Beacon Compatibility iBeacon / Eddystone / Private BLE

Product Features

  1. Bluetooth 5.0 + LoRaWAN 1.0.2B connectivity
  2. Real-time proximity detection using RSSI
  3. Audible buzzer and LED flash alerts
  4. Supports iBeacon, Eddystone, and custom BLE protocols
  5. Adjustable alarm distance and reporting intervals
  6. Ultra-long battery life with industrial Li-SoCl₂ batteries
  7. Rugged IP66 industrial enclosure
  8. AES128 encrypted communication
  9. Bluetooth payload filtering and configurable uplink
  10. FOTA (Firmware Over The Air) via Bluetooth
  11. Global LoRa frequency support including EU868, US915, AS923, IN865
LoRaWAN Macro Proximity Gateway - Additional Image 1
LoRaWAN Macro Proximity Gateway - Additional Image 2
LoRaWAN Macro Proximity Gateway - Additional Image 3

Other Information

Applications & Use Cases

  • Personnel Safety Monitoring – Alert workers when entering hazardous or restricted zones in factories, mines, or industrial plants.
  • Hospital Equipment Monitoring – Monitor medical assets and trigger alerts when critical equipment moves outside predefined ranges.
  • Warehouse Asset Tracking – Track forklifts, pallets, containers, and BLE-tagged assets with proximity-based notifications.
  • Fleet & Vehicle Monitoring – Detect nearby vehicles, trailers, or mobile assets and automate monitoring workflows.
  • Security & Access Control – Enable proximity alerts for sensitive infrastructure, server rooms, restricted warehouses, or secure operational areas.

Advantages

  • Long-range LoRaWAN communication without cellular fees
  • Reliable proximity monitoring with Bluetooth 5.0
  • Rugged industrial-grade IP66 design
  • Ultra-low power consumption for long deployment cycles
  • Easy deployment in indoor and semi-outdoor environments
  • Configurable reporting and alert parameters
  • Suitable for large-scale IoT and industrial tracking deployments

Certification: CE, FCC, RCM



Warranty Information

What Voids Warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.

Shipping & Returns Policy

Shipping Policy:
  • Delivery time within metro cities in India is 1-3 days; for other locations, it is 3-7 days. Delivery varies based on location and courier service.
  • If the item is out of stock, the estimated delivery time is 7-14 days from order confirmation. Delivery varies based on location and courier service.
Return & Refund Policy:
  • Return window: 7 days from receipt unless stated otherwise.
  • No refunds or replacements after the return window.
  • Returns are accepted only for non-working or damaged products.
  • Initiate return requests from here: Return Request or contact us at 09831070550.
  • Refunds are processed within 3-4 working days after inspection and approval.
LoRaWAN Macro Proximity Gateway
Main Features
  • Bluetooth 5.0 + LoRaWAN 1.0.2B connectivity
  • Real-time proximity detection using RSSI
  • Audible buzzer and LED flash alerts
  • Supports iBeacon, Eddystone, and custom BLE protocols
  • Ultra-long battery life with industrial Li-SoCl₂ batteries
SKU: 2EPLAN311
