LoRaWAN Micro Bluetooth Gateway

No reviews yet
Lansitec
China
11 products
Share this prouct
In Stock

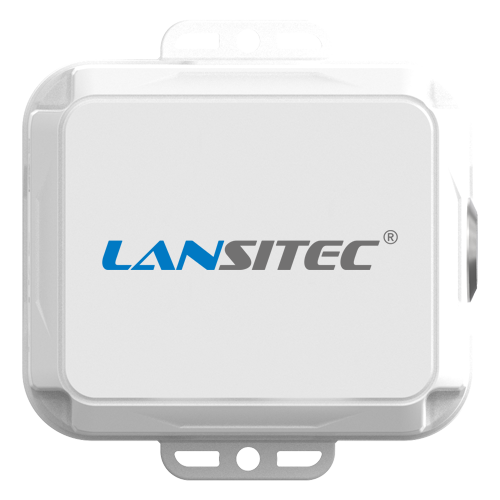

LoRaWAN Micro Bluetooth Gateway
  • LoRaWAN Micro Bluetooth Gateway

Product Description

Boost indoor asset visibility with Lansitec’s Micro Bluetooth Gateway, a palm-sized LoRaWAN/BLE bridge that silently collects beacon and sensor data and pushes it to the cloud in near-real time. Its dual 4000mAh Li-SoCl₂ cells deliver 6-plus years of maintenance-free up time, while the rugged IP68 enclosure resists dust, water, and extreme temperatures.

Product Specifications

Dimension 78*79*35mm with the mounting lugs; 78*66*35mm without the mounting lugs
Operating Temperature -20°C ~ +70°C
Storage Temperature -10°C ~ +30°C
Operating Humidity 0% ~ 95% (non-condensing)
Weight 133g
Ingress Protection IP68
Housing Material PC and ABS
PCB Coating Water proof coating
Bluetooth Protocol Bluetooth 5.0
LoRaWAN Protocol LoRaWAN 1.0.2B
LoRa Frequency US915, AU915, EU868, EU433, AS923, RU864, KR920, IN865, CN470
LoRa Maximum RF Power 22dBm
High TX Power Option Max. 30dBm and -150dBm receiving sensitivity
LoRa Sensitivity -139dBm @SF12, BW125kHz, 434MHz/470MHz
-137dBm @SF12, BW125kHz, 868MHz/915MHz
Access Quantity >500 in one LoRaWAN gateway
Data Rate (bps) 300~30K
Battery Li-SoCl2 Battery, 4000mAh×2
Battery Life Standby current: 25μA Total Uplink Reports: 67000 65 months @ 17dBm, SF7, Bluetooth receiving duration is 60s and LoRaWAN report interval is one hour
Encryption AES128
Positioning Precision 3m
Configurable Bluetooth Data Filter and Payload Report Filter any data bytes in a Bluetooth payload and report any via LoRaWAN
Switch Mechanical
Adjustable Position Report Interval 5s x n (1 to 65536)
Heartbeat Report Interval 30s x n (1 to 255)
FOTA over Bluetooth Support
Max. Beacons Supported 105*, maximum of 15 beacon messages at one single LoRaWAN package @SF9
* Please reach out to us if more are needed.
Multiple Bluetooth Gateway LoRaWAN Report Synchronization Sync the clock and LoRaWAN report
TDMA Support
Bluetooth Data Compression Support

Product Features

  1. LoRa + BLE Dual-Mode Bridge
    Seamlessly funnels any BLE beacon or sensor data to public or private LoRaWAN back-haul.
  2. Ultra-Long Autonomy
    8000mAh battery pack sustains ≥ 6 years when scanning 60s/h.
  3. 3m Indoor Accuracy
    RSSI-driven positioning plus configurable geo-fences for zone alerts.
  4. Rugged IP68 Build
    PC/ABS housing, −20°C ~ +70°C, 0~95% RH (non-cond).
  5. Smart Payload Filter
    On-device byte-level filtering & compression cuts airtime costs.
  6. High Tag Capacity
    Tracks > 500 beacons; TDMA sync handles 105 packets per uplink.
  7. FOTA-Ready
    Bluetooth firmware upgrades without site visits.
  8. Global Band Support
    EU868, US915, AS923 and more, 22 dBm (30 dBm optional) TX power.
LoRaWAN Micro Bluetooth Gateway - Additional Image 1
LoRaWAN Micro Bluetooth Gateway - Additional Image 2
LoRaWAN Micro Bluetooth Gateway - Additional Image 3
LoRaWAN Micro Bluetooth Gateway - Additional Image 4
LoRaWAN Micro Bluetooth Gateway - Additional Image 5
LoRaWAN Micro Bluetooth Gateway - Additional Image 6

Other Information

  • Mobile Medical Assets
    Locate imaging carts, pumps, or drug trolleys in seconds to boost utilisation and cut losses.
  • Pharmaceutical Inventory
    Scan BLE-tagged drug bins to spot soon-to-expire stock and automate replenishment.
  • Fleet & Yard Management
    Live yard positioning of trailers and service vehicles for faster dispatch.
  • Personnel Safety Zones
    Geo-fence alerts keep staff out of restricted or hazardous areas.
  • Smart Warehousing
    Automate pallet and forklift tracking to accelerate pick-and-pack workflows.
  • Event & Exhibition Control
    Temporary deployment guides visitor flow and protects rental equipment.
