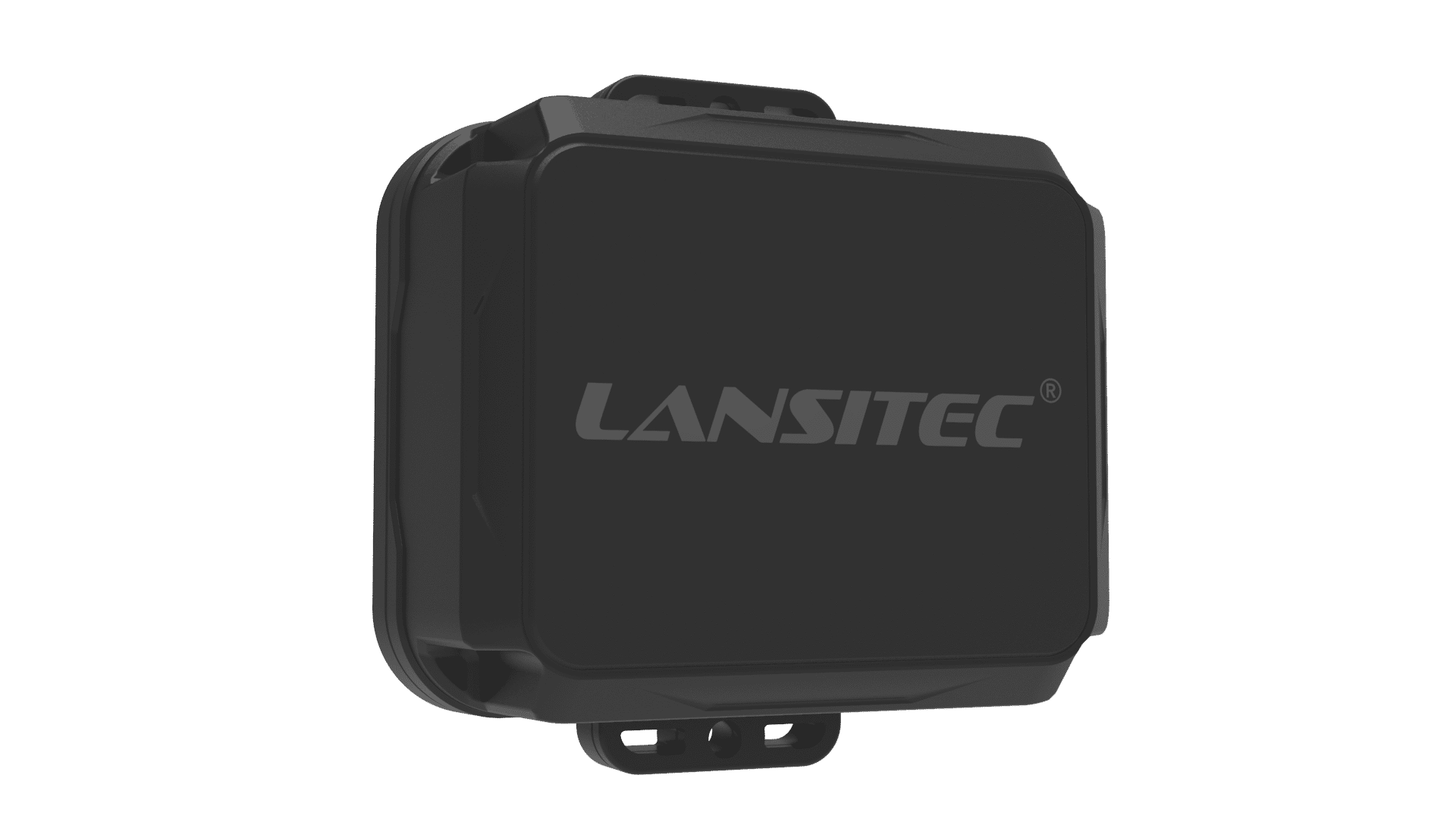

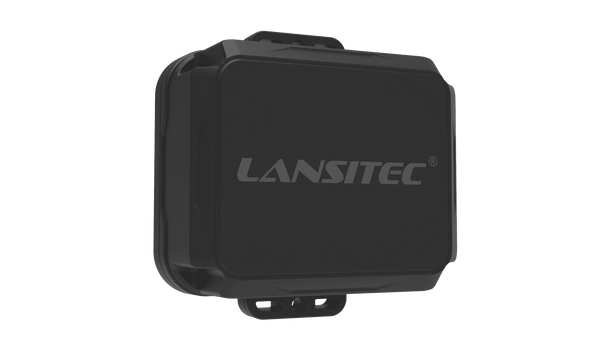

LoRaWAN Micro Bluetooth Gateway
Lead Time
Product Description
Compact LoRaWAN and Bluetooth 5.0 gateway for indoor asset visibility and near-real-time forwarding of BLE beacon and sensor data.
Product Specifications
| Manufacturer | Lansitec |
|---|---|
| Product family | IoT gateway |
| Dimension | 78*79*35mm with the mounting lugs; 78*66*35mm without the mounting lugs |
| Operating Temperature | -20°C ~ +70°C |
| Storage Temperature | -10°C ~ +30°C |
| Operating Humidity | 0% ~ 95% (non-condensing) |
| Weight | 133g |
| Ingress Protection | IP68 |
| Housing Material | PC and ABS |
| PCB Coating | Water proof coating |
| Power | Battery |
| Li-SoCl2 Battery, 4000mAh×2 | Battery Life |
| Bluetooth Protocol | Bluetooth 5.0 |
| LoRaWAN Protocol | LoRaWAN 1.0.2B |
| LoRa Frequency | US915, AU915, EU868, EU433, AS923, RU864, KR920, IN865, CN470 |
| LoRa Maximum RF Power | 22dBm |
| High TX Power Option | Max. 30dBm and -150dBm receiving sensitivity |
| LoRa Sensitivity | -139dBm @SF12, BW125kHz, 434MHz/470MHz -137dBm @SF12, BW125kHz, 868MHz/915MHz |
| Access Quantity | >500 in one LoRaWAN gateway |
| Data Rate (bps) | 300~30K |
| Functions | Encryption |
| AES128 | Positioning Precision |
| 3m | Configurable Bluetooth data filter and payload report |
| Filter any data bytes in a Bluetooth payload and report any via LoRaWAN | Switch |
| Mechanical | Adjustable Position Report Interval |
| 5s x n (1 to 65536) | Heartbeat Report Interval |
| Technical reference | Manufacturer product page |
Product Features
- LoRa + BLE Dual-Mode Bridge
Seamlessly funnels any BLE beacon or sensor data to public or private LoRaWAN back-haul. - Ultra-Long Autonomy
8000mAh battery pack sustains ≥ 6 years when scanning 60s/h. - 3m Indoor Accuracy
RSSI-driven positioning plus configurable geo-fences for zone alerts. - Rugged IP68 Build
PC/ABS housing, −20°C ~ +70°C, 0~95% RH (non-cond). - Smart Payload Filter
On-device byte-level filtering & compression cuts airtime costs.
Package Includes
- 1 × LoRaWAN Micro Bluetooth Gateway
- Standard accessories for the selected configuration
- Digital product documentation
Other Information
Country of Origin: China
Warranty Information
1 Year Seller Warranty:
This item is covered with a standard warranty of 1 year from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What Voids Warranty:
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Shipping & Returns Policy
Shipping Policy:
- Delivery time within metro cities in India is 1-3 days; for other locations, it is 3-7 days. Delivery varies based on location and courier service.
- If the item is out of stock, the estimated delivery time is 7-14 days from order confirmation. Delivery varies based on location and courier service.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests from here: Return Request or contact us at 09831070550.
- Refunds are processed within 3-4 working days after inspection and approval.
Main Features
- LoRa + BLE Dual-Mode Bridge
- Ultra-Long Autonomy
- 3m Indoor Accuracy
- Rugged IP68 Build
- Smart Payload Filter
