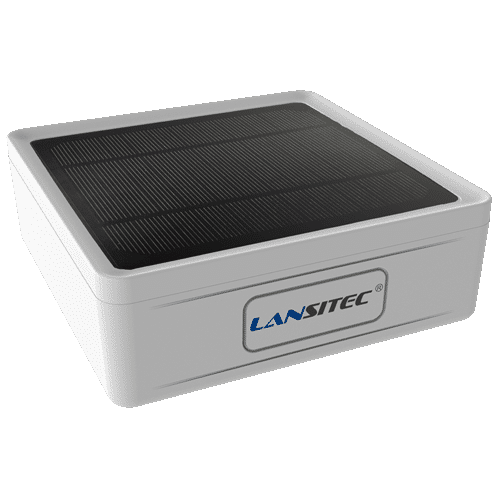

LoRaWAN Solar Bluetooth Gateway

Name: LoRaWAN Solar Bluetooth Gateway
Brand: Lansitec
SKU: 2EPLAN305
Availability: InStock

No reviews yet

Lansitec

China

11 products

Lead Time

Product Description

Experience reliable, real-time tracking and asset management with the Lansitec Solar Bluetooth Gateway. Built on the robust LoRaWAN and Bluetooth 5.0 protocols, this gateway seamlessly collects data from nearby BLE beacons and sensors-whether it’s temperature, humidity, or location-and transmits it over long distances via LoRaWAN. Powered by a durable 3W solar film and a 5300mAh rechargeable battery, it thrives in harsh outdoor environments, requiring minimal maintenance. From precise 3-meter outdoor tracking to geo-fencing capabilities, the Lansitec Solar Bluetooth Gateway helps organizations stay connected to their critical assets, reduce losses, and optimize operational efficiency.

Product Specifications

Dimension	16016055mm
Operating Temperature	-20°C ~ +65°C
Charging Temperature	-20°C ~ +60°C
Storage Temperature	-45°C ~ +85°C
Operating Humidity	0% ~ 95% (non-condensing)
Weight	460g
Ingress Protection	IP66
Bluetooth Protocol	Bluetooth 5.0
LoRaWAN Protocol	LoRaWAN 1.0.2B
LoRa Frequency	US915, AU915, EU868, EU433, AS923, RU864, KR920, IN865, CN470
LoRa Maximum RF Power	22dBm
High TX Power Option	Max. 30dBm and -150dBm receiving sensitivity
LoRa Sensitivity	-139dBm @SF12, BW125kHz, 434MHz/470MHz -137dBm @SF12, BW125kHz, 868MHz/915MHz
Access Quantity	>500 in one LoRaWAN gateway
Data Rate (bps)	300~30K
Encryption	AES128
Battery	Li-ion rechargeable battery 5300mAh
Battery Life	One month in continuous rainy days @ Bluetooth continuous receiving and 60s LoRaWAN report interval. Please refer to our battery life calculator for detailed battery life information
Solar Panel	3W
Positioning Precision	3m
Bluetooth Data Filter and Report	Filter any data bytes in a Bluetooth payload and report any via LoRaWAN
Switch	Mechanical
Adjustable Position Report Interval	5s x n (1 to 65536)
Heartbeat Report Interval	30s x n (1 to 255)
FOTA over Bluetooth	Support
Water Level Detection	Optional
Max. Beacons Supported	105 *, maximum of 15 beacon messages at one single LoRaWAN package @SF9

Product Features

Outdoor Tracking Precision (3m)
Pinpoint the exact location of assets, vehicles, or personnel in real time.
iBeacon & Eddystone Compatibility
Receive and restructure data from any BLE sensor or beacon for seamless integration.
Versatile Sensor Data Communication
Collect temperature, humidity, liquid level, blood pressure, weight, and more, then relay data via LoRaWAN to your app or cloud service.
Wide Operating Temperature Range
Built to perform reliably between -40°C to +70°C, ensuring year-round durability.
Geo-Fence
Create virtual perimeters for enhanced security and automated alerts.
Maintenance-Free Solar Power
A robust solar film and rechargeable battery provide continuous operation, even in harsh climates.
Adjustable Bluetooth Uploading Frequency
Tailor transmission intervals for extended standby time and optimal power use.

LoRaWAN Solar Bluetooth Gateway - Additional Image 1

LoRaWAN Solar Bluetooth Gateway - Additional Image 2

LoRaWAN Solar Bluetooth Gateway - Additional Image 3

LoRaWAN Solar Bluetooth Gateway - Additional Image 4

Other Information

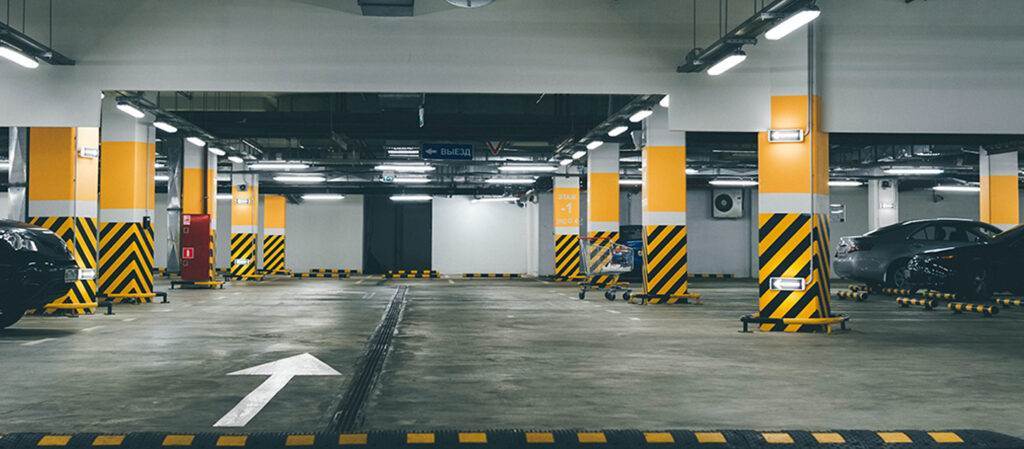

Vehicle Tracking: Gain real-time visibility into fleet locations to optimize routes, reduce operating costs, and enhance overall scheduling efficiency.

Bluetooth data Communication: Seamlessly collect data from various BLE sensors-temperature, humidity, or even biometric signals-and transmit it via LoRaWAN to your cloud or on-premises system. Ideal for remote monitoring in healthcare, industrial, or environmental applications.

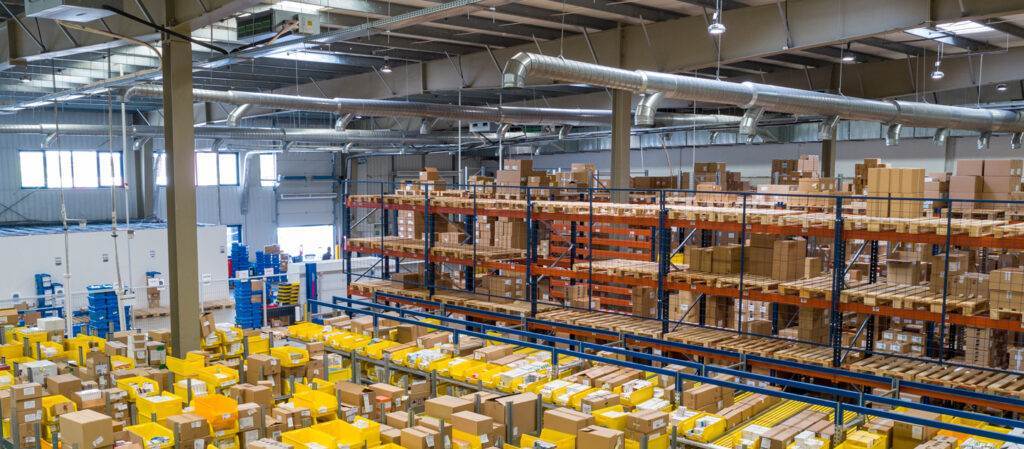

Asset and Personal Tracking: Use advanced geolocation capabilities to keep track of valuable assets and ensure the safety of individuals across diverse environments. The low maintenance and extended battery life make it a robust solution for both large-scale facilities and remote field operations.

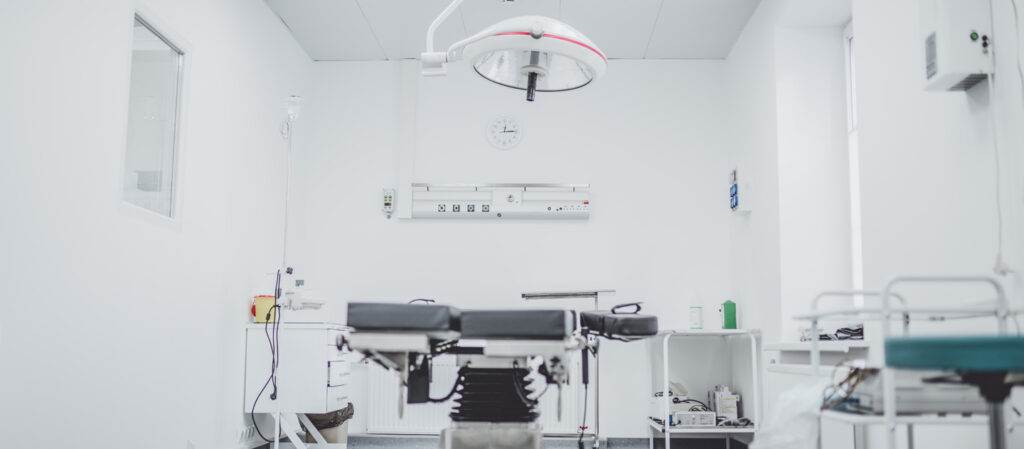

Hospital Asset Tracking: Monitor vital medical equipment-like wheelchairs, heartrate monitors, CT machines, X-ray machines, and operating tables-to improve efficiency, reduce losses, and ensure timely patient care. Keep tabs on drug inventory to avoid expiration or misplacement.

Certification: CE, FCC, RCM
