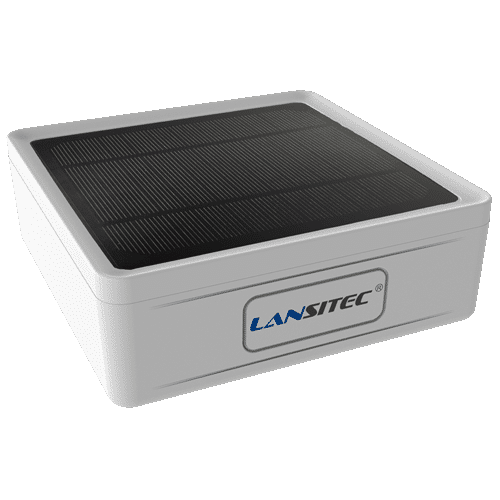

LoRaWAN Solar Bluetooth Gateway
Lead Time
Product Description
Solar-powered LoRaWAN and Bluetooth 5.0 gateway for collecting nearby beacon and sensor data and forwarding it through a LoRaWAN network.
Product Specifications
| Manufacturer | Lansitec |
|---|---|
| Product family | IoT gateway |
| Dimension | 160*160*55mm |
| Operating Temperature | -20°C ~ +65°C |
| Charging Temperature | -20°C ~ +60°C |
| Storage Temperature | -45°C ~ +85°C |
| Operating Humidity | 0% ~ 95% (non-condensing) |
| Weight | 460g |
| Ingress Protection | IP66 |
| Power | Battery |
| Li-ion rechargeable battery 5300mAh | Battery Life |
| 3W | Connectivity |
| Bluetooth Protocol | Bluetooth 5.0 |
| LoRaWAN Protocol | LoRaWAN 1.0.2B |
| LoRa Frequency | US915, AU915, EU868, EU433, AS923, RU864, KR920, IN865, CN470 |
| LoRa Maximum RF Power | 22dBm |
| High TX Power Option | Max. 30dBm and -150dBm receiving sensitivity |
| LoRa Sensitivity | -139dBm @SF12, BW125kHz, 434MHz/470MHz -137dBm @SF12, BW125kHz, 868MHz/915MHz |
| Access Quantity | >500 in one LoRaWAN gateway |
| Data Rate (bps) | 300~30K |
| Encryption | AES128 |
| Functions | Positioning Precision |
| 3m | Bluetooth Data Filter and Report |
| Filter any data bytes in a Bluetooth payload and report any via LoRaWAN | Switch |
| Mechanical | Adjustable Position Report Interval |
| 5s x n (1 to 65536) | Heartbeat Report Interval |
| Technical reference | Manufacturer product page |
Product Features
- Outdoor Tracking Precision (3m)
Pinpoint the exact location of assets, vehicles, or personnel in real time. - iBeacon & Eddystone Compatibility
Receive and restructure data from any BLE sensor or beacon for seamless integration. - Versatile Sensor Data Communication
Collect temperature, humidity, liquid level, blood pressure, weight, and more, then relay data via LoRaWAN to your app or cloud service. - Wide Operating Temperature Range
Built to perform reliably between -40°C to +70°C, ensuring year-round durability. - Geo-Fence
Create virtual perimeters for enhanced security and automated alerts.
Package Includes
- 1 × LoRaWAN Solar Bluetooth Gateway
- Standard accessories for the selected configuration
- Digital product documentation
Other Information
Country of Origin: China
Warranty Information
1 Year Seller Warranty:
This item is covered with a standard warranty of 1 year from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What Voids Warranty:
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Shipping & Returns Policy
Shipping Policy:
- Delivery time within metro cities in India is 1-3 days; for other locations, it is 3-7 days. Delivery varies based on location and courier service.
- If the item is out of stock, the estimated delivery time is 7-14 days from order confirmation. Delivery varies based on location and courier service.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests from here: Return Request or contact us at 09831070550.
- Refunds are processed within 3-4 working days after inspection and approval.
Main Features
- Outdoor Tracking Precision (3m)
- iBeacon & Eddystone Compatibility
- Versatile Sensor Data Communication
- Wide Operating Temperature Range
- Geo-Fence
