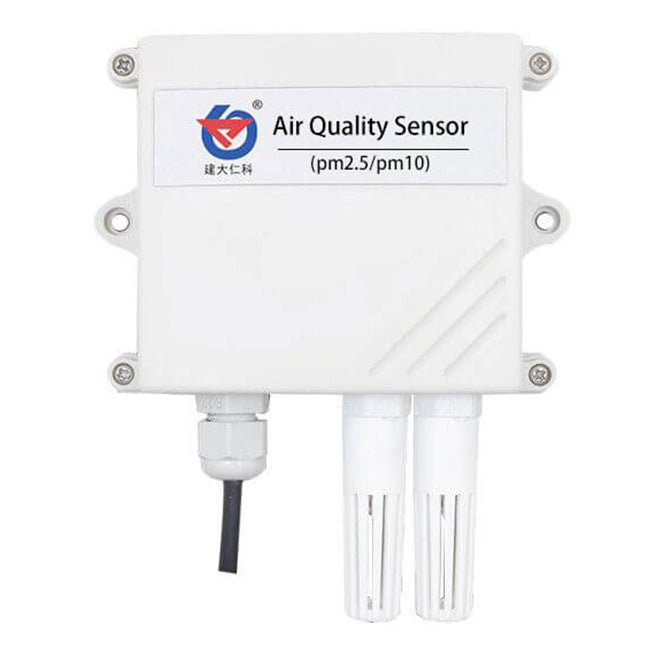

Renke RS-PM-N01-2 Air Quality PM2.5 PM10 Sensor -20℃~+60℃，0%RH~95%RH Non dewing (Type RS485)
Low Stock, 10 left
Explore more from this collection
Product Description

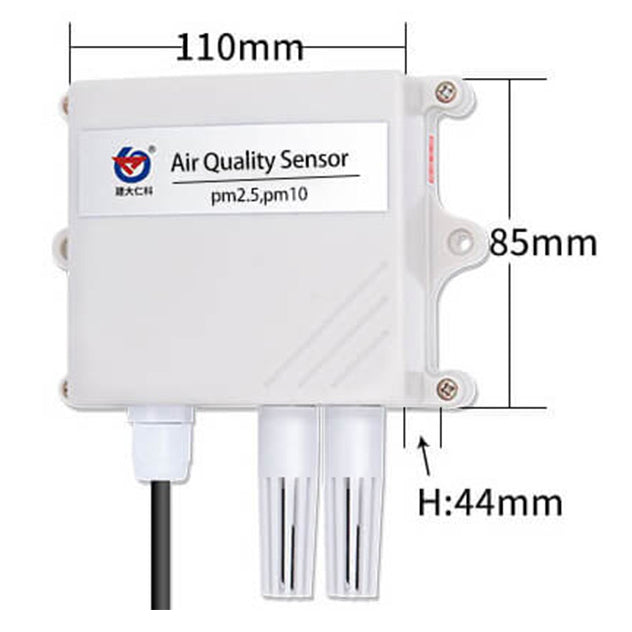

This pm sensor mainly adopts a wall-mounted installation method to detect the concentration of PM2.5 and PM10 in the room. The shell is made of high-strength waterproof material, which is not easily interfered with by water vapor and smoke in the air. This is an industrial cheap air quality sensor with high measurement accuracy and a wider range of use.
Note: The actual product may vary in slight variation with the image shown. Refer to the datasheet in the ATTACHMENTS section for more info. regd. the product.
Product Specifications
| Item Type | Sensor |
| Voltage Rating (VDC) | 10 to 30 |
| Operating Temperature (°C) | -20~+60 |
| Measurement Range | PM10: 0~1000ug/m3, PM2.5: 0~1000ug/m3 |
| Resolution | 1ug/m3 |
| Accuracy | ±3%FS(@100μg/m3,25℃,50%RH) |
| Output Signal | RS485/0-5v/0-10v/4-20ma |
| Shipping Weight | 0.22 kg |
| Shipping Dimensions | 15 × 15 × 6 cm |
Product Features
- Power Supply: 10-30VDC
- Operating Temperature: -20℃~+60℃，0%RH~80%RH
- Measure Range: PM2.5: 0~1000ug/m3, PM10: 0~1000ug/m3
- Resolution: 1ug/m3
- Accuracy: ±3%FS(@100μg/m3,25℃,50%RH)
- Responding Speed: ≤90S
- Preheat Time: ≤2min
- Output Signal: RS485/0-5v/0-10v/4-20ma
Package Includes
- 1 x Renke RS-PM-N01-2 Air Quality PM2.5 PM10 Sensor -20℃~+60℃
- 0%RH~95%RH Non dewing (Type RS485)
Other Information
Warranty Information
6 Months Seller Warranty:
This item is covered with a standard warranty of 6 months from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What Voids Warranty:
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Shipping & Returns Policy
Shipping Policy:
- Delivery time within metro cities in India is 1-3 days; for other locations, it is 3-7 days. Delivery varies based on location and courier service.
- If the item is out of stock, the estimated delivery time is 7-14 days from order confirmation. Delivery varies based on location and courier service.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests from here: Return Request or contact us at 09831070550.
- Refunds are processed within 3-4 working days after inspection and approval.
Main Features
- Range: 0-1000ug/m3, resolution 1ug/m3.
- PM2.5 and PM10 are output at the same time.
- Unique dual-frequency data acquisition and automatic calibration technology, the consistency can reach ±10%.
- Long service life, the overall warranty is 2 years in a normal environment.
SKU: 2EPTWO234
₹ 7,032.00
