SICK 1040970 IME18-08BPOZC0S Proximity Sensor, Inductive, 8 mm, PNP, M18 x 1, 10 to 30 VDC, IME Series
No reviews yet
Low Stock, 10 left
Product Description
IME18-08BPOZC0S is an IME series inductive proximity sensor. It offers precise detection, less downtime, and a long service life. The inductive IME sensors pack high technology into the smallest of spaces. The integrated ASIC chip enables digital adjustment after the end of the manufacturing process. The saving of values in the ASIC ensures highly precise switching points and very high repeatability of values for any number of production runs. IM sensors are completely encapsulated with hotmelt moulding, which greatly increases shock and vibration resistance. The customer benefits from high positioning accuracy in the machine and long-term reliability.
Product Specifications
| Detection Distance (mm) | 8 |
| Product Range | IME Series |
| Connection type | M18 x 1 |
| Shipping Weight | 0.05 kg |
| Shipping Dimensions | 12 × 9 × 4 cm |
Product Features

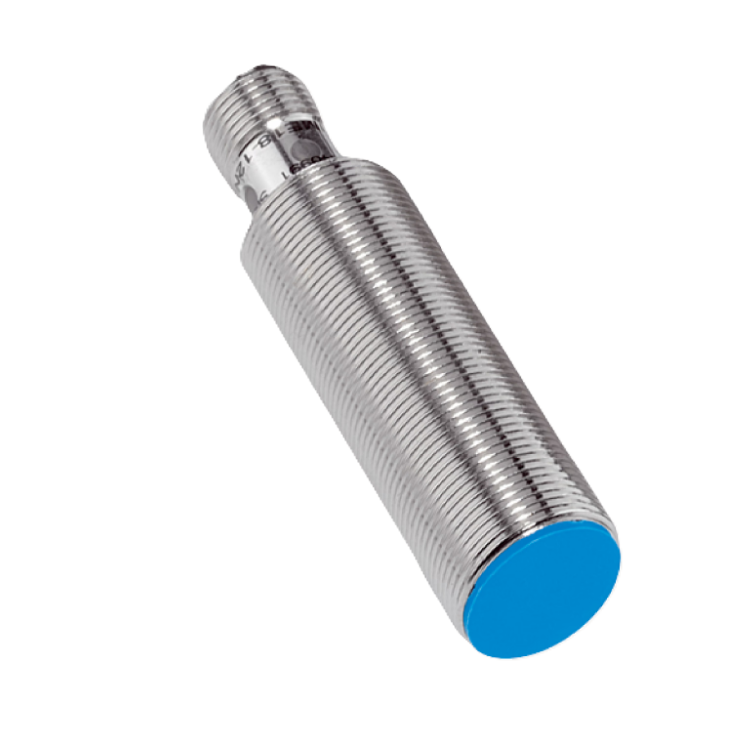

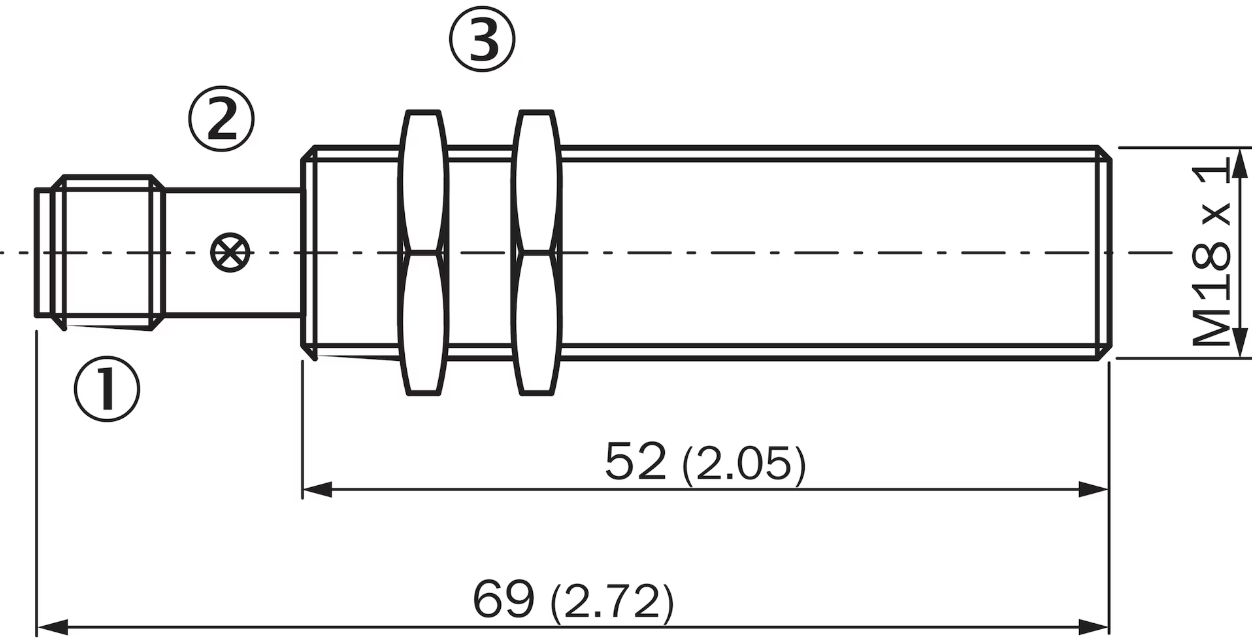

- Standard cylindrical thread design housing, M18 x 1 thread size, Ø 18mm diameter.
- 8mm sensing range Sn, flush installation type, 1000Hz switching frequency

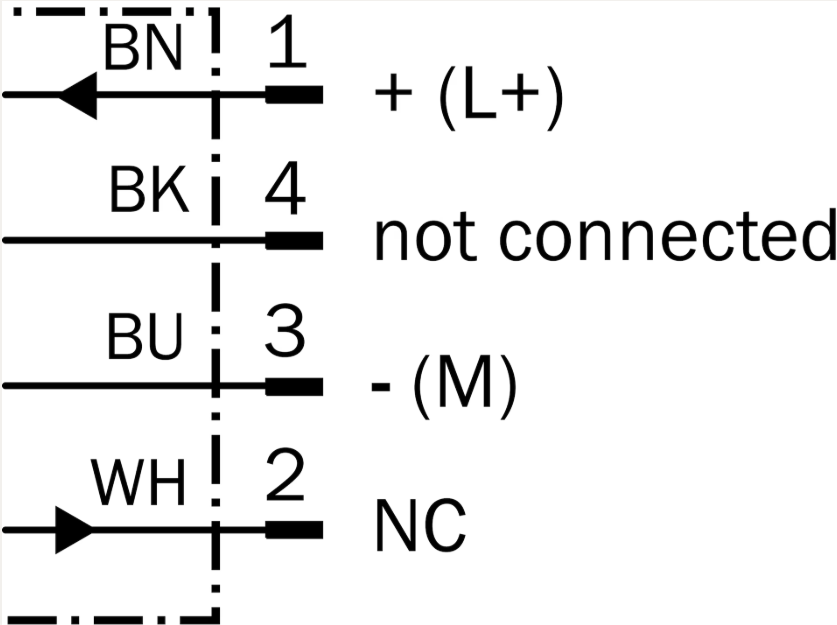

- Male connector M12, 4-pin connection type, PNP switching output
- 10VDC to 30VDC supply voltage
- Economic standard for use in industrial environments.
Package Includes
- 1 x SICK 1040970 IME18-08BPOZC0S Proximity Sensor, Inductive, 8 mm, PNP, M18 x 1, 10 to 30 VDC, IME Series
Other Information
Warranty Information
What Voids Warranty:
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Shipping & Returns Policy
Shipping Policy:
- Delivery time within metro cities in India is 1-3 days; for other locations, it is 3-7 days. Delivery varies based on location and courier service.
- If the item is out of stock, the estimated delivery time is 7-14 days from order confirmation. Delivery varies based on location and courier service.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests from here: Return Request or contact us at 09831070550.
- Refunds are processed within 3-4 working days after inspection and approval.
Main Features
- MPN: IME18-08BPOZC0S
- Sensing Range Max: 8mm
- Thread Size – Metric: M18 x 1
- Sensor Output Type: PNP
SKU: 2ETWO242
